Air con' parts needed

[Gazz]

I am retrofitting air con and need just about all the parts to hook up from an existing evaporator forward to the engine bay as I have everything for the cabin side except for the air con' control knobs.

Need - Drying container. Vibration damper. Brackets for same. Hoses. Elbows. Anything else you may have.

I will source a modern compressor in Australia and I have the compressor bracket already.

Do the above parts from an E24 fit an E9? Any other model?

Thanks in advance, Gary.



[sfdon]

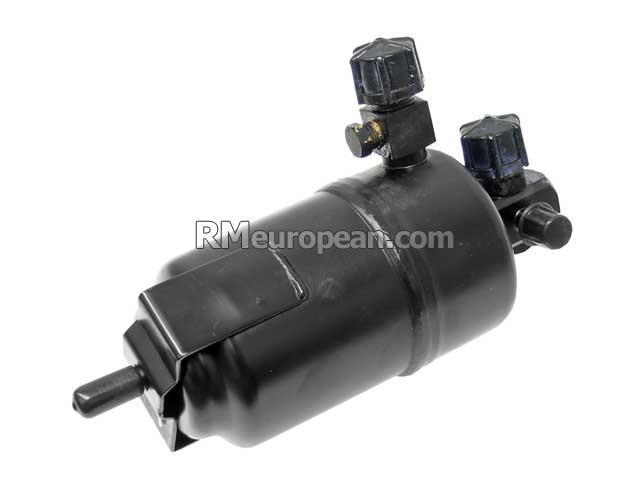

You want the Mercedes dryer
Available in Oz



[HB Chris]

Vibration damper not needed if converting to modern pump. If you want for correctness you will need to find a used one. Coupeking has the hard lines from interior to engine bay but they are pricey.



[sfdon]

Or from states- on special this week.
Everything seems to be cheaper here!



[bluecoupe30!]

Thanks for this Don. Just ordered 1, so now there are 9!



[Gazz]

Don - The E9 community would be a far poorer place without this Prince.



[mulberryworks]

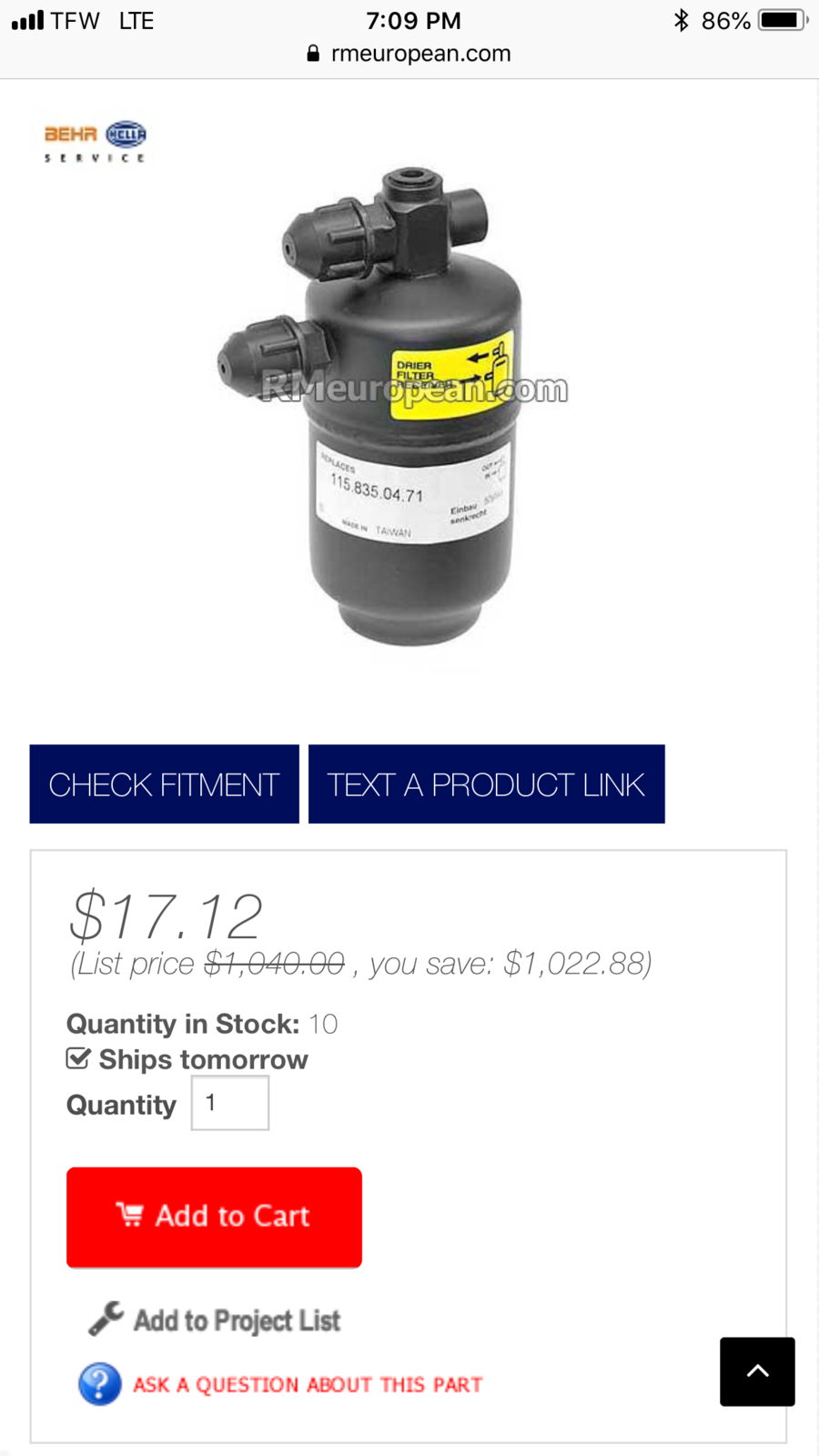

I'm in the middle of reading Rob Siegel's AC book, Just needs a recharge. Does that MB dryer have flare connections or O ring connections? An important consideration if you are replacing items with new ones as the O rings seal better but require different hoses and connections. The MB dryer caps make it look like a flare connection. The RMeuropean site makes it hard to find things that aren't OEM for your car, you have to choose a different car, and then search for parts. I picked an '85 535 and found this dryer which looks to have O ring connections and a similar price.
Sooo many choices....
