Aircon temperature control broken

[TomHom]

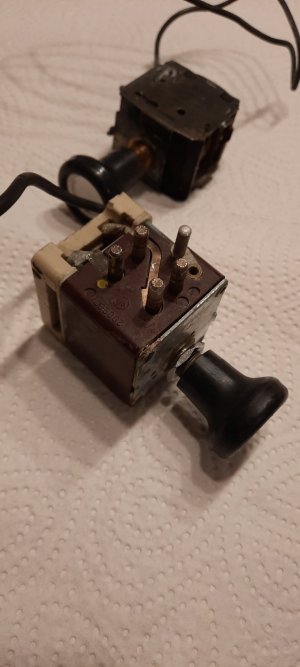

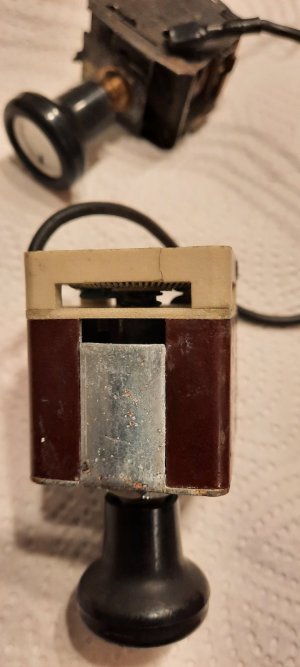

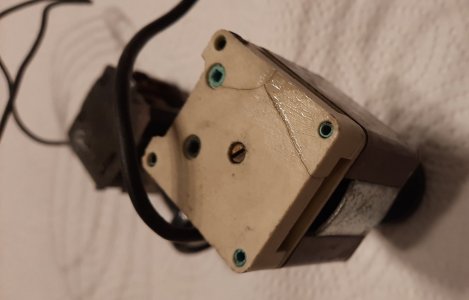

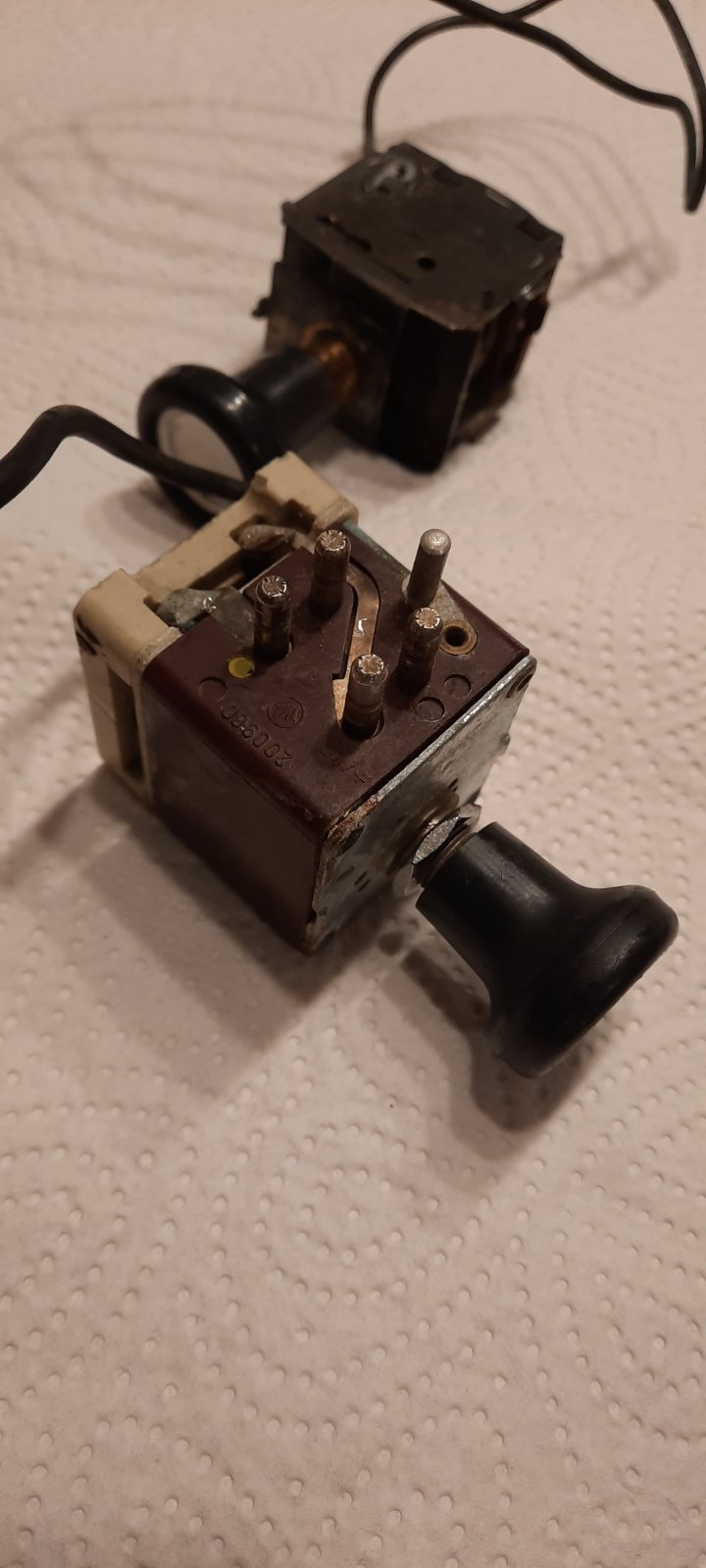

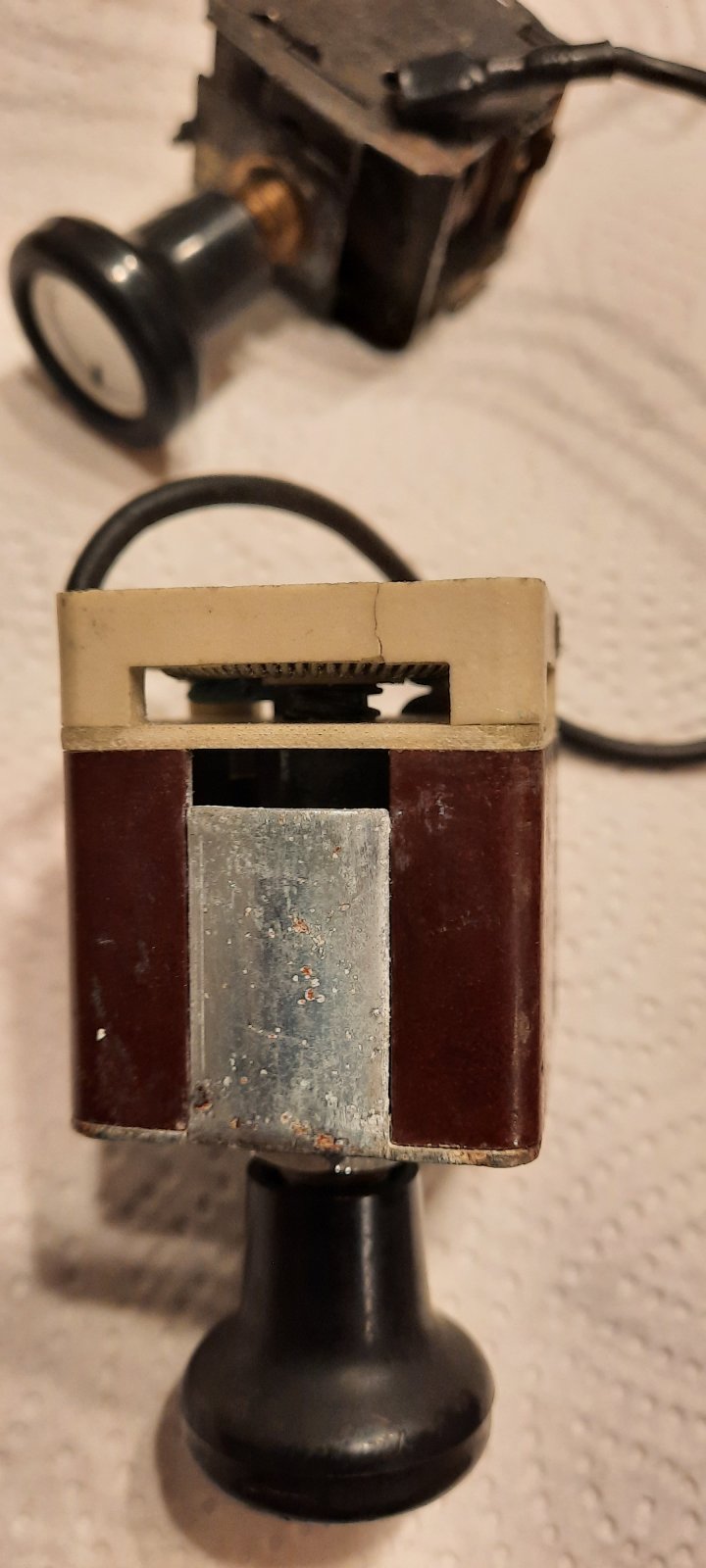

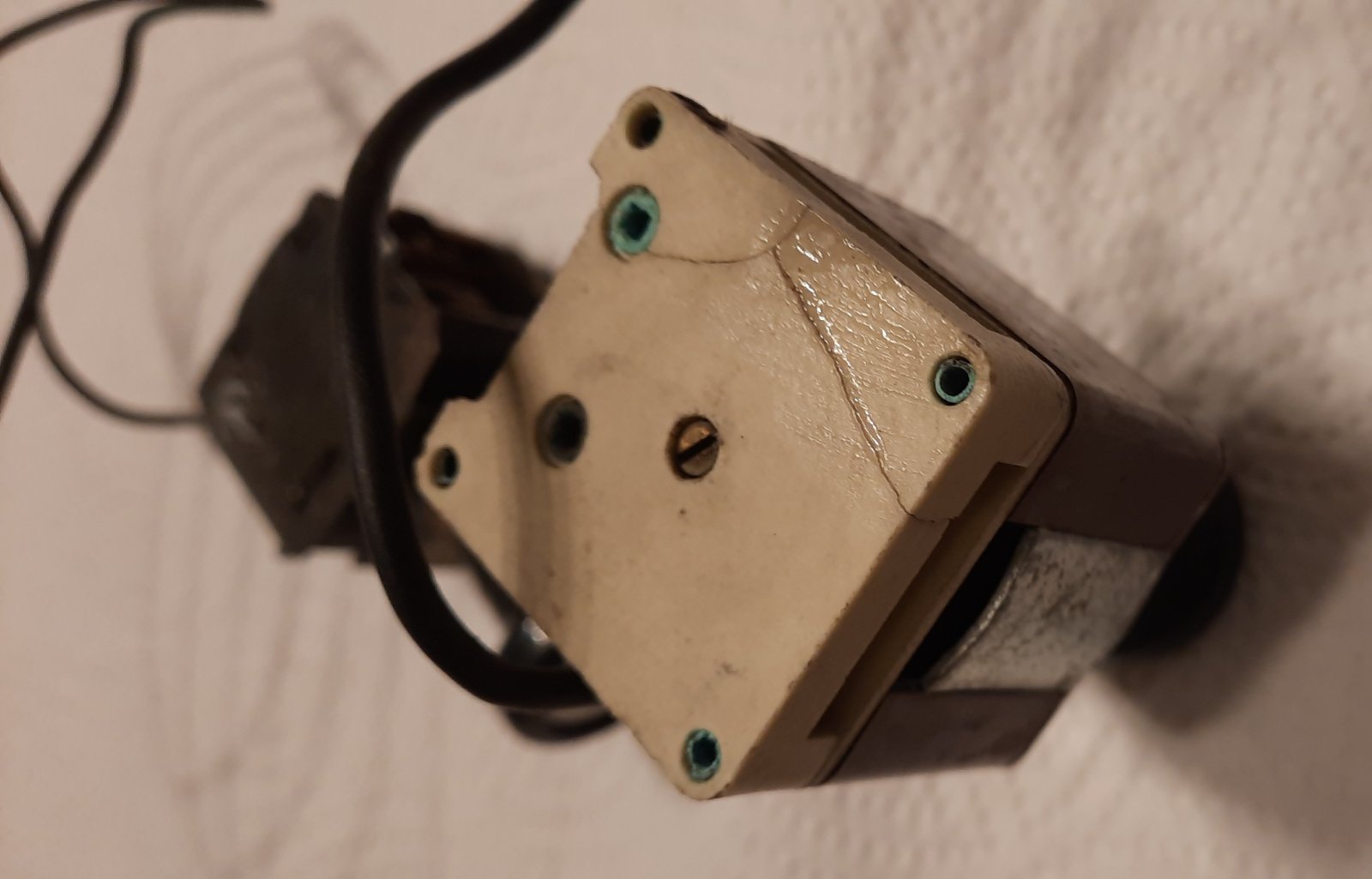

The ceramic mount of the potentiometer is broken. Applying super glue will surely not last long.
Any idea for repair or replacement?
Thomas



[2000CS]

Quick search reveals some potential problems with dried superglue - possibly flammability and release of toxic substances!

Ceramic is holder/insulator for (hot!) wound resistor wire. Wouldn't use super glue due to heat but applying a modern high heat epoxy coating that would lend structural strength should add a few years. Hollow rivets might allow mounting a backing plate - sounds like a project for someone.



[sfdon]

Those haven’t been made since 1992. We replace with a simple low, high switch that doesn’t heat up. Plug and Play.



[TomHom]

Thanks Don!



[TomHom]

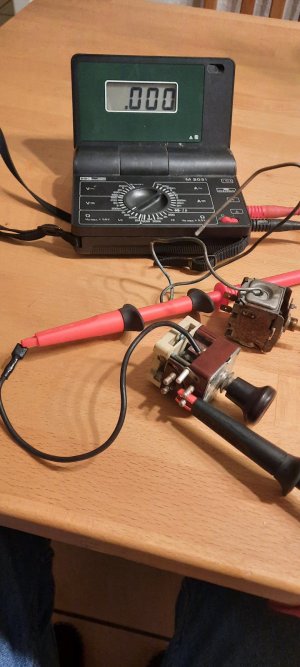

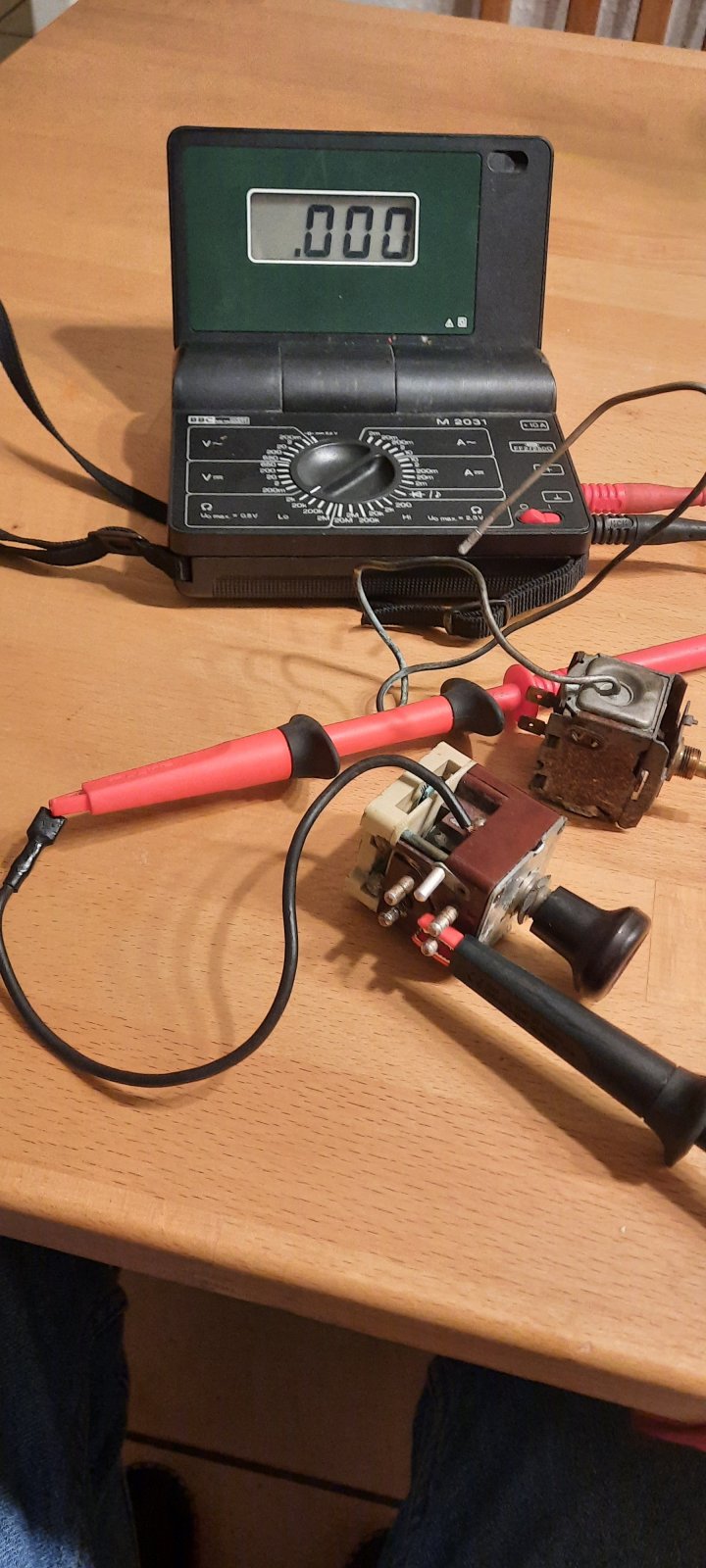

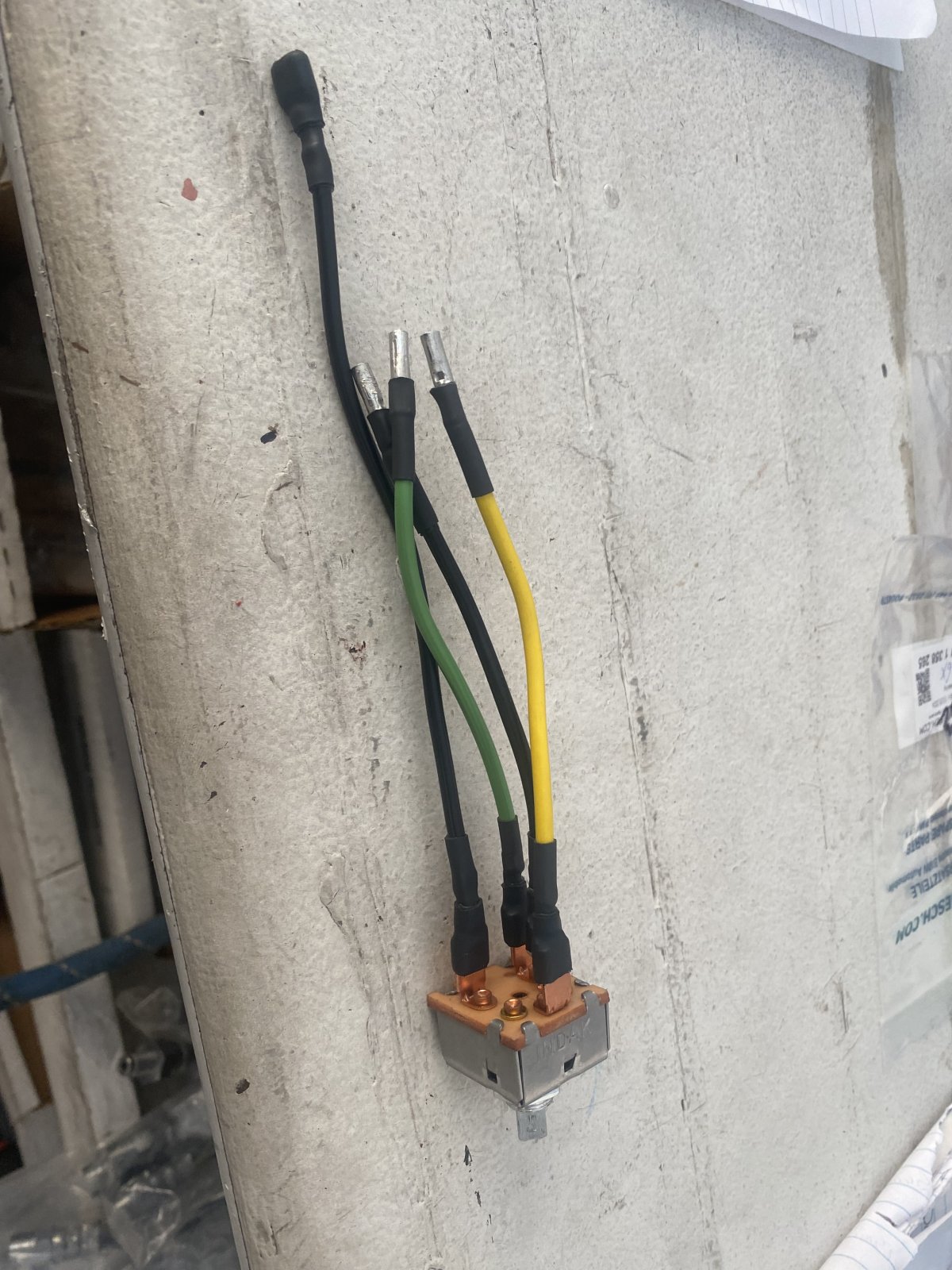

Just learned that there is a switch of the same type available for MB:

Gebläseschalter mit Bedienknopf (defrost) W110,111,112, 113

MB Classics Gebläseschalter mit Bedienknopf " Defrost " passend für folgende Modelle: W110 100 000, 001, 002, 003, 004, 005, 010, 011, 100, 101, 104, 110 W1

www.mbclassics.de

Quite expensive but fits to our plug



[2000CS]

They haven't been made for a while but that never stopped me before.
Doesn't look like there is a provision for powering up the thermostat (or relay depending on year - 5th pin?)
Don't see a wire



[TomHom]

You are right, it's missing.
I'm just starting to understand the function:

Is there a circuit diagram available?



[sfdon]

The single black wire powers the thermostatic switch that turns on the compressor.
Two versions- early and late.



[2000CS]

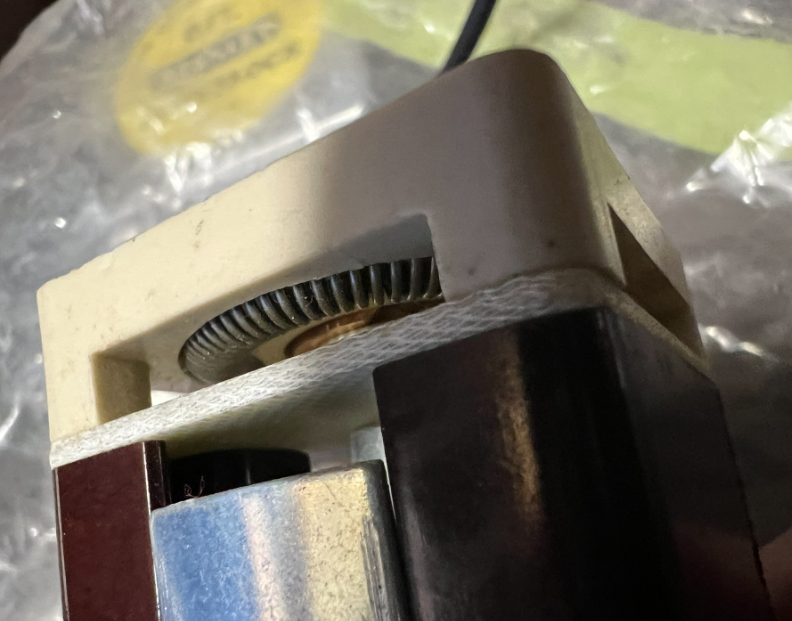

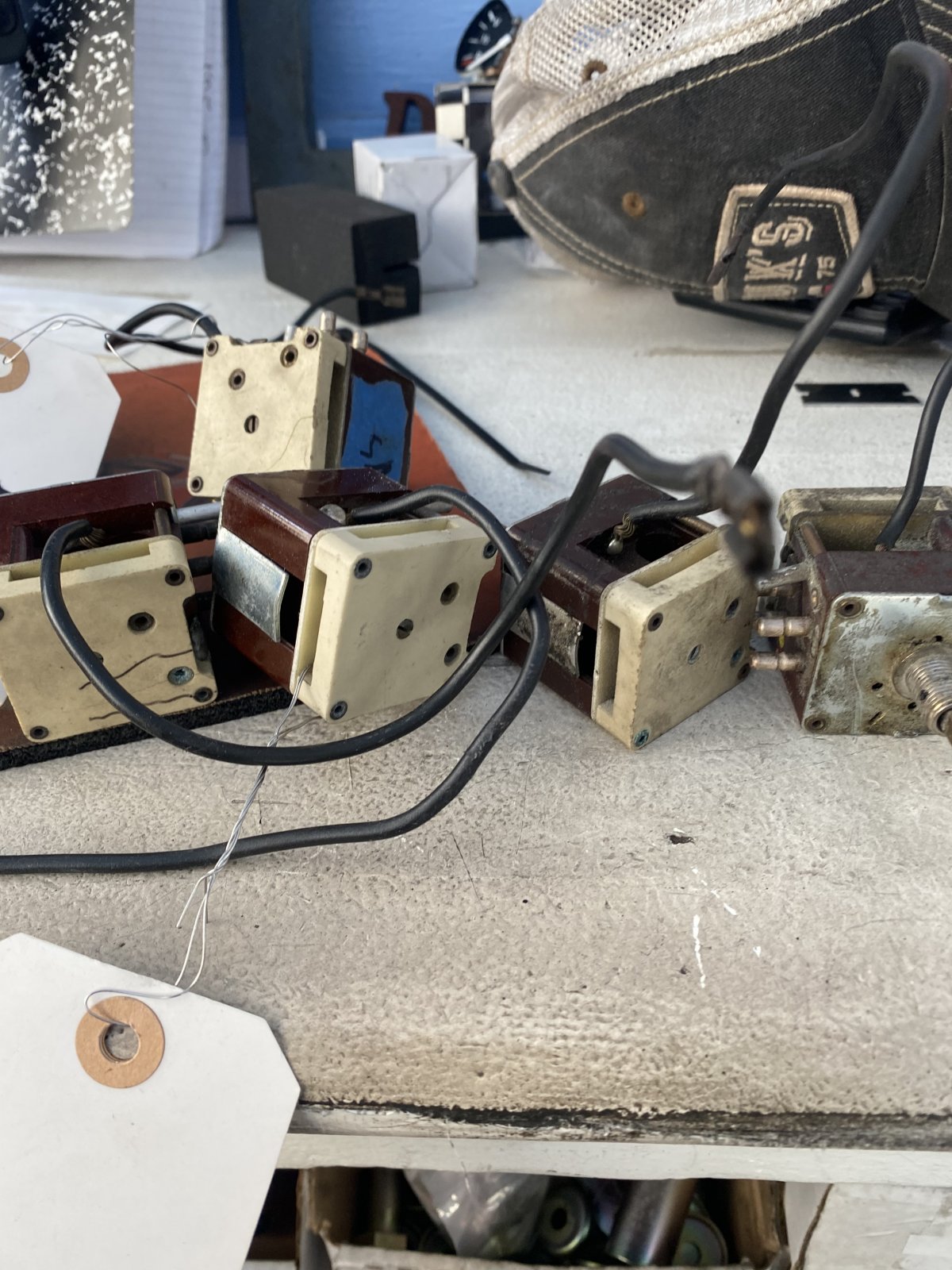

The one with the tag looks pretty new!



[sfdon]

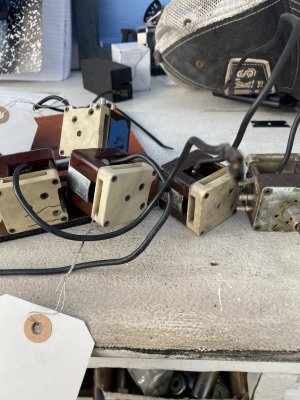

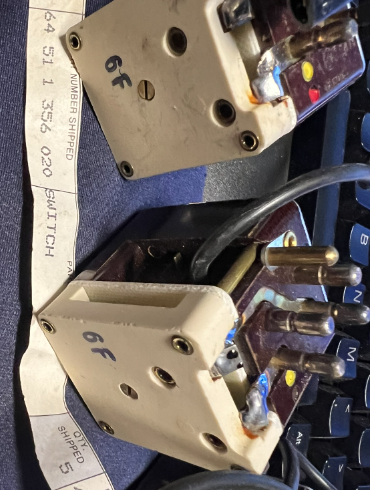

I bought 6 from a dealership in Egypt that was liquidating their inventory.



[Dlc]

@TomHom:

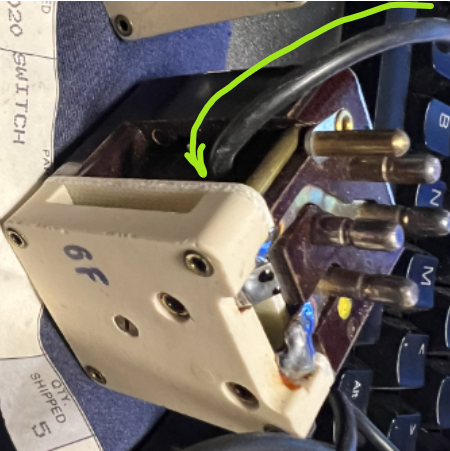

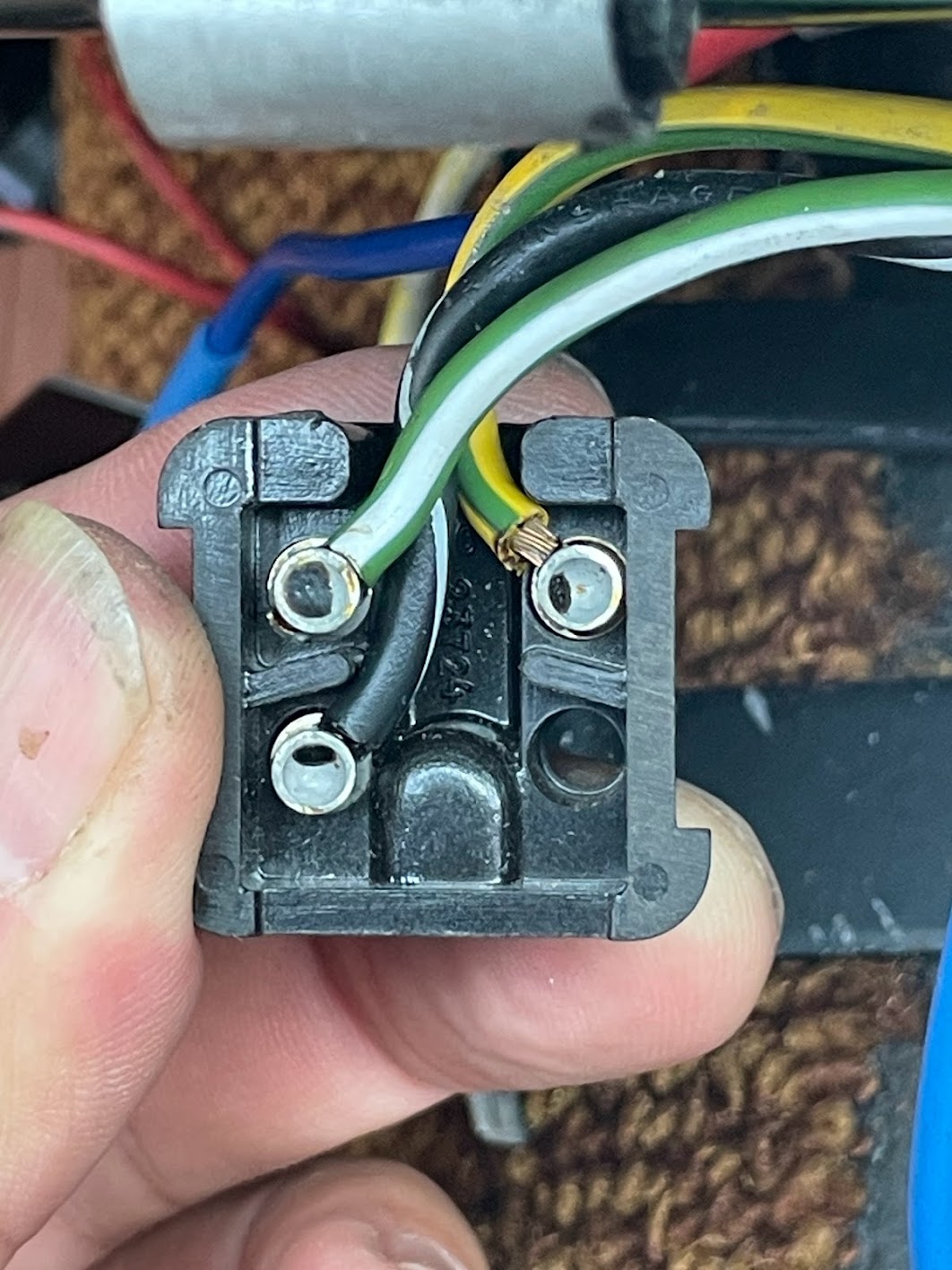

the inside of the connector for this switch (repro from Gerhard):

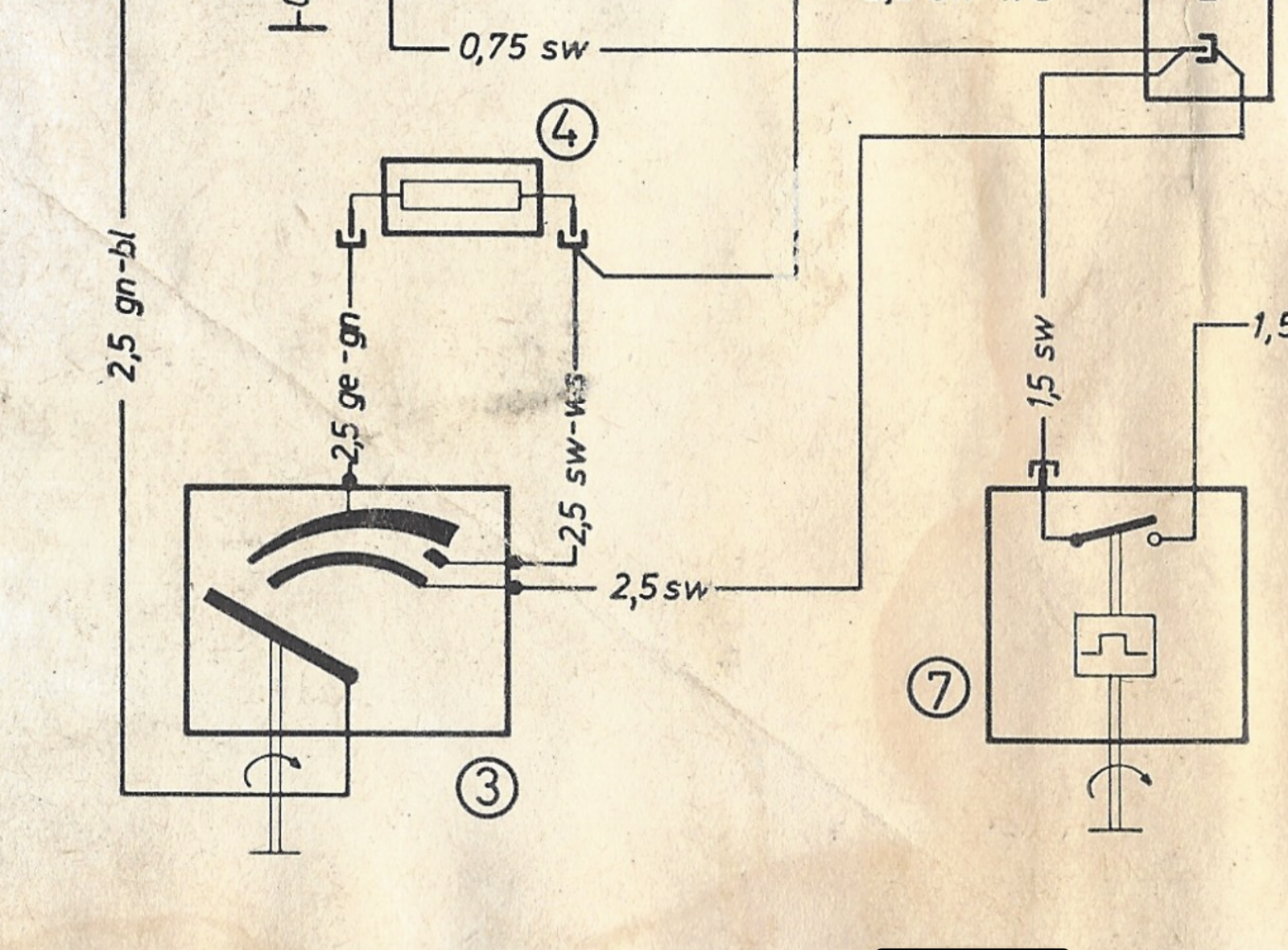

the wiring diagram:
