Anyone have Bmw m12 drive shaft guibo bolts

bavarian

bavarian

Well-Known Member
Messages
204
Reaction score
47

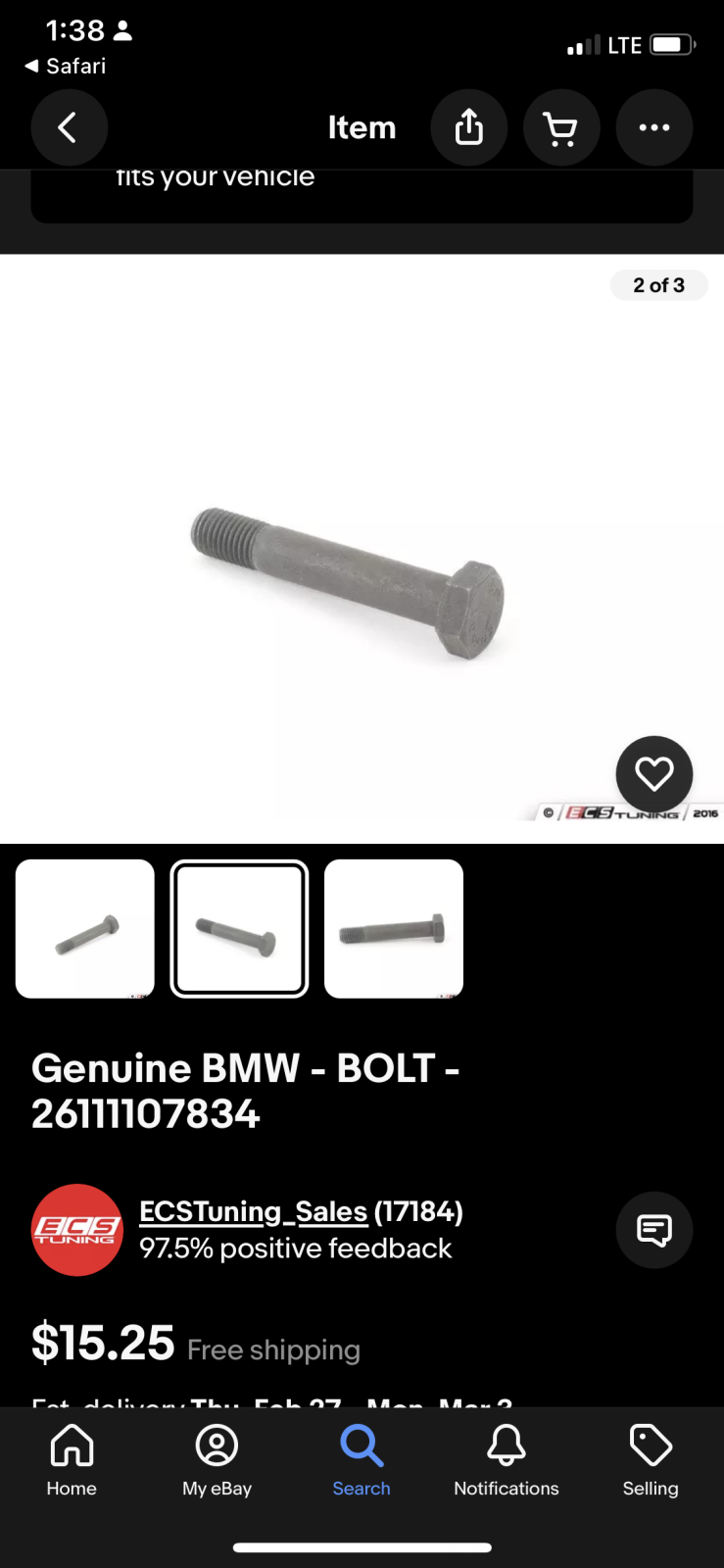

Bmw m12x1.5 x 70mm I need these shipped to La , new they’re very expensive so was looking for used cheaper alternatives , they should be 10.9 grade


The thing about these is they have a very small amount of thread compared to most common m12 bolts the unthreaded sleeve fits snug agains the guibo and I believe it keeps it where it’s supposed but thanks for suggestions I’ll check them out

bavarian said:
The thing about these is they have a very small amount of thread compared to most common m12 bolts the unthreaded sleeve fits snug agains the guibo and I believe it keeps it where it’s supposed but thanks for suggestions I’ll check them out
Click to expand...
I doubt that, as the diameter of a bolt is not very accurate, so they can't be used to center parts while mating them. Even the shaft can be as small as 11.4mm for an m12 following the corresponding ISO standard. Thus still being "loose" in the hole.

Usually short length threads are used as it's cheaper to make em like that.

So with that bit of info, I could myself happily choose a generic full length thread m12 10.8 bolt.

I have used the standard m12 with the correct length but longer threads , and after removal I seen all the threads got beat up and yes centered it tightened it with permatex and tighten evenly I really do think the bolt wall matters this is a piece with no dowels and sees constant pressure

bavarian said:
Bmw m12x1.5 x 70mm I need these shipped to La , new they’re very expensive so was looking for used cheaper alternatives , they should be 10.9 grade
Click to expand...
I just replaced my M12 Guibo bolts and nuts. The bolts are 10.9 grade and were about $10 per bolt and nut. The 5 year old bolts didn't need to be replaced,so I have a set if you want to buy them. They are 70 mm long with 32mm of thread.

Drew Gregg said:
I just replaced my M12 Guibo bolts and nuts. The bolts are 10.9 grade and were about $10 per bolt and nut. The 5 year old bolts didn't need to be replaced,so I have a set if you want to buy them. They are 70 mm long with 32mm of thread.
Click to expand...
Yes I’m interested how much and would you have a picture of them just to make sure

My experience…you absolutely want the correct bolt. If all six have no shoulder imagine the vibration going on or off throttle. I had one of six get loose and could immediately feel a driveline vibration. Last thing you want is vibration going up the main shaft of your transmission.

I have two friends injured, one almost fatally from guibo failure….more related to driveshaft to output engagement but still, do not mess round here.

Al Taylor

eriknetherlands said:
I doubt that, as the diameter of a bolt is not very accurate, so they can't be used to center parts while mating them. Even the shaft can be as small as 11.4mm for an m12 following the corresponding ISO standard. Thus still being "loose" in the hole.

Usually short length threads are used as it's cheaper to make em like that.

So with that bit of info, I could myself happily choose a generic full length thread m12 10.8 bolt.
Click to expand...

yes,
for this specific application in which even the guibo "holes" are made of two sides on bent steel in the shape of a square, not even a cilinder.
but short thread ones look much better
