Check your rocker panel drain holes!

Discussion in 'E9 Projects and Restorations' started by Stevehose, May 27, 2017.

  1. Stevehose

    Stevehose Well-Known Member Site Donor $

    View My Showcase
    Messages:
    8,722
    Likes Received:
    1,142
    Trophy Points:
    113
    Location:
    New Orleans, LA
    Hear me now and believe me later, if you haven't physically cleaned out the 5 drain holes on each rocker, do yourself a favor and pull off the covers asap and run a zip tie or metal wire up each one to verify they are clean.

    I confirmed the reason why my driver side carpets got soaked on the way home from the Vintage, rain came in the rear side window, filled up the rocker because the drains were plugged, and spilled into the floors.

    Here's the body count: the driver side had 4 of the 5 holes plugged, and the front and rear ones were also bent closed! Probably from improper jacking or who knows, I had to bend them open then clean them out. I also noticed that the rear most drain doesn't seem to empty out the rocker like the others, it drains the area between the rear wheel arch and the body panel. Confirmed by spraying rust converter in that area vs down into the rear most point of the rocker which drains out the second to back hole. Fun stuff.

    The passenger side, although dry, had the front and rear drains clogged and bent. Nasty and I feel like an idiot for not checking these even though I take the covers off annually to clean underneath.

    Check yours! Here are some ugly pics to show you why.

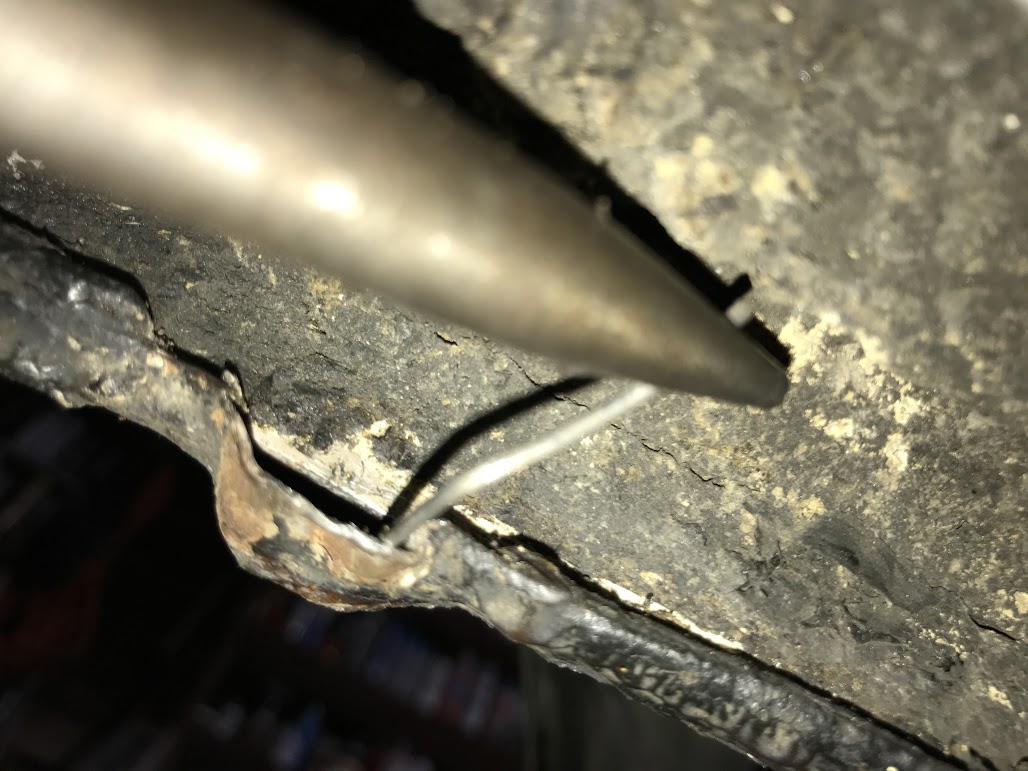

    Each drain has a little opening bent into the inside rocker, this one needed a wire to break through the crap, then a zip tie to further break up the sludge:

    [​IMG]

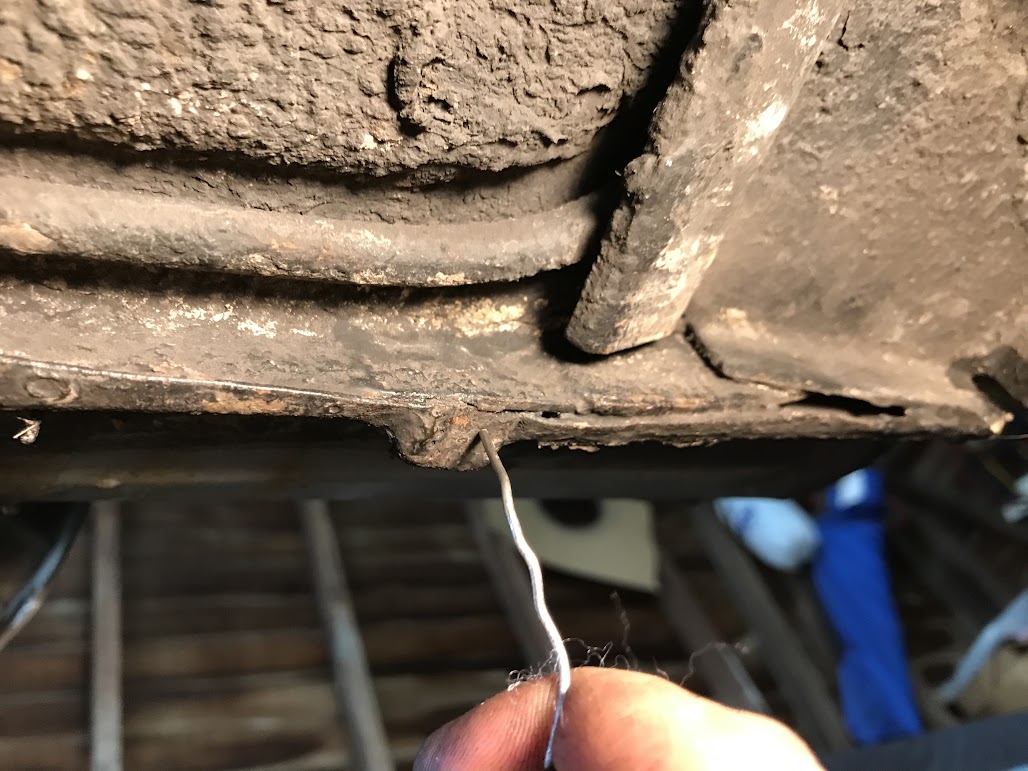

    On the end of the wire is a mixture of water and silt turned into a paste:

    [​IMG]

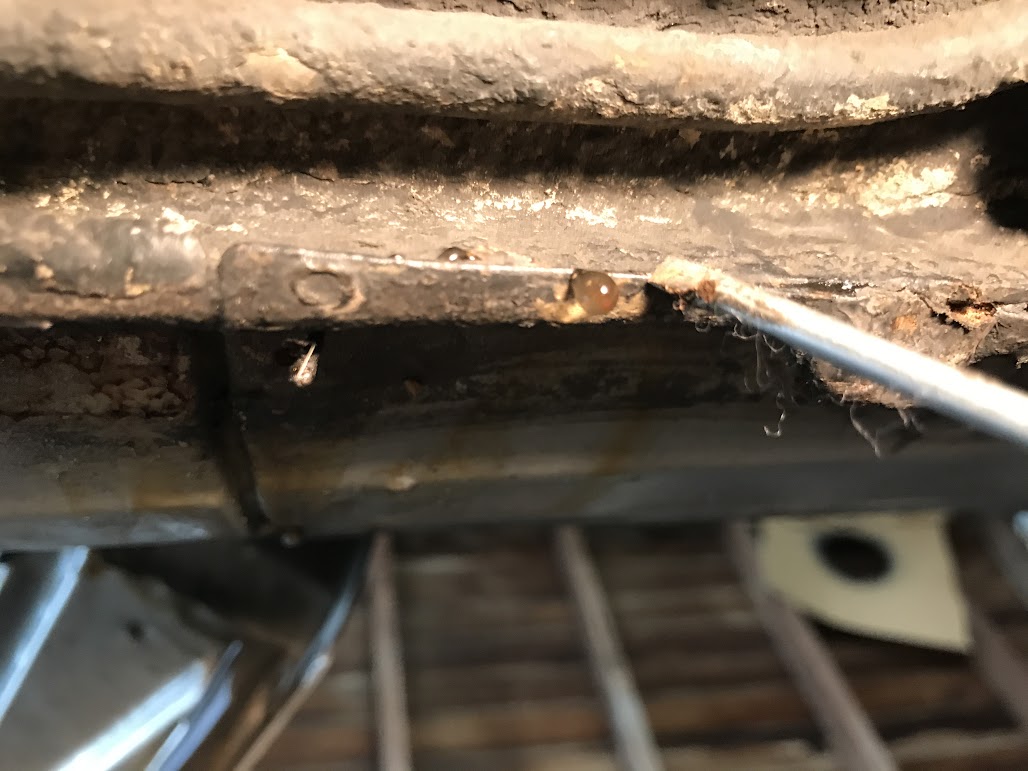

    This one was bent closed and full of crap:

    [​IMG]


    Surprise, last week's water came out!

    [​IMG]

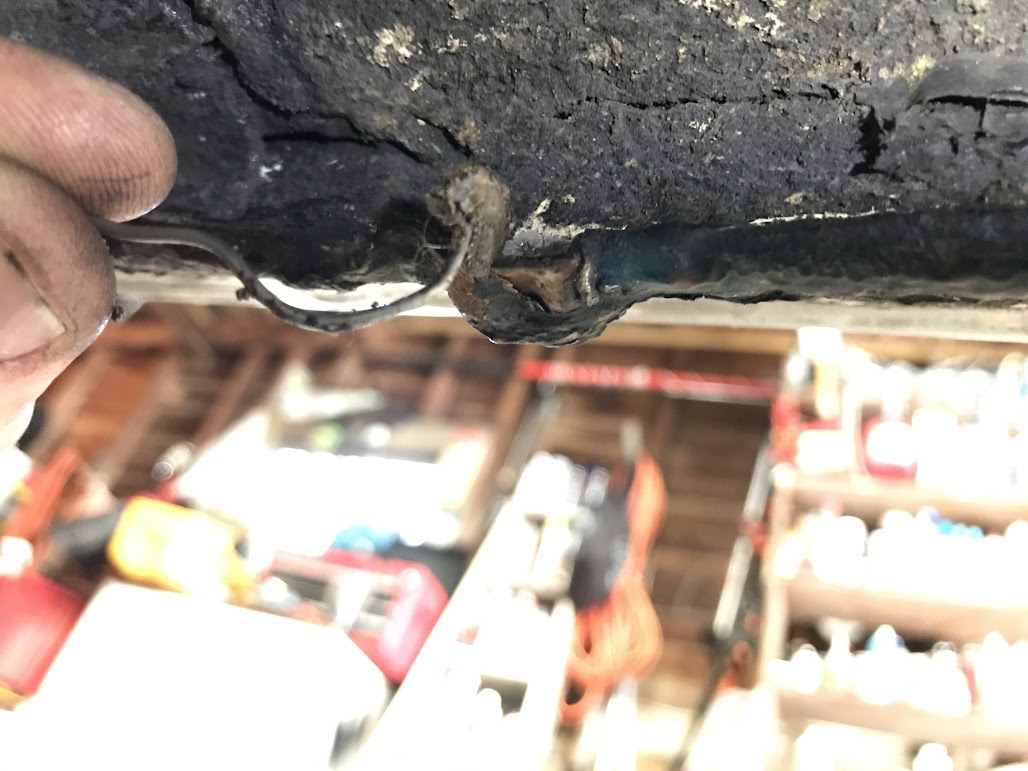

    Sh!t from the front driver side drain:

    [​IMG]

    I've flushed the rockers with POR-15 metal prep rust converter then tomorrow will cavity wax. Then I will treat any outer surface rust and repaint. Luckily the rockers are in good shape because when I got the car I cavity waxed in there, but that was 7 years ago.

    Also check your frame rail drains, there are 3 each side, at the bottom of the first downward bend from the engine compartment, at the bottom of the slope where it ends at the floors, and in the inboard vertical side near the tranny bracket.

    You've been warned :D

    Last edited: May 28, 2017
  2. teahead

    teahead aka "Rob" Site Donor

    Messages:
    3,456
    Likes Received:
    600
    Trophy Points:
    113
    Location:
    Seattle, WA, USA
    Got any pics of the frame drains?

    Why would water leak through the rear window?

  3. Stevehose

    Stevehose Well-Known Member Site Donor $

    View My Showcase
    Messages:
    8,722
    Likes Received:
    1,142
    Trophy Points:
    113
    Location:
    New Orleans, LA
    Sorry, I meant rear side window. Pics:

    Front rail drain:

    [​IMG]


    Side drain:

    [​IMG]


    Rear drain:

    [​IMG]

    Bmachine and mulberryworks like this.
  4. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,778
    Likes Received:
    497
    Trophy Points:
    83
    Location:
    bilbao
    wow, that might contain primary bacteria from the sixties, something to bring to mars and recreate a better world there ;-)

    Nicad likes this.
  5. bluecoupe30!

    bluecoupe30! Active Member Site Donor $

    Messages:
    954
    Likes Received:
    214
    Trophy Points:
    43
    Location:
    Delta, British Columbia, Canada
    Yikes! Thanks for the head up and excellent photos. Off to check...

  6. autowerks

    autowerks Active Member Site Donor

    Messages:
    561
    Likes Received:
    80
    Trophy Points:
    28
    Location:
    Dallas, Texas
    Thanks for the photos and the info or DO NOT drive your car when it rains

  7. teahead

    teahead aka "Rob" Site Donor

    Messages:
    3,456
    Likes Received:
    600
    Trophy Points:
    113
    Location:
    Seattle, WA, USA

    ya, but don't you guys still need to wash your car???

  8. Stevehose

    Stevehose Well-Known Member Site Donor $

    View My Showcase
    Messages:
    8,722
    Likes Received:
    1,142
    Trophy Points:
    113
    Location:
    New Orleans, LA
    Easier said than done when you go to long distance events. Or get trapped by a freak thunderstorm which is often the case here. I just never put it away wet.


  9. autowerks

    autowerks Active Member Site Donor

    Messages:
    561
    Likes Received:
    80
    Trophy Points:
    28
    Location:
    Dallas, Texas
    Never washed since repainted, use wet ultra soft microfiber towels to dust it every 3 to 4 days. Steve I bid you have a rust free car if you drive it when there is chance of rain, mine has rust

  10. oneills

    oneills Well-Known Member

    Messages:
    2,278
    Likes Received:
    235
    Trophy Points:
    63
    Location:
    Bucks County, PA
    Steve, I suspect this was "real news" for many of us. Question, should we consider drilling more holes or opening the existing ones with a wider diameter drill bit? If we do drill new holes should there be one closer to the front and rear to facilitate better draining?

    Thanks, Steve

  11. Stevehose

    Stevehose Well-Known Member Site Donor $

    View My Showcase
    Messages:
    8,722
    Likes Received:
    1,142
    Trophy Points:
    113
    Location:
    New Orleans, LA
    I think they'll drain fine as is if checked periodically. They are rectanglar, about 1/4" x 1/2" so keep them clean and use cavity wax and all should be ok.


  12. Philippe db

    Philippe db Active Member

    Messages:
    715
    Likes Received:
    195
    Trophy Points:
    43
    Location:
    Belgium
    Hi Steve,

    Could you elaborate a little on these drains. Didn't spend much time yet under my car but the few times I had the opportunity to look at its belly I just can't recall ever seeing these holes.

  13. Stevehose

    Stevehose Well-Known Member Site Donor $

    View My Showcase
    Messages:
    8,722
    Likes Received:
    1,142
    Trophy Points:
    113
    Location:
    New Orleans, LA
    You first have to remove the long rocker covers, then you will see the small rectangular folds in the metal that make up the drains as Sven shows and the other pics here. They're not very noticable at first but you'll find them.


    Last edited: Jun 26, 2017
  14. Bmachine

    Bmachine Well-Known Member Site Donor $$

    Messages:
    1,747
    Likes Received:
    308
    Trophy Points:
    83
    Location:
    Northern California coast
    I think Philippe was referring to the frame rail holes.

  15. eriknetherlands

    eriknetherlands Active Member

    Messages:
    601
    Likes Received:
    217
    Trophy Points:
    43
    Location:
    Netherlands, Eindhoven area
    here's a quick line up of how the outer layers of the sill are build-up, looking at the right side of the car ( last pic in the line; i used the images of Walloth &Nesch; very good parts b.t.w.)

    - the red line's indicate how the different parts line up,
    - the black part is the outer, screw-on, decorative sill; 'trim' in BMW terms. That should be the thing you see when on your knees. It has 6 cut-outs, under which you will find 6 other drains;

    - 3 drains are pressed into in the lower quarter panel with the jacking point. (green in the image, thus also green in the decorative trim as well) The center drain is 3 times wider, as it has beneath it the drain of the outer sill.
    - 3 drains are in the outer sill, one behind the quarter panel, 2 that are only hidden by the decorative trim
    - 1 drain is in the front bottom of the wheel arch Its purple in my pic, thus also purple on the outer sill .

    Now the black decorative trim actually has a gap of a few mm to the inner sill, running all the way from front wheel to back wheel with the outer sill, apart from the locations of the drains where the sheets are actually touching. (see image PC050107 of the BMW on display at the BMW museum in Munich). However due to improper lifting of our cars by previous owners, this gap is usually closed. (or current owners; I dented it also before reading in this forum how it should be done ) . Also some more pics showing detail of the outer trim.

    My right frame rail has just 2 openings in the bottom, included is a pic of a naked rail for reference. I can get measurements easily if needed. let me know. I can however not detect the 'over flow' hole mentioned in nextpost, in my quite clean rails, there is no trace of them.....perhaps a build difference from year to year?


    Attached Files:

    Last edited: May 29, 2017
    Bmachine and mulberryworks like this.
  16. Stevehose

    Stevehose Well-Known Member Site Donor $

    View My Showcase
    Messages:
    8,722
    Likes Received:
    1,142
    Trophy Points:
    113
    Location:
    New Orleans, LA
    Doh yes, thanks, i don't read very well sometimes.

    There are 3 holes as pictured, they start at the bottom of the curve where the rail exits the engine compartment at the passenger compartment, about a 8mm hole there. Farther back the frame rail tapers into the passenger compartment, where this angle begins to slope up there is a smaller hole, about 6mm. On the inboard side of the frame rail across from the transmission bracket is anothe 8mm hole, this looks like an overflow hole if it fills up.

    There may be more drain holes in the frame rails under the engine but I have not looked there yet.


    Bmachine likes this.
  17. mulberryworks

    mulberryworks Active Member Site Donor

    View My Showcase
    Messages:
    782
    Likes Received:
    170
    Trophy Points:
    43
    Location:
    Austin TX
    The problem with drilling new holes is you've just created a raw steel surface for rust to attack. Proper priming and paint should follow any such procedure. I'd only consider that if I was in the middle of a restoration so I could be assured of a completely unbroken paint film. However, the stock ones should be fine if kept clean and there isn't a lot of crud in the spaces to block them up.
    Me? I have a lot of crud to deal with before painting anything. The frame rails look bad enough I'll remove enough floor to be able to clean and prep them thoroughly. 2800CS photos 1-16 022 Frame rail crud.jpg IMG_4459 Lower right front fender crud.JPG

    Last edited: May 29, 2017
  18. Philippe db

    Philippe db Active Member

    Messages:
    715
    Likes Received:
    195
    Trophy Points:
    43
    Location:
    Belgium
    Thanks guys. Dove under the car and found all 4 of them like in Erik's picture. All fully functional. Will sleep well this night.

    Bmachine likes this.
  19. adawil2002

    adawil2002 Well-Known Member Site Donor $$

    View My Showcase
    Messages:
    3,051
    Likes Received:
    509
    Trophy Points:
    113
    Location:
    Brunswick, Maine
    This is an excellent thread and advice.

  20. Bmachine

    Bmachine Well-Known Member Site Donor $$

    Messages:
    1,747
    Likes Received:
    308
    Trophy Points:
    83
    Location:
    Northern California coast
    Excellent info and pictures, Erik. Well bedankt.

    I will have to double check tonight but if I remember correctly, my car does not have any holes in the bottom of the frames rails. Mine is a '74.
    http://www.e9coupe.com/forum/threads/what-is-the-purpose-of-the-holes-in-the-frame-rails.22306/

    bmwsydney likes this.
