Coupe Horn Mounting

Discussion in 'E9 General Discussion' started by pickman, Feb 4, 2019.

  1. pickman

    pickman Member Site Donor

    Messages:
    103
    Likes Received:
    13
    Trophy Points:
    18
    Location:
    South Haven Michigan
    I understand where the two horns are located but not how they are mounted, I have gone thru both the blue and white manuals and they do not show the mounting holes or the attitude can anyone provide this detail please?

  2. WALTER

    WALTER Active Member Site Donor

    Messages:
    485
    Likes Received:
    60
    Trophy Points:
    28
    Location:
    WASHINGTON, D. C.
    From what I remember, the horn has a bracket around it and there is a bolt (13 mm I think) that fastens the bracket to the car. IIRC that bolt can be found when the access panel for the headlight is removed; it should be right there at the top. Someone please chime in if I am off.

    Markos likes this.
  3. HB Chris

    HB Chris Well-Known Member Site Donor $$

    View My Showcase
    Messages:
    10,812
    Likes Received:
    1,300
    Trophy Points:
    113
    Location:
    Huntington Beach, CA
    Correct, and you can see the head of the bolt on the horizontal rad panel next to the access doors. There is a flat piece of metal strap that is maybe 3-4” long holding the horn.

  4. HB Chris

    HB Chris Well-Known Member Site Donor $$

    View My Showcase
    Messages:
    10,812
    Likes Received:
    1,300
    Trophy Points:
    113
    Location:
    Huntington Beach, CA
    Lower right corner


    Markos and m5bb like this.
  5. m5bb

    m5bb Well-Known Member Site Donor $

    View My Showcase
    Messages:
    1,451
    Likes Received:
    204
    Trophy Points:
    63
    Location:
    Peachtree Corners, GA
    The bracket/bar slides into this slot and the bolt comes down from the top to a blind nut and secures it to the body. I never had a good photo of this and took me a few days to figure it out.

  6. pickman

    pickman Member Site Donor

    Messages:
    103
    Likes Received:
    13
    Trophy Points:
    18
    Location:
    South Haven Michigan
    Thank you all for the detail I'll take a look today and once mounted w

  7. pickman

    pickman Member Site Donor

    Messages:
    103
    Likes Received:
    13
    Trophy Points:
    18
    Location:
    South Haven Michigan
    I think I found the Driver side horn mounting location however the attached is a photo of the passenger side sheet metal. I don't know what the rectangular holes are for and the horn mounting is different than the driver side . With the large nut holding the mounting bracket there is only a few options to figure out. Any advice on the other rectangular holes?


    Attached Files:

  8. rsporsche

    rsporsche Well-Known Member Site Donor $$

    Messages:
    7,329
    Likes Received:
    990
    Trophy Points:
    113
    Location:
    Atlanta, GA
    they don't mount on the vertical metal, they mount on the horizontal metal above where you are.

  9. Simufly

    Simufly Active Member

    View My Showcase
    Messages:
    999
    Likes Received:
    106
    Trophy Points:
    43
    Location:
    Cheshire UK.
    From memory they are the rad mounting bracket for the wide (auto) radiator

  10. pickman

    pickman Member Site Donor

    Messages:
    103
    Likes Received:
    13
    Trophy Points:
    18
    Location:
    South Haven Michigan
    I have discovered where the horns mount by your help and the size of the fastener M8 X 18 mm. there are two holes next to the H/L access panel that the horns fasten thru. The photo of the rectangular holes was a question of "what to do with them". Do these typically stay uncovered or should they get closed off?

    I really appreciate your feedback and help. A bit of history: I bought this car in El Paso in 1979 and put about 100,000 miles on it, then rebuilt the 3 liter engine and put another 60,000 miles. As a result of an accident and poor insurance repair I decided to completely strip and rebuild the entire vehicle. That was about 1988 - had kids- college tuition-kids sports- jobs outside the USA and voila it's 2018 and I decide to complete the task. I installed a 3.5 liter engine that had much less mileage -will rebuild AGAIN the 3 liter. I went as far as taking each side door and read deck lid locks apart and rebuilt. Unfortunately my memory would have benefited if I too photos of the dis-assembly as I am or the re-assembly. So your help is invaluable.

    My sons are in their late 30's and never have ridden in the car but boy I got a lot of GREAT memories with my wife blasting along in the flying COUPE!


    Attached Files:

    autokunst likes this.
  11. m5bb

    m5bb Well-Known Member Site Donor $

    View My Showcase
    Messages:
    1,451
    Likes Received:
    204
    Trophy Points:
    63
    Location:
    Peachtree Corners, GA
    Here's a photo. Should have done this days ago.


    Attached Files:

  12. HB Chris

    HB Chris Well-Known Member Site Donor $$

    View My Showcase
    Messages:
    10,812
    Likes Received:
    1,300
    Trophy Points:
    113
    Location:
    Huntington Beach, CA
    Gary, I’m surprised your coupe doesn’t have the snail shell style horn.

  13. m5bb

    m5bb Well-Known Member Site Donor $

    View My Showcase
    Messages:
    1,451
    Likes Received:
    204
    Trophy Points:
    63
    Location:
    Peachtree Corners, GA
    Funny thing Chris is one of those horns got a bad cold and never recovered. It sounded like a sick cow.
    I wanted something louder but using stock mount.
    These are Hella's. Much louder and slightly different tone.

  14. pickman

    pickman Member Site Donor

    Messages:
    103
    Likes Received:
    13
    Trophy Points:
    18
    Location:
    South Haven Michigan
    Mine are the original High Low beep!

  15. Wladek

    Wladek Well-Known Member

    Messages:
    847
    Likes Received:
    325
    Trophy Points:
    63
    Location:
    Poland
    I had 10x e9 Hella shell type horns, but none worked, so i purchased 2x Bosch Europa (1x 300hz & 1x 375hz) - very stylish & very loud.

  16. m5bb

    m5bb Well-Known Member Site Donor $

    View My Showcase
    Messages:
    1,451
    Likes Received:
    204
    Trophy Points:
    63
    Location:
    Peachtree Corners, GA
    Yes, these are high/low as well with a slightly different tone but pretty loud.

  17. rsporsche

    rsporsche Well-Known Member Site Donor $$

    Messages:
    7,329
    Likes Received:
    990
    Trophy Points:
    113
    Location:
    Atlanta, GA

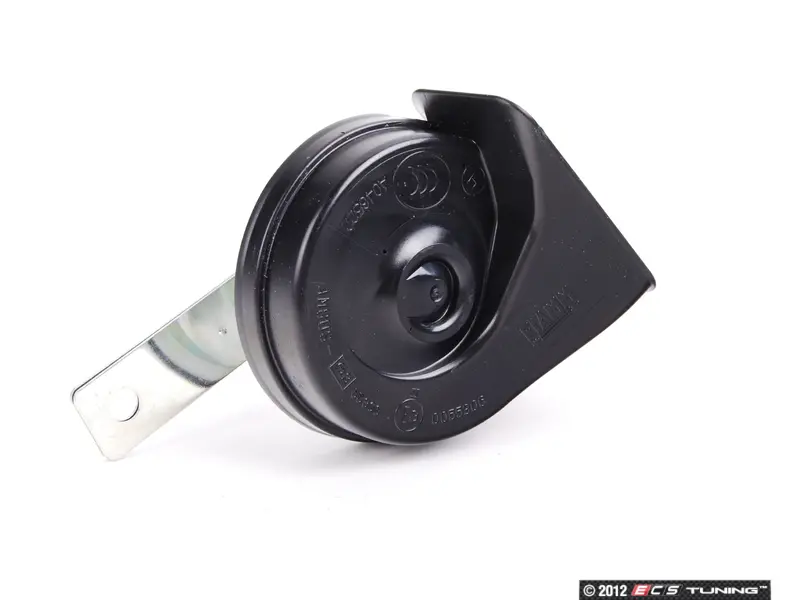

    the current ones from BMW are 410 + 510 hz ... from FIAMM. the ones from W+N are red snail horns from Hella - 400 + 500 hz.
    [​IMG]
