CSL duck-tail spoiler

Discussion in 'E9 General Discussion' started by Mal CSL 3.0, Dec 1, 2018.

  1. Mal CSL 3.0

    Mal CSL 3.0 Active Member

    Messages:
    320
    Likes Received:
    62
    Trophy Points:
    28
    Location:
    Sydney

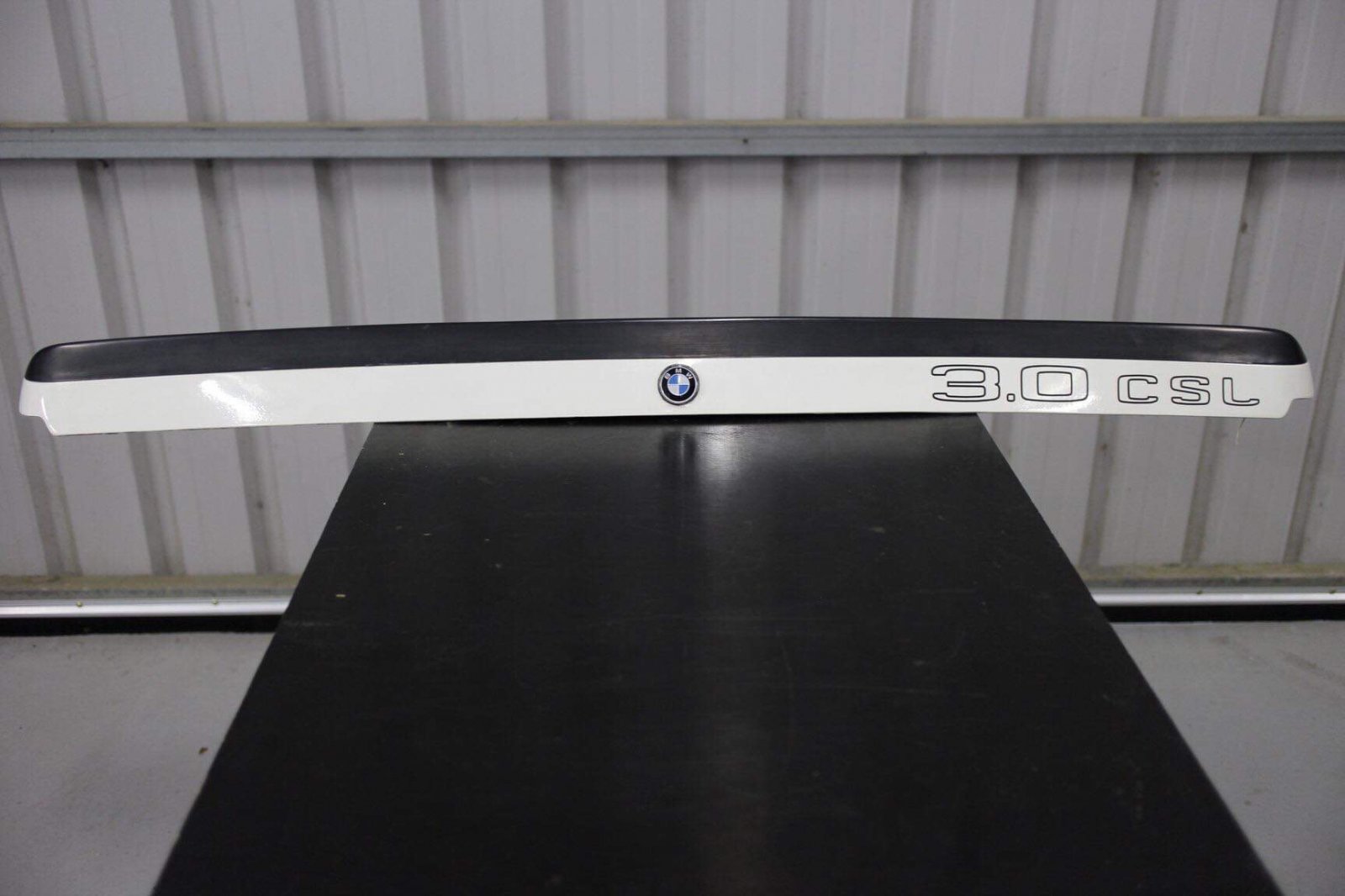

    Does anyone know how to tell a repo CSL rear duck-tail spoiler from a real one? Are there any tell tale signs to indicate OEM? Eg were originals fibreglass or a plastic composite? Trying to determine re this one below.

    Was on a RHD CSL for at least 25 years. That’s all I know.

    Am currently looking to buy it.



  2. Keshav

    Keshav Well-Known Member Site Donor

    Messages:
    1,063
    Likes Received:
    522
    Trophy Points:
    113
    Location:
    Weiterstadt, Germany
    You should get it. Looks very correct to me. My spoilers look exactly the same. I must admit that these spoilers supposedly had a Motorsport plaque but mine didn’t. Also the rubber lip looks in good shape which is the critical part. What’s not original is the bmw emblem (too small) which was discussed recently. The Csl decal is also available from Jaymic for after painting the spoiler.


  3. Wladek

    Wladek Well-Known Member

    Messages:
    772
    Likes Received:
    286
    Trophy Points:
    63
    Location:
    Poland
    Badge from OEM BMW steering wheel 45mm:D
    If you want to have nice badge use one from BMW motorcycles like 1200RR, dimeter is 2mm larger than e9 c-pillar, so will look perfect.

    adawil2002 likes this.
  4. sandhu

    sandhu Active Member

    Messages:
    469
    Likes Received:
    63
    Trophy Points:
    28
    Location:
    England, UK
    Just buy it Mal before some else does ... is someone really going to see your car and tell you that’s a OEM or copy part !!!

    Keshav likes this.
  5. aearch

    aearch Well-Known Member Site Donor

    Messages:
    2,958
    Likes Received:
    202
    Trophy Points:
    63
    Location:
    pleasant hill , ca
    AT SOME POINT THERE WAS A BMW ID ON THE INSIDE
    THINK MARKOS POSTED IT

  6. Markos

    Markos Well-Known Procrastinator Staff Member Site Donor $$

    View My Garage
    Messages:
    7,301
    Likes Received:
    1,755
    Trophy Points:
    113
    Location:
    Seattle, WA
    Not me. I know almost nothing about CSL’s.

  7. Teej

    Teej New Member

    Messages:
    25
    Likes Received:
    6
    Trophy Points:
    3
    Location:
    SOCAL
    I thought there is not supposed to be a badge on a spoiler like this. Mine had one and I took it off, have it laying around somewhere.

  8. Keshav

    Keshav Well-Known Member Site Donor

    Messages:
    1,063
    Likes Received:
    522
    Trophy Points:
    113
    Location:
    Weiterstadt, Germany
    Hi Teej,
    If you are referring to the bmw emblem on the spoiler (I noticed you’ve removed it), yes it’s supposed to be there. If you decided not to use it, keep it safe since it’s a unique size badge specially for the spoiler, NLA.
    If you have to give it away :), I’ll happily be it’s custodian.
    Keshav

    sandhu likes this.
  9. Mal CSL 3.0

    Mal CSL 3.0 Active Member

    Messages:
    320
    Likes Received:
    62
    Trophy Points:
    28
    Location:
    Sydney
    Cost for this rear spoiler is USD $600 so just hoping it’s original.

  10. Keshav

    Keshav Well-Known Member Site Donor

    Messages:
    1,063
    Likes Received:
    522
    Trophy Points:
    113
    Location:
    Weiterstadt, Germany
    I want to add that it could very well be a repro but a good one at that. They have the same design, from the inside too. The price of 600USD is aceptable specially since it’s in AUS already. Alone the shipping of such a Part to Aus would cost upto 100USD from Europe.

    Mal CSL 3.0 likes this.
  11. Mal CSL 3.0

    Mal CSL 3.0 Active Member

    Messages:
    320
    Likes Received:
    62
    Trophy Points:
    28
    Location:
    Sydney
    Thanks Keshav.

    Yes I have bought it now, thought I better grab it quickly as these rear spoilers are very hard to source and don’t come up for sale much. I also have checked and no one is making reproduction versions anymore either.

  12. Keshav

    Keshav Well-Known Member Site Donor

    Messages:
    1,063
    Likes Received:
    522
    Trophy Points:
    113
    Location:
    Weiterstadt, Germany
    Thanks to guidance from HB Chris, the correct size for the bmw spoiler badge is 71mm but 70mm from a 1600-2002 will do the job perfectly, if you choose to install one.

  13. bfeng

    bfeng Well-Known Member Site Donor

    Messages:
    1,724
    Likes Received:
    324
    Trophy Points:
    83
    Location:
    Massachusetts, metrowest
    I thought Daddywad was making them...

    Keshav and sandhu like this.
  14. ccr2002

    ccr2002 Active Member

    Messages:
    510
    Likes Received:
    85
    Trophy Points:
    28
    Location:
    Salt Lake City, Utah
    Is it the front or rear roundel that works from a 1600?

  15. Keshav

    Keshav Well-Known Member Site Donor

    Messages:
    1,063
    Likes Received:
    522
    Trophy Points:
    113
    Location:
    Weiterstadt, Germany
    After HB Chris confirmed the correct size, 71mm (quite impossible to find) so he pointed out the Z3 70mm....
    “You can also try part #51.14.7.721.222,flat 70mm rear trunk emblem for a Z3, should be readily available”.

    Whilst looking for 70mm badges I found it’s the size used on 1600-2002, Z3/ Z4, BMW bikes, amongst others.
    Wanting an oldish one, I found an old 1600 one and it looks flat to me..... waiting to get it.

    This was also discussed a few days ago and Ulrich came up with a practical solution, take a look.
    https://www.e9coupe.com/forum/threa...-part-number-or-substitute.30028/#post-241173

    Saw this one too, wrote the seller to confirm if it’s flat.
    https://www.ebay.de/itm/161995233721

    Last edited: Dec 3, 2018
  16. Mal CSL 3.0

    Mal CSL 3.0 Active Member

    Messages:
    320
    Likes Received:
    62
    Trophy Points:
    28
    Location:
    Sydney
    I did check around beginning of year and were NLA from him.

  17. michelk

    michelk Member Site Donor

    Messages:
    55
    Likes Received:
    9
    Trophy Points:
    8
    Location:
    netherlands
    hello
    looks very O.E.M

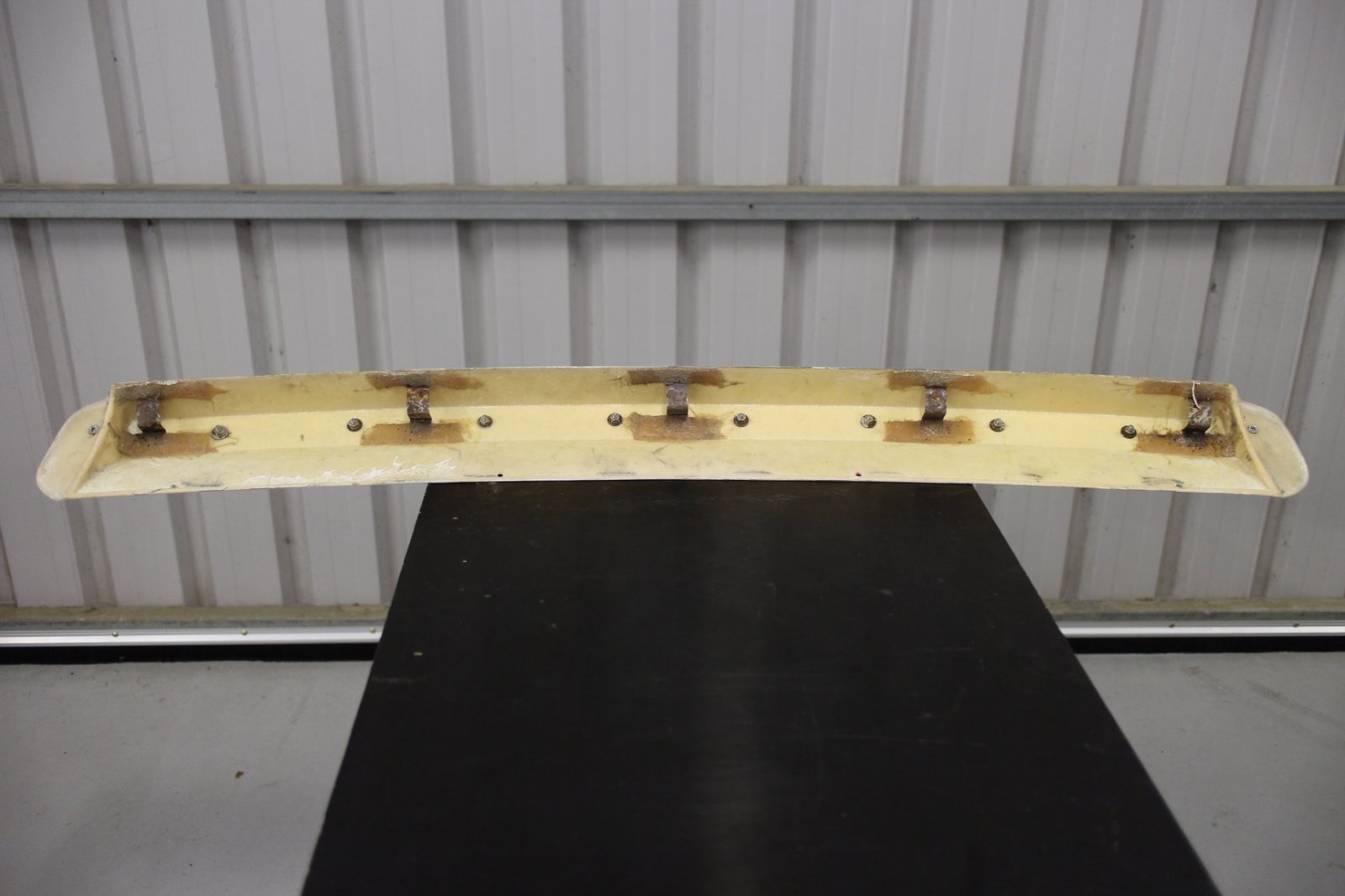

    through de yellow/brown glassy ,,paste,,, on both ends/corners from spoiler
    and also how is made the 5 iron clamps/brackets for mounting the spoiler on the bootlid
    and how the colour is,very old brown ressin from fixing the clamps
    I can say almost certainly,it is 100 % O.E.M and 40-45 years old
    michel

    Mal CSL 3.0 likes this.
  18. aearch

    aearch Well-Known Member Site Donor

    Messages:
    2,958
    Likes Received:
    202
    Trophy Points:
    63
    Location:
    pleasant hill , ca
    YEP thats it ok good as gold i just had real trepedations
    before and while drilled my truck deck lid
