E9 Electrical Question

TG-2002-320i-328ci

Well-Known Member
Site Donor $
Messages
176
Reaction score
41
Location
Tucson, AZ
Hi
I'm admittedly not great at reading auto electrical diagrams - but am trying to learn. Having said that, I do fairly well with both AC and DC wiring projects.

Question - does anyone have a suggested, exisiting "ignition on" circuit that could spare 3-4 amps to piggy back off of?

I have an accessory that I would like to automatically come on and off with the ignition.

Thanks in advance.


Drew20

Well-Known Member
Site Donor
Messages
465
Reaction score
136
Location
Beaconsfield
I was looking at this on my '72 car recently, as a PO had used piggy back connectors to power the radio. I found spare connectors on the back of the fuse box for permanent live and ignition accessory live. One of them was on fuse 10, accessory IIRC.
E9 fuse box rear.jpg

E9 fuse box front.jpg


Markos

Well-Known Member
Site Donor
Messages
13,369
Reaction score
7,502
Location
Seattle, WA
I was looking at this on my '72 car recently, as a PO had used piggy back connectors to power the radio. I found spare connectors on the back of the fuse box for permanent live and ignition accessory live. One of them was on fuse 10, accessory IIRC.

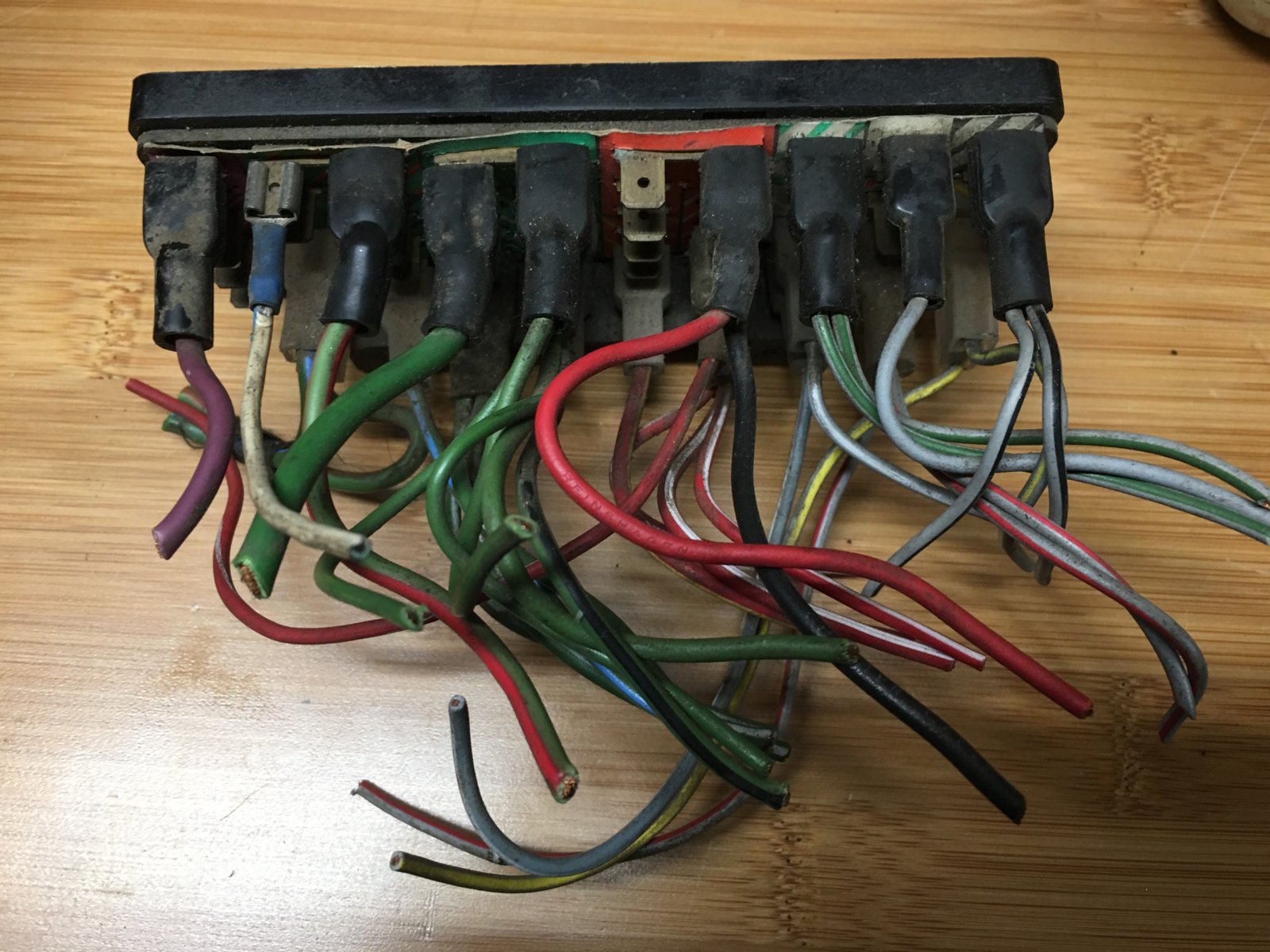

Yes there are plenty of spare pins on the fuse block. Some members have found these pics helpful. Something to be said about color images:
