Exterior moulding bolts

Discussion in 'E9 Projects and Restorations' started by GRKOALA, Jan 19, 2018.

  1. GRKOALA

    GRKOALA Peter K Site Donor

    Messages:
    111
    Likes Received:
    2
    Trophy Points:
    18
    Location:
    South Australia
    G’day fellas, I’m preparing for the “after paint” reassembly of my coupe. I have some Broken bolts from my side stainless steel trim that goes around the car (inline with the door handles and including the nose trim attachments). I would like to replace them and wondered if anyone can suggest replacement options or where the best place to purchase them from is?

    Cheers Peter


  2. Aussiecsi

    Aussiecsi Active Member

    Messages:
    840
    Likes Received:
    132
    Trophy Points:
    43
    Location:
    Perth, Western Australia
    Peter, Walloths have full trim set on special for 122 euros 51131400027...worth replacing all of them with new if you can. Also, I think it was SFDon that recommended using "shims" to protect the "fresh" paint but not sure where they might be available locally ( if at all) . Cheers. Simon

    GRKOALA likes this.
  3. DAVE

    DAVE Active Member

    Messages:
    114
    Likes Received:
    26
    Trophy Points:
    28
    Location:
    Kristiansand, Norway
    I have this set and they do not fit the belt trim as the heads are too thick- each one has to be ground down a little.


    Sent from my iPhone using Tapatalk

    GRKOALA likes this.
  4. Gransin

    Gransin Well-Known Member Site Donor

    Messages:
    934
    Likes Received:
    428
    Trophy Points:
    63
    Location:
    Vasa, Finland
    Absolutely not the W&N bolt-set.. They don’t fit.
    Buy bolts directly from BMW, they are perfect!
    Buy shims from Carl N/La Jolla.

    GRKOALA likes this.
  5. Aussiecsi

    Aussiecsi Active Member

    Messages:
    840
    Likes Received:
    132
    Trophy Points:
    43
    Location:
    Perth, Western Australia
    ...hmmm, interesting...bought my trim kit some years back so will test-fit the heads ...

  6. mark99

    mark99 Active Member Site Donor

    Messages:
    669
    Likes Received:
    97
    Trophy Points:
    28
    Location:
    Kirkland WA
    I have the WN parts and no problem fitting them in the slot, and they are nice with the rubber washer, but the head on the T bolt doesn't seem as long and one spun
    KN sells plastic nuts

  7. Gransin

    Gransin Well-Known Member Site Donor

    Messages:
    934
    Likes Received:
    428
    Trophy Points:
    63
    Location:
    Vasa, Finland
    Mark, when did you buy your set? I was thinking if maybe they have solved the issues.
    I ordered my (bad) bolt set from W&N in June 2016.

  8. aearch

    aearch Well-Known Member Site Donor

    Messages:
    3,072
    Likes Received:
    226
    Trophy Points:
    63
    Location:
    pleasant hill , ca
    I used a regular bolt and just ground down the head to slide in
    easy

  9. DAVE

    DAVE Active Member

    Messages:
    114
    Likes Received:
    26
    Trophy Points:
    28
    Location:
    Kristiansand, Norway
    I also bought my set a few years back.


    Sent from my iPhone using Tapatalk

  10. Gransin

    Gransin Well-Known Member Site Donor

    Messages:
    934
    Likes Received:
    428
    Trophy Points:
    63
    Location:
    Vasa, Finland
    The bolts rust even if they are plated when put in, imagine grinded down bolts that are completely raw, not the best way to do it.

  11. mark99

    mark99 Active Member Site Donor

    Messages:
    669
    Likes Received:
    97
    Trophy Points:
    28
    Location:
    Kirkland WA
    I am not sure when I bought the bolts from WN, maybe about a year ago, but not too sure
    Like I said, I had a problem with one of the T bolts
    There are 2 parts to this, the T-bolt and the nut, the WN nuts are great
    If you made your own, you could have them plated

  12. inovermyhead

    inovermyhead Active Member

    Messages:
    488
    Likes Received:
    140
    Trophy Points:
    43
    Location:
    Sydney
    I used the W/N bolts when putting my trim back on, they worked fine and just to slow the rust process down a bit I sprayed them with fish oil first, it may also slow the rate of oxidation between the steel and aluminium.

  13. aearch

    aearch Well-Known Member Site Donor

    Messages:
    3,072
    Likes Received:
    226
    Trophy Points:
    63
    Location:
    pleasant hill , ca
    you spray the bolts w/ clear coat to seal them
    dah

  14. sfdon

    sfdon Well-Known Member

    Messages:
    4,342
    Likes Received:
    636
    Trophy Points:
    113
    Location:
    sfbay area
    IMG_6590.JPG IMG_6589.JPG And I got a bag TODAY in the mail!
    And I am bummed. They Do Not fit....
    They have changed since my last order a few months ago. The head is much thicker and will not go in the slot.

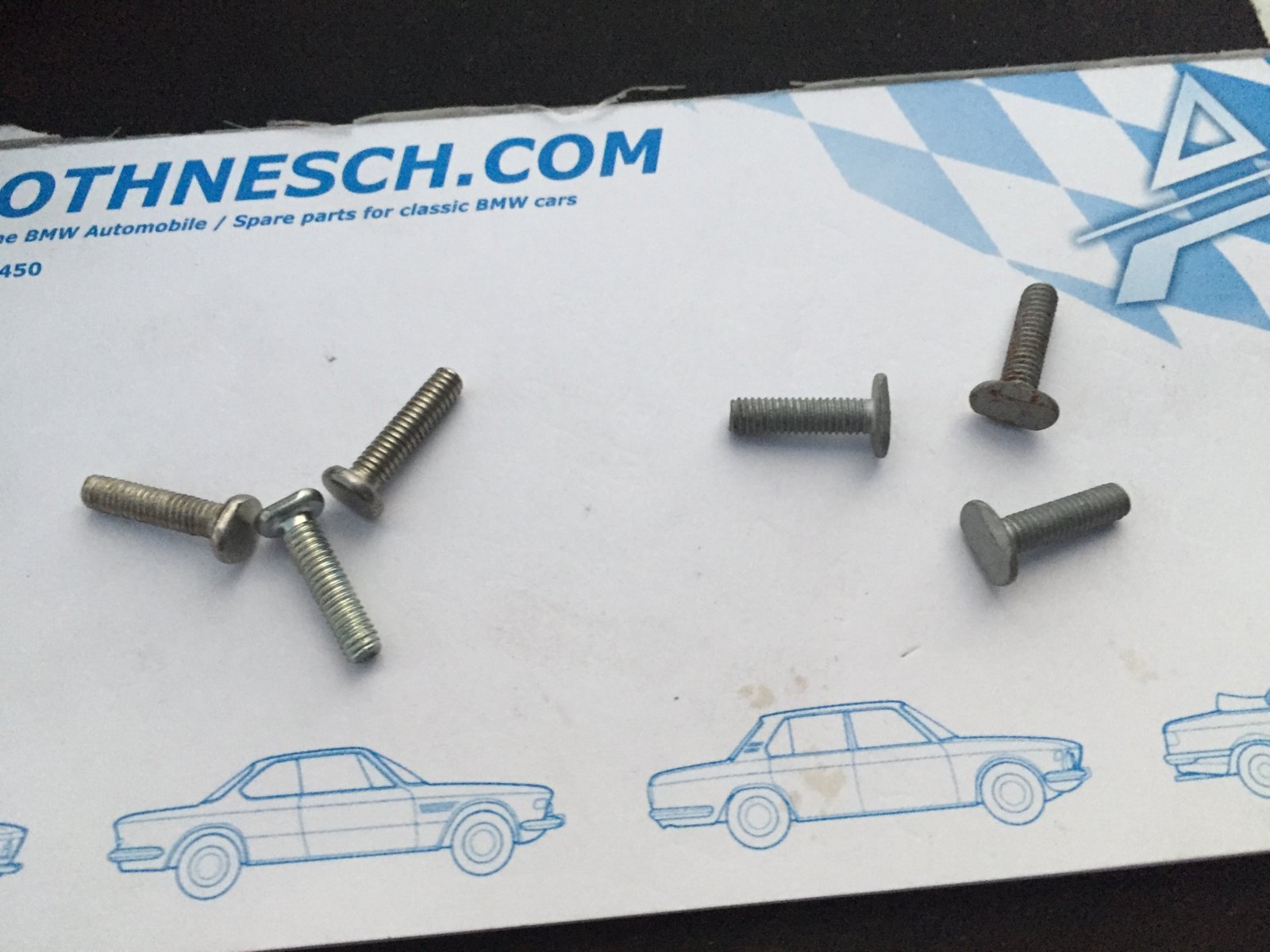

    The pic shows 2018 bolts on left and 2017 bolts on right. Old bolt heads are 1.15mm and new ones are 1.6mm. Too thick to install.
    The shape is completely different also.

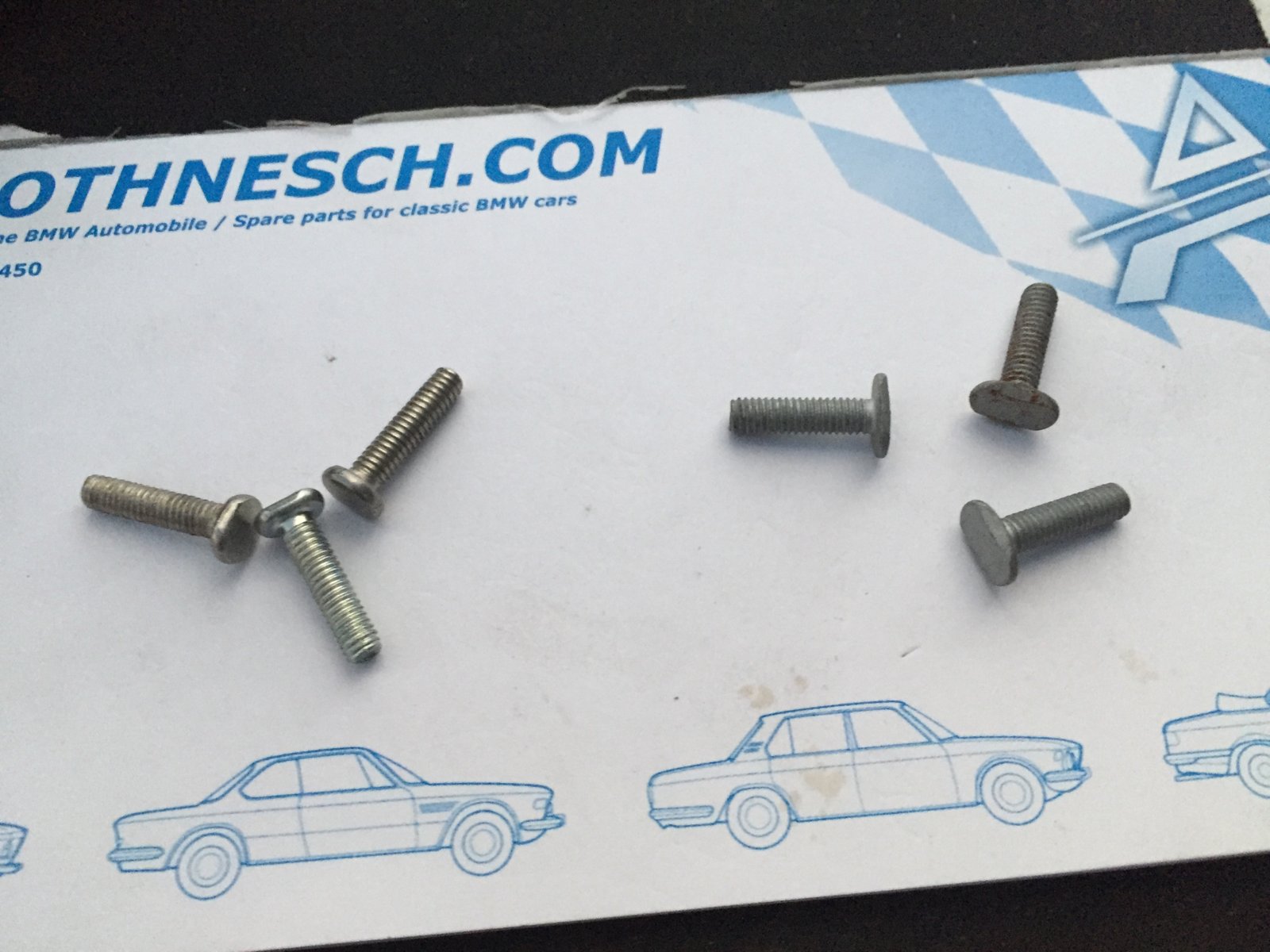

    Second pic is 2018 on left and 2017 on right.

  15. sfdon

    sfdon Well-Known Member

    Messages:
    4,342
    Likes Received:
    636
    Trophy Points:
    113
    Location:
    sfbay area

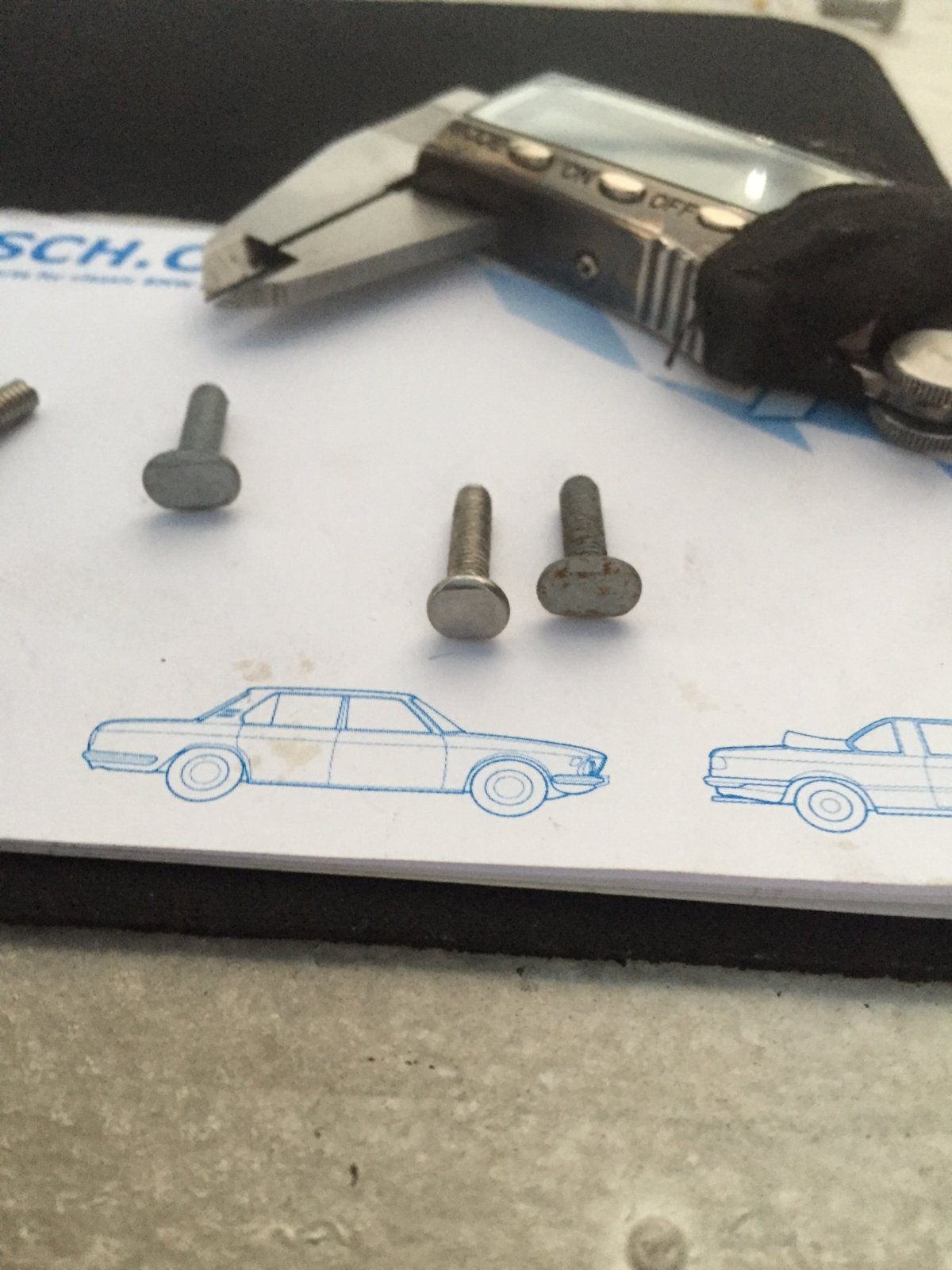

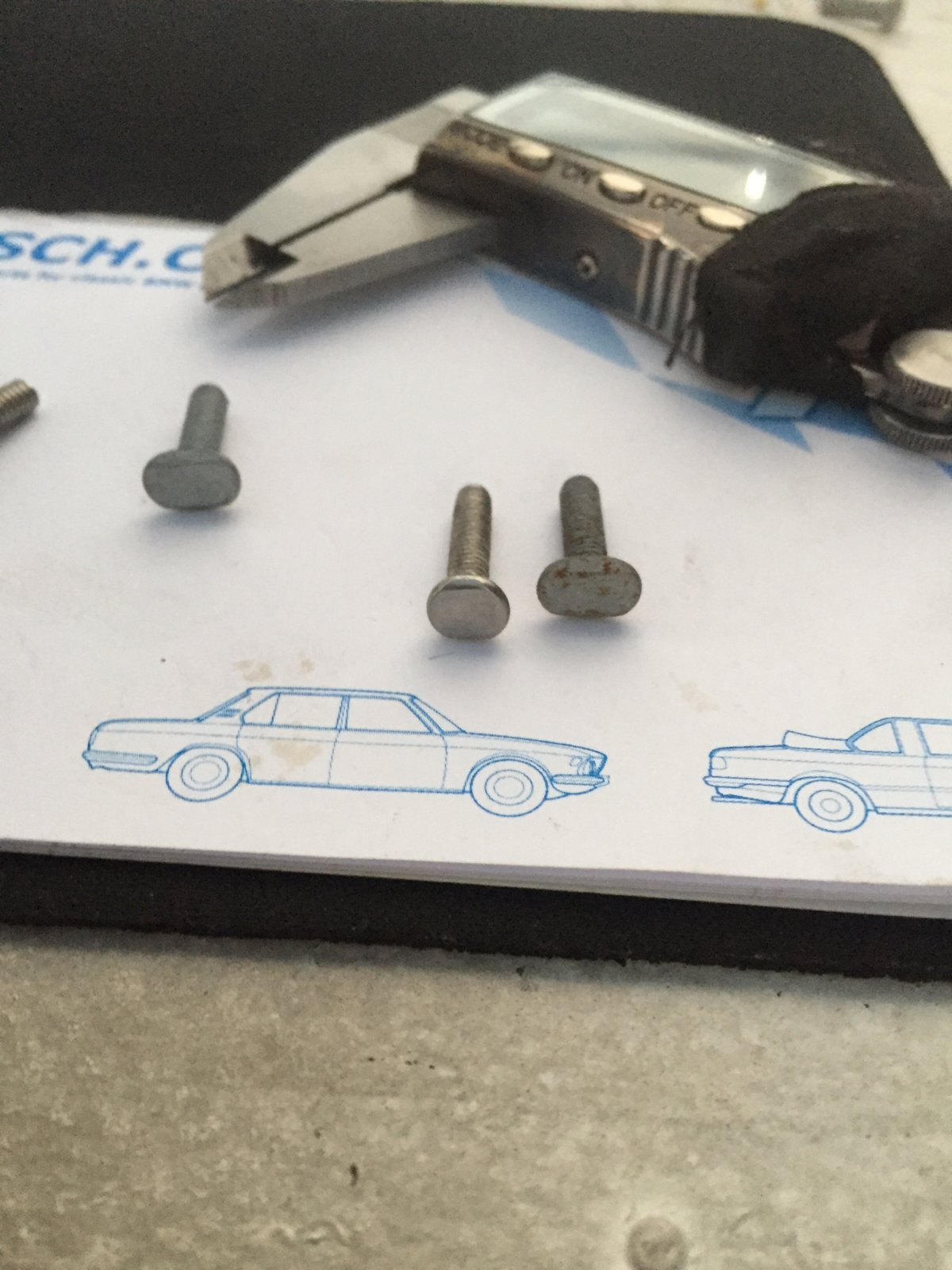

    Third pic is new on left, original BMW in middle and last shipment to me on right.

  16. sfdon

    sfdon Well-Known Member

    Messages:
    4,342
    Likes Received:
    636
    Trophy Points:
    113
    Location:
    sfbay area
    I have sent an email to W&N - they have been pretty good on fixing things.

  17. Gransin

    Gransin Well-Known Member Site Donor

    Messages:
    934
    Likes Received:
    428
    Trophy Points:
    63
    Location:
    Vasa, Finland
    Those are the exact same bolts that I got, the heads were too thick as you say.
    I'm sure W&N could fix it in one way or the other, if nothing else, at least pay back the cost for the set. I didn't want to wait on that process when I was installing the beltline trim, so I got the bolts from BMW, they look exactly like the original bolts and fit without problems, but more expensive than the W&N ones. (I think they were like 3€/each)

    I noticed that the W&N bolt/nut-set ad has pictures of the bolts that wont fit the trim:

    If you feel that's the proper way to do it, then go ahead, but I would not recommend anyone to do it.
    Do you think the flimsy clear coat will be 100% intact after running the bolts from the end of the trim, down the tight slot to the place where they need to be at?:rolleyes:
    dah, right back at ya.

    sfdon likes this.
  18. teahead

    teahead aka "Rob" Site Donor

    Messages:
    3,456
    Likes Received:
    600
    Trophy Points:
    113
    Location:
    Seattle, WA, USA
    Zinc coat them?

    What's the part # so I can order them from bmw?

    51131400027 seems to be the W&N part #

  19. G

    G Member

    Messages:
    229
    Likes Received:
    18
    Trophy Points:
    18
    Got my set from Carl Nelson but that was in 2006 !

  20. aearch

    aearch Well-Known Member Site Donor

    Messages:
    3,072
    Likes Received:
    226
    Trophy Points:
    63
    Location:
    pleasant hill , ca
    they dont even touch the metal when you slide them in
    you can make them very thin as the dont need to be torqued hardly at all
    heck i made mine finger tight so as to not dent the paint.
    its a simple thing and clear coot is very strong itself
    i made about 15 of them
    i just solved my problem w them
    actually i got them at ace hardware and they were stainless steel
    my used ones i cleaned up with a drill and wire wheeel

    Last edited: Jan 20, 2018
