Hi Guys,
I need some help.

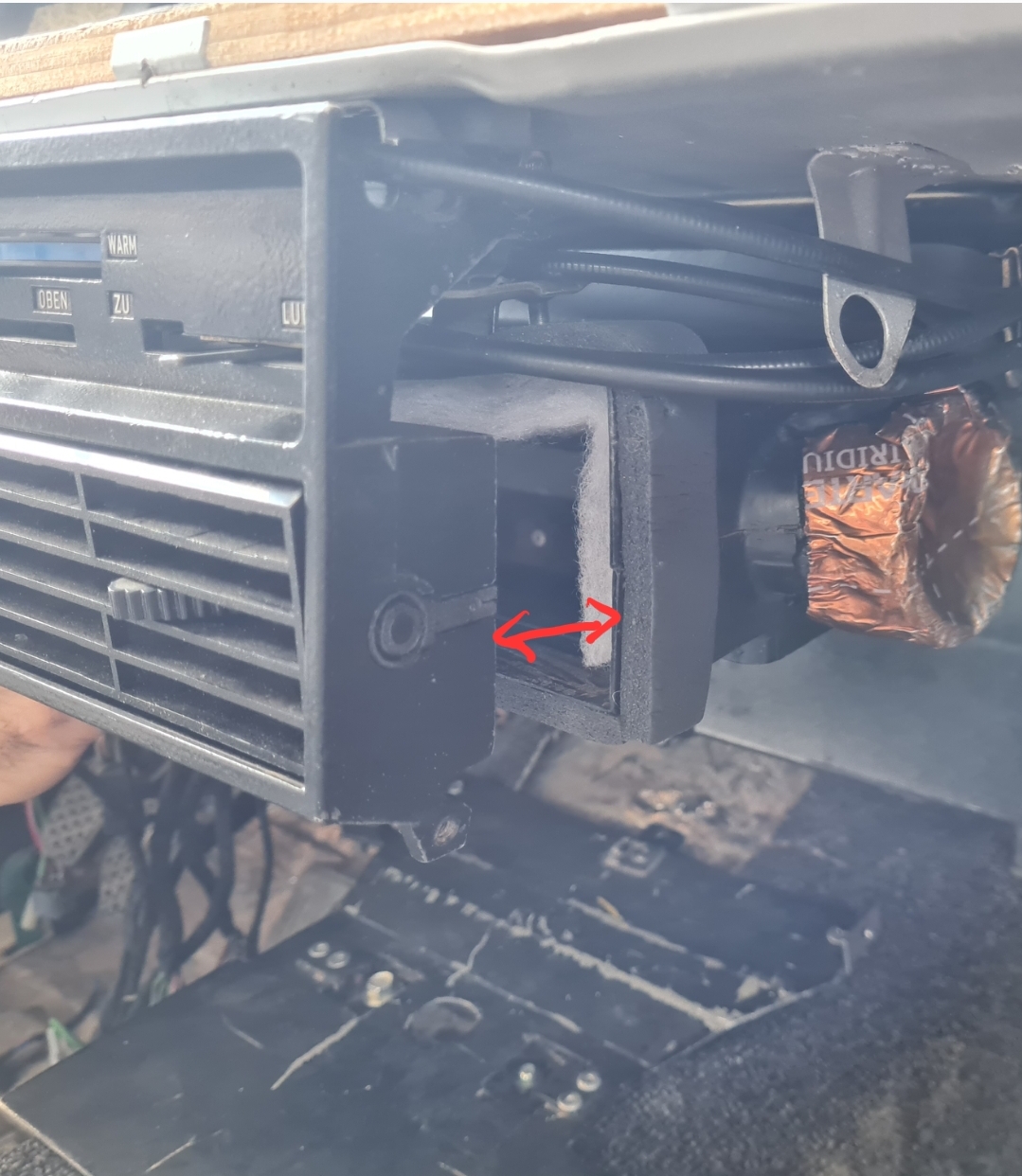

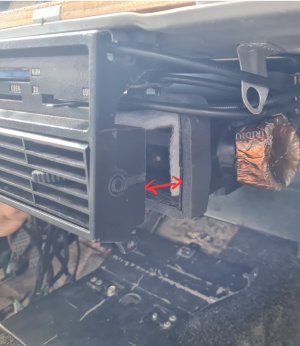

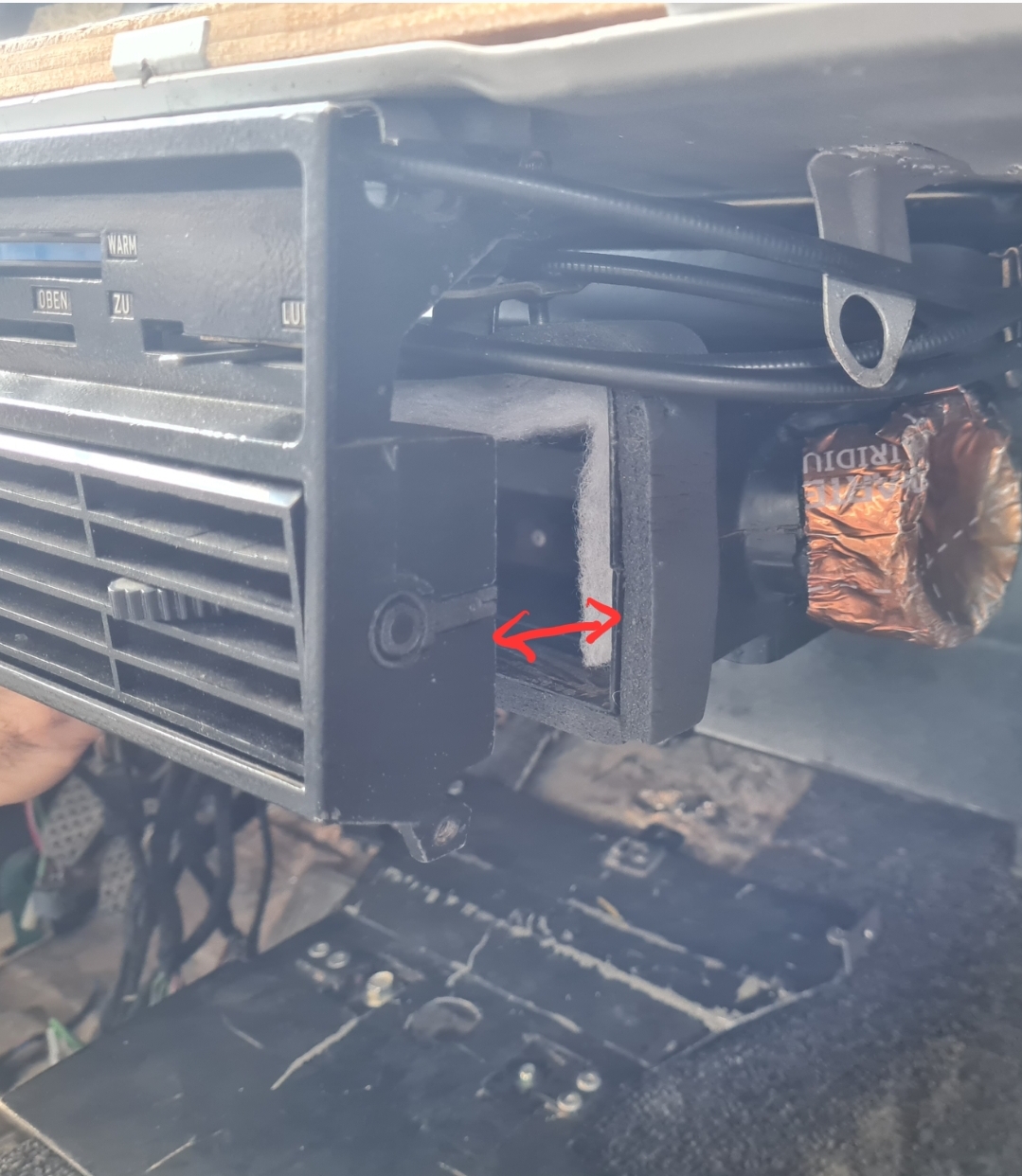

Could anyone enlight me on why there is around 1.5 inch gap between heater controller fascia and the heater/ac duct?
I also need some solutions of how to close this gap? Please see the attached photos.

Best Regards,
Hussein


Attachments

  • Screenshot_20221120-162448_Gallery.jpg
    658.8 KB · Views: 40

sfdon

Well-Known Member
Site Donor $$
Messages
7,186
Reaction score
3,211
Location
sfbay area

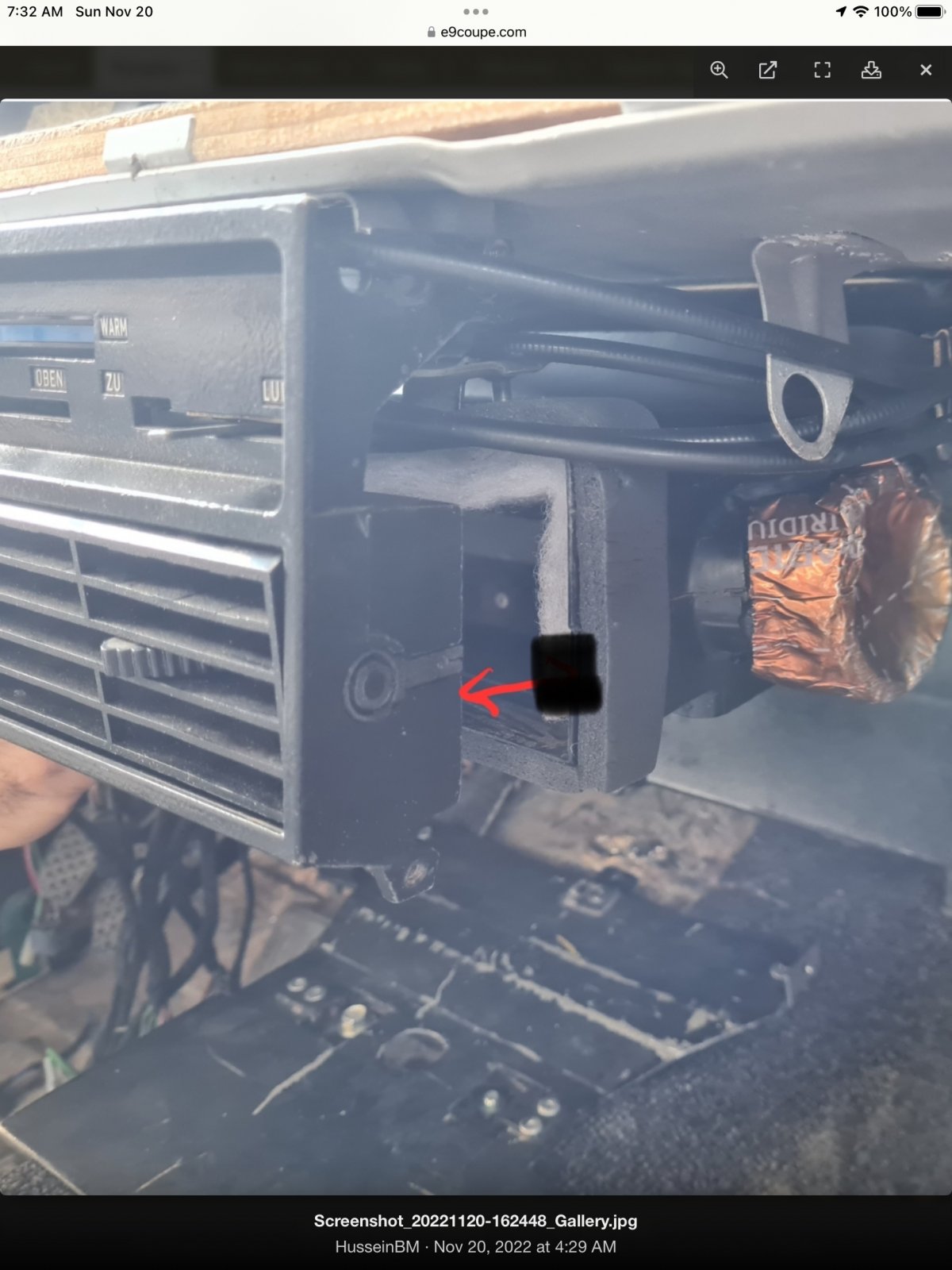

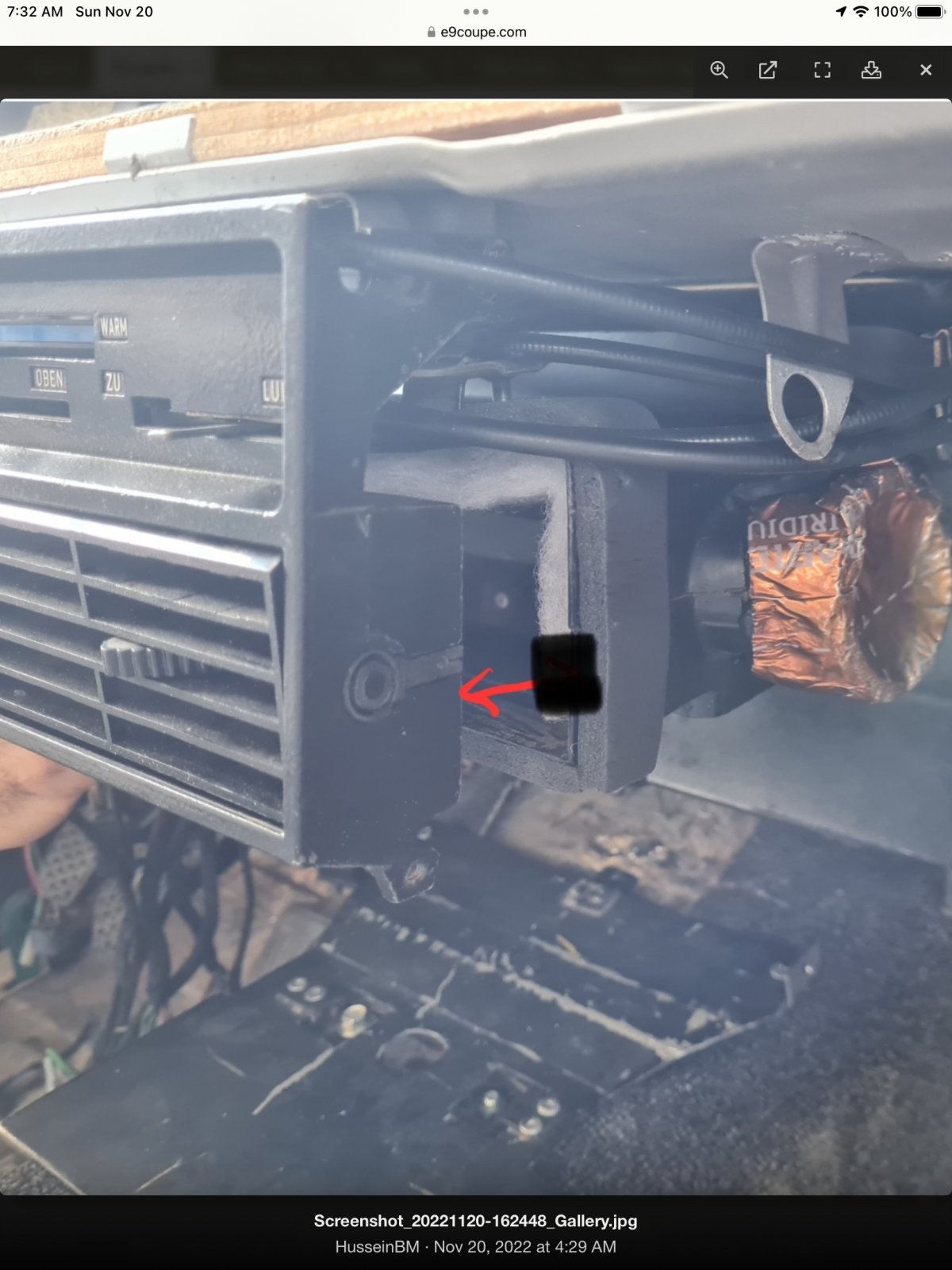

The AC/heater manifold needs to move forward and it appears to be a manifold from an e3?


Attachments

  • 118753AB-6EB3-415C-8764-A9400F8DCEF2.jpeg
    179 KB · Views: 30

merdad

Active Member
Site Donor $$
Messages
336
Reaction score
184
Location
Tehran, Iran
Why do I get a feeling that is not an e9 box, by the look of the vent coming from the top side!



sfdon

Well-Known Member
Site Donor $$
Messages
7,186
Reaction score
3,211
Location
sfbay area
I see you got the bottom bracket!

normally you install the heater box 1st


HusseinBM

Member
Messages
55
Reaction score
14
I see you got the bottom bracket!

normally you install the heater box 1st
Hi Don,
This was there but I believe it has been fabricated and not the original one. It does the job for the time being. With regards to the heater box, that is the part I installed 1st and then the controller Fascia and the then tried to install the AC unit with the centre piece duct. I found the gap as shown in the picture above.


HB Chris

Moderator
Site Donor $$
Messages
17,896
Reaction score
7,240
Location
Huntington Beach, CA
It looks to me like the two mounting holes on the dash are not aligned with the fascia, is it pushed all the way rearward?


HusseinBM

Member
Messages
55
Reaction score
14
It looks to me like the two mounting holes on the dash are not aligned with the fascia, is it pushed all the way rearward?
I believe so... this was a temporary fit just to check the gap. I will double check tomorrow and will update.


bluecoupe30!

Well-Known Member
Site Donor
Messages
1,937
Reaction score
1,068
Location
Delta, British Columbia, Canada

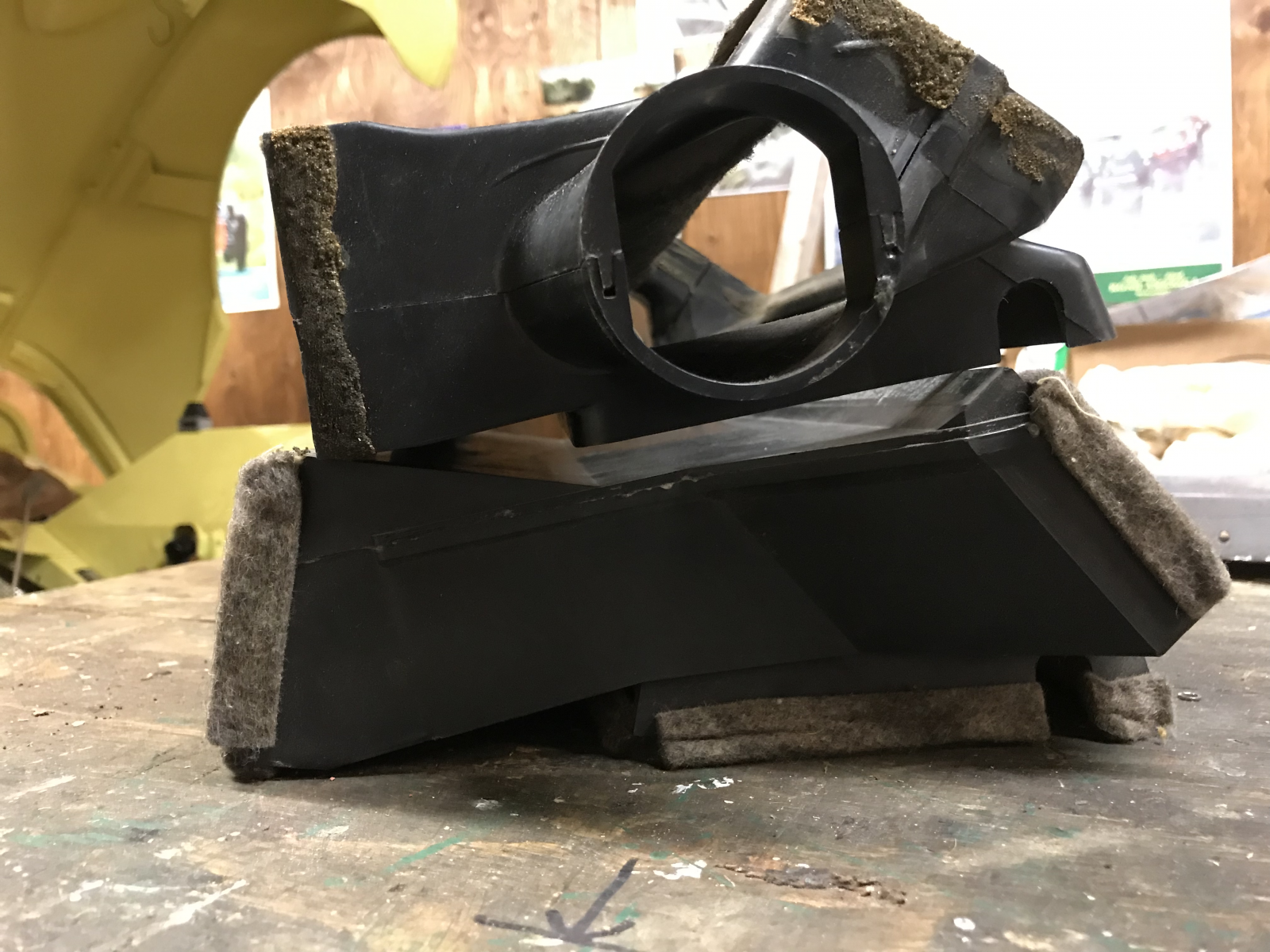

The "intermediate piece" or duct, for the E3 and for the E9 are different. They have the same opening for sitting on top of the evaporator, but the dimension that mates up with the cabin grille, is different. There is a gap. Here is a photo of the 2 together. Hope this helps. Mike


HusseinBM

Member
Messages
55
Reaction score
14
The "intermediate piece" or duct, for the E3 and for the E9 are different. They have the same opening for sitting on top of the evaporator, but the dimension that mates up with the cabin grille, is different. There is a gap. Here is a photo of the 2 together. Hope this helps. Mike







Thanks a lot Mike
