Help with E3? fuel tank...

dang

Administrator
Staff member
Site Donor
Messages
3,514
Reaction score
2,252
Location
Rocklin, CA
I just purchased this fuel tank that was suppose to be out of a '74 E3. My E3 is a '69. From everything that I read and was told, all E3 tanks are suppose to at least fit in the space/cutout in the floor but have some other minor differences that wouldn't keep them from interchanging. Here's a couple photos of the tanks. New one on the left, original '69 on the right. They aren't even the same shape where the flange mounts.

I can get better photos if needed, the lighting was weird when I took these.

Any ideas?


Attachments

  • IMG_20200220_132156555.jpg
    52.5 KB · Views: 87
  • IMG_20200220_132202929.jpg
    117 KB · Views: 92

Keshav

Well-Known Member
Site Donor $
Messages
2,372
Reaction score
2,015
Location
Germany
Might be like in the E9’s, upto 73 tanks are installed from within the trunk whereas 74/75’s from underneath the car?
Not interchangeable


Markos

Conspirator
Staff member
Site Donor $$
Messages
12,204
Reaction score
5,856
Location
Seattle, WA
Might be like in the E9’s, upto 73 tanks are installed from within the trunk whereas 74/75’s from underneath the car?
Not interchangeable

In addition to that, early e9 tanks had less capacity. They probably tied the capacity change to the engine displacement.


dang

Administrator
Staff member
Site Donor
Messages
3,514
Reaction score
2,252
Location
Rocklin, CA
Here's another shot. Not even close to the same size.


Attachments

  • IMG_20200220_190618089.jpg
    150.9 KB · Views: 80

HB Chris

Moderator
Site Donor $$
Messages
16,109
Reaction score
5,397
Location
Huntington Beach, CA
The e3 gas tanks changed from 75L to 78.9L at the Model 74 Bavaria. I think you new tank isn't e3 at all, the angle of the filler neck is all wrong, especially if the center bumper shock required the tank to be narrower in the center. And what is the second opening for? It could be e12 perhaps?


dang

Administrator
Staff member
Site Donor
Messages
3,514
Reaction score
2,252
Location
Rocklin, CA
This was the tank Sooner had and posted photos of. Most agreed that it was the same as the early ones, or would work with just some minor differences. I'm now out $335 (mostly shipping) for a tank I can't use, and worse, back to looking for another one.


Markos

Conspirator
Staff member
Site Donor $$
Messages
12,204
Reaction score
5,856
Location
Seattle, WA
The e3 gas tanks changed from 75L to 78.9L at the Model 74 Bavaria. I think you new tank isn't e3 at all, the angle of the filler neck is all wrong, especially if the center bumper shock required the tank to be narrower in the center. And what is the second opening for? It could be e12 perhaps?

Looks like it matches the tank found on @GolfBavaria ’s ‘73. That second indentation looks like it is for the 3.0si setup. See the 1976 ebay ad below:



Also, Here is an ad for a 1970 tank with the same design As the problem tank:


dang

Administrator
Staff member
Site Donor
Messages
3,514
Reaction score
2,252
Location
Rocklin, CA
I know mine is original to '69 but all the other tanks look different. I guess they changed the trunk floor for some reason too.


JMinNJ

Well-Known Member
Site Donor $
Messages
770
Reaction score
560
Location
NJ/PDX
I just purchased this fuel tank that was suppose to be out of a '74 E3. My E3 is a '69. From everything that I read and was told, all E3 tanks are suppose to at least fit in the space/cutout in the floor but have some other minor differences that wouldn't keep them from interchanging. Here's a couple photos of the tanks. New one on the left, original '69 on the right. They aren't even the same shape where the flange mounts.

I can get better photos if needed, the lighting was weird when I took these.

Any ideas?
The tank on the left is certainly a 74 tank. They’re narrower due to the “bracing” added to the sides of the trunk behind each wheel well. That’s why there are no trunk caddies in later cars. 74’s also had fuel vapor return line like the tank on the left.



dang

Administrator
Staff member
Site Donor
Messages
3,514
Reaction score
2,252
Location
Rocklin, CA
For now I may see if I can make the new one work, at least temporarily. I had mentally checked off the fuel system as something to deal with so if I can get the new tank to mount well enough it will bide me some time.


JMinNJ

Well-Known Member
Site Donor $
Messages
770
Reaction score
560
Location
NJ/PDX
The 73 parts car I had a few years ago had a 74 tank. A PO capped the return line and cut a piece of plywood to take up the extra space to the right of the tank. Im not recommending plywood just saying it’s been done.
Also I’m pretty sure all e3 tanks install from the top or inside the trunk.


e9john

Active Member
Messages
148
Reaction score
61
Location
Rochdale, UK.
From my experience when the top/bottom flange joint start to open up like that (as seen on the new one) it's because rust is in the joint and causing it to expand.


dang

Administrator
Staff member
Site Donor
Messages
3,514
Reaction score
2,252
Location
Rocklin, CA
From my experience when the top/bottom flange joint start to open up like that (as seen on the new one) it's because rust is in the joint and causing it to expand.
I'll inspect it really good but the inside of the tank is 100 times better than the original. I'm hoping I can make it work.


dang

Administrator
Staff member
Site Donor
Messages
3,514
Reaction score
2,252
Location
Rocklin, CA

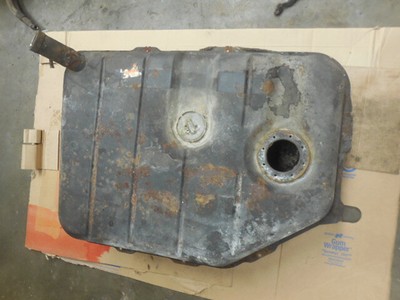

Here is mine if it helps. 9/71 production 3.0 Bavaria
So yours looks like an early one with the additional recessed area. For me, at this point it doesn't really matter anymore since I can afford another tank. I'll make the one I have work.
