Hi there

What is the easiest way to dissemble a M30 head? I have read to loosen each eccentric as much as possible then the rocker rods will come out. I have done this and there is still pressure on the rocker rods from some cam lobes. The last thing I want to do is stress any pieces or damage any bearing surfaces. I am thinking of removing the eccentrics from each rocker; this would remove all pressure and should make removing the rockers rods easily.

Each rocker rod has a grub screw in the end; Are these threads used by a puller/slide hammer to remove the rocker rods? (I'm think of making a simple puller, if needed) Each rocker rod is held in place by a head bolt and a head bolt inserted back in would keep the rocker rod from turning when each of these grub screws is removed.

Once the rockers, springs etc along each rod are removed, the cam should easily slip out, as there are no more 'obstacles'. Correct?

Again, any advice and input is very welcome.

Thanks,
Bill



deQuincey

Quousque tandem...?
Site Donor
Messages
7,358
Reaction score
1,583
Location
BIO - 43°15'46.5"N 2°56'03.7"W
Hi there

What is the easiest way to dissemble a M30 head? I have read to loosen each eccentric as much as possible then the rocker rods will come out. I have done this and there is still pressure on the rocker rods from some cam lobes. The last thing I want to do is stress any pieces or damage any bearing surfaces. I am thinking of removing the eccentrics from each rocker; this would remove all pressure and should make removing the rockers rods easily.

Each rocker rod has a grub screw in the end; Are these threads used by a puller/slide hammer to remove the rocker rods? (I'm think of making a simple puller, if needed) Each rocker rod is held in place by a head bolt and a head bolt inserted back in would keep the rocker rod from turning when each of these grub screws is removed.

Once the rockers, springs etc along each rod are removed, the cam should easily slip out, as there are no more 'obstacles'. Correct?

Again, any advice and input is very welcome.

Thanks,
Bill

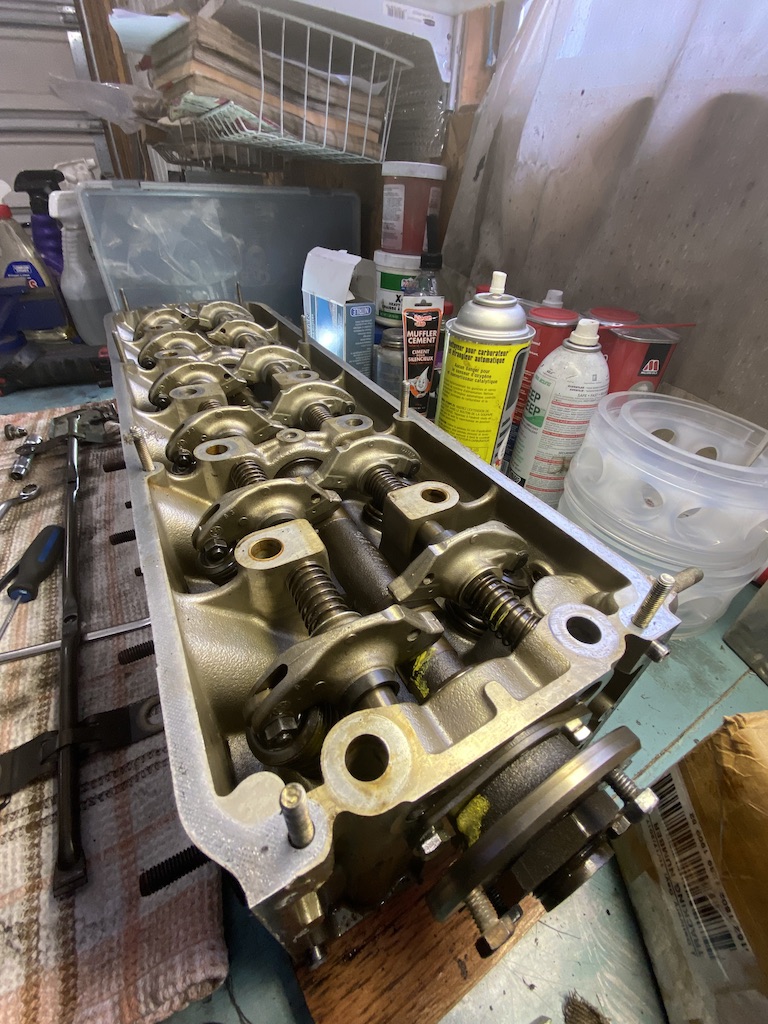

View attachment 136999





removing eccentrics will not remove pressure,


this might help, #77…



autokunst

Well-Known Member
Site Donor $$
Messages
3,247
Reaction score
2,231
Location
Milwaukee, WI
One of these helps. I could loan it to you for the cost of shipping there and back...

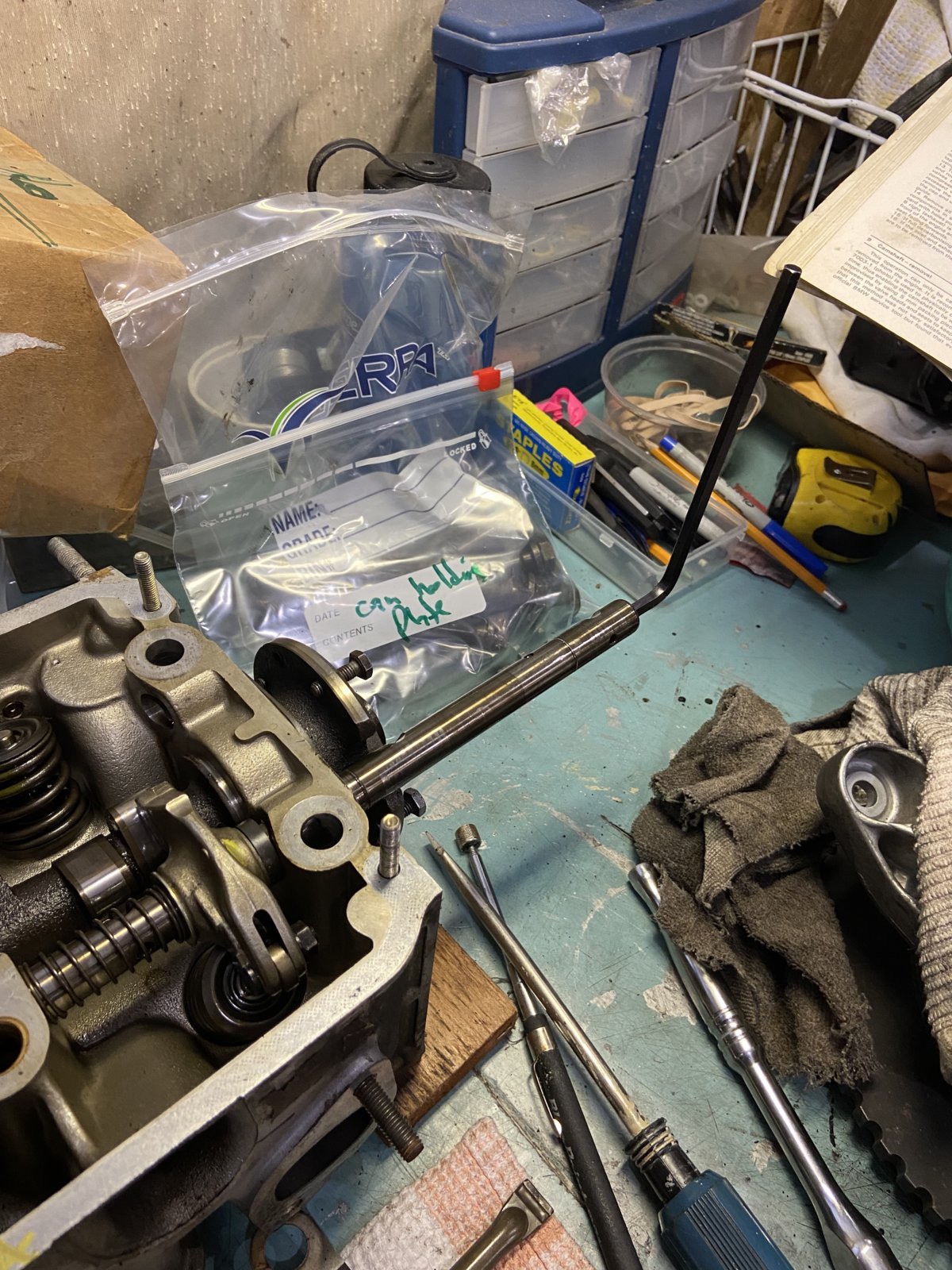

I found some helpful information on the mye28 forum, also. Discussion regarding the order of removal for the rocker shafts, etc. It seems that there is a debate whether they should be removed in a specific order or if that is unnecessary. Personally, I'll follow the order if I can. While I haven't taken my head apart yet, I have prepared by setting myself up with both a threaded "puller" and a brass drift for "pushing" the shafts out (in addition to the compression tool above).
