Pics of parking brake assembly needed

Gary Waggoner

Well-Known Member
Site Donor
Messages
450
Reaction score
202
Location
San Clemente
Does anyone have a picture of the rear parking brake assembly with the rotor off on a disc brake rear? I am missing parts, and need to verify exactly whats needed. The parts pics on WN are not clear enough and the workbooks aren't either.


Ajay

Well-Known Member
Site Donor $$
Messages
235
Reaction score
170
Location
Irvine, CA

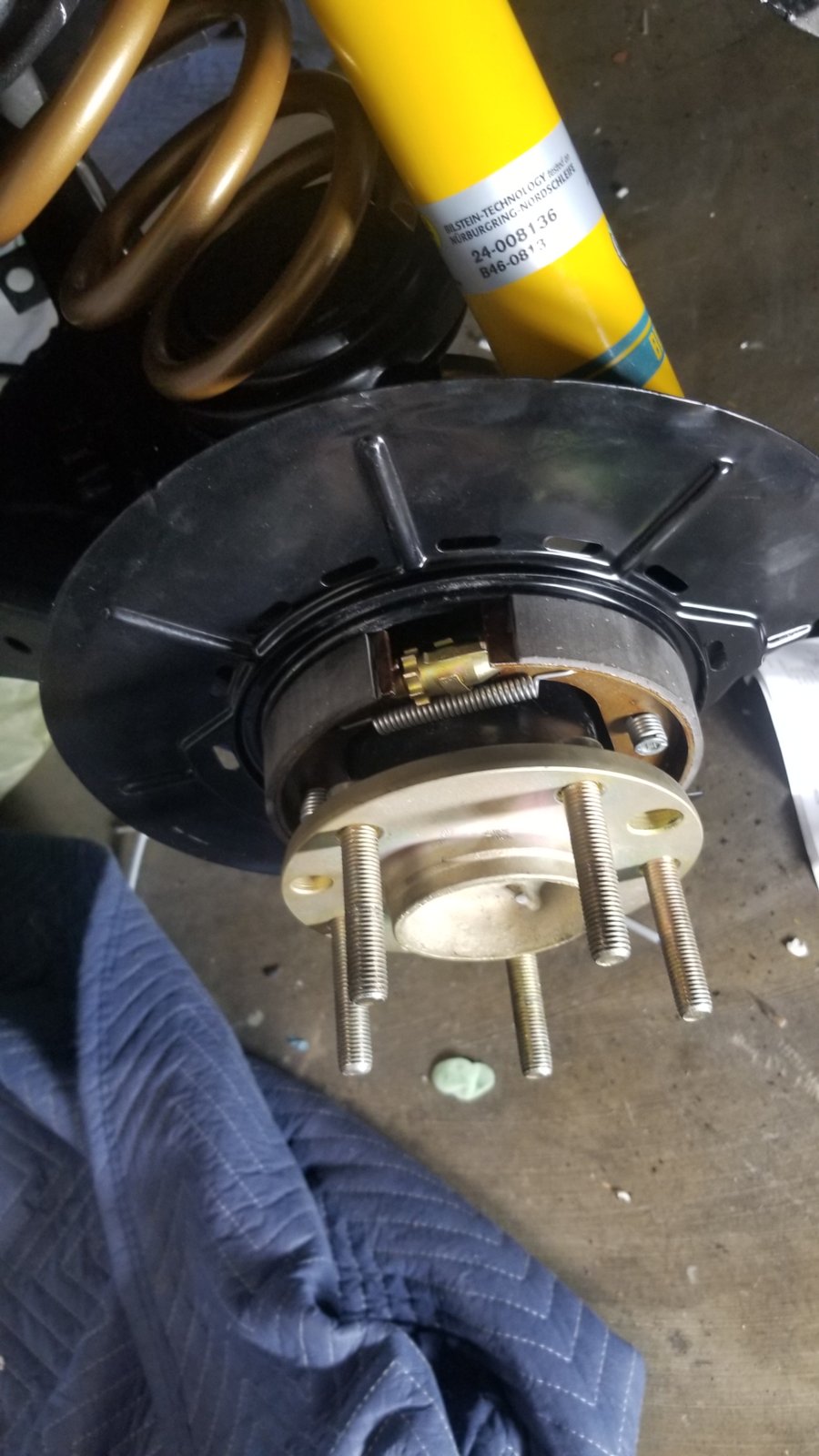

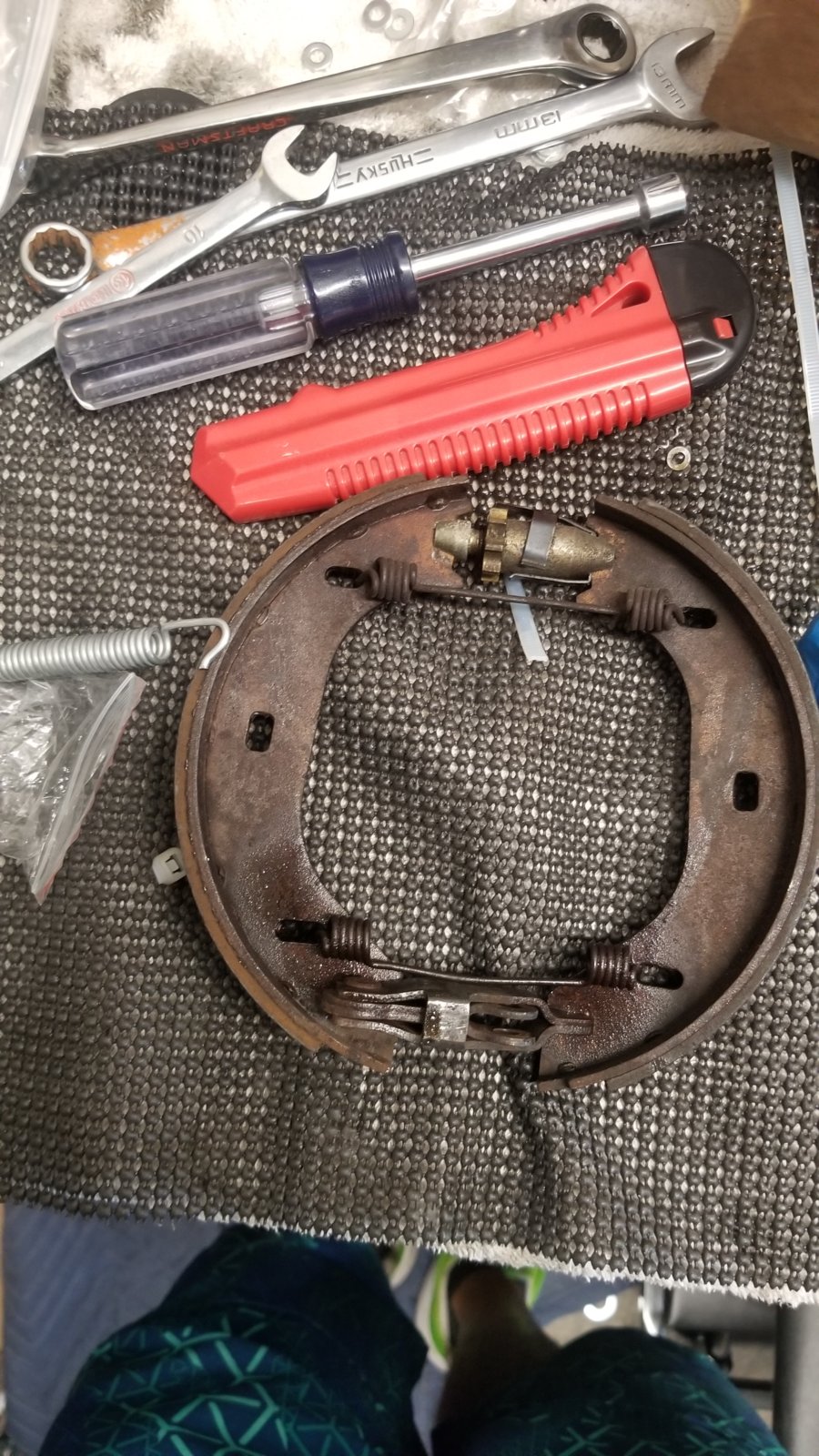

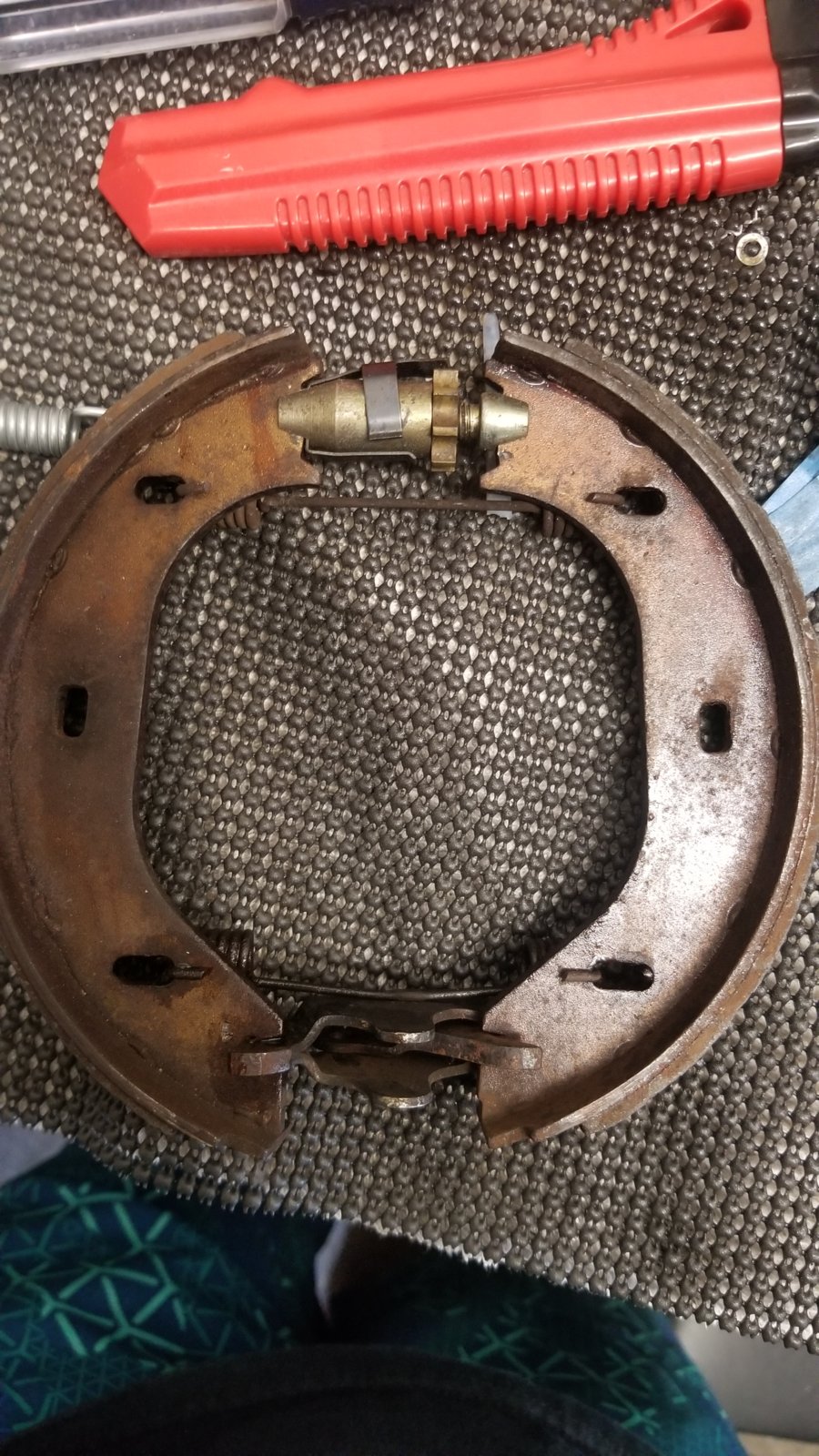

Gary, did mine a while ago. Old assembly parts and then a pic of the e-brakes on the car. Hope it helps. The PITA for me was having the wrong size roll pins with the springs and the e brake support (the one with 2x 10mm nuts). The e-brake kit I purchased had the roll pins about 2 mm too small, after 2 hours of trying and several cuts to my hands, I finally realized their shorter size. I used the old ones and they fit fine.



eriknetherlands

Moderator
Site Donor
Messages
2,699
Reaction score
1,930
Location
Netherlands, Eindhoven area
some pics assembled, in half assembled state, and in fresh state prior to assembly.
hope it helps.


Attachments

  • 20150308_212104.jpg
    260.7 KB · Views: 241
  • 20150227_142135.jpg
    189.4 KB · Views: 250
  • 20150227_111232.jpg
    236.4 KB · Views: 219
  • 20150227_110320.jpg
    249 KB · Views: 234
  • 20150227_142443.jpg
    182.1 KB · Views: 235
  • 20150221_233739.jpg
    197.7 KB · Views: 239
  • 20150226_094004.jpg
    249.4 KB · Views: 223

billpatterson

Well-Known Member
Site Donor
Messages
512
Reaction score
240
Location
Edmonton, Alberta, Canada
Gary, did mine a while ago. Old assembly parts and then a pic of the e-brakes on the car. Hope it helps. The PITA for me was having the wrong size roll pins with the springs and the e brake support (the one with 2x 10mm nuts). The e-brake kit I purchased had the roll pins about 2 mm too small, after 2 hours of trying and several cuts to my hands, I finally realized their shorter size. I used the old ones and they fit fine.

View attachment 68516View attachment 68517View attachment 68518


Hi Ajay and Forum,

Is it recommended to assemble the rear brake off the car before attaching it to the backing plate and attaching the e-brake? I am at this stage and I'm seeking advice; thank you!! I and I assume must forum members do not enjoy doing things 2 or 3 times, beatin' up the hands, and then find the correct approach. That is the beauty of this forum and 2002FAQ.

Regards,
Bill


Ajay

Well-Known Member
Site Donor $$
Messages
235
Reaction score
170
Location
Irvine, CA
Hi Ajay and Forum,

Is it recommended to assemble the rear brake off the car before attaching it to the backing plate and attaching the e-brake? I am at this stage and I'm seeking advice; thank you!! I and I assume must forum members do not enjoy doing things 2 or 3 times, beatin' up the hands, and then find the correct approach. That is the beauty of this forum and 2002FAQ.

Regards,
Bill

Bill,

Some people assemble the whole rear axle--rear subframe, brakes, diif, etc and then just jack it up and and install the completed rear axle. I did it the other way---installed the rear subframe and trailing arms, and then did the parking brakes while the rear axle was installed. However, you do need to reassemble the rear trailing arms--brake guards, bearings, etc prior to installing the rear trailing arms. In my case, i replated all axle interior parts, and powder coated all parts and, of course, added new wheel bearings in the rears.

A side note, the rear parking brake pins (allen head with a T on the end) that came with my parking brake kit were about 2 mm too small, so i would check that the new ones match your original sizes. Luckily my original pins were salvagable...wire wheeled cleaned them and used them.


Simufly

Well-Known Member
Messages
1,364
Reaction score
316
Location
Cheshire UK.
Looking through my stash of parts, I see I have a few sets of genuine BMW park bake pins, a couple of park brake expanders (the bit that the brake cable fit into.) Anyone doing a rebuild?
