Reference pics of new old stock parts

[Bob]

Please post pics of new old stock parts if you have them. Good way to reference for comparing original or refinished pieces or repro.
Examples

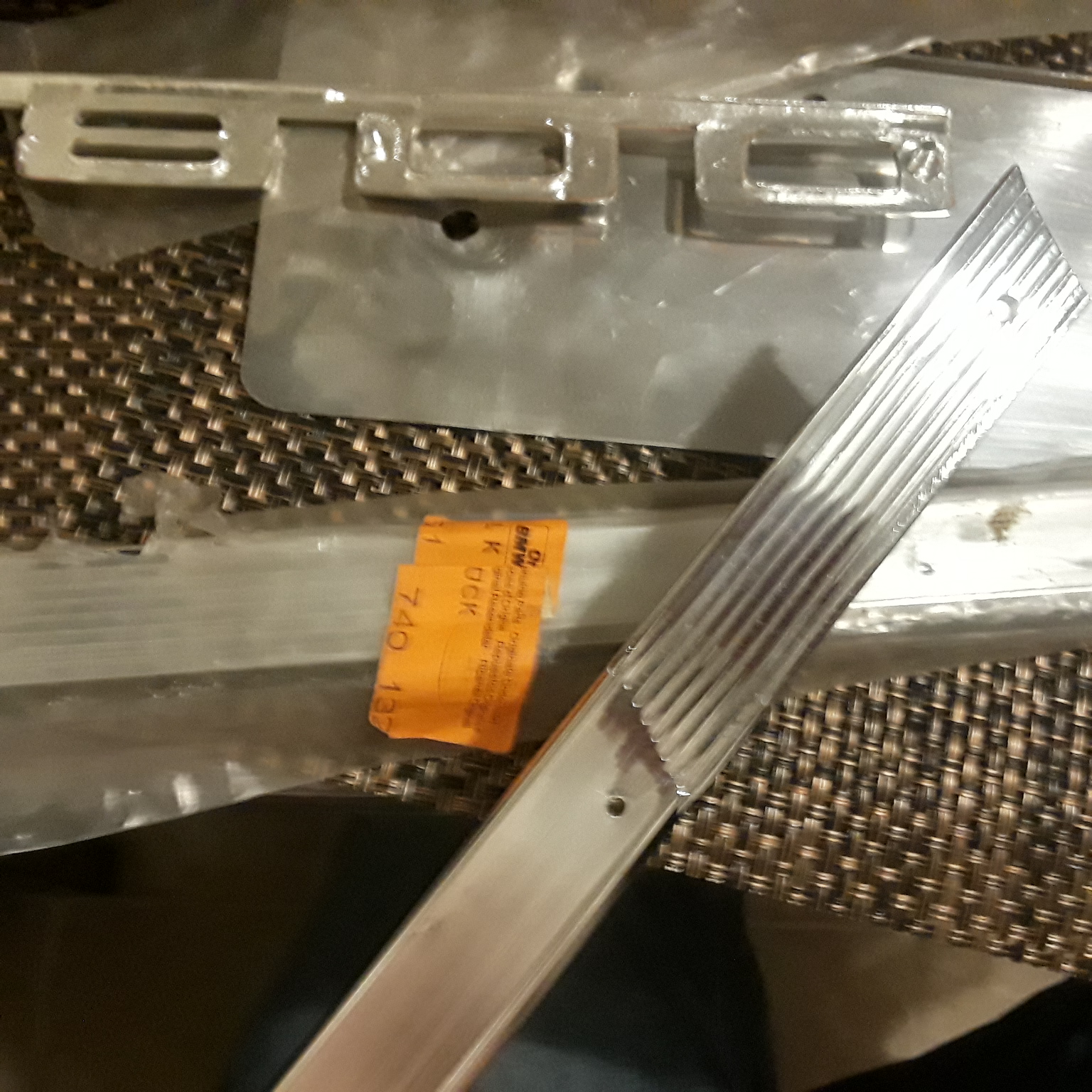

Old stock interior window chrome e9, 2000cs doesn't have the ribbed area.
E9 2800 badge note hollowed out mounting posts and bright aluminum anodizing.



[eriknetherlands]

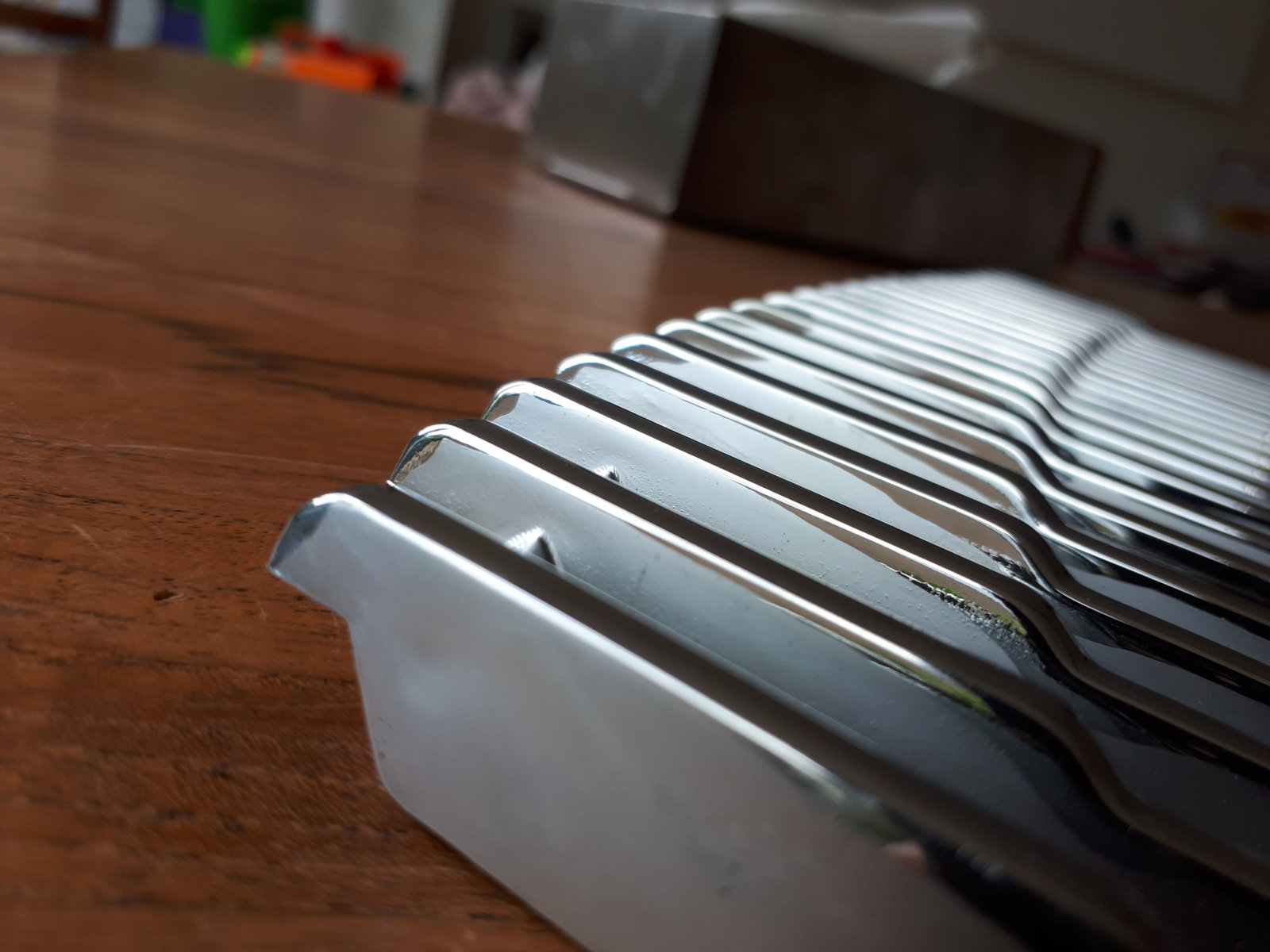

here's an interesting hood grille; NOS chrome has two tone setup; satin on the sides, and shiny chrome on top.
Side grille is evenly satin all over.



[Markos]

here's an interesting hood grille; NOS chrome has two tone setup; satin on the sides, and shiny chrome on top.

Great to see a picture of this. It highlights that the part is plastic. There is no way to dip a metal grill and get the chrome to behave that way on the sides of the slats. See how the chrome dips down farther on the sides of the ridge. It is vacuum metalized plastic.



[Bob]

New ones are full glossy chrome! I need a set of the satin ones.



[deQuincey]

New ones are full glossy chrome! I need a set of the satin ones.

i do have a full set of hood grilles and lateral grilles, so 2+2, in orginal NOS condition, with the two tone chromed (glossy + satin), they are very nice, yes

BTW, not for sale, sorry



[Bob]

Nos c pillar badges in satin chrome



[Markos]

Seeking advice. Photos forum?



[BarryG]

I came across this last week.



[aearch]

THE OUTSIDE BOTTOM SEAL PLASTIC RAIL COVER ALL HAVE SCREWS IN THEM NOW
MY SET HAS NO HOLES
IT JUST SLIDES UNDER THE SEAT
MUCH MUCH BETTER LOOK GLAD I HAVE THEM
LOKIN FOR THE PIC BUT DONT SEE IT



[HB Chris]

The chrome plastic covers that slide under the seat rails are e12 and later cars.
