Restoration 3.0 cs

[Marco]

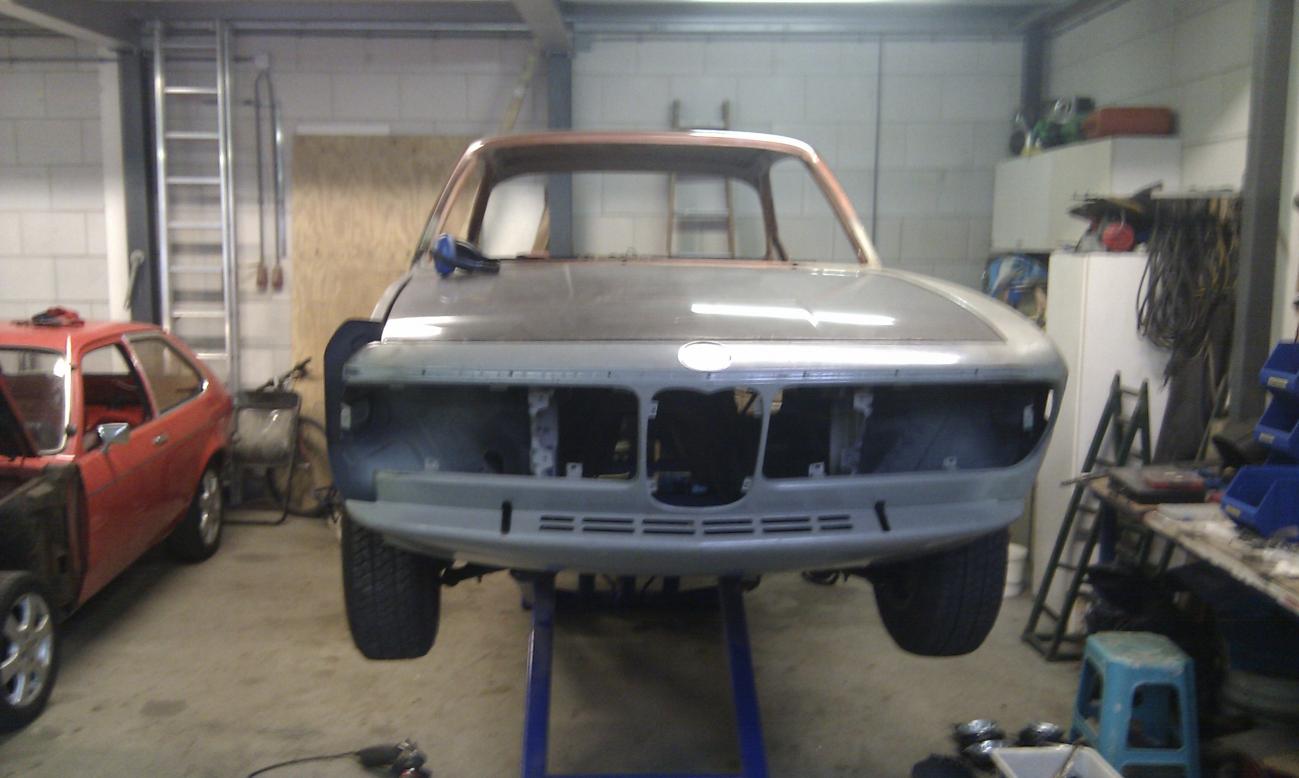

Hello i've startet to rebuild one of the e9 i own.

The front has all new old stock parts but it was not welded good by the previous owner so i had to take it apart. (even some parts loosen by a screw driver)

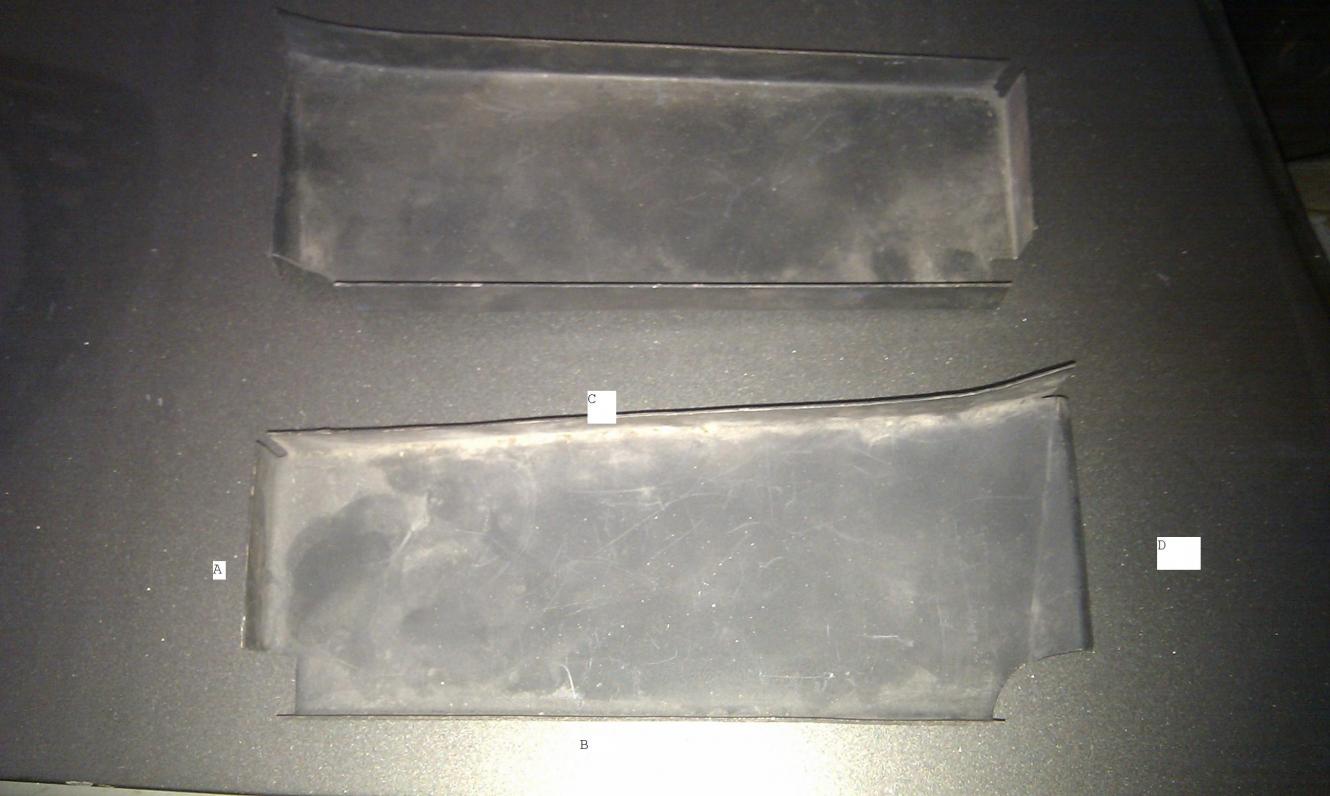

What is the correct way too connect the parts missing on the picture (supporting strut, covering plates) maybe some one has a few pictures how it al is connected.

And how big are the gaps between hood, wings and front and between wings and doors ?

This forum is great i will post more pictures when i have time


Regards,

Marco



[61porsche]

Body

Hello Marco,

Part of your answer is here from the repair manual: http://www.e9-driven.com/Public/Library/BMW-E9-Manual/pages/en/41002010.html#refertoc

Best regards,

Jerry
61Porsche



[Marco]

Does some one have pictures how to place the parts in the picture it is not in the repair manual i don't know which is left or right.

Thanks,

Marco



[61porsche]

Body parts

Marco,

My guess is a version of a closing panel based on the squarish cut-out: http://www.bmwmobiletradition-onlin...el=7031&mospid=47808&btnr=41_1206&hg=41&fg=10

Pehaps another picture of your progress of the panels in place already would help with identifying further the panels in your question.



[Marco]

Jerry

It's number 3 http://www.bmwmobiletradition-onlin...el=7031&mospid=47808&btnr=41_1211&hg=41&fg=20



[Gosch]

Marco

the 3 same angled sides must be down and the single angled side up and the curved side must be outside It fits on the plate number 8 http://www.bmwmobiletradition-onlin...el=7031&mospid=47808&btnr=41_1207&hg=41&fg=10

Gosch



[Marco]

Gosh and Jerry

Is A or D connected to the A post ??

Is C or B connected to plate number 8 http://www.bmwmobiletradition-online...07&hg=41&fg=10

Po didn't place this parts and a few other parts so i'm removing it first (right site is clear now left side almost)

Thanks



[Gosch]

so is correct
D connected to the A post
C connected to plate number 8



[Marco]

Gosch

Thanks i will post more picture on the progress

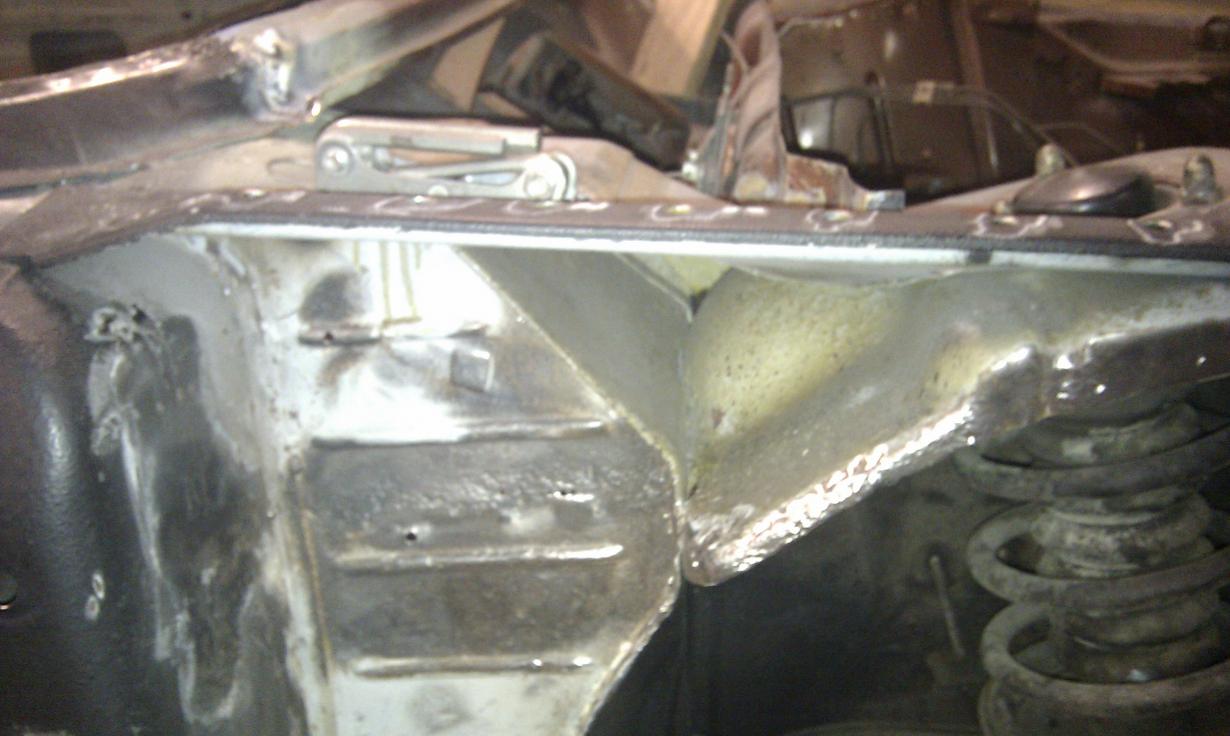

New front and left and right panels are new but badly connected so easy to remove

Regards,

Marco
