SOLD: E24 heat shield

[autokunst]

Hello all,

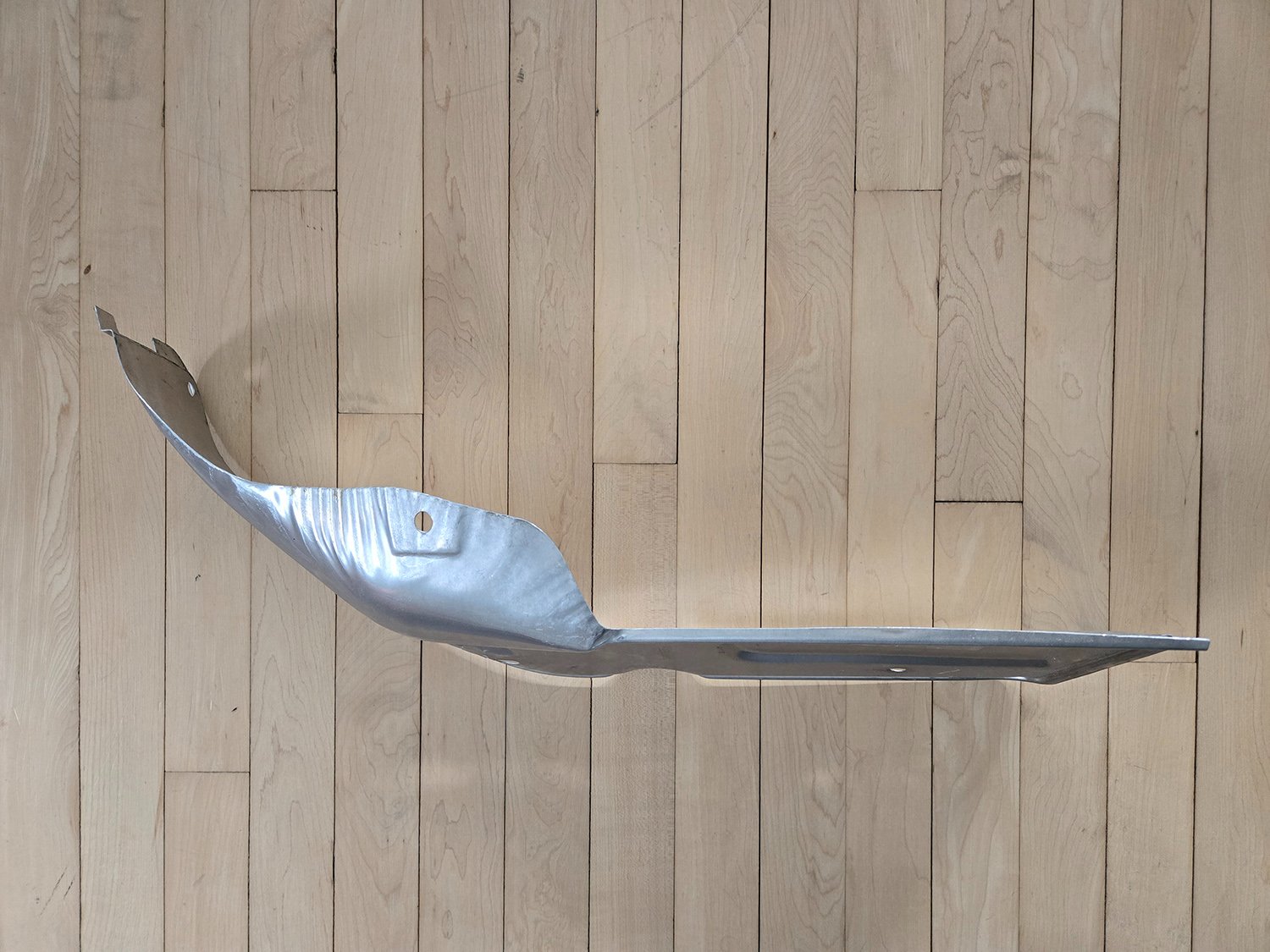

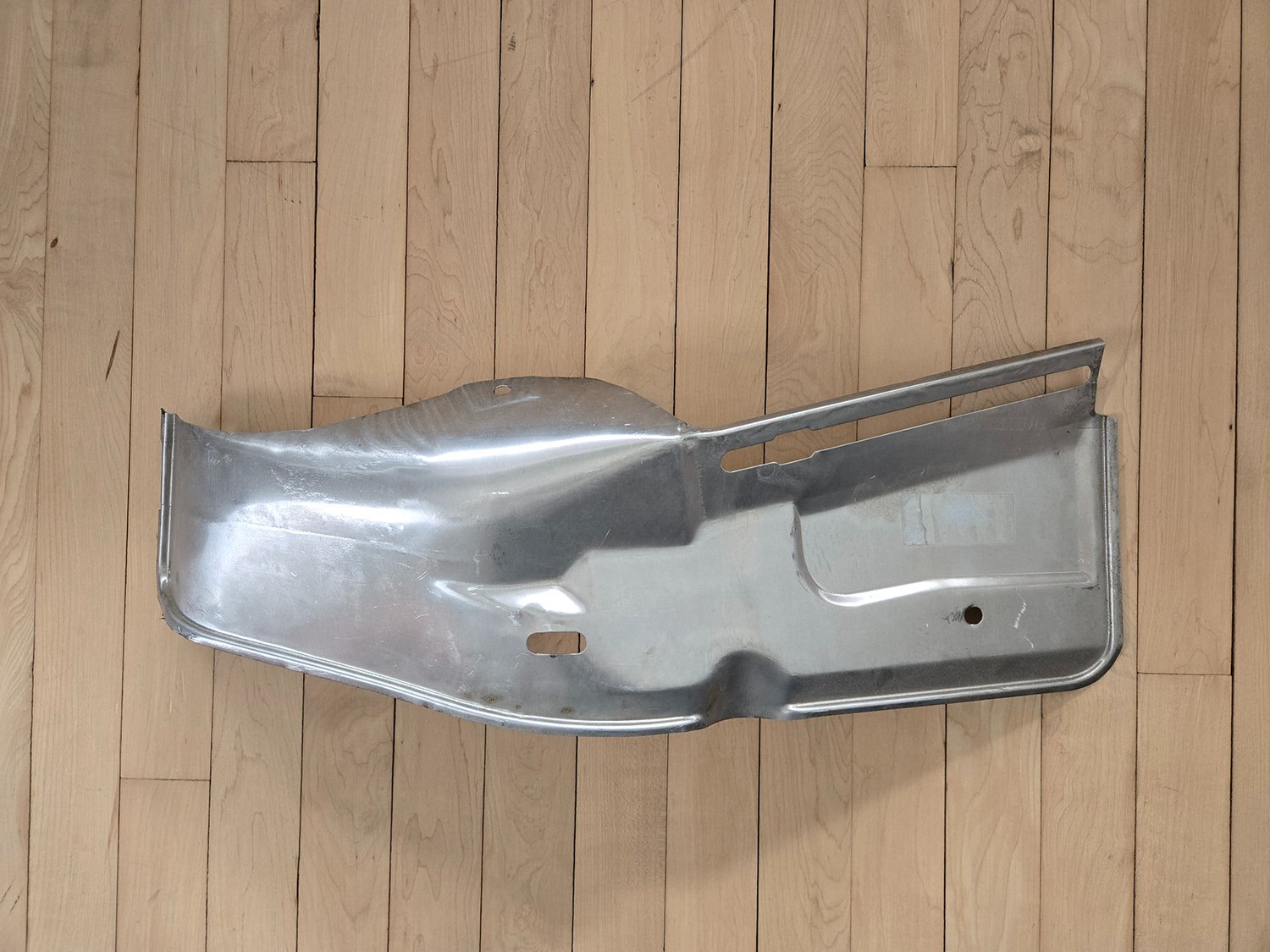

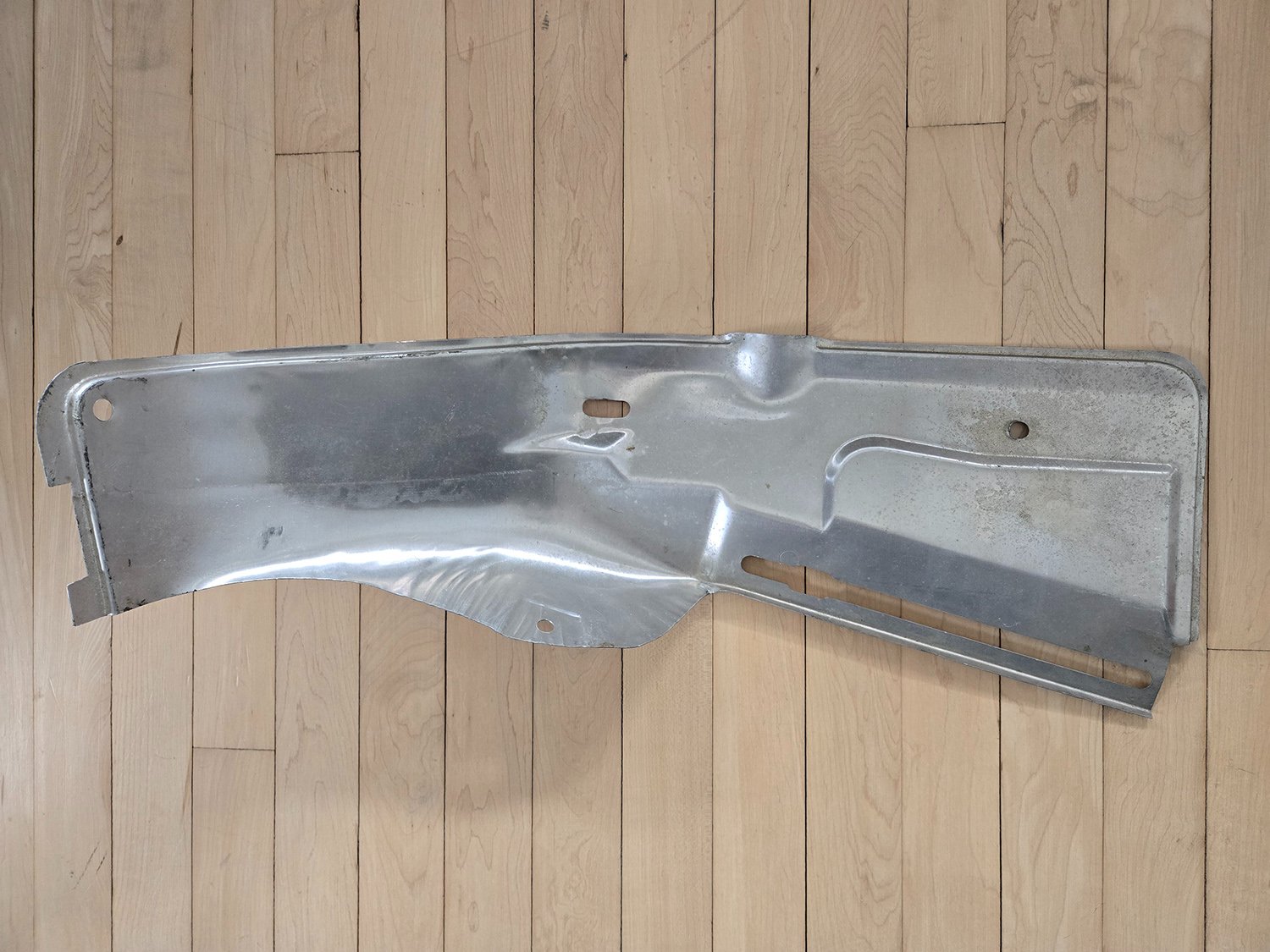

I have a new exhaust heat shield that is originally for an E24, but this part works for an E9 with some attachment points. This part is new, but with a fair amount of shelf burn. I originally purchased this from a forum member and look forward to passing it on to another. PN 51 48 1 842 850
$45 plus shipping.


Here's a link to some other members installing it on their cars:

Post in thread 'reducing heat transfer from exhaust to cabin'

Jul 21, 2022

As mentioned above, I indeed placed 2 pre-zinced weld nuts on the car's body.
But I used different mounting points as in your pic with green and orange arrows. I did not use the hole at the Orange arrow.

Here are some pictures of what i did.
I made a new hole in the heat shield, in a place that thought was ideal: at the side toward the engine.

First pic shows the one that is close to the engine, welded in place.
Lower in the picture you see a round circle with a cross in it, just next to the frame rails where the second weld nut will be attached. The weldnut close to the frame rails is...

• eriknetherlands

•



[afeustel]

DM sent.



[deQuincey]

Hello all,
I have a new exhaust heat shield that is originally for an E24, but this part works for an E9 with some attachment points. This part is new, but with a fair amount of shelf burn. I originally purchased this from a forum member and look forward to passing it on to another. PN 51 48 1 842 850
$45 plus shipping.
View attachment 198100View attachment 198101View attachment 198102

Here's a link to some other members installing it on their cars:

Post in thread 'reducing heat transfer from exhaust to cabin'

Jul 21, 2022

As mentioned above, I indeed placed 2 pre-zinced weld nuts on the car's body.
But I used different mounting points as in your pic with green and orange arrows. I did not use the hole at the Orange arrow.

Here are some pictures of what i did.
I made a new hole in the heat shield, in a place that thought was ideal: at the side toward the engine.

First pic shows the one that is close to the engine, welded in place.
Lower in the picture you see a round circle with a cross in it, just next to the frame rails where the second weld nut will be attached. The weldnut close to the frame rails is...

• eriknetherlands

•

works great !!!



[autokunst]

This item is sold.
Thank you!
