unknown wire

reedreed

New Member
Messages
11
Reaction score
0
Location
Spain

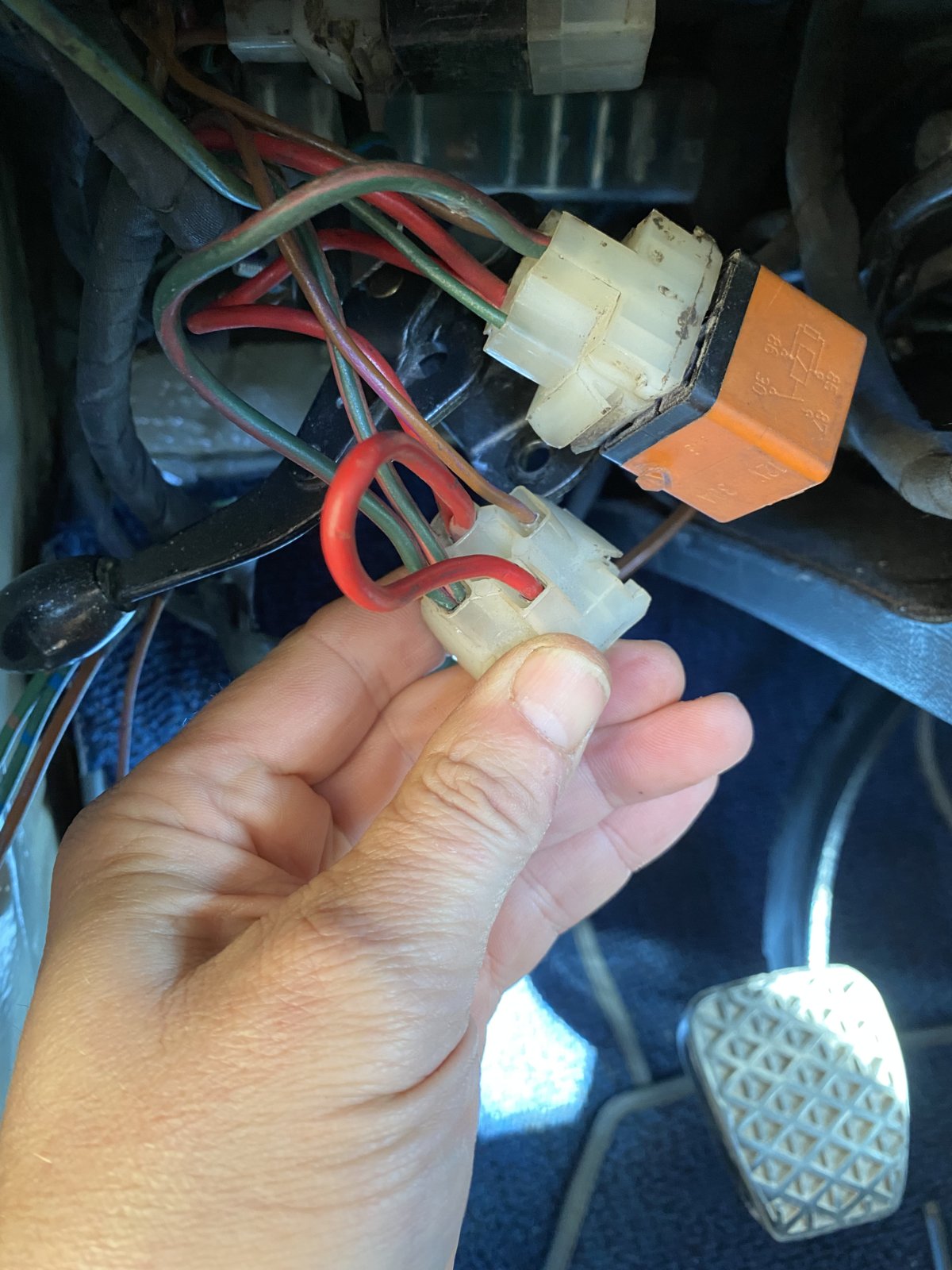

What it may be for? Not a door switch definitely. Both door switches are connected and work properly. This wire looks original and has +12V on it.
Any thoughts?


Wladek

Well-Known Member
Messages
1,189
Reaction score
644
Location
Gdansk, POLAND

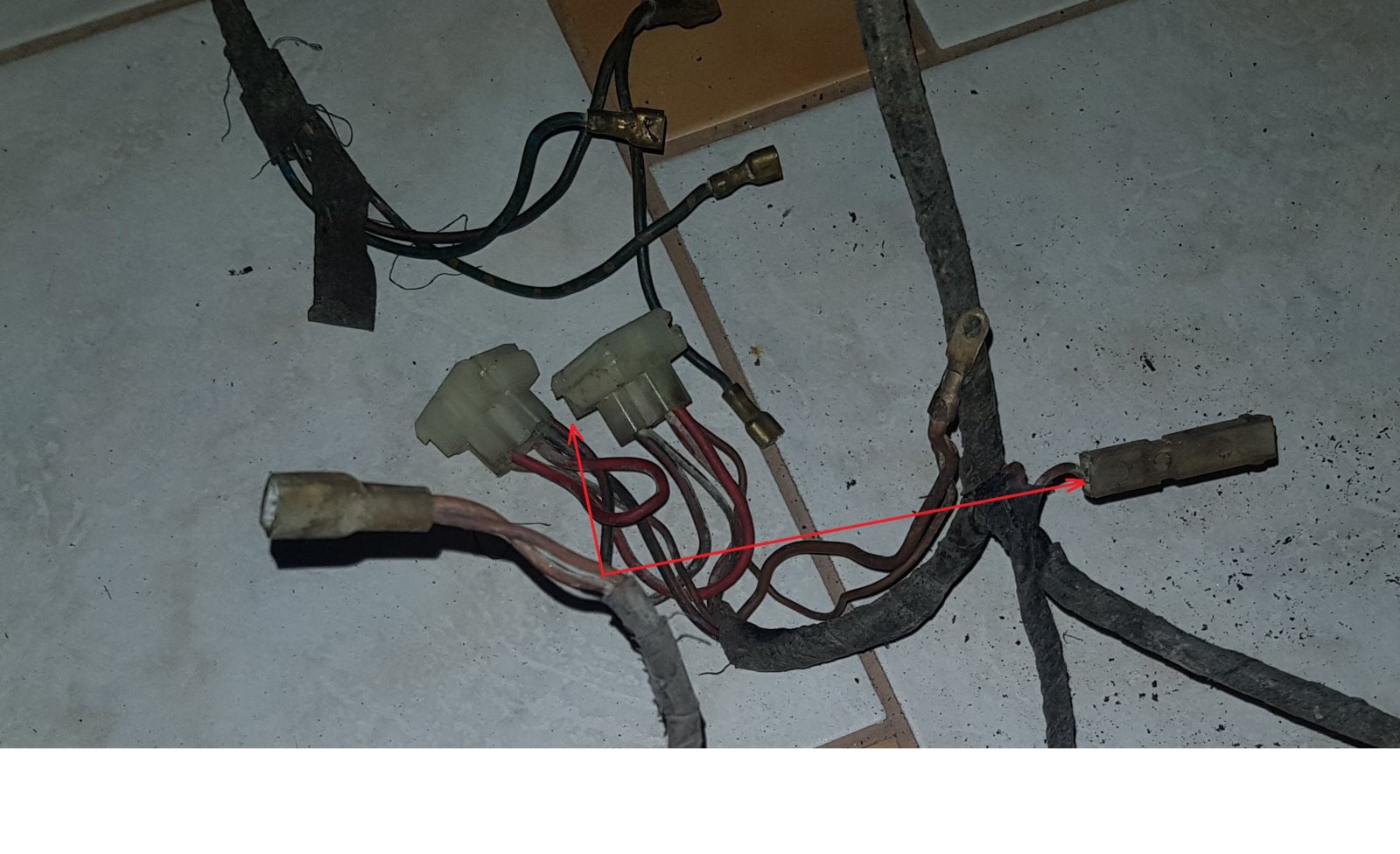

I am currently working on my wiring - i checked it and from what i see that wire is power windows related, it is on the same loom, just after windows relays & circuit breakers. I measured it with multimeter & it goes from relay, this wire is also related to additonal square plug (marked on photo).
Maybe @sfdon could share some info?


merdad

Active Member
Site Donor $
Messages
295
Reaction score
134
Location
Tehran, Iran
From what I remember on my 76 E3, I think (again think), that wire was plugged in to the driver door light switch that had two terminals. It would allow the windows to operate once the door was open and ignition off. It may have
been an option on 74 and later cars!

Last edited:

jvrenaudon

Member
Messages
180
Reaction score
22
Location
Cheshire, UK
Could it be one of the feeds to the circuit breakers fitted on the later Series 2 CSi's - two pop-out buttons located immediately to the right of the odometer re-set knob on the RHD version? John.


HB Chris

Moderator
Site Donor $$
Messages
16,097
Reaction score
5,386
Location
Huntington Beach, CA
The black and blue wires in kick panel are window motors wires. With two wires this must be a mid 73 and later with circuit breakers. When door switch is opened the load shed relay closes and allows windows to operate without the ignition. Door switch will have two wires as one goes to the load shed relay. If you push it in you can hear relay click. As the wire looks to be brown which is ground I think it goes to door switch. If it has power then you have other issues.


Krzysztof

Active Member
Site Donor
Messages
492
Reaction score
173
Location
Poland
Brown wire might have battery voltage on it if it is connected to the bottom of the relay coil.

I would check with the bulb tester first and - as a second step - connect it to chassis. IF the relay will "tick" it can be "comfort" functionality of the electric windows (to close them with open doors)

Good luck


reedreed

New Member
Messages
11
Reaction score
0
Location
Spain
I thank you all for the useful info! Seems like it relates some windows function because my driver's door switch has two terminals. The problem is: if i touch it to the chassis i have my ignition on. Even with no key in.
