WTB: Underdash, Fuse door hinge

tferrer

Well-Known Member
Site Donor
Messages
2,153
Reaction score
2,336
Location
San Francisco, CA
Hi folks. So I'm looking for the cad plated hinge that the fuse door rides on.

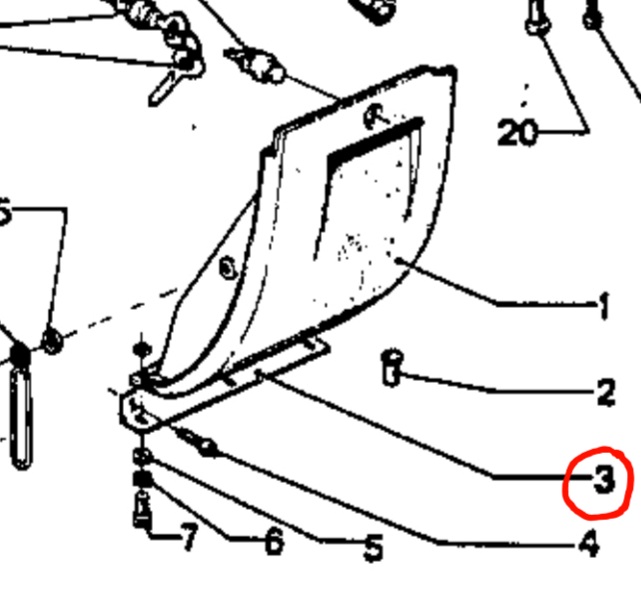

It's #3 in the schematic below. Not looking for the fuse door, just the hinge.



bavbob

Well-Known Member
Site Donor
Messages
3,354
Reaction score
1,568
Location
Boston, Ma

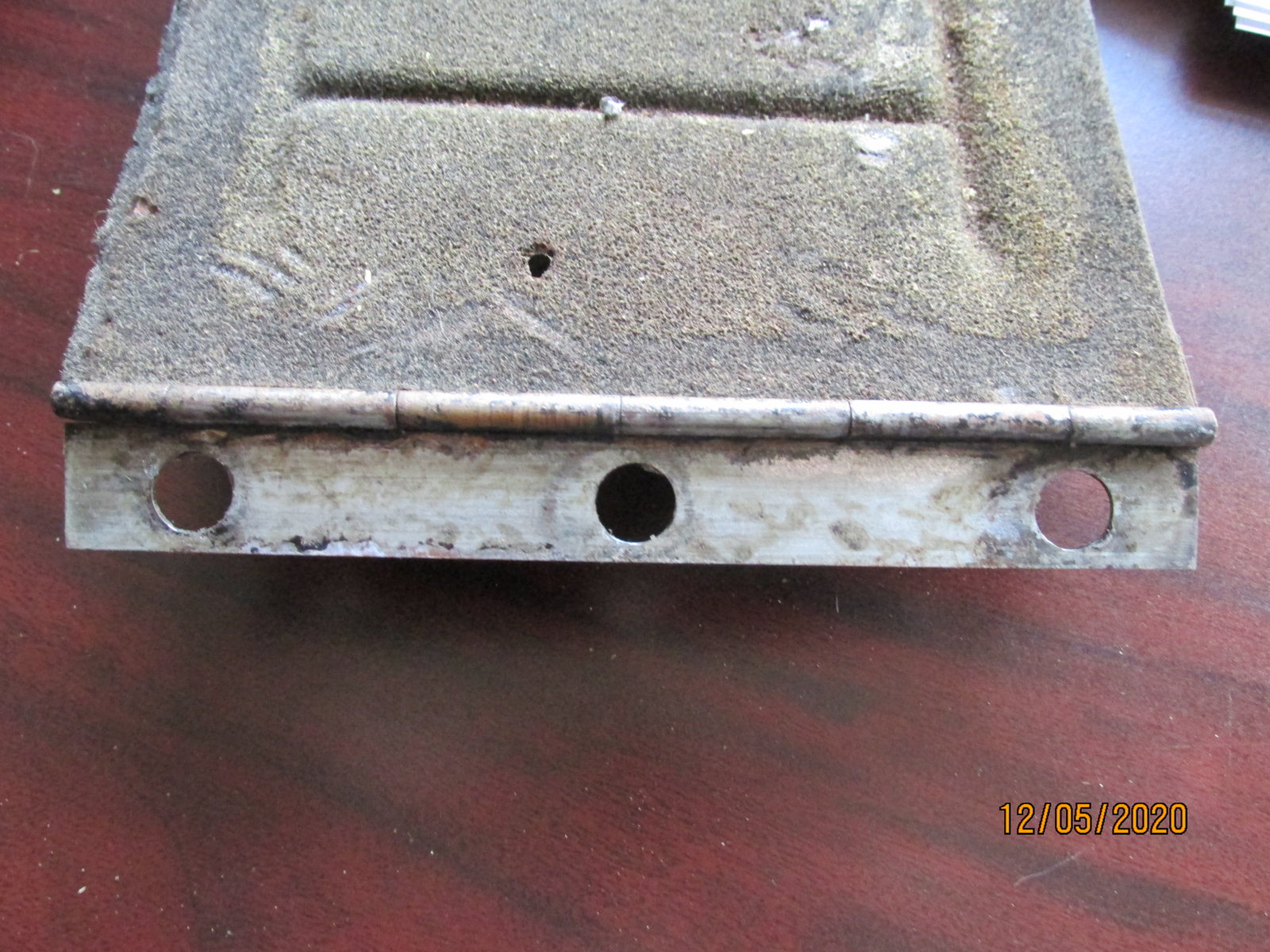

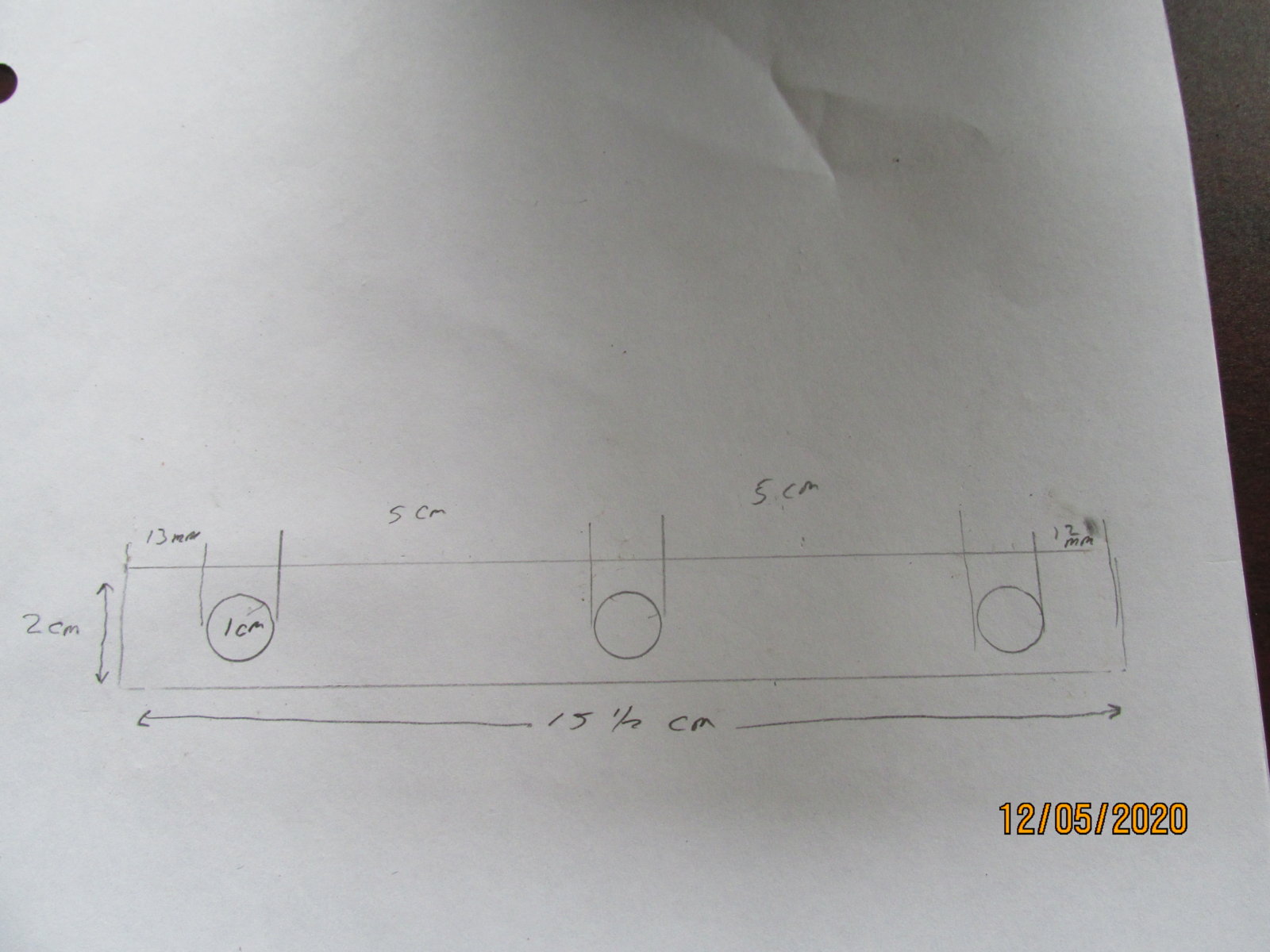

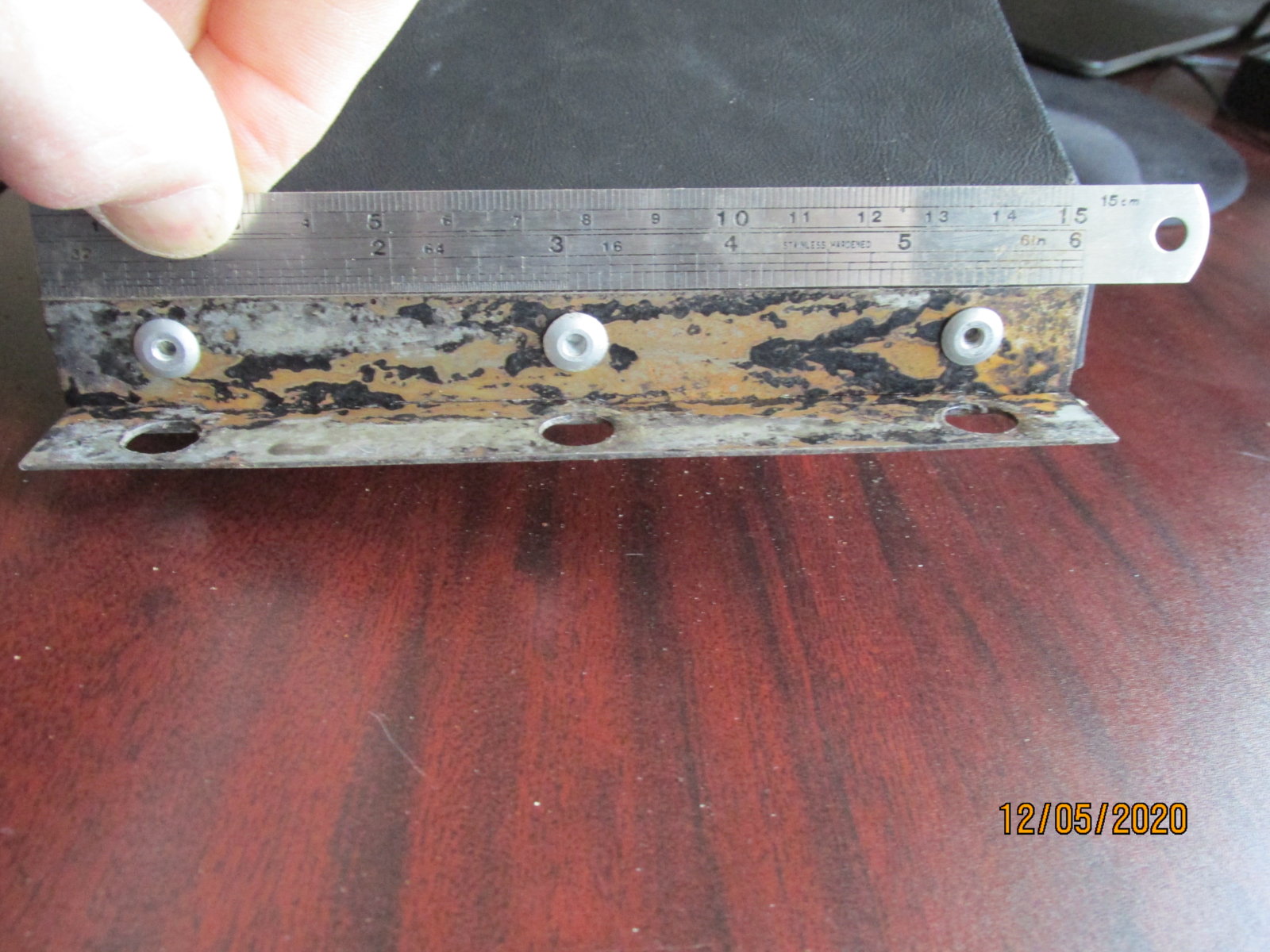

I will send you dimensions if you want so you can search on line......if you dont have the old one, probably find a great match with little cost.


Dick Steinkamp

Well-Known Member
Site Donor $
Messages
2,425
Reaction score
2,849
Location
Bellingham, WA
I have one for an E3. E3 PN is 51161800659. E9 is 51161811002. If the E3 is longer than the E9, perhaps the E3 could be cut down?

If that is a possibility...Bob, can you post the dimensions and I'll measure my E3 one.

Last edited:

Dick Steinkamp

Well-Known Member
Site Donor $
Messages
2,425
Reaction score
2,849
Location
Bellingham, WA

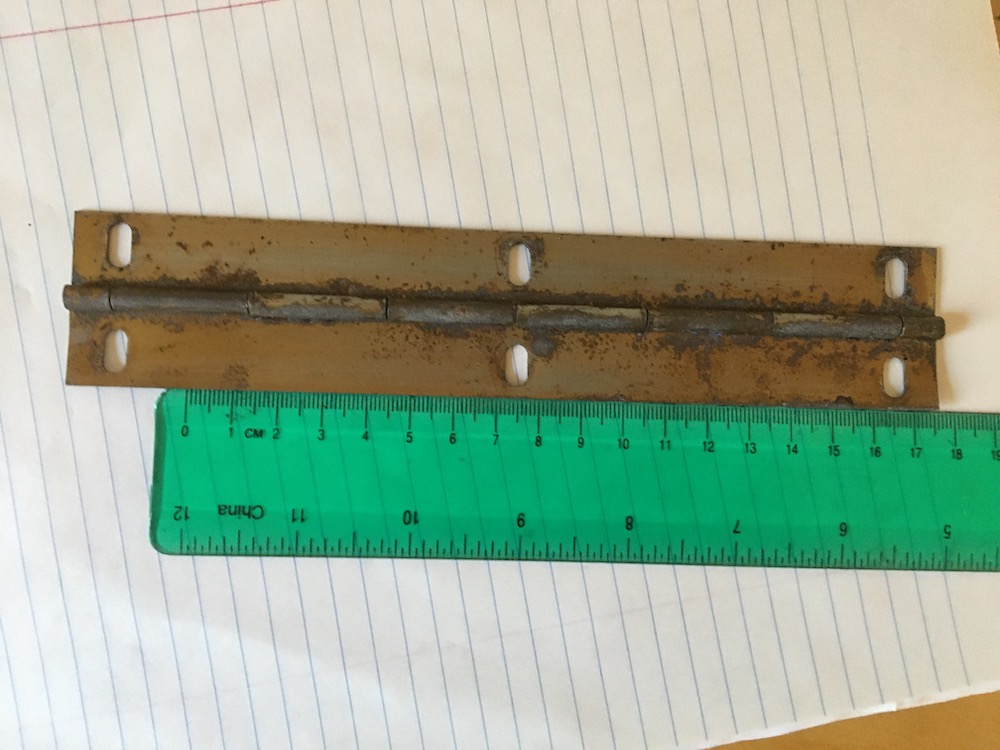

My E3 one is 20 CM long. The width per side is 2CM like the E9 one. The holes are oval rather than round.

You could cut 2.5 CM off each side and drill the outer holes to the E9 location.




It's yours if you can use it.

Last edited:

tferrer

Well-Known Member
Site Donor
Messages
2,153
Reaction score
2,336
Location
San Francisco, CA
Thanks for all the help guys! Someone super generous has reached out and is looking for a spare hinge currently.

Great group on this forum!
