1973 E9 Door Trim Panel Help

[pickman]

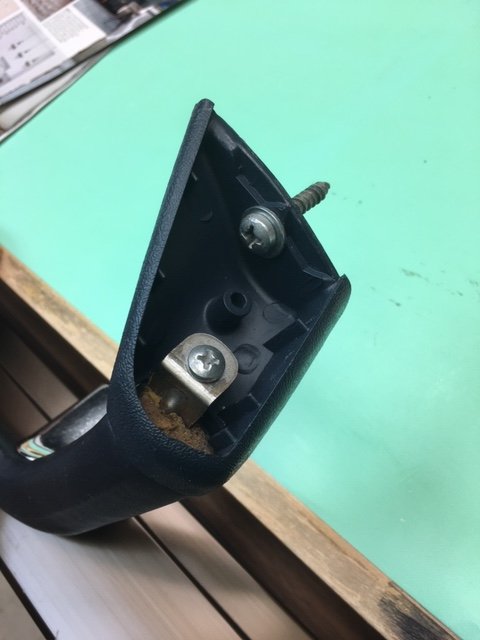

Attaching the door pull handle the upper wood appears that there is a bushing that attaches the upper handle/plastic to the wood/door. There is a hole in the wood but no fastener can anyone advise how this is attached please?



[HB Chris]

IIRC, the coarse phillips screw just screws into the metal door itself.



[dave v. in nc]

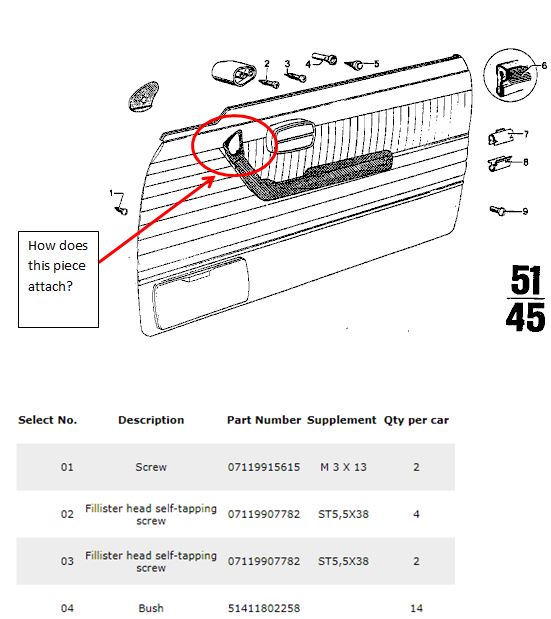

I think maybe #3 (since it says "2 per")



[Mot27cars]

Is there a plastic piece that pops on metal door skin that accepts the screw?



[dave v. in nc]

The diagram above says "self-tapping", so I'm betting with Chris, that into the inside metal door skin it goes...



[HB Chris]

Is there a plastic piece that pops on metal door skin that accepts the screw?

Later cars like e12 have a plastic insert in the door metal, coupe doesn’t. And they are pretty big screws!
