1973 E9 Seal Question -Help

[pickman]

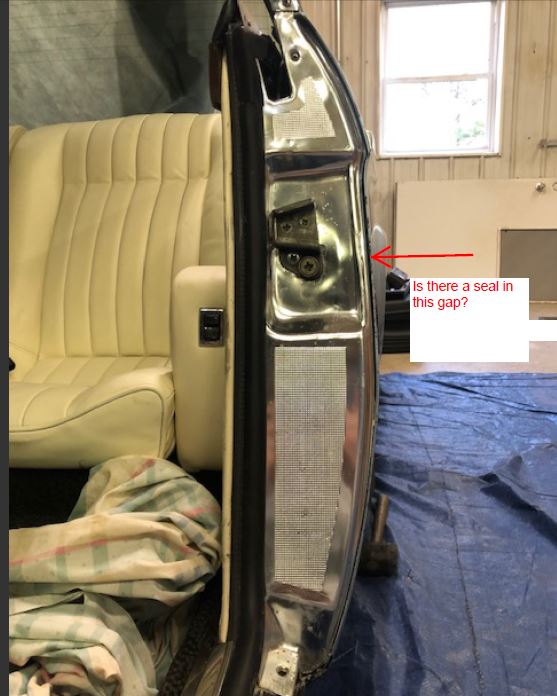

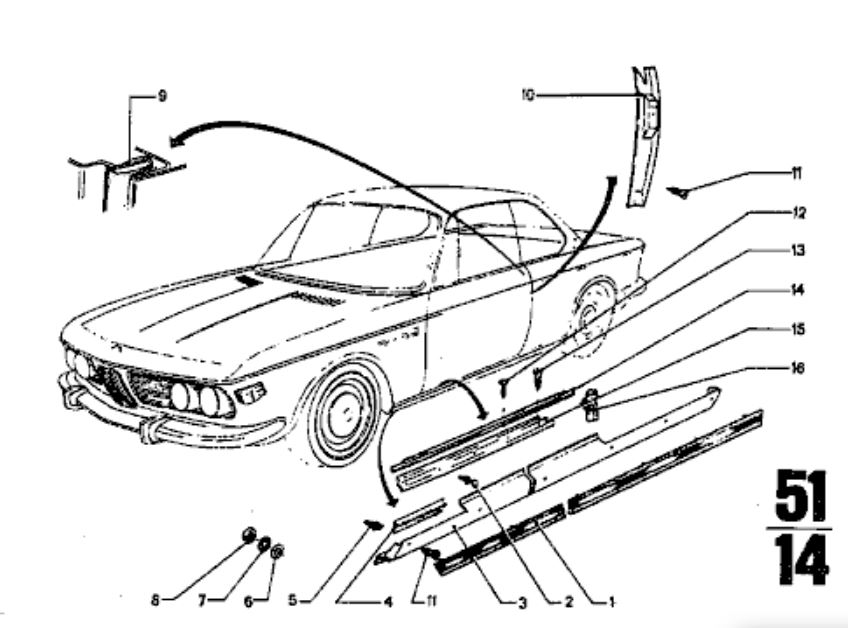

While assembling the lowere rocker panel I noticed the parts manual shows a seal which has peaked my curiosity. Can anyone confirm if there is a seal as shown in the photos please? #9 in 51/14 shows the issue trying to determine.



[rsporsche]

yes ... there is a seal that goes on the side of the aluminum jamb panel.
its 8.82 euro each from W+N. this trim was NLA for a period of time

Rubber for chrome B-post cover fits for left or right side for all models and years of manufacturing you need 2 for 1 car

Rubber for chrome B-post cover fits for left or right side for all models and years of manufacturing you need 2 for 1 car

www.wallothnesch.com



[eriknetherlands]

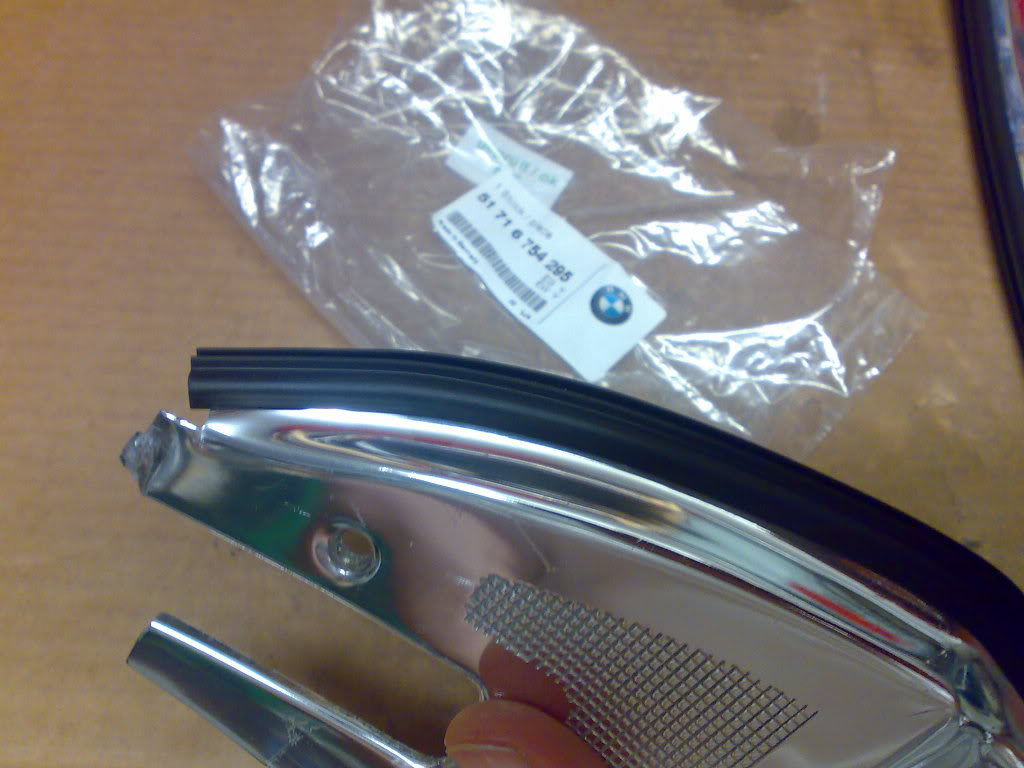

here's a pic of the strip installed on the aluminium trim piece, with curtousy of Master DeQuincey, recognizable by the clean thumb...)



[pickman]

Thank you nice thumb
