1st time post. Parts location

[HemptasticG]

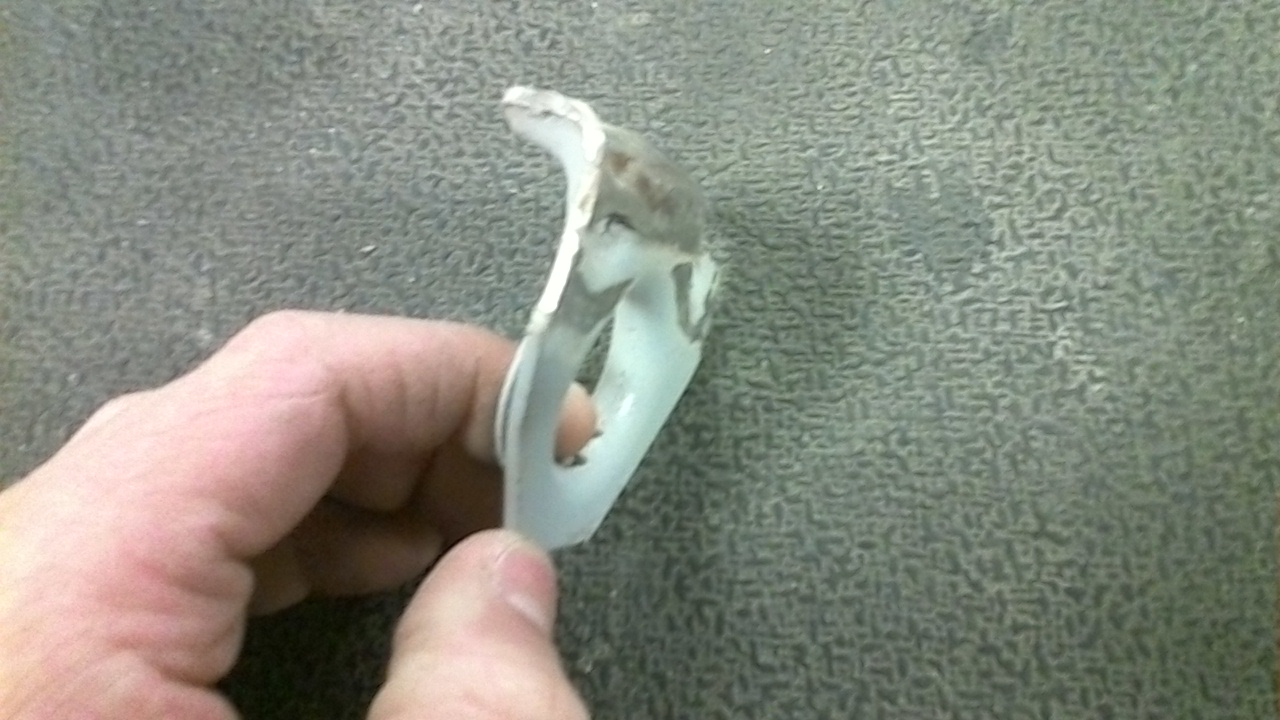

Hello I have currently taken on a E9Coupe restoration, that has previous work done to it. I have a few parts that I don't quite know where the should be located on the car and cant locate them in the www.wallothnesch.com build book. For this post we will call this bracket set A.

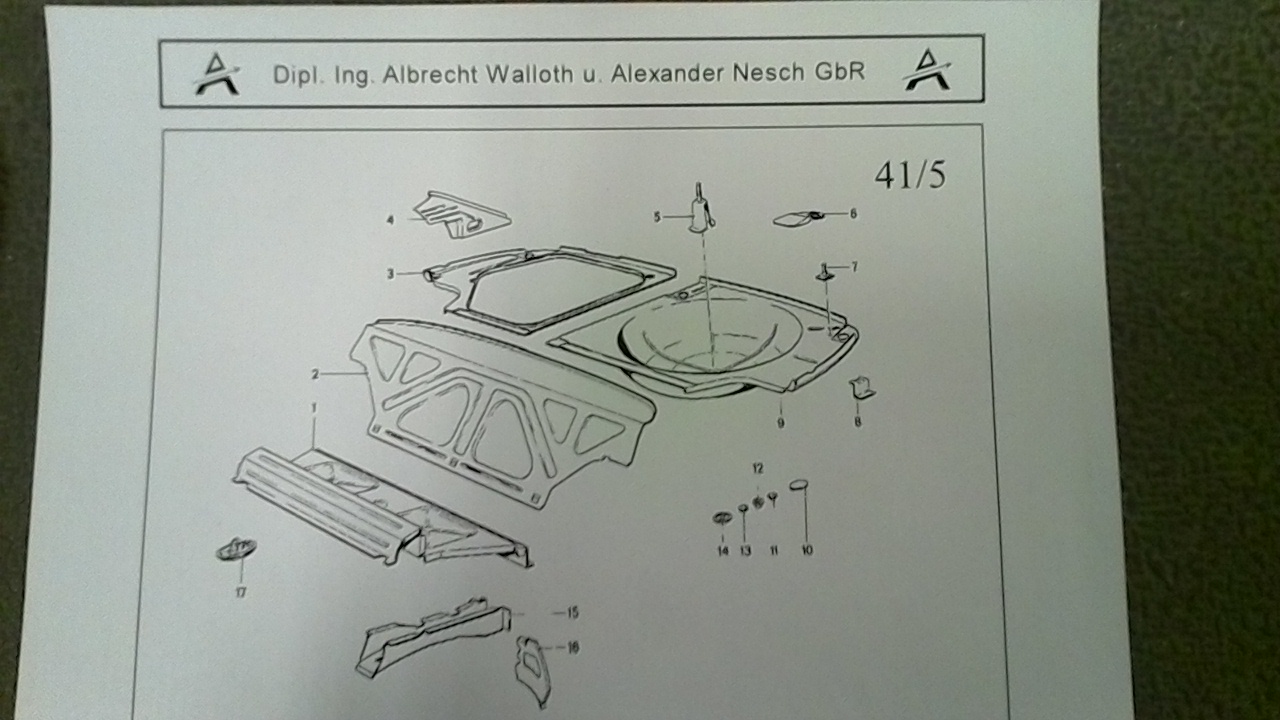

is this on of the support brackets for the wooden trunk floor liner. in the image in the wallothnesh.com manual there is only one

#8 is it a LH & RH part.

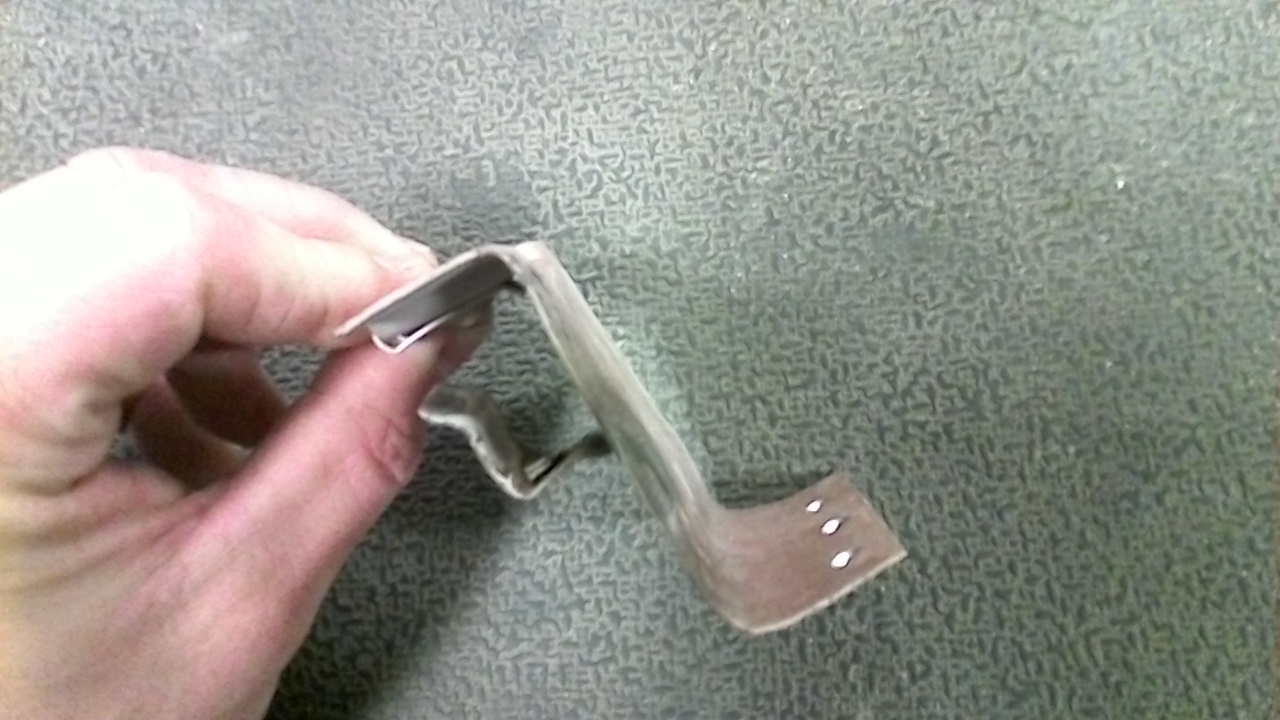

Now bracket set B, with bracket set A I might have an understanding were B requires to go.

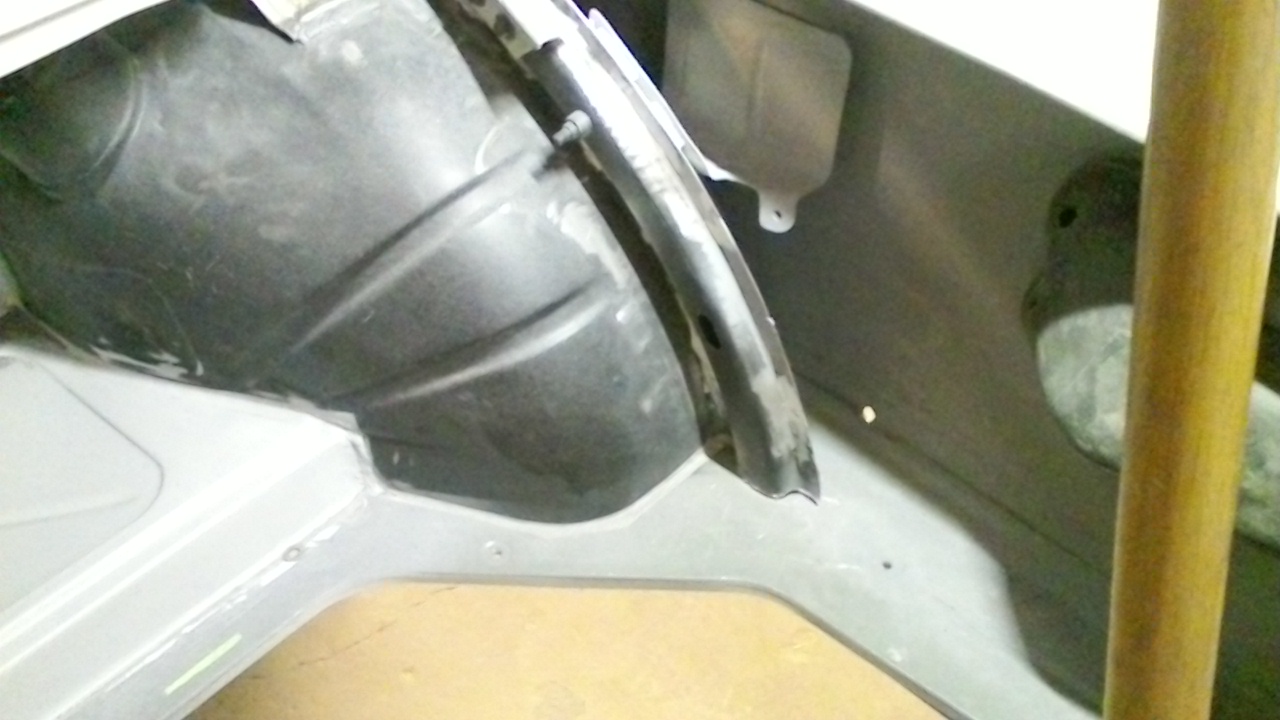

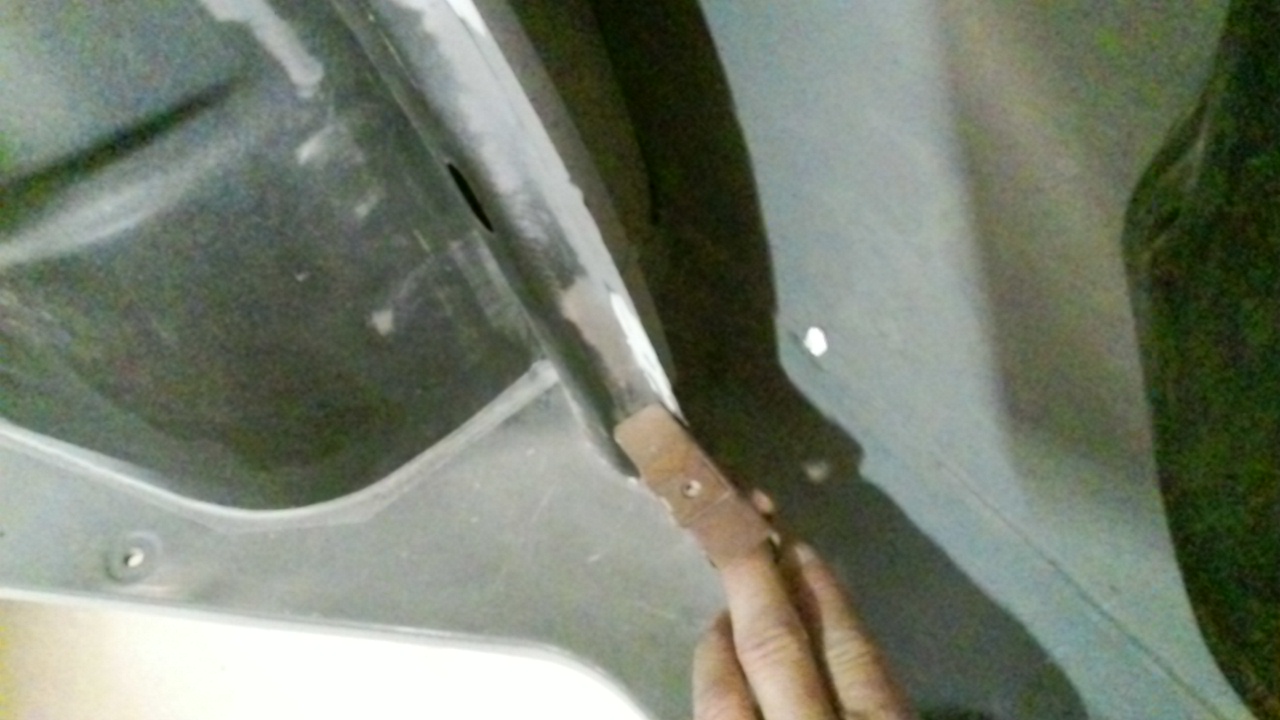

The image of the LH position

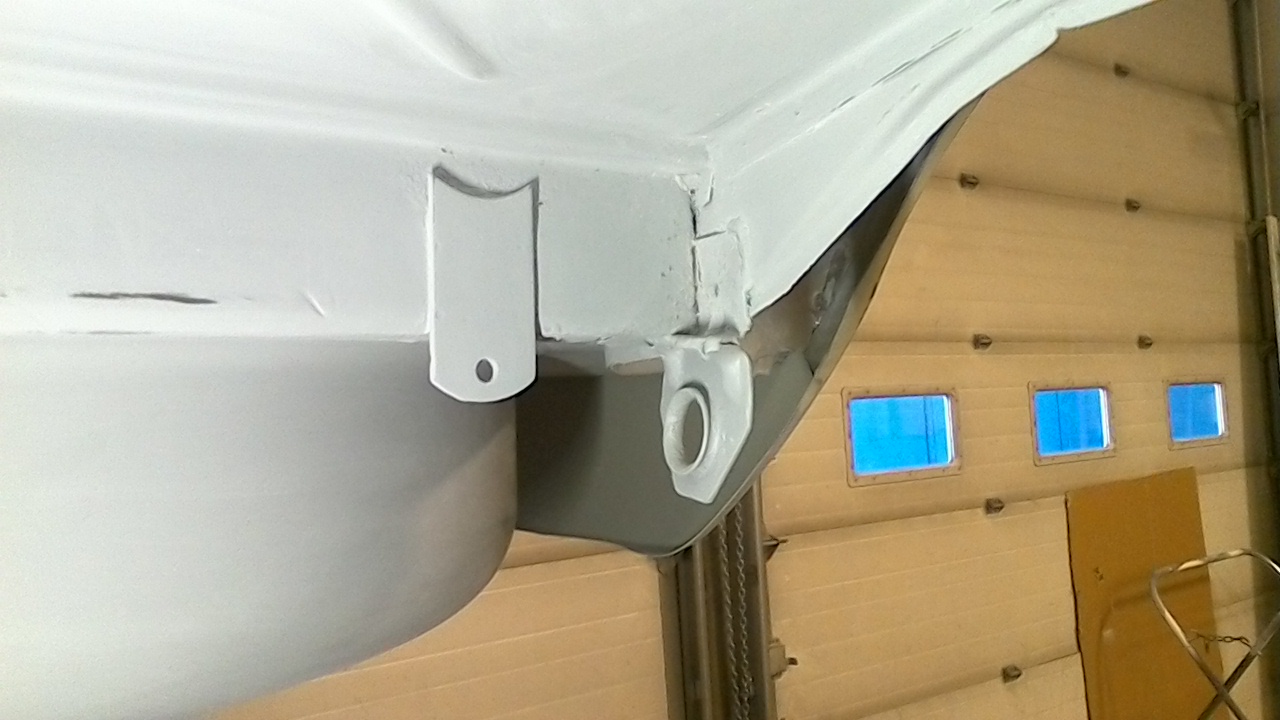

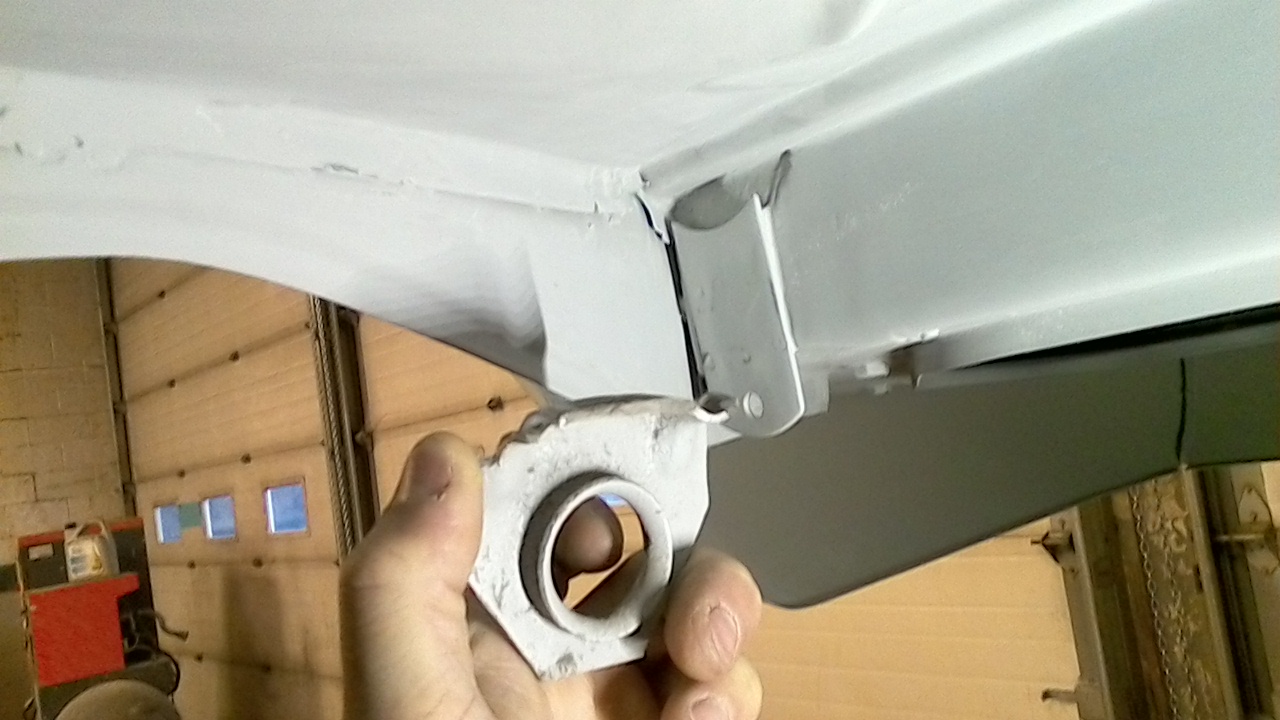

Then in the RH position it seams like a previous Tech welded the other bracket in the wrong spot, because the LH bracket wont match the RH.

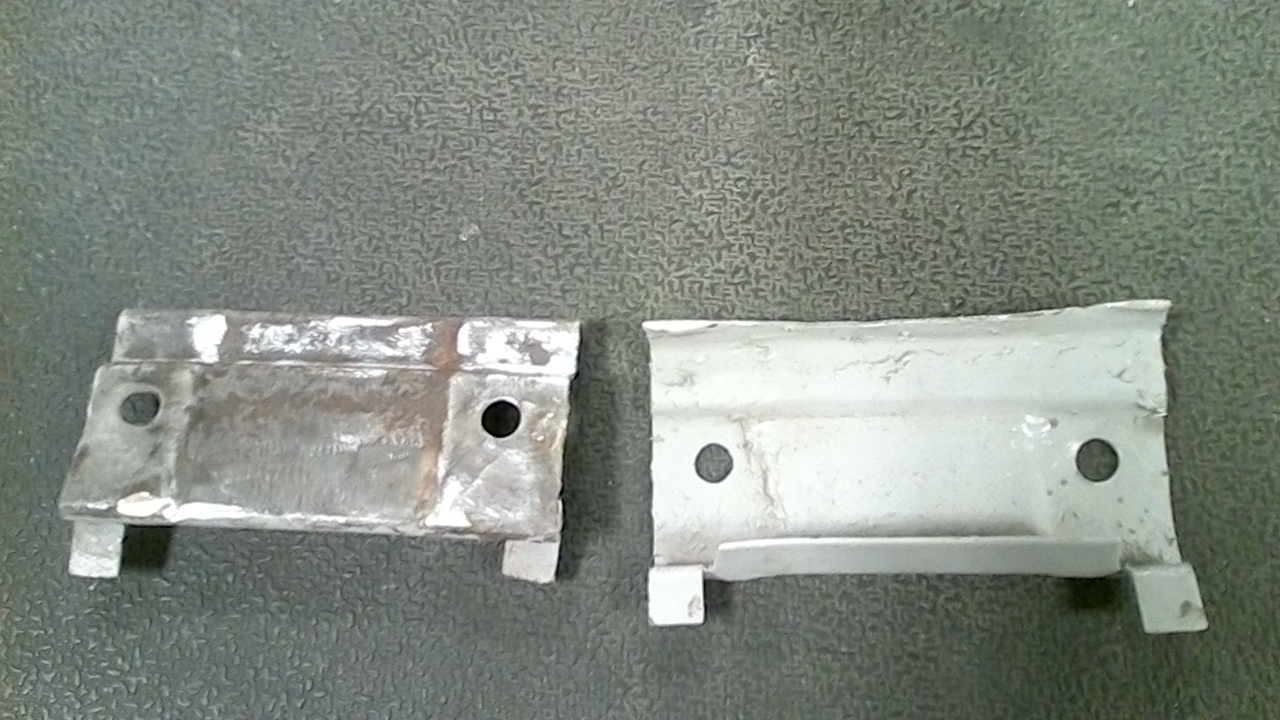

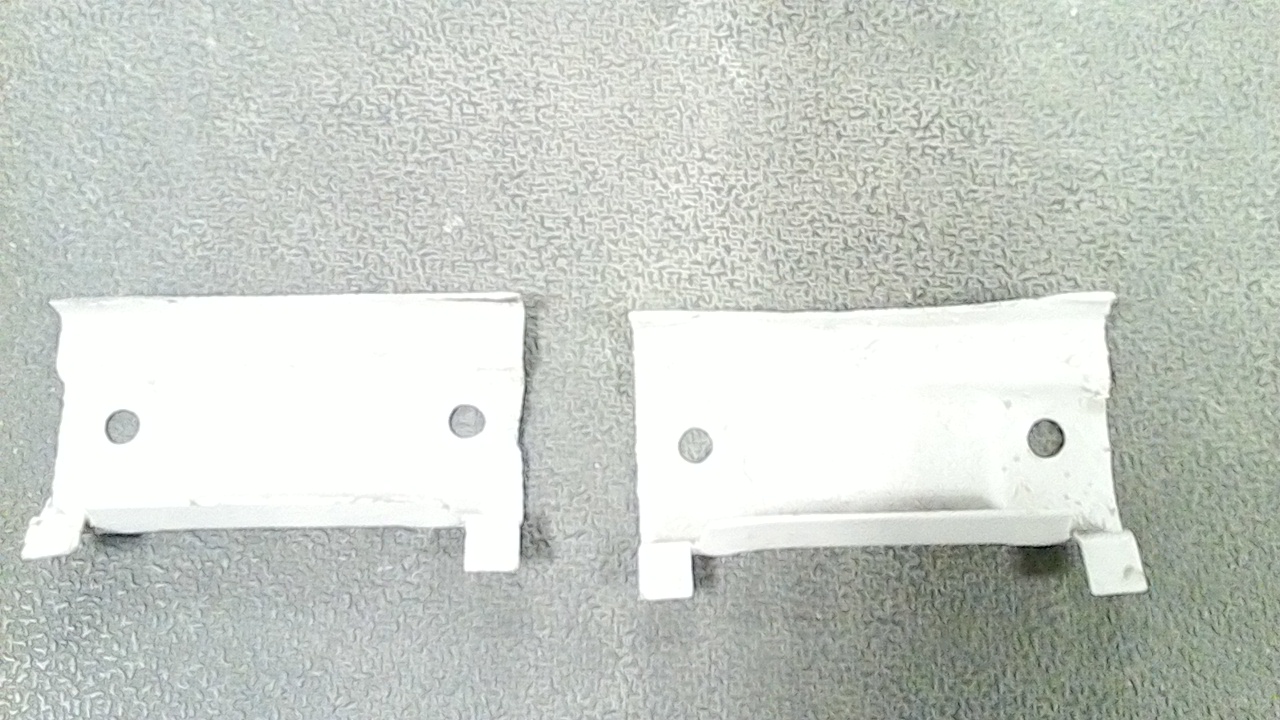

Ok no that the easy ones are done, now for set C. I have no clue where these go?

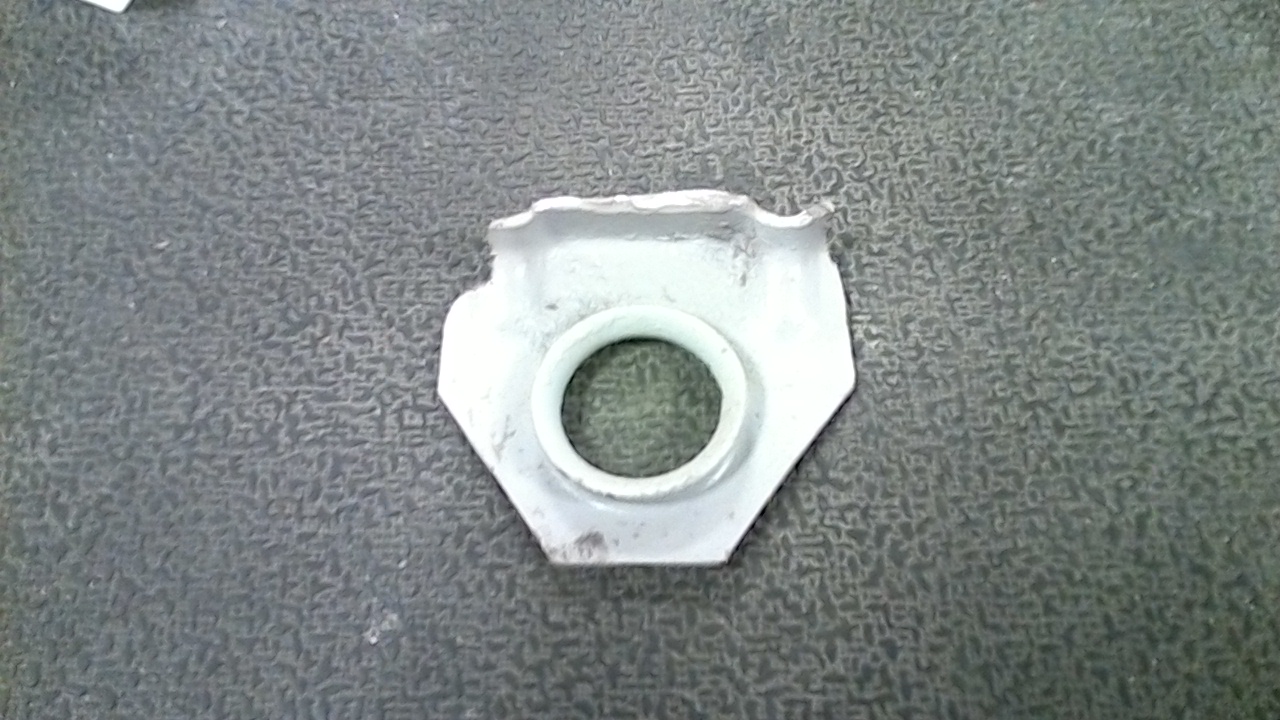

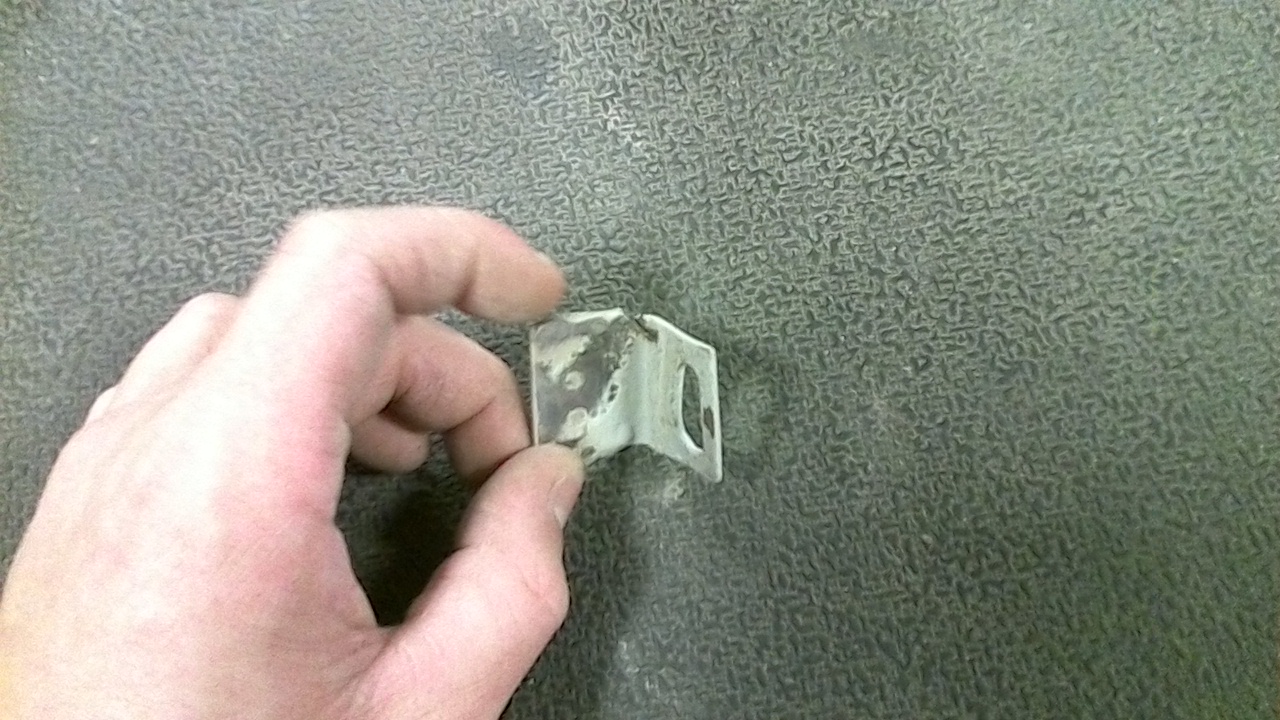

Then the last bracket. lets refer to this as set D even tho there is only one.

Thank you and I will appreciate any information or comment.



[bavbob]

Second to last image. Brackets go below each rear light. Bolts to hold the rear bumper go through the holes, tabs support alligator covers over spare and gas tank.



[HemptasticG]

Second to last image. Brackets go below each rear light. Bolts to hold the rear bumper go through the holes, tabs support alligator covers over spare and gas tank.

Thank you so much very helpful indeed.



[HB Chris]

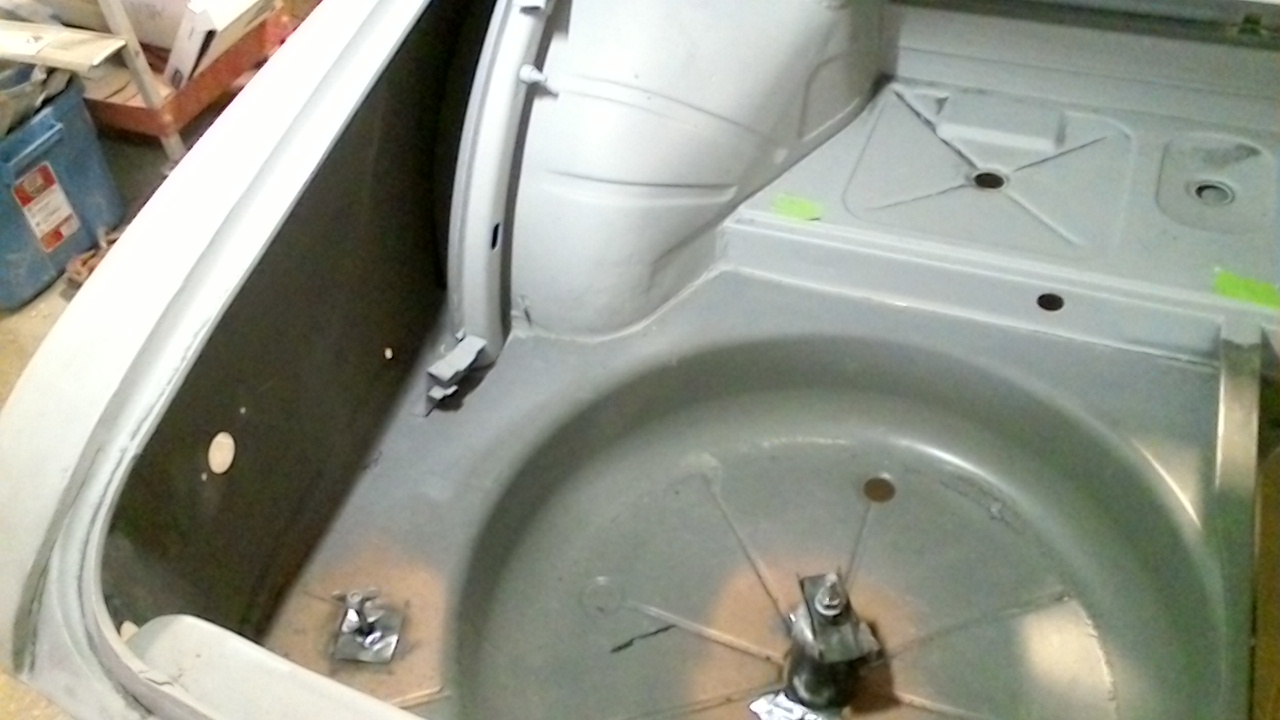

Third pic, bracket with small screw hole is correct for panel over fuel tank where you show it.



[HemptasticG]

Third pic, bracket with small screw hole is correct for panel over fuel tank where you show it.

Thank you so very much. 2 more to go.



[eriknetherlands]

A is (i think) left side behind rear wheel well as. At least in my car the right side does not have the wire harness tab. But apart from the wire tab they are identical.
Your feeling for B is correct, it needs to go a bit further to the back of the car, fully under the rear floor.
C are bumper mounts.
D is exhaust support bracket.

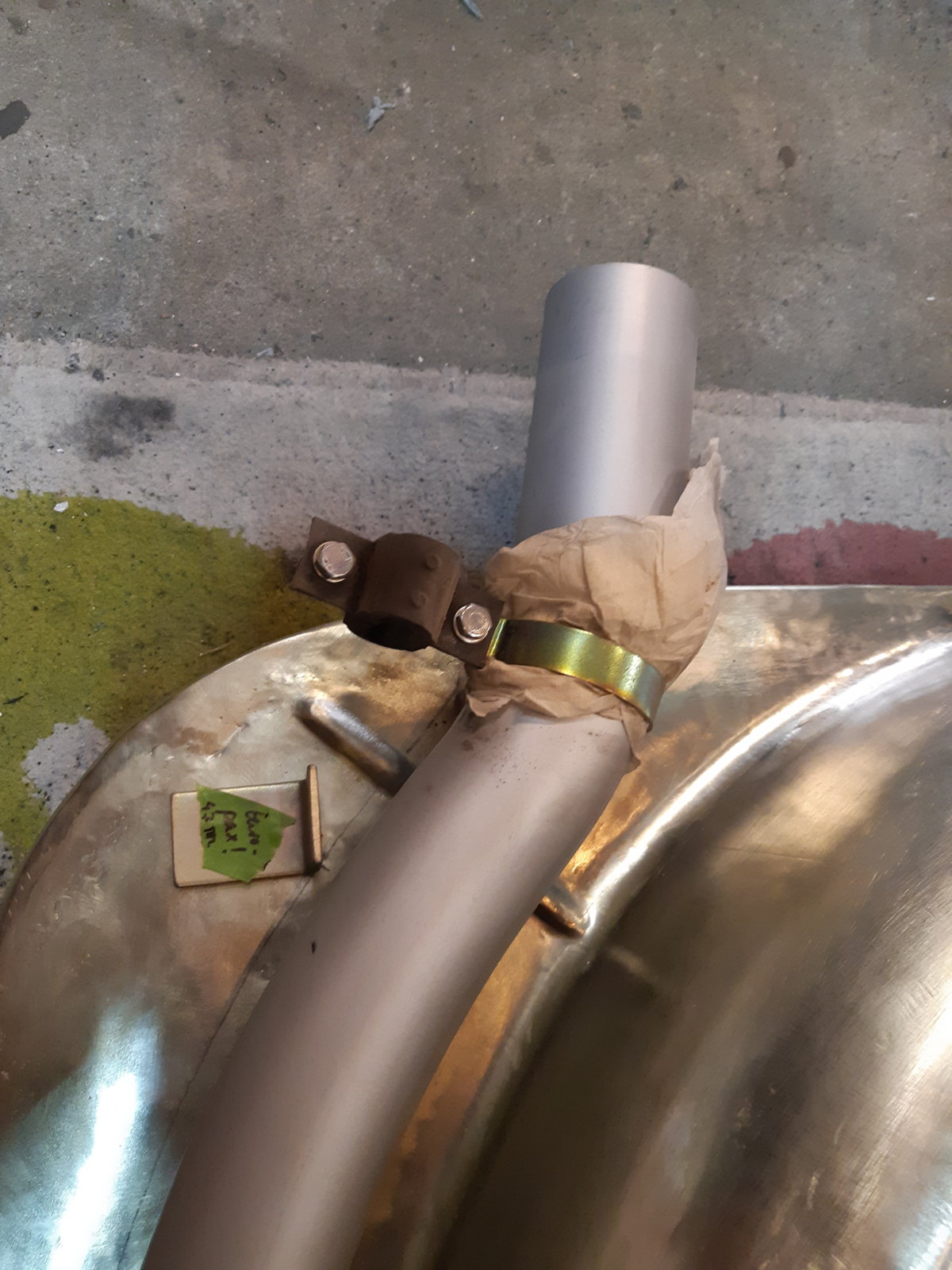

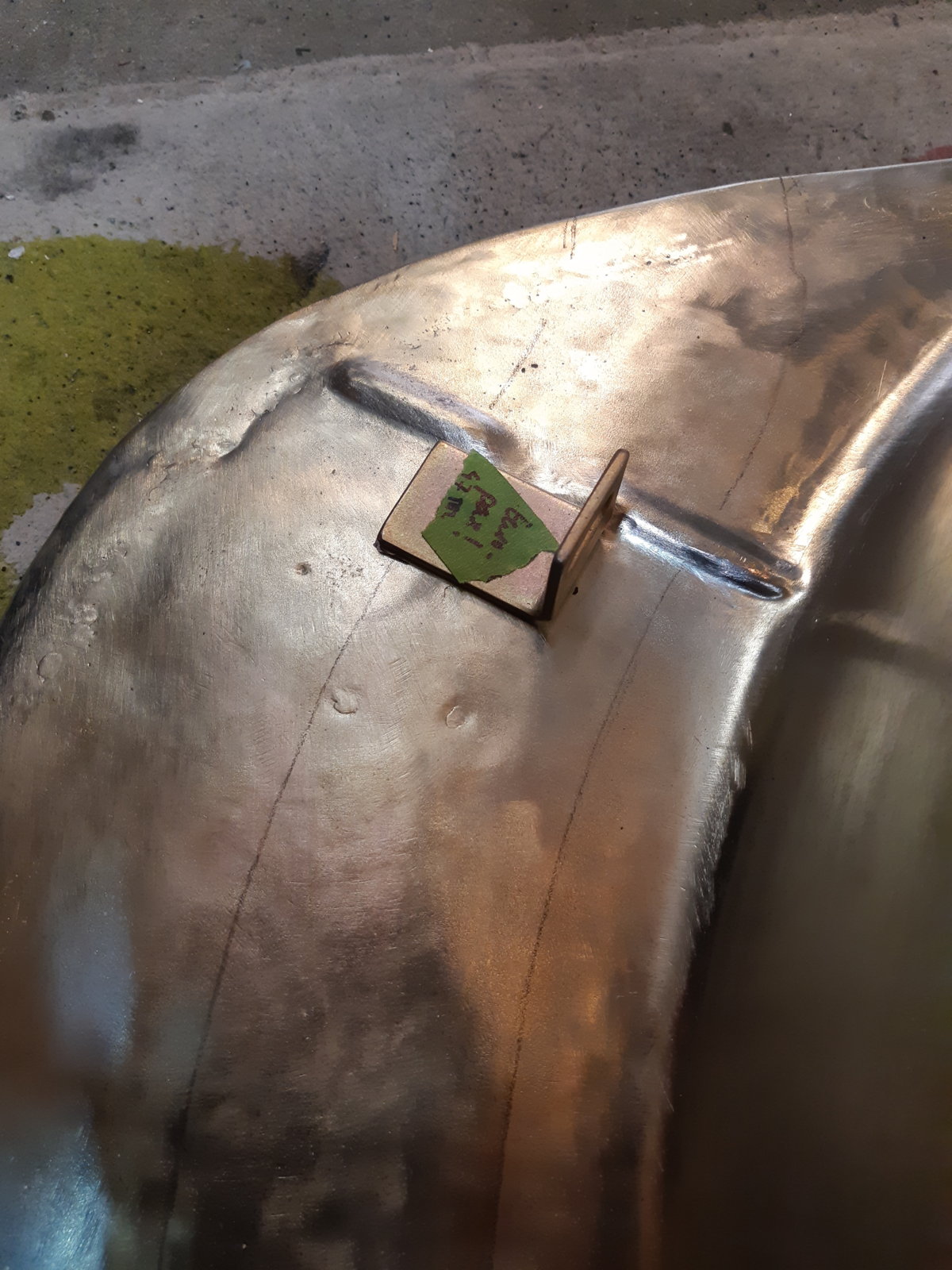

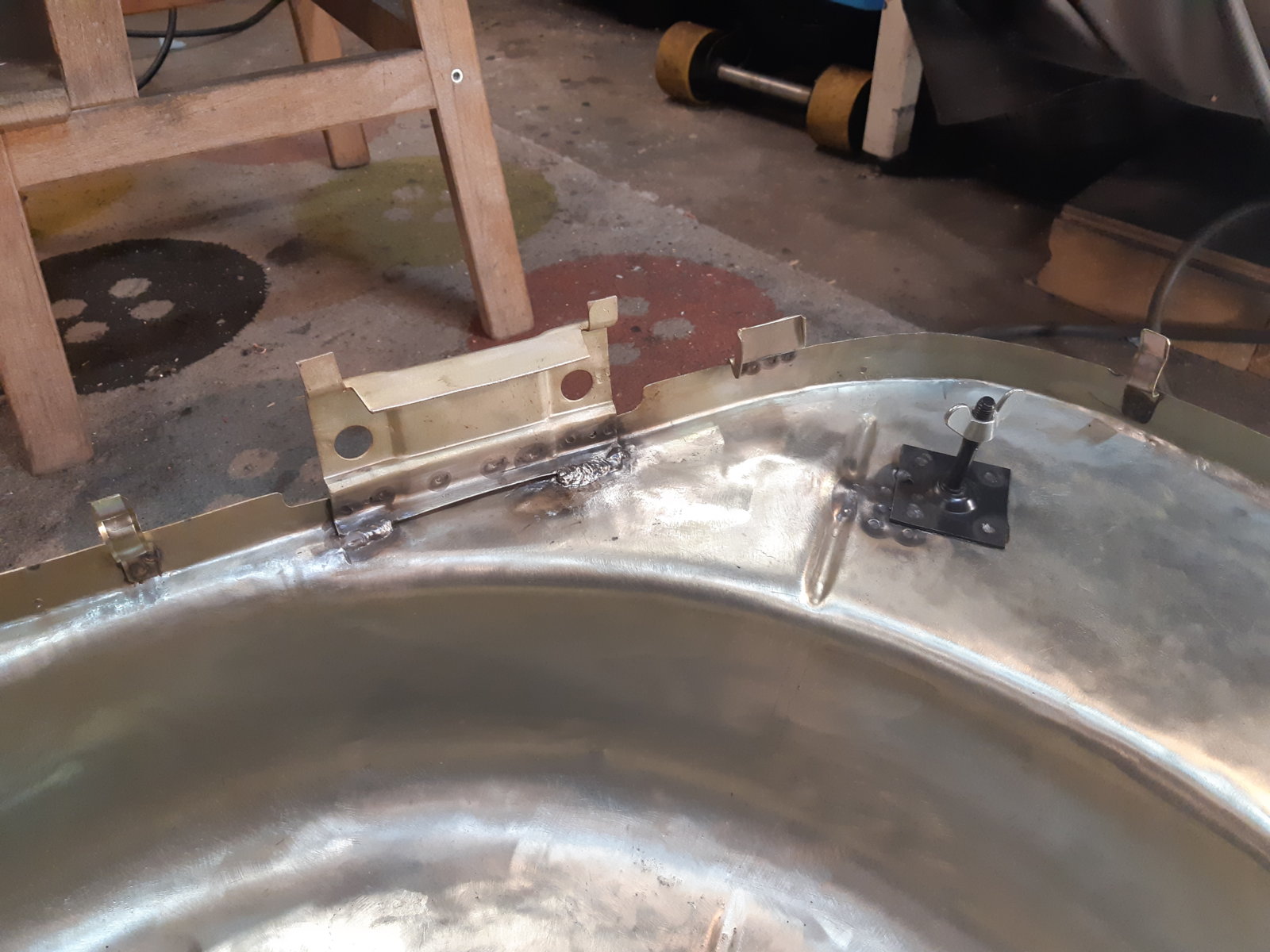

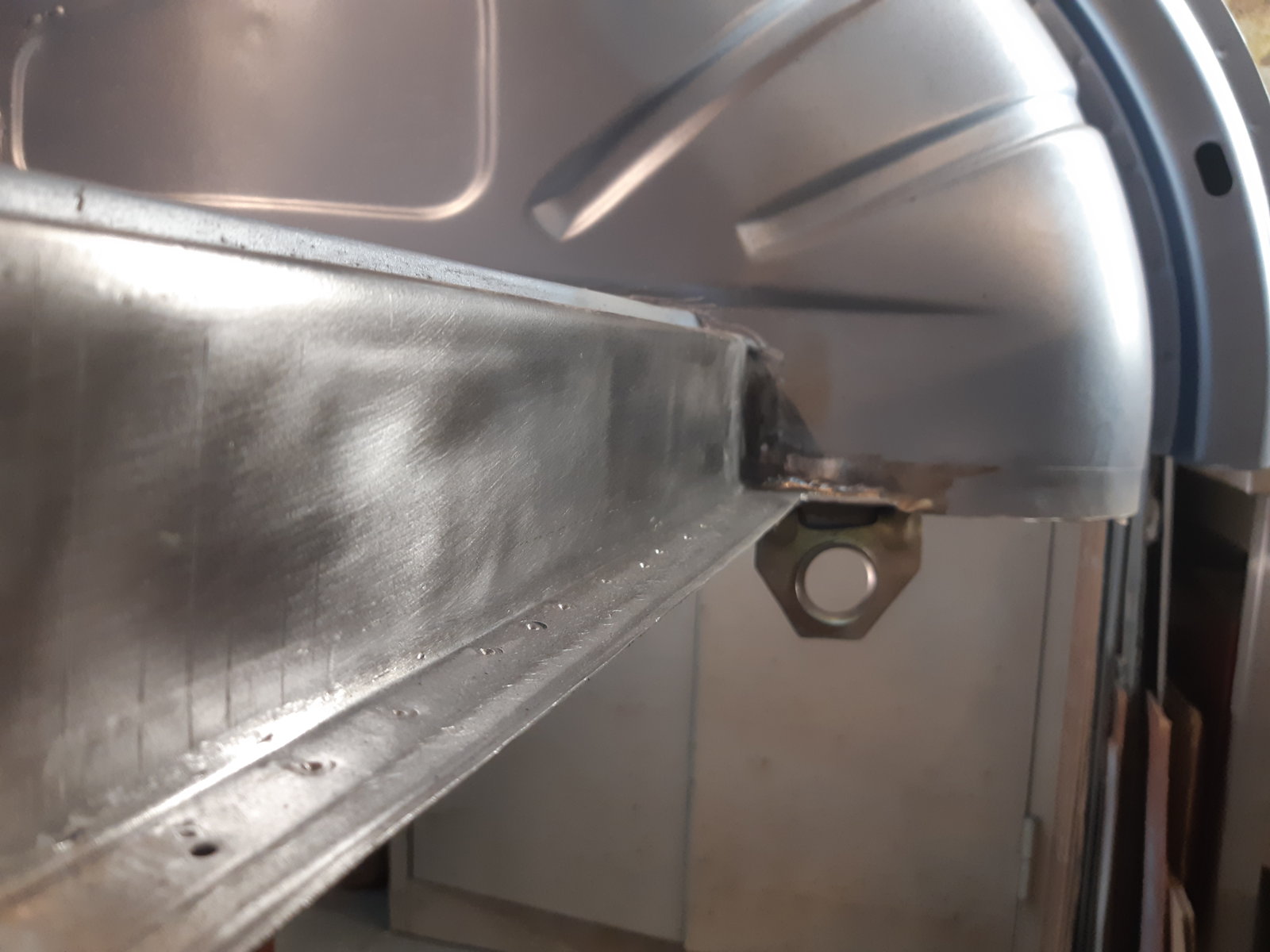

Here they are all. Just did mine as well.



[Peter Coomaraswamy]

Looks like you are doing some great work there!!



[HemptasticG]

A is (i think) left side behind rear wheel well as. At least in my car the right side does not have the wire harness tab. But apart from the wire tab they are identical.
Your feeling for B is correct, it needs to go a bit further to the back of the car, fully under the rear floor.
C are bumper mounts.
D is exhaust support bracket.

Here they are all. Just did mine as well.

Thanks so much, very helpful. and great work being done by the pictures you submitted.



[HemptasticG]

Looks like you are doing some great work there!!

Thank you, I'm trying really hard at it because it my first restoration since ive been doing collision here in Canada,
Hemptastic G autobody and restoration.
