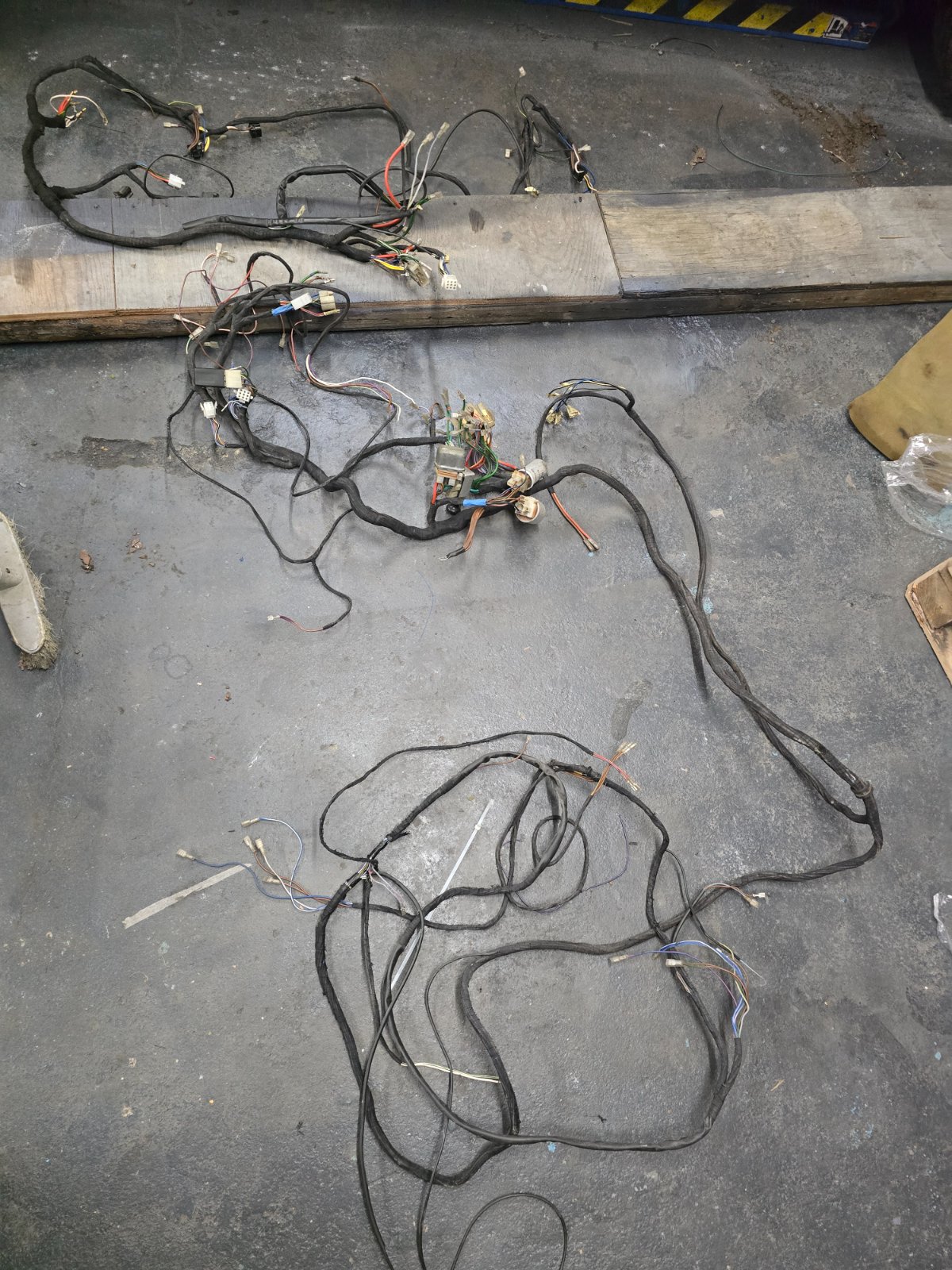

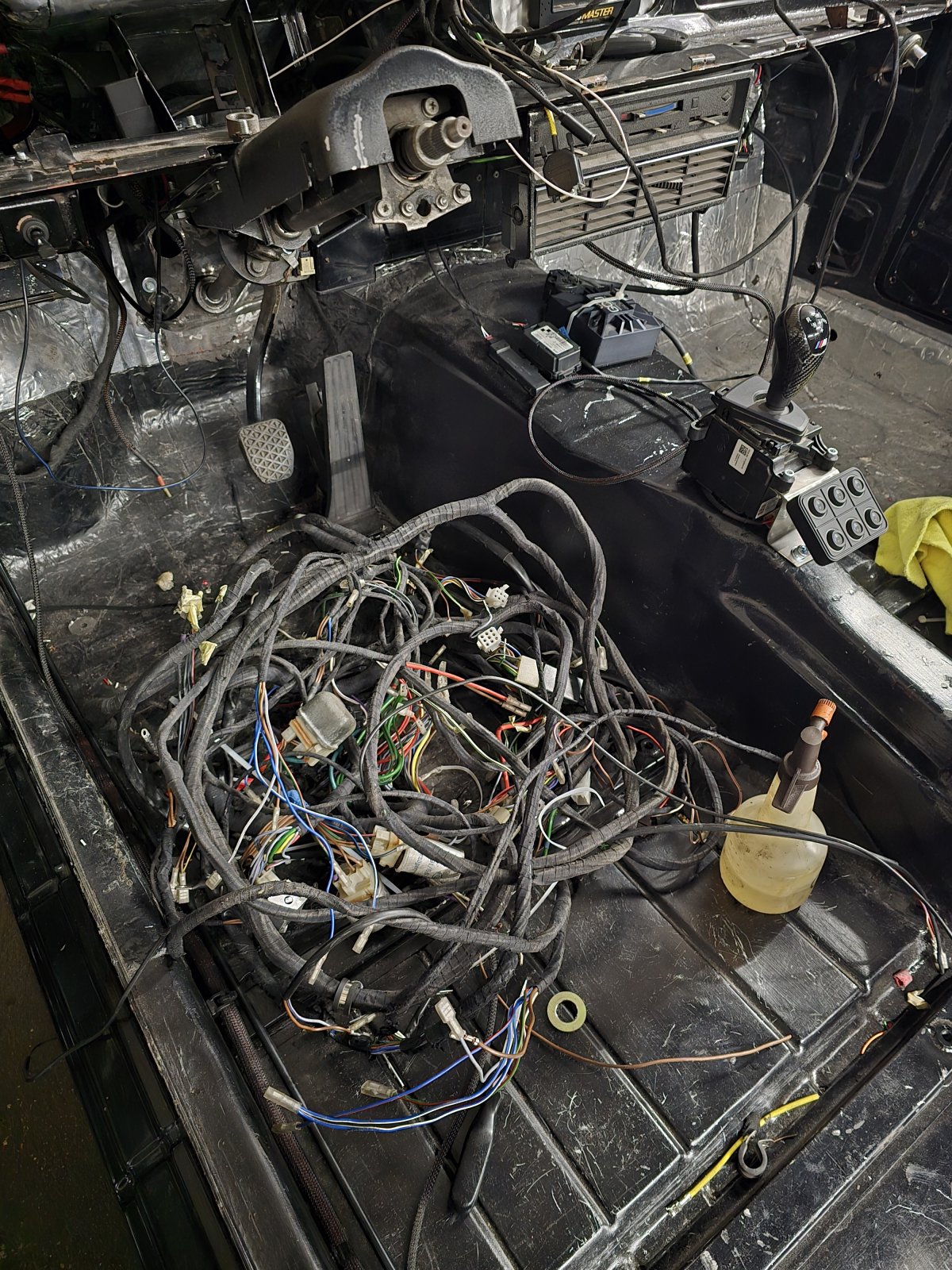

Have just removed this from a car in with me. Was installed about 12 months back but car was not completed so never used. Main body harness only (csi injection harness not included)

There will be some connector plugs which need swapping over from your harness, also where the harness has been removed the insulation in a few spots has chafed off.

These are approx £3k new from autosparks with a hefty wait time. Happy to take more photos for anyone interested.


£1200 plus postage (international shipping available)


Attachments

  • 20250122_170720.jpg
    547.7 KB · Views: 112
Very interested as well.

Also, are you installing a dual clutch on that car? I'm guessing they wanted to drop in a S55?

Never got any photos
Hi Rudy

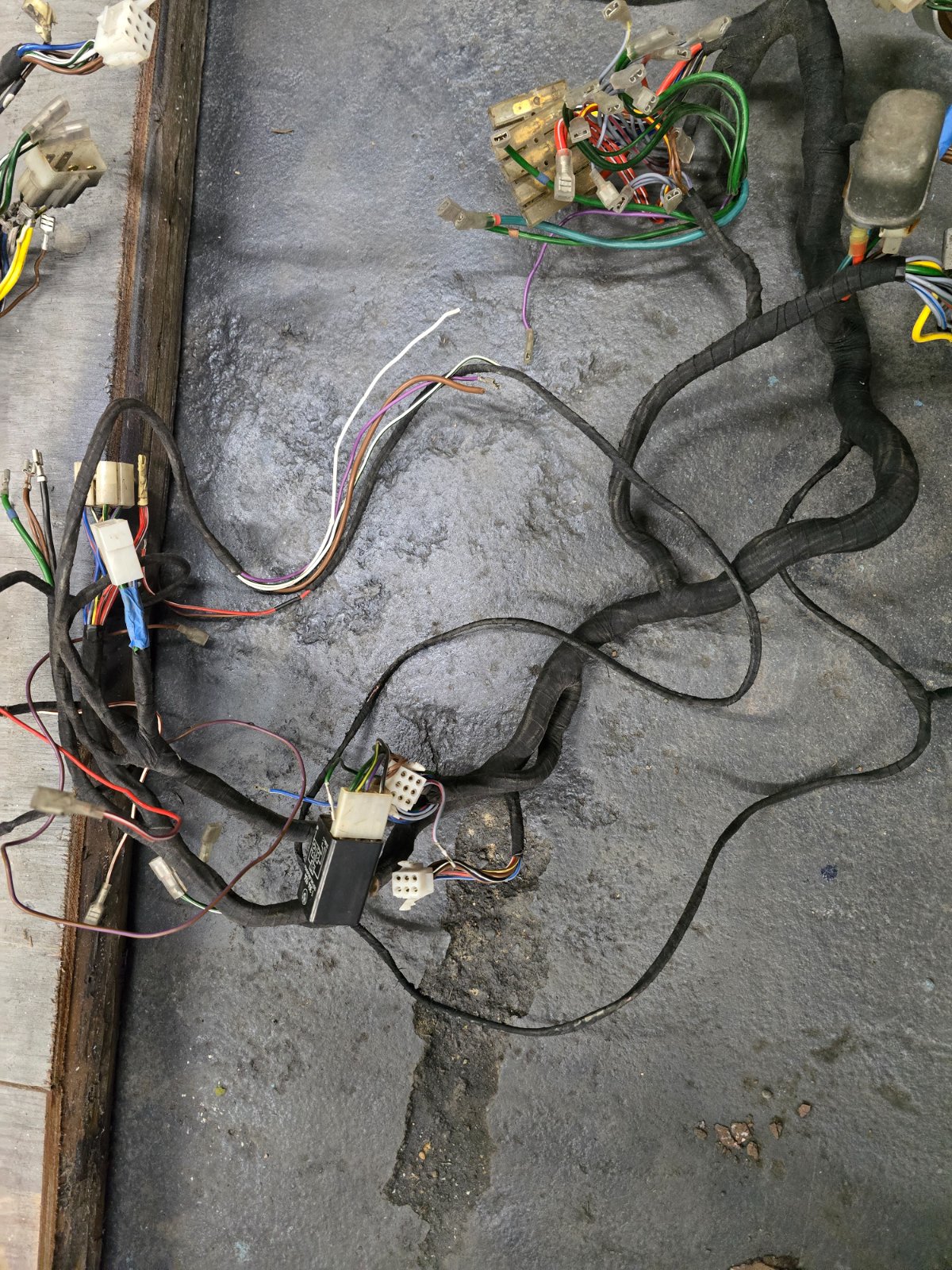

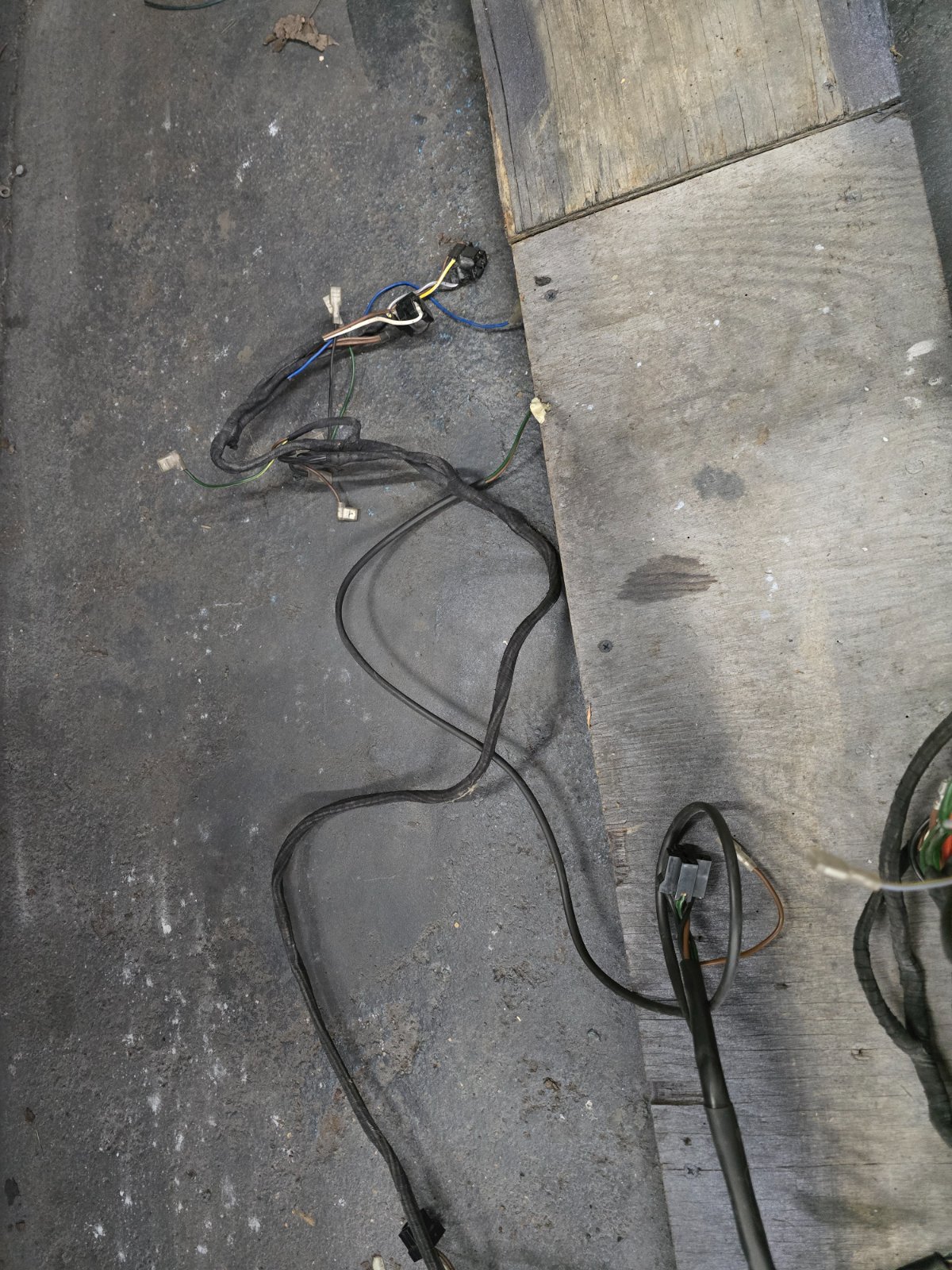

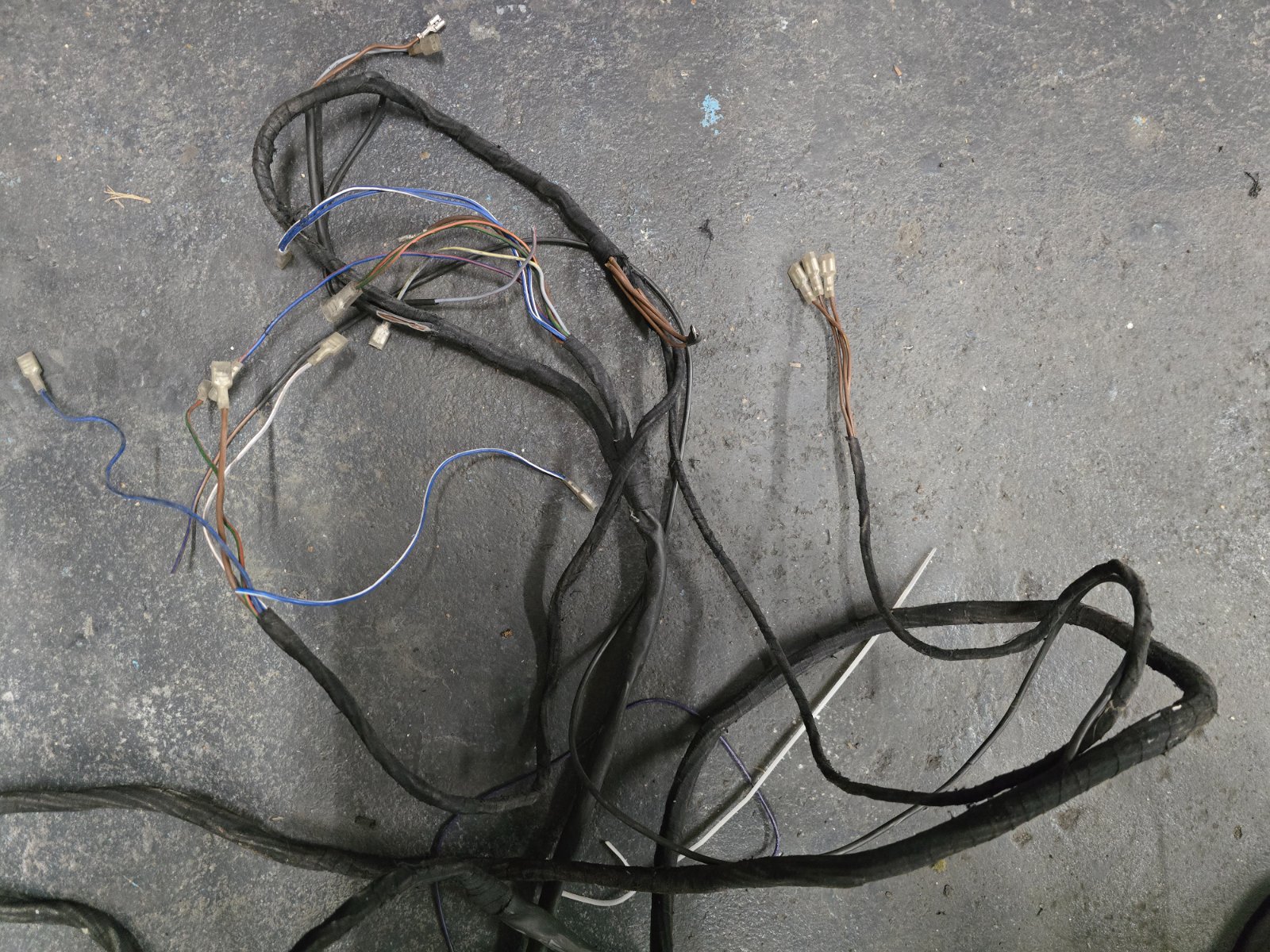

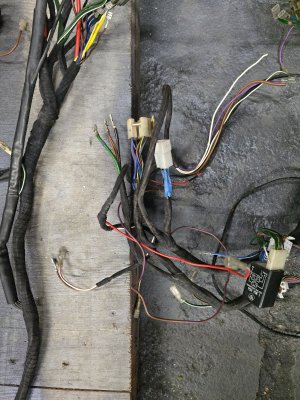

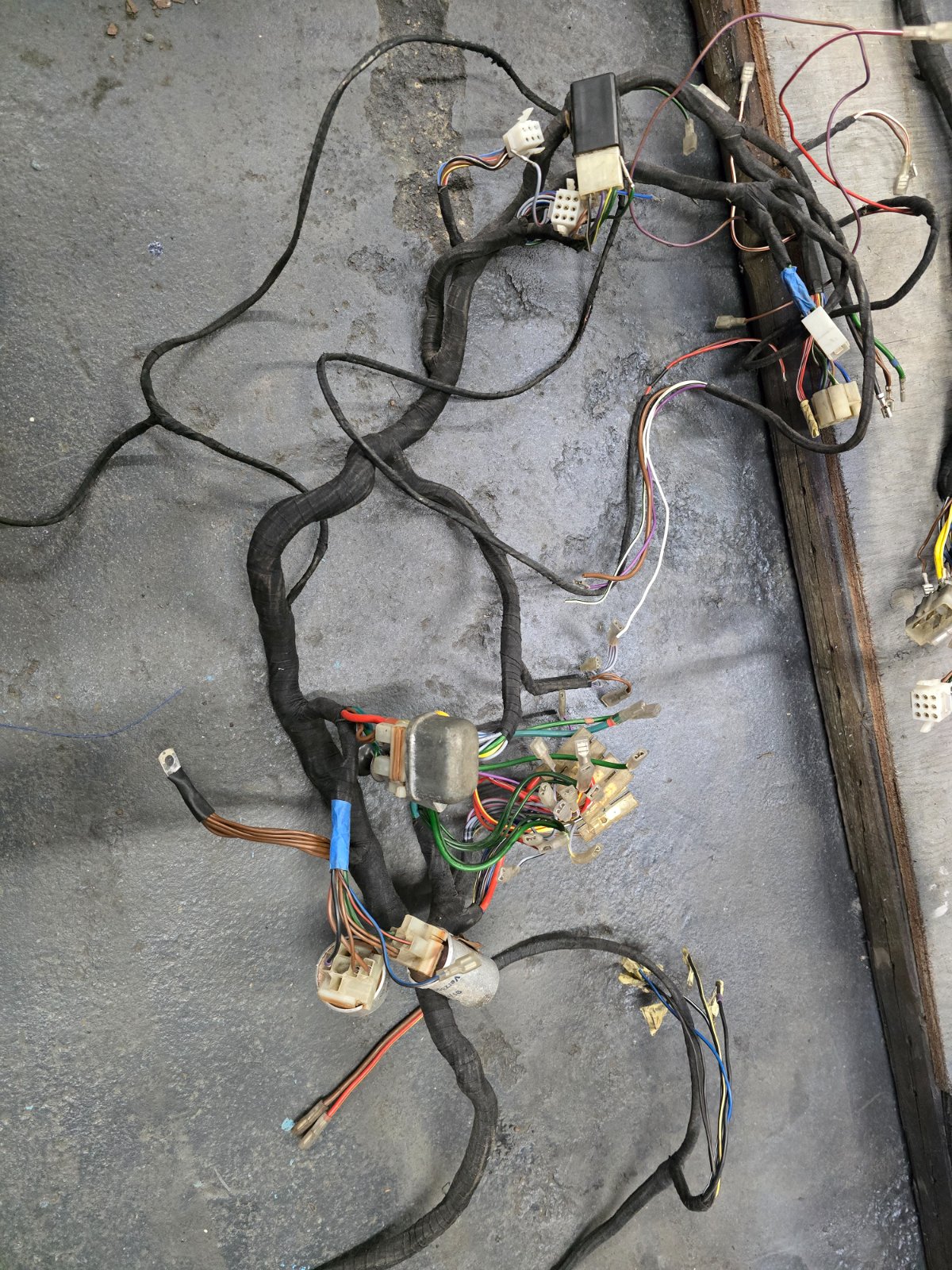

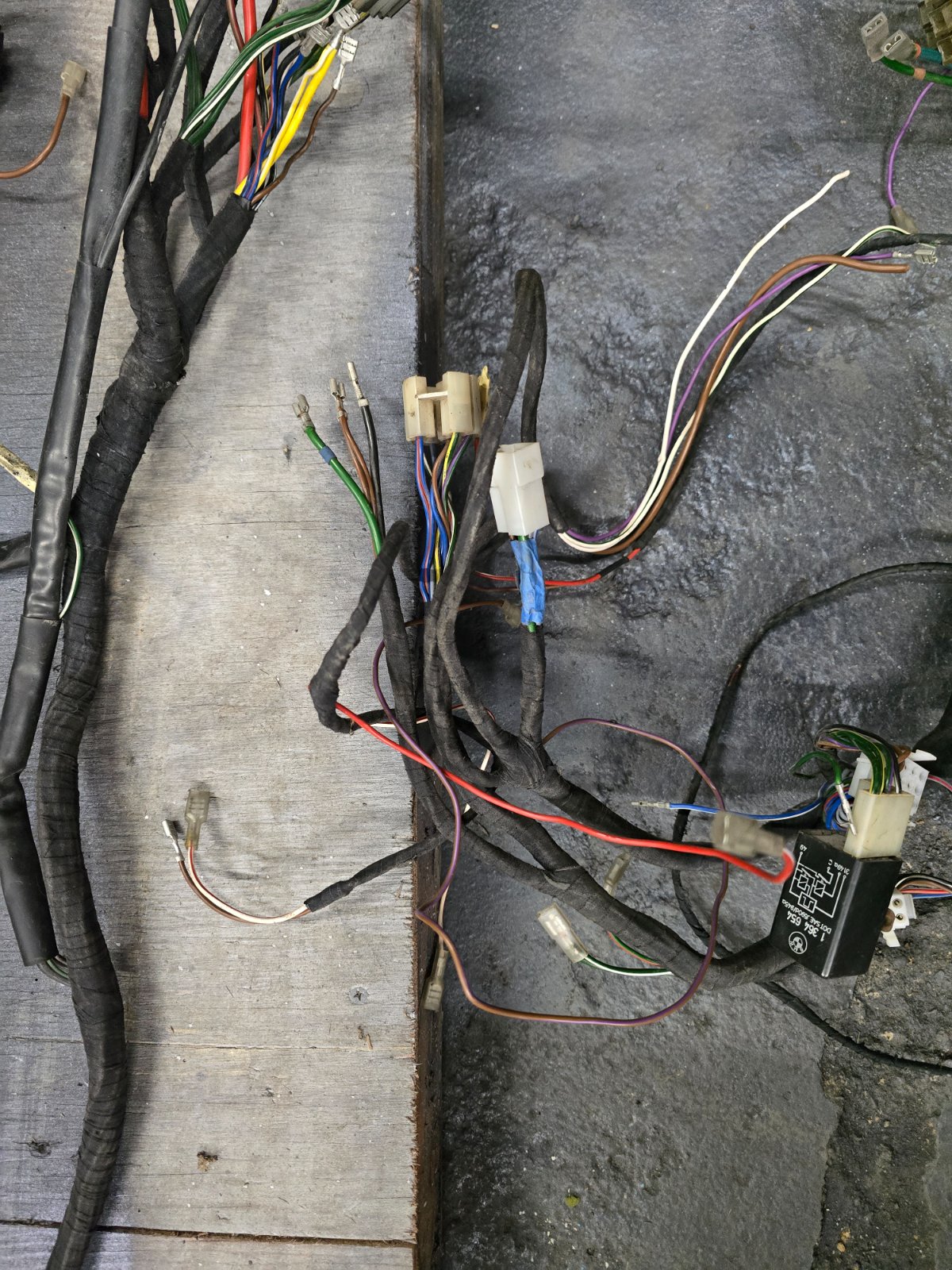

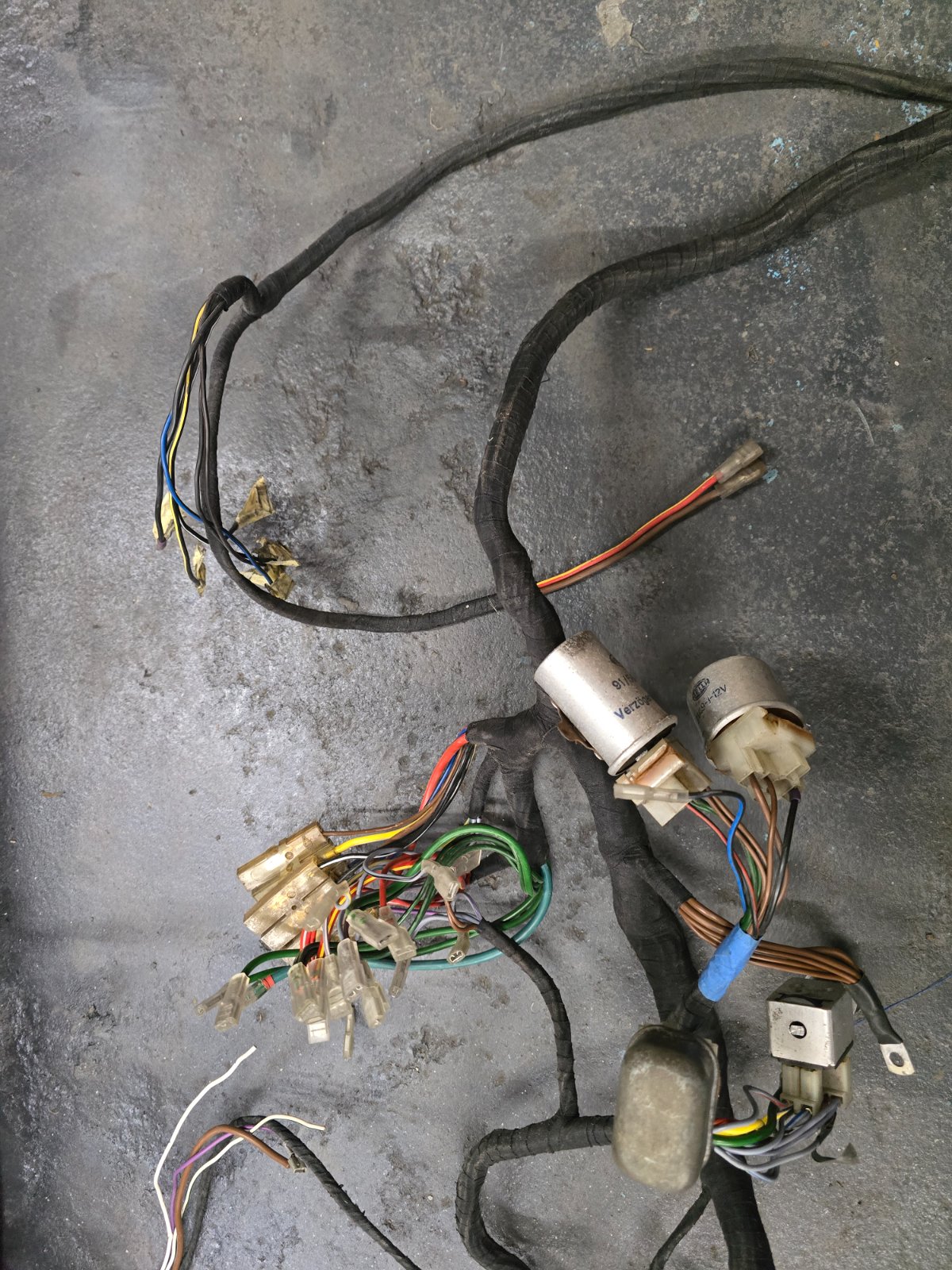

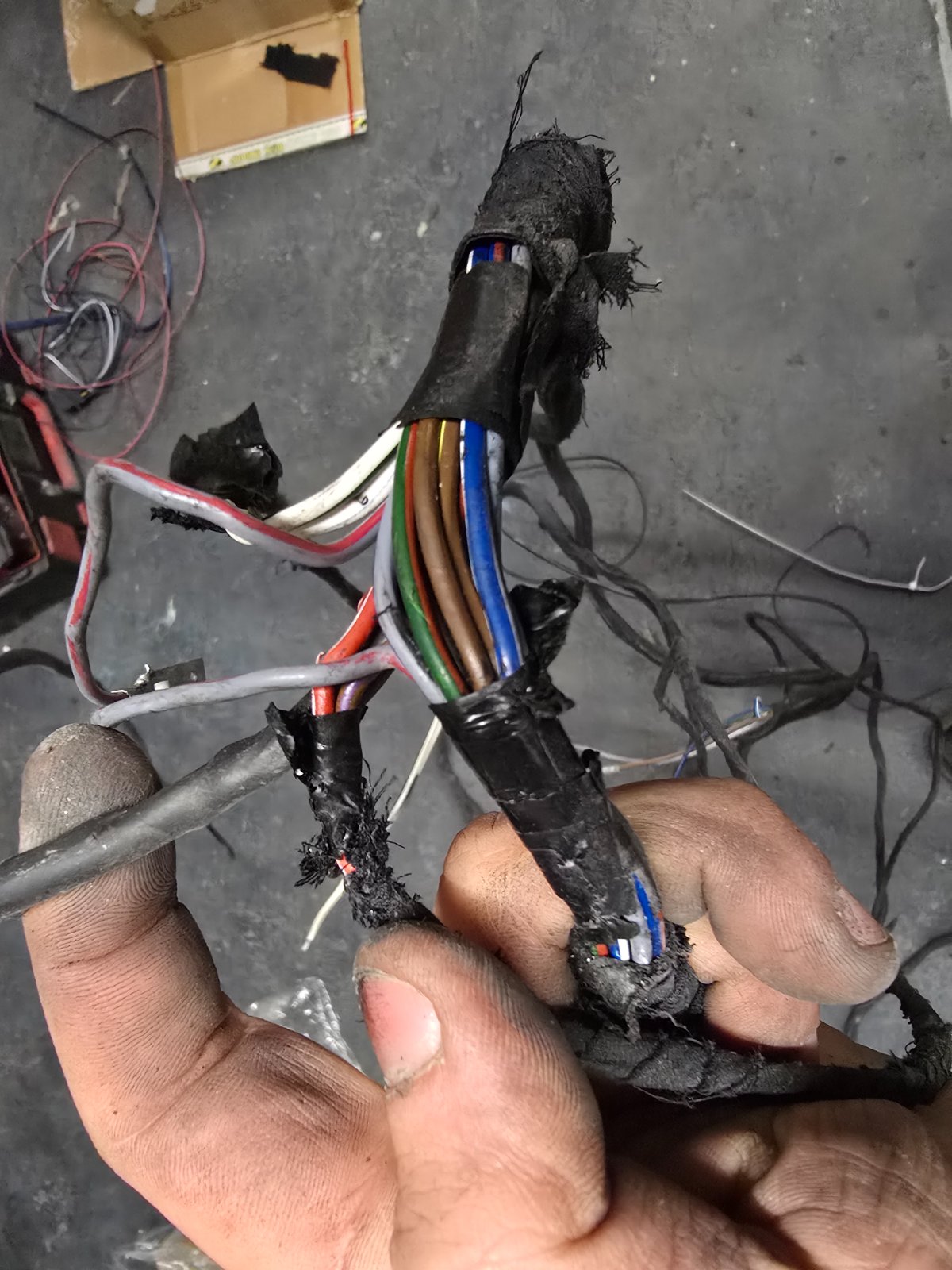

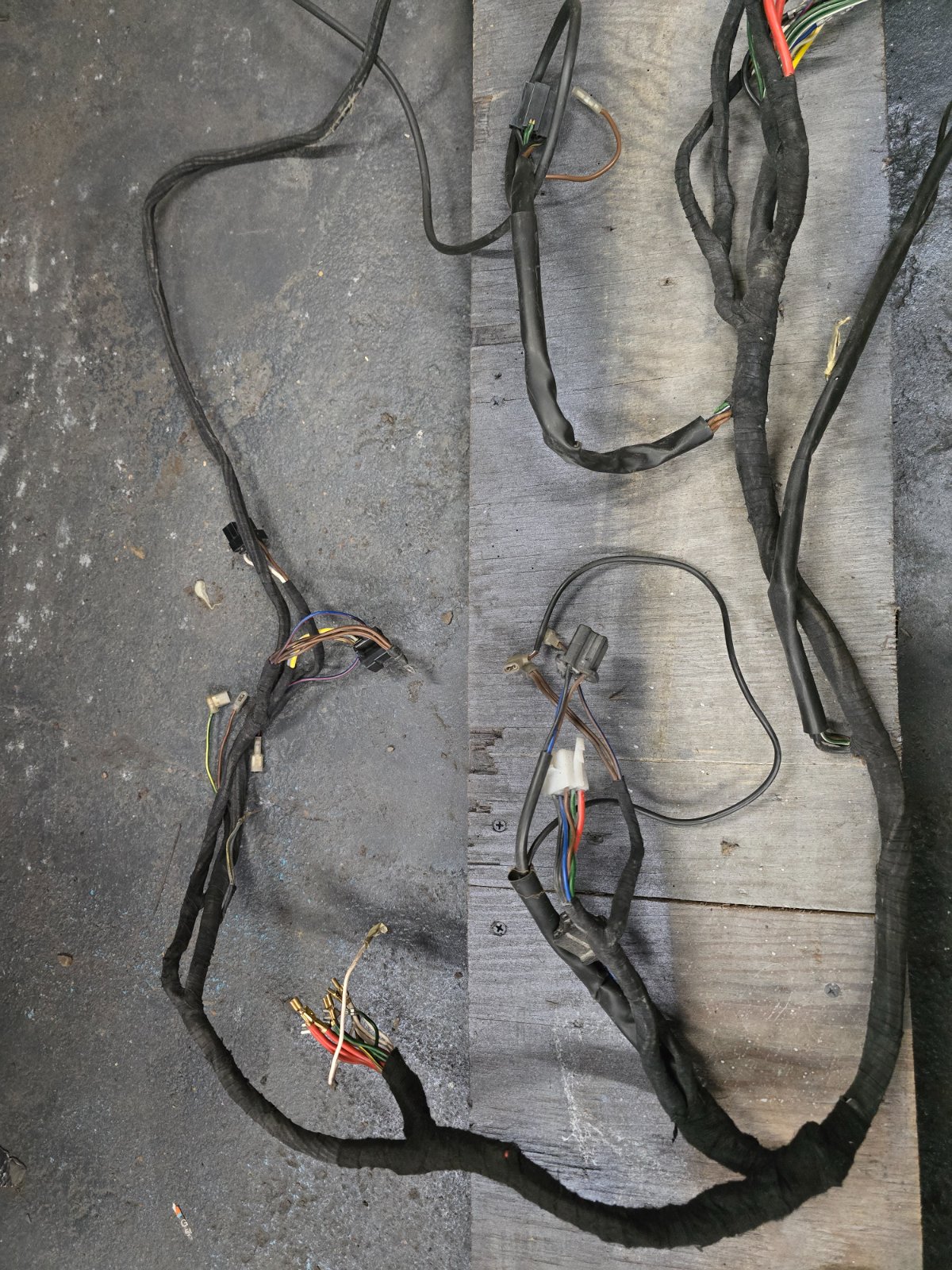

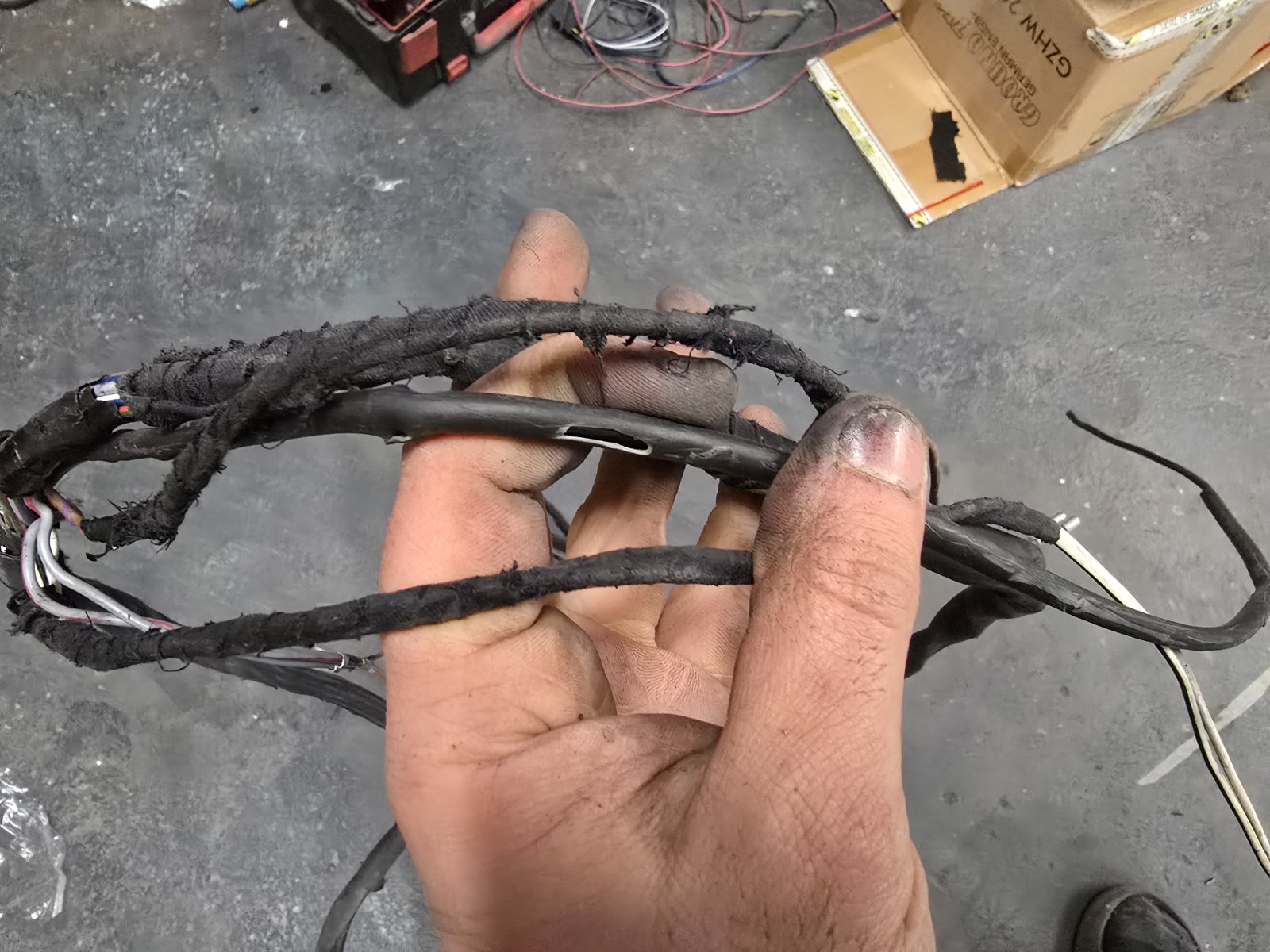

apologies for the delay. Have taken photos best i can of the chafing which is where it was pulled through around the rear seat area. Front end harness has been disconnected from the multi plug by the fuse box. I should have a pair of relay holders where it goes in the engine bay near the battery. There are a few connectors pictured that I will need to remove which are the wiper motor and heater motor so will need to swap them over from your existing harness.

I also should have a new window harness section somewhere which is the later style. If i can find this I will include it for any interested parties


Attachments

  • 20250218_173244.jpg
    445.4 KB · Views: 40
  • 20250218_173248.jpg
    525.1 KB · Views: 42
  • 20250218_173256.jpg
    453.9 KB · Views: 41
  • 20250218_173302.jpg
    496 KB · Views: 39
  • 20250218_173259.jpg
    549.2 KB · Views: 35
  • 20250218_173318.jpg
    490.6 KB · Views: 34
  • 20250218_173321.jpg
    449.4 KB · Views: 36
  • 20250218_173342.jpg
    277.2 KB · Views: 38
  • 20250218_173400.jpg
    303.4 KB · Views: 35
  • 20250218_173410.jpg
    498.5 KB · Views: 39
