[Daniel bmw 3.0s]

Hello out there
Does someone have a manual or a drawing on how to install the carburetors in the car. I am thinking more specifically about the coolant hoses and where they should connect... anything about installation of carburetors will be well appreciated.
Thanks



[stphers]

What kind of carbs, original Zeniths, webers? Got some pictures?

Thanks, Rick



[Daniel bmw 3.0s]

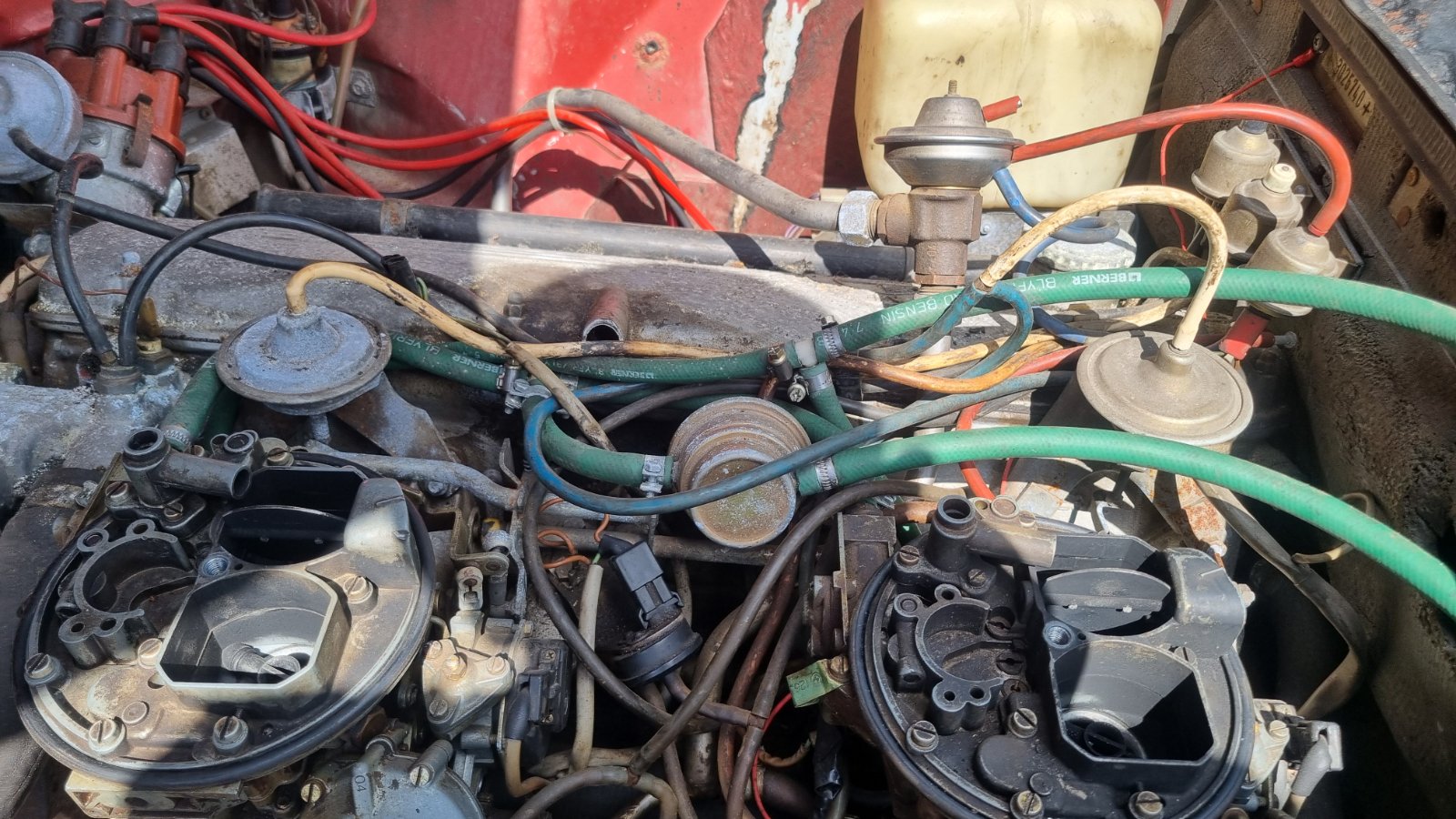

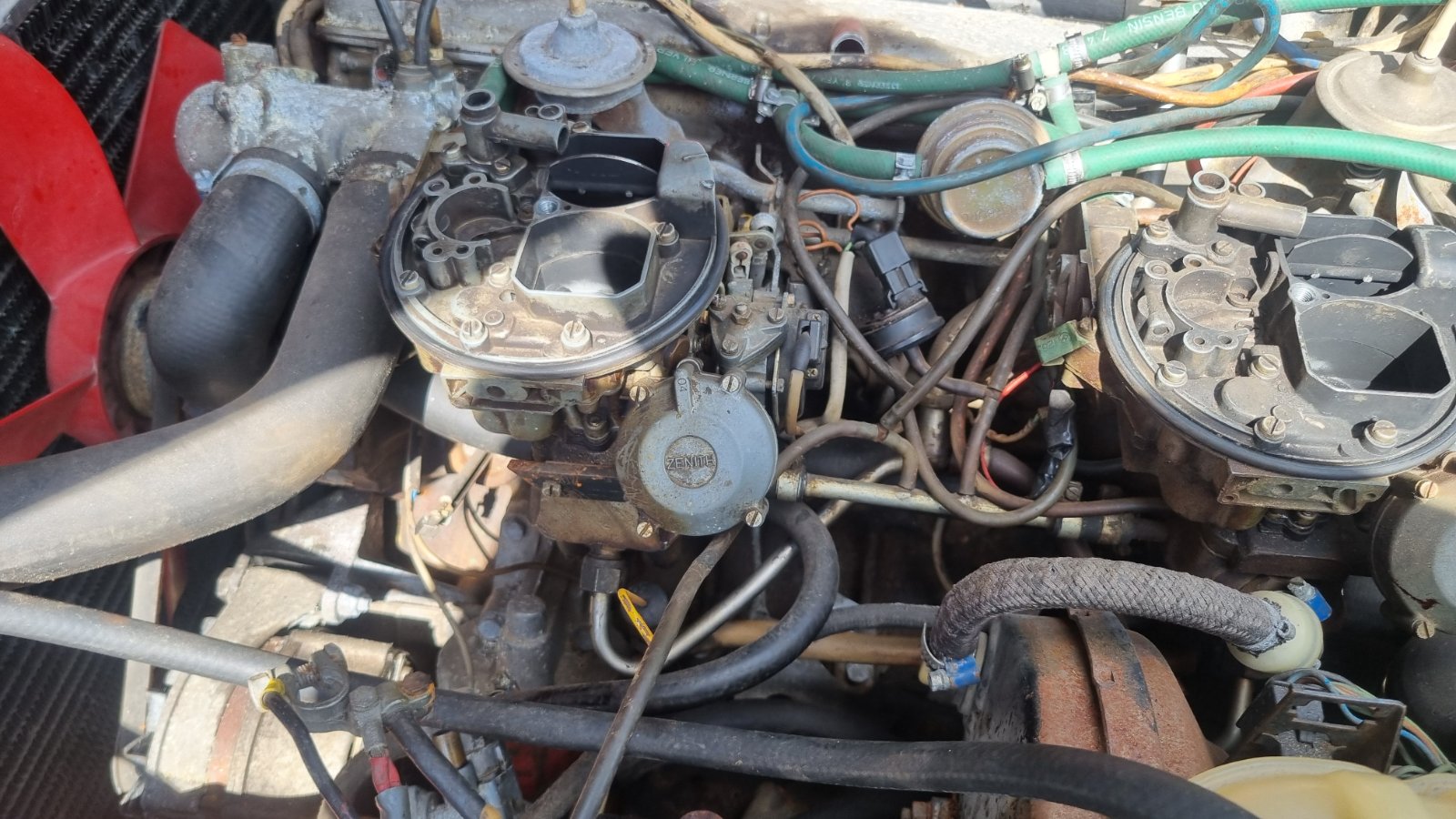

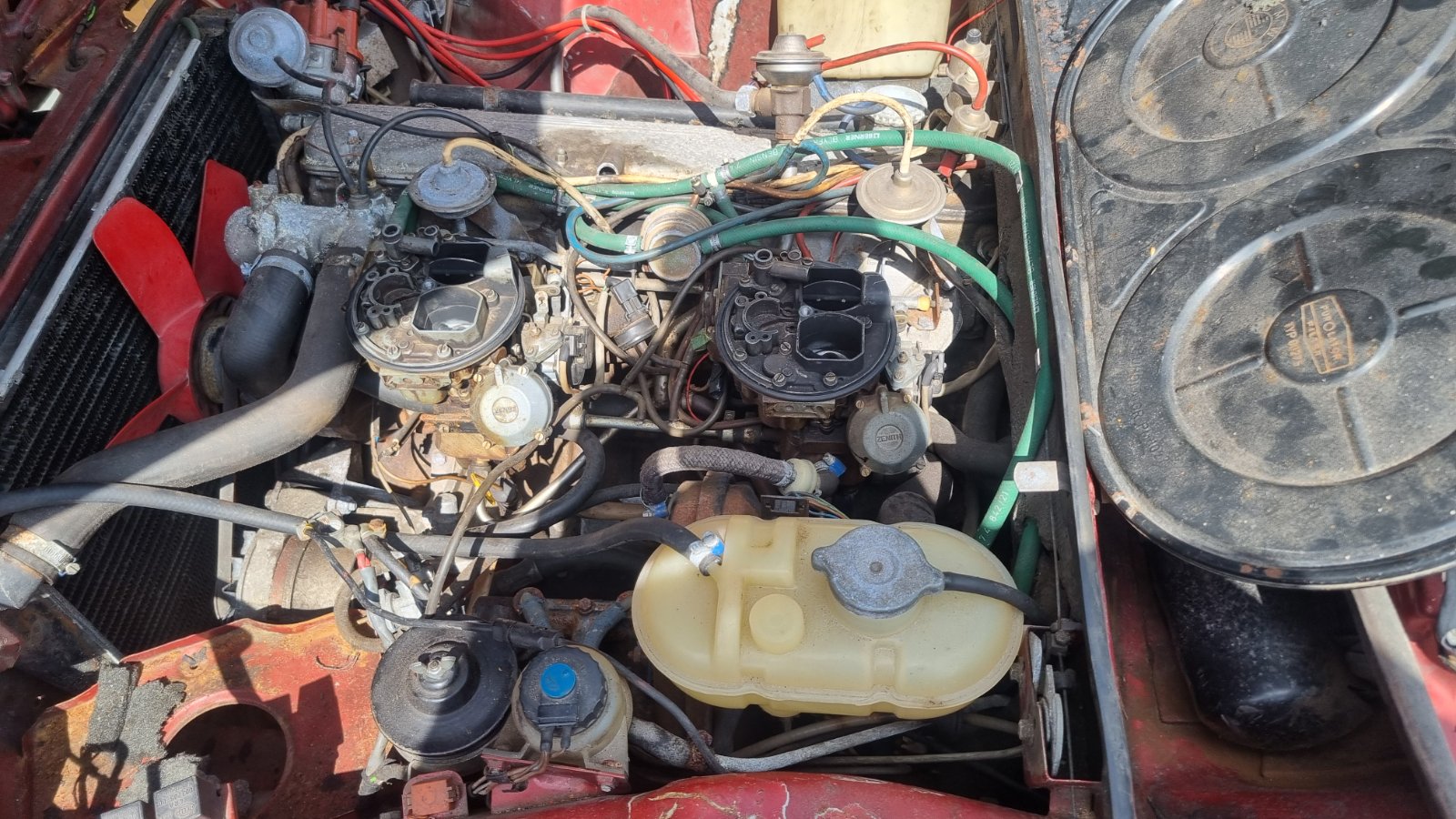

They are original zenith with emission control systems i plan on to take it out later, if the car will start.

I have some hoses that are broken so I need to replace some.



[eriknetherlands]

I gather you're after the "plumbing" setup?

Google image search is your friend together with the search function here on the site.

Member @deQuincey has some excellent posts about the original Zenith carb setup, but that is focusing on getting them running well. Still, it will allow you to check the plumbing of the various water and vacuum hoses.

Wrt to the emissions control parts delete, find some info here:
Thread 'Deleting exhaust emission control for 3.0L Zenith/Solex carburetor model??' https://e9coupe.com/forum/threads/d...for-3-0l-zenith-solex-carburetor-model.37720/



[eriknetherlands]

Then again, I see you double posted in the other forum section also, and @deQuincey already serviced you.

Note that also the parts books have quite detailed parts sketches.

Sites like realoem.com and Walloth&nesch will allow you to search and get you images like this:



[bengal taiga]

Hello out there Does someone have a manual or a drawing on how to install the carburetors in the car. I am thinking more specifically about the coolant hoses and where they should connect... anything about installation of carburetors will be well appreciated. Thanks

https://e9coupe.com/tech/zeniths/bmw2/bmw2.pdf
https://e9coupe.com/tech/zeniths/bmw1/bmw1.html
https://e9coupe.com/tech/zeniths/haynes/haynes.html
https://e9coupe.com/tech/autobooks/autobooks_manual.pdf


ebay

Gratuitous images>>

https://club.shannons.com.au/club/enthusiasts/Shipper/garage/1971-bmw-e3-30s-race-car/ >>



[Daniel bmw 3.0s]

https://e9coupe.com/tech/zeniths/bmw2/bmw2.pdf
https://e9coupe.com/tech/zeniths/bmw1/bmw1.html
https://e9coupe.com/tech/zeniths/haynes/haynes.html
https://e9coupe.com/tech/autobooks/autobooks_manual.pdf


ebay

Gratuitous images>>

https://club.shannons.com.au/club/enthusiasts/Shipper/garage/1971-bmw-e3-30s-race-car/ >>

Thank you pdf
