Differential re-seal - should I do the bearings also?

Stevehose

Stevehose

Well-Known Member
Site Donor $$
Messages
13,399
Reaction score
6,202
Location
Sarasota, FL
I am going to put the original 3.64 back into my car, I like the 3.45 but it’s just too long for my city driving, plus I have 5th gear for the rare highway drive which I have yet to get to from 4th in 1000 miles.

It has 95k miles on it. I am going to do the seals and ginormous o-ring, should I go ahead and do the input and half shaft bearings? Or just the input if it takes most of the abuse? I have the wizardry of @jjs2800cs to help with the crush seal tension if necessary.


Well, just my opinion, but my observation of your Coupe projects usually shows an all-in, let's-get-it all-done-while-I-am-in -there, approach. What we may be witnessing here is a "maturity" level in the area of ...well, is the hypothetical, incremental, perhaps-I-never-get-to-see-the-difference, type of analysis, has started to rear its head? Whatever you choose, Steve, we always benefit from your chronicling of the service with photos and pitfalls and a guide for the rest of us to follow. Good luck which ever way this goes! ;)

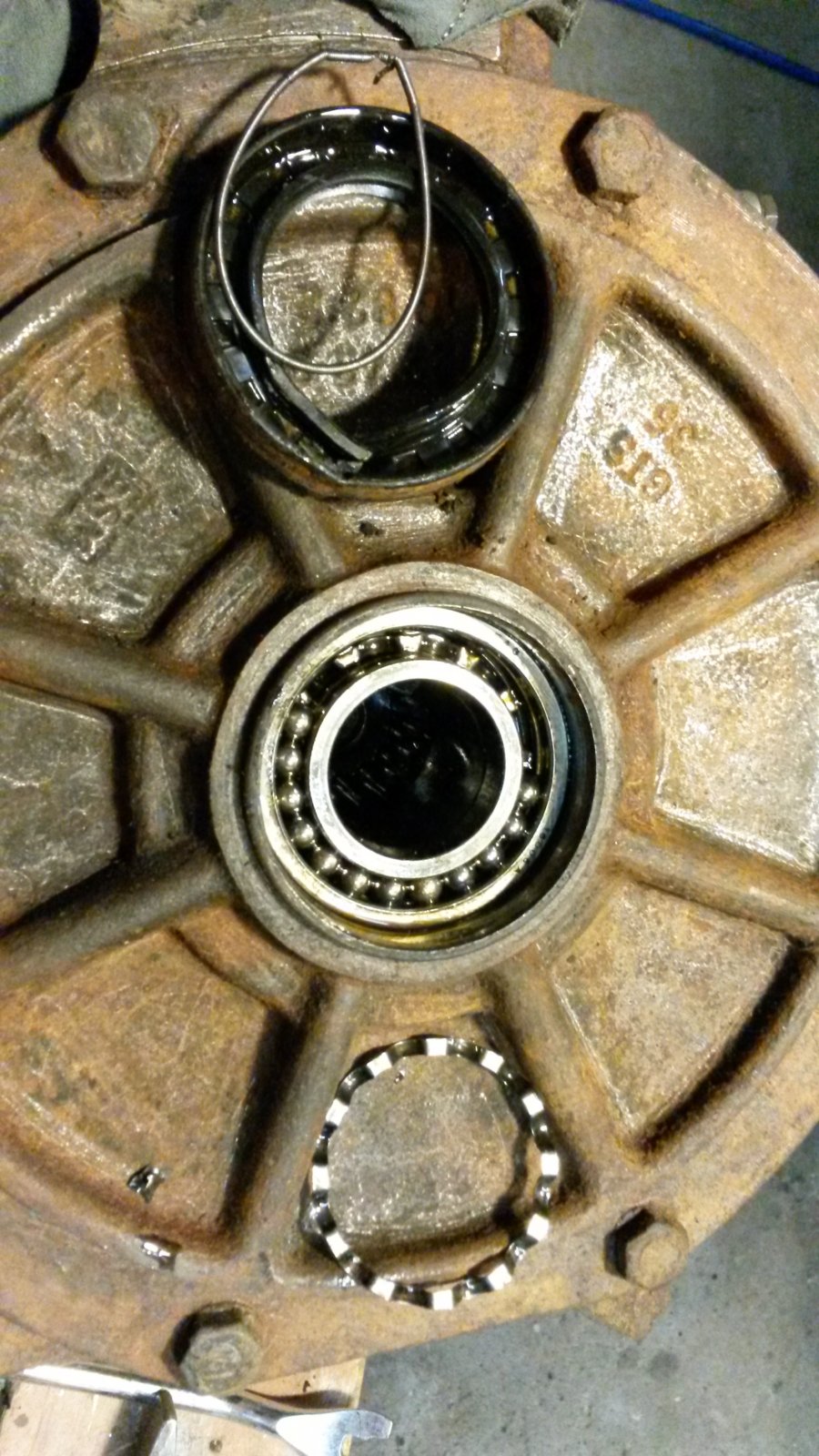

One side bearing had a bit of a hesitation when turning by hand, something little, it just did not feel consistant while turning.
Turned out the cage holding the ball in equidistant spacing had seperated; there are 2 halves that are (supposed) to be spotwelded together. these spotwelds failed. thus the 2 rings simply were 'floating' around the balls. Notice also the 2 metal flakes just left of the removed cage, probably they were part of the cage before it disintegrated.

The ball bearing left and right are easy to replace. There are very small!
I would replace those two.

The bearing on the front is more critical due to the tension that must be applied. Leave that one if it is good (no noise)
