Female 22-pin connector for D-Jetronic control unit wire loom

Wladek

Well-Known Member
Messages
1,352
Reaction score
867
Location
Gdansk, POLAND
Hey Guys,
wanted to ask - maybe someone know where D-Jetronic female 22-pin connector can be sourced?
Have only male part.
Thanks

That A-MP... number didn't gave me any results

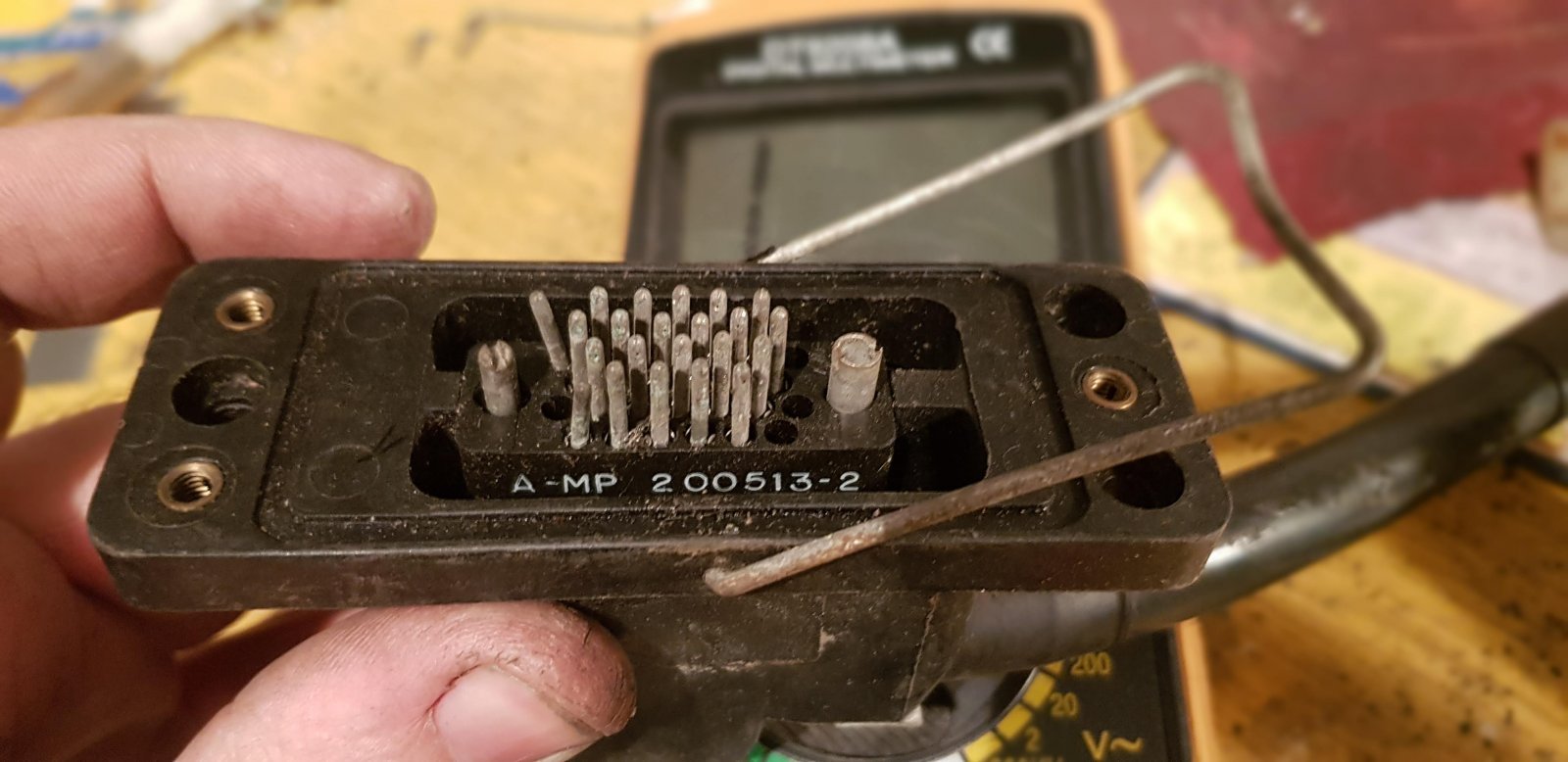

Male part for reference

Where is that connector on the wiring harness? I thought the wiring was complete back to the ECU (looks that way on the parts catalogue).
BMW parts catalogue sometimes don't show everything ;)
There was two versions of wiring harness: 1. Single-piece (that you mentioned), 2. Two-piece (i mentioned).

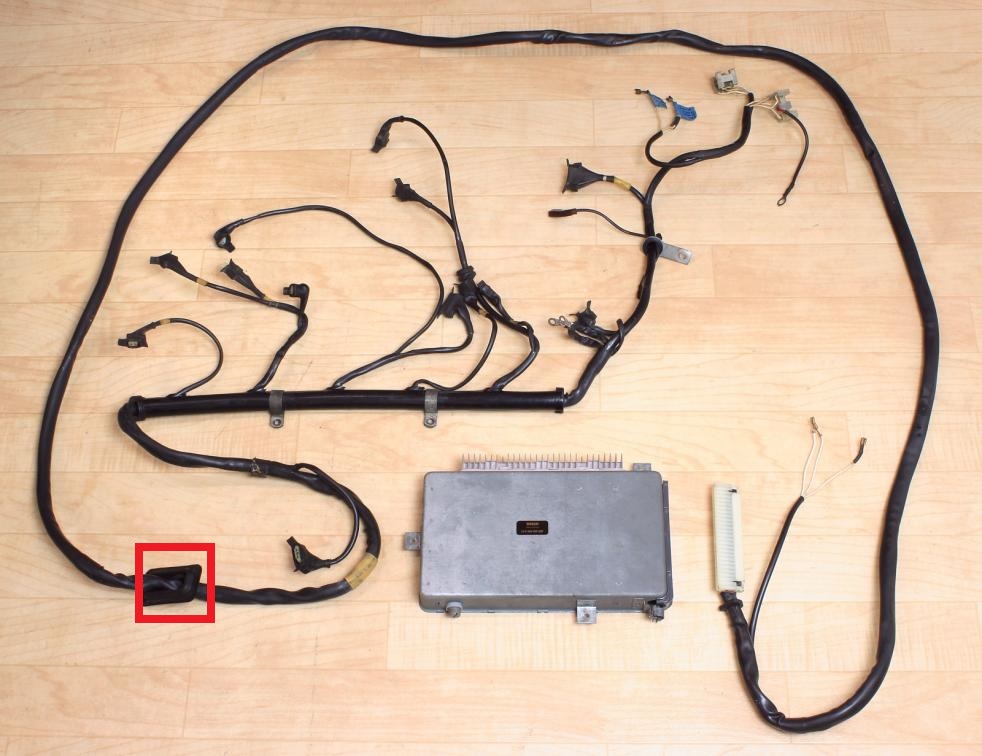

On photo below it is shown single-piece version wiring harness but i marked the place/connecting area. In single-piece version it's just rubber seal.

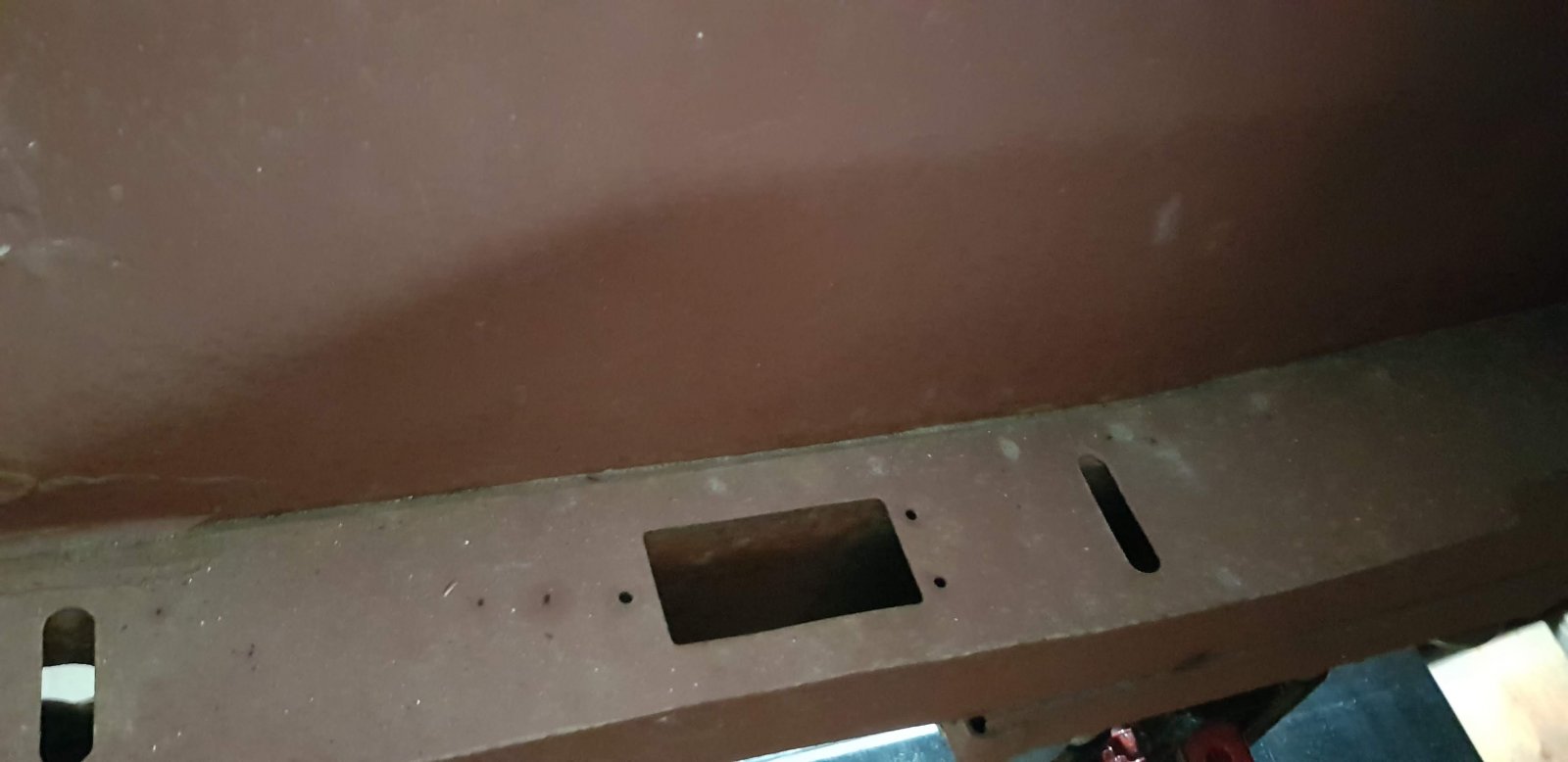

Second photo was takenw from under the hood of my car.
130814 3CSi D-Jetronic-Harness.jpg


Hey Guys,
wanted to ask - maybe someone know where D-Jetronic female 22-pin connector can be sourced?
Have only male part.
Thanks

That A-MP... number didn't gave me any results

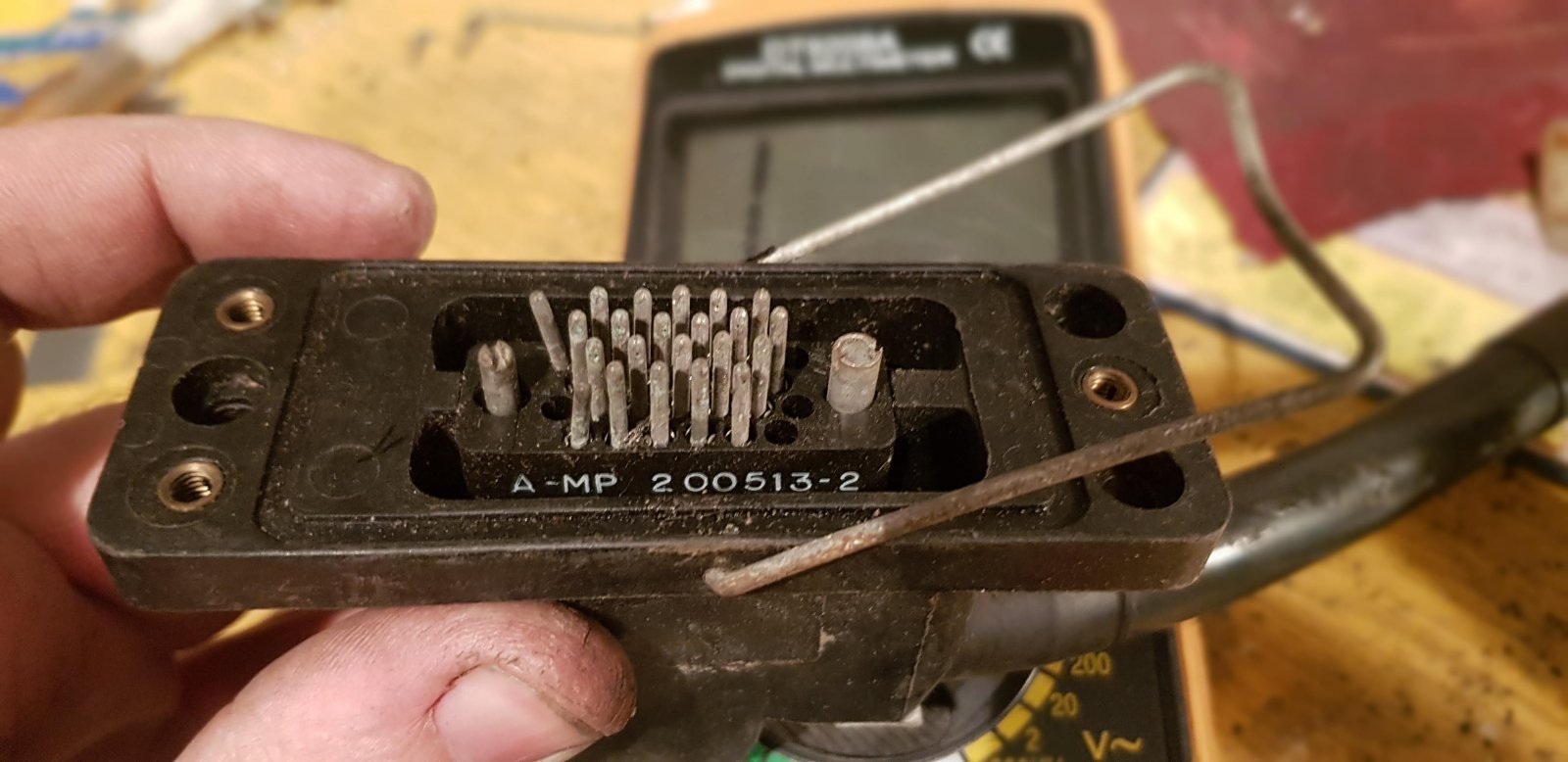

Male part for reference
View attachment 88196

If you have the corresponding female block, you might be able to adapt some single female terminals as needed. For example: https://www.finjector.com/eng/round_female_terminals-308

Perhaps other d-jet equipped vehicles used molex connectors, e.g., Mercedes, Volvo or Porsche?

Thanks
Yesterday already searched other manufacturers - all have different style plugs.
I am considering building own custom female plug. Probably from Polyamide & cnc or laser cut + MNL contacts.
Only minus - too much work as just for one plug.
