FS Wiring diagram, harness diagram, Wire list

[alprada70]

For :
BMW 2.5CS / 2.5CSA / 3.0 CS / 3.0CSA / 3.0CSi / 3.0CSiA / 3.0CSL (with 3.125 liter engine)
From 1973 models on
· 3 Blueprints 34x22 with:

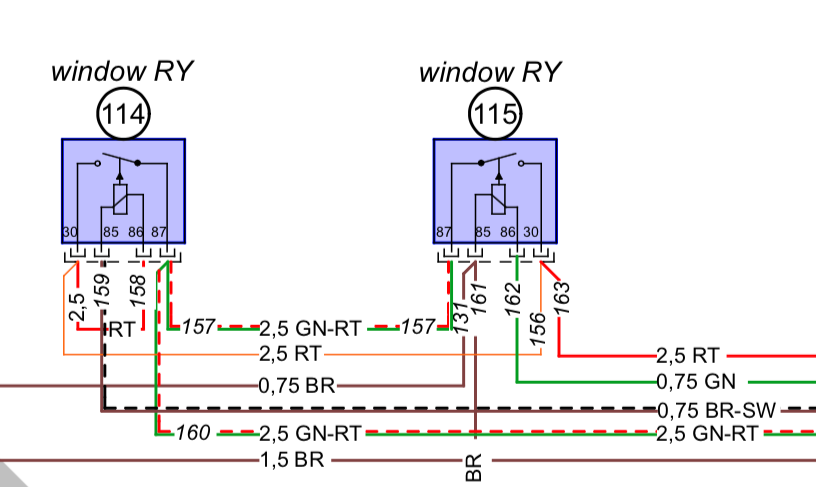

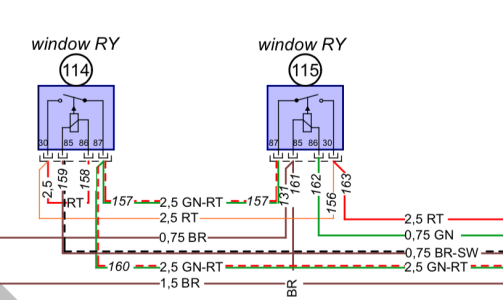

- Wiring diagram

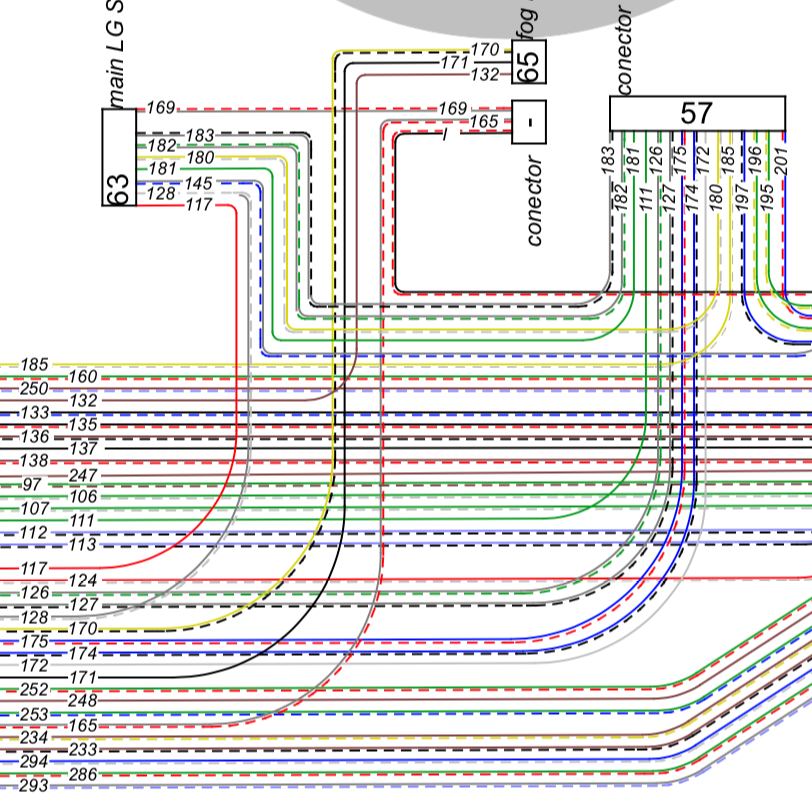

- Front and rear harness

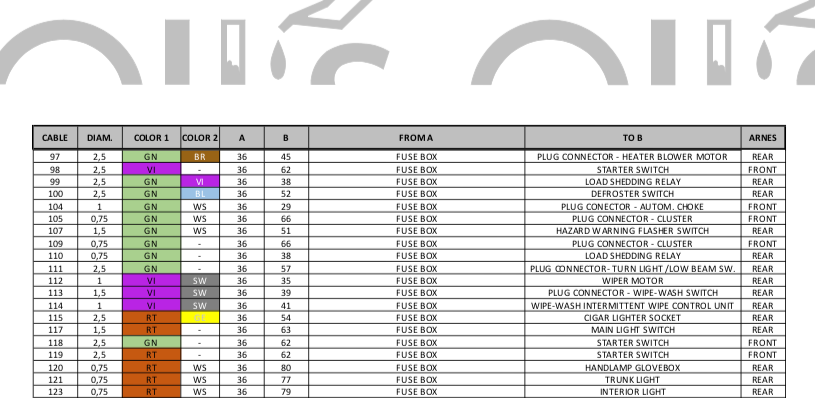

- Wire list in order of accessory with cable number, diameter, Main color, secondary color, numbers of accesoiris, list of accessories, location.

$120 with shipping US CONUS



[Ohmess]

Those look great. I've never seen a wiring diagram for the harness before.



[alprada70]

thanks!



[Thomas76]

I always thought it would be fun to draw one up in CAD, if I knew I could sell it for that I would have been much more motivated.



[alprada70]

It's good therapy, you'll spend at least 200 hours... and find differences between the diagram and the original harness…



[Thomas76]

It's good therapy, you'll spend at least 200 hours... and find differences between the diagram and the original harness…

There is no better way to learn and/or memorize the wiring of a car.
I don't know how many times I've translated German wire colors wrong.

Fun note: 90s BMW's have just barely different color coding which makes my translation even less efficient.
