I have asked before but still cannot get this right, if anyone can help!

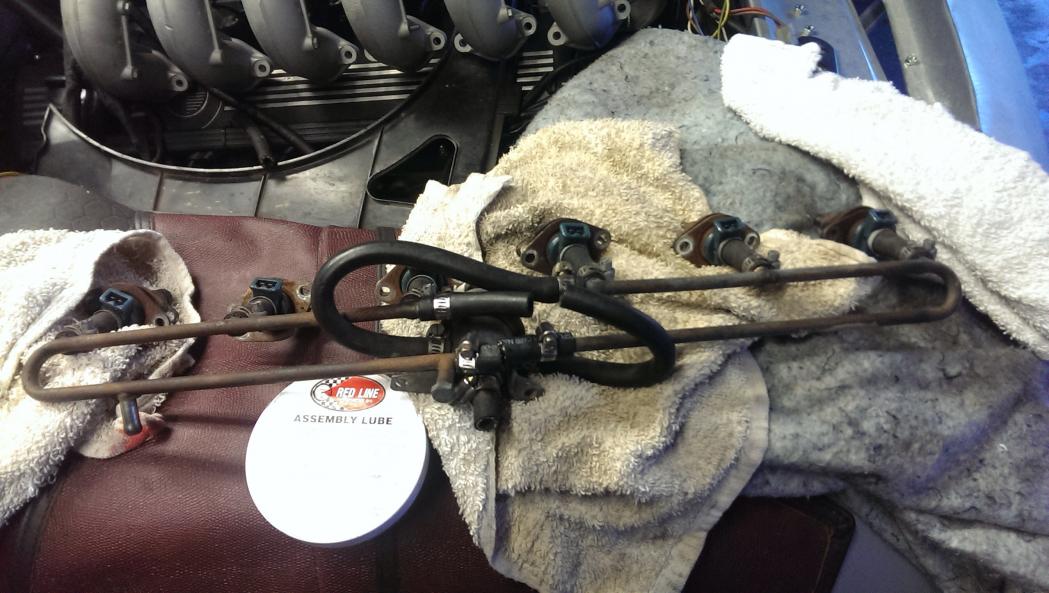

Top of the engine on my 3.0Csi are the 2 long U shaped fuel lines. In the middle is the injector pressure regulator. Each of the fuel lines have 3 short pipes that go into the fuel injectors.

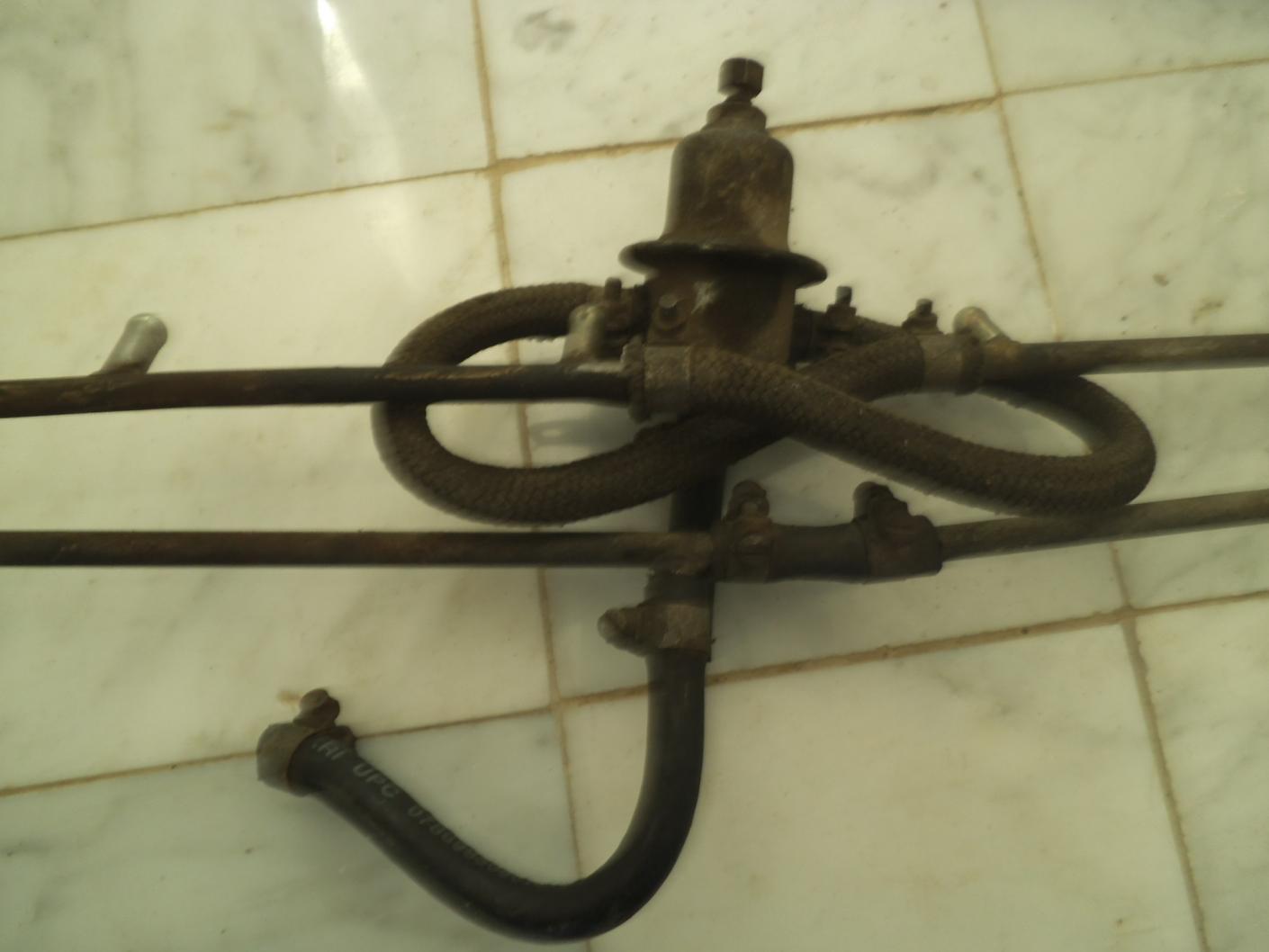

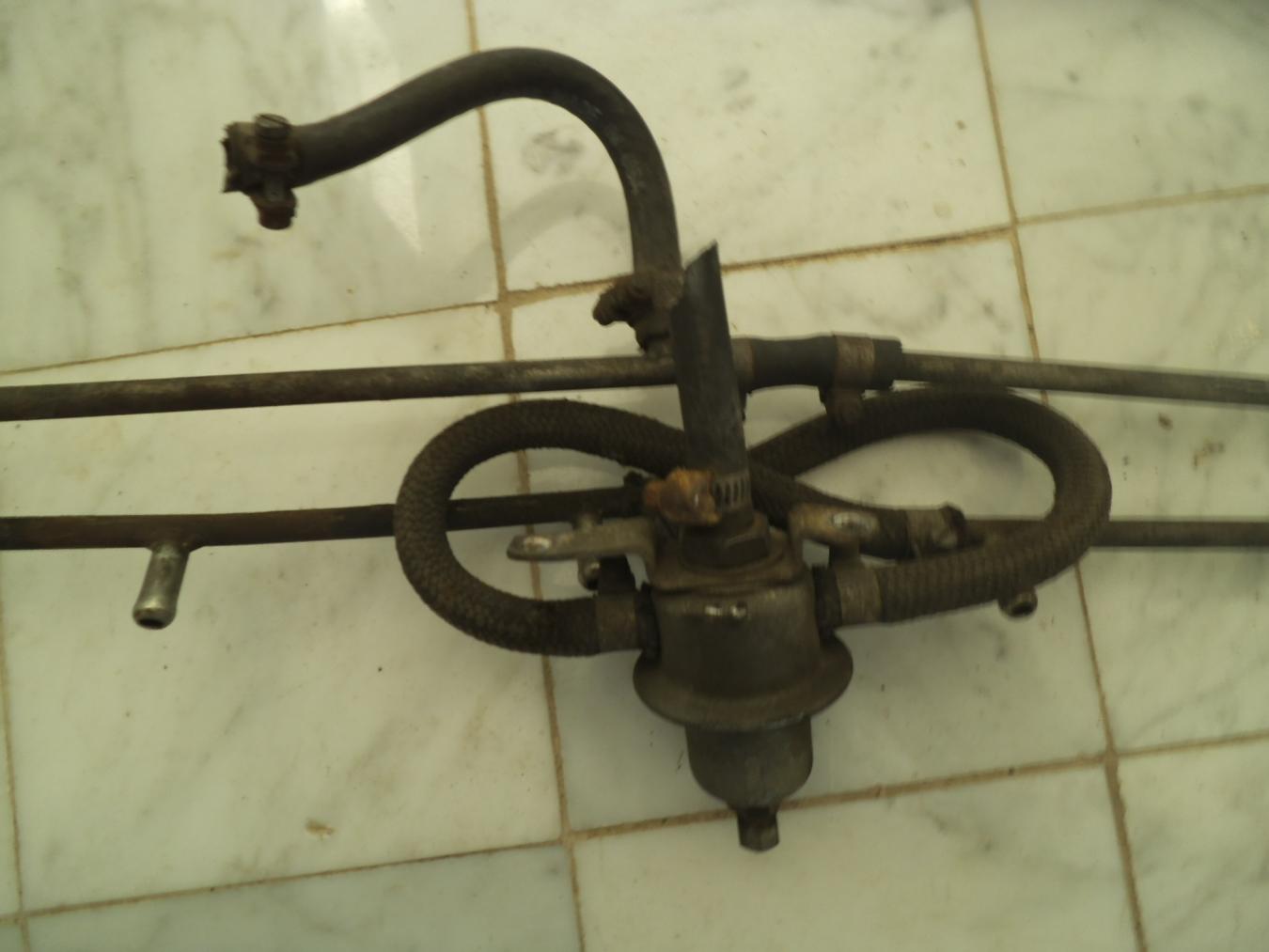

What I am trying to get is a picture or photograph of how the whole thing is connected, ie which rubber hose goes to the pressure regulator, what connects the front of the pressure regulator - it has 3 outlets and not sure what connects what!! Where the fuel line goes in and which pipe connects to the downward pointing plastic connector on the top of the engine. Does anyone have a diagram, photo or picture.
I have removed the 6 aluminium curved exhaust pipes of the engine so easy to see what I am doing but just cannot work out how the hoses are connected, especially to the pressure regulator. It should be so easy!!
It seems like that the 2 outward pointing pieces of the pressure regulator have hoses which double back on themselves to go into the fuel lines and the front bit goes up to the plastic connector?? Any ideas
Many many thanks if anyone can help!!
Car is a 3.0 Csi, UK, manual, RHD. Thanks
