Gas pedal

[stphers]

I need a gas pedal for a 72 std. Mine just broke at the ( stupid ) joint for the rod fits thru.

I know that I can get a new one from W & N but would check here first

Thanks, Rick



[bluecoupe30!]

Hi Rick, I have a new, never installed, pedal part number 35-41-1-105-414. Not sure this is correct for your application. But it is here. Mike



[stphers]

Hi Mike

Thanks but that is for 73 and up, I need an earlier one too bad Not sure if the later ones will work. Anybody know??

On another note, have you heard anything about a BMW club meet in Langley like last year? Going to the Italian Center this Sunday for the Italian car show.

Thanks, Rick



[teahead]

https://www.realoem.com/bmw/enUS/partxref?q=35411105414

should fit

35411105414​

Accelerator pedal assy​

From:03/12/1975To:-Weight:0.070 kgPrice:$24.55
Part 35411105414 was found on the following vehicles:

• 3' E21   (02/1975 — 12/1983)
• 5' E12   (02/1972 — 07/1981)
• 2.5CS-3.0CSL   (04/1971 — 11/1975)
• 6' E24   (10/1975 — 04/1989)
• 2500-3.3Li   (08/1968 — 02/1977)
• M1 E26   (06/1980 — 07/1981)



[HB Chris]

It shows 9/73 and later which is strange, I wonder what the difference could be.



[stphers]

There is also 2 different part #'s for the lever that fits into it Looking at pictures of both , the pick up point for each pedal is different, earlier ones are about 1 in from the top while the later ones have that coming right out from the top. later ones would probably work but I would be worried that the little piece of plastic that holds the pickup point to the pedal would be stressed and crack off fairly quickly

Has anyone tried a newer pedal on an older car?

Thanks, Rick



[bluecoupe30!]

Hi Mike

Thanks but that is for 73 and up, I need an earlier one too bad Not sure if the later ones will work. Anybody know??

On another note, have you heard anything about a BMW club meet in Langley like last year? Going to the Italian Center this Sunday for the Italian car show.

Thanks, Rick

Hi Rick,
There is some confusion around the gas pedals that should fit the E9. So, I ordered the less expensive one from BMW. No way it fits my '72. Eventually procured a W&N one for my car and fits perfectly. Huge, unreasonable, price difference. But we should be used to that by now. So, I have this BMW pedal, just sitting here.
No, nothing about a Langley Meet. I think they have a hard time finding judges that can evaluate the wide range and models that show up. Ask me how I know,



[teahead]

35411107684​

Accelerator pedal assy​

From:08/24/1970To:-Weight:0.172 kgPrice:$103.58
Part 35411107684 was found on the following vehicles:

• 1500-2000CS   (02/1962 — 01/1972)
• 2.5CS-3.0CSL   (12/1968 — 11/1975)
• 2500-3.3Li   (08/1968 — 02/1977)

Ya, odd the diff part #s.

https://www.ecstuning.com/b-genuine-bmw-parts/acc-pedal/35411107684/



[sfdon]

They don’t interchange.
completely different base



[Arde]

It shows 9/73 and later which is strange, I wonder what the difference could be.

A harder gas pedal would have been useful from 10/73 on when the gas prices shot up big time...



[bavbob]

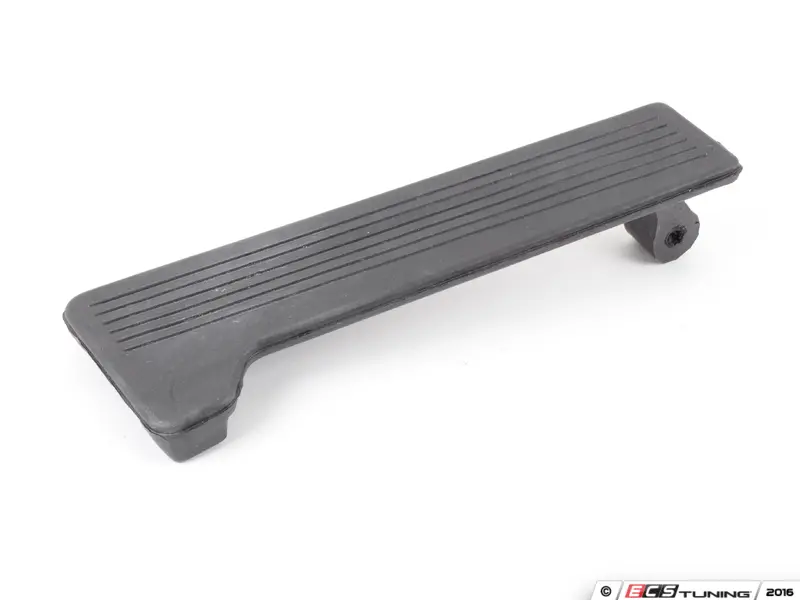

My 72 uses the one in the image posted by Teahead, available at the dealer, not cheap for what it is.

Geeze, I just looked it up, like 160 bucks. Covid and supply chain stuff have really caused price gouging. I bought mine 2 years ago for around 90 dollars at the dealer.



[sfdon]

On sale 48 euros

Search results for: '35411107684' | Wallothesch

www.wallothnesch.com



[stphers]

Thanks guys, just ordered 2 from W & N

Thanks, Rick
