Getrag 5 speed help !!

[Alejandro Giraldo]

Dear all
I hope you guys are doing well as well all your love ones !

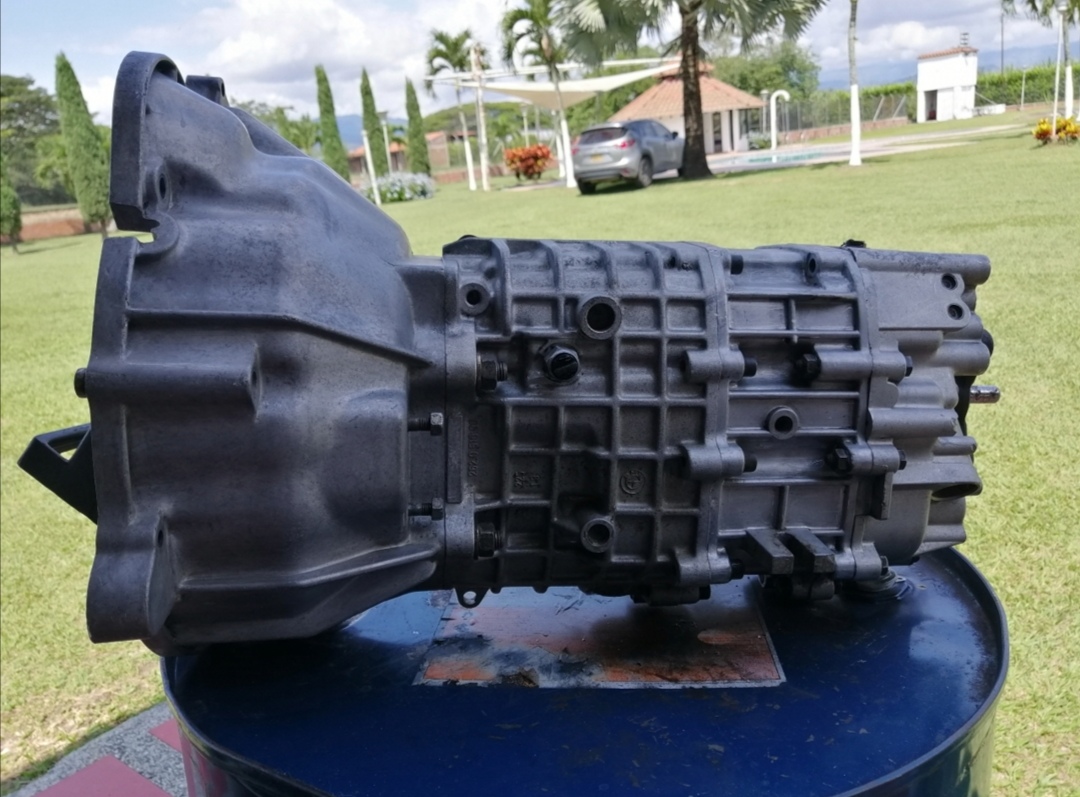

I been offered these gear box but I am not really sure what it is as well I have no Clue what the bellhousing will fit

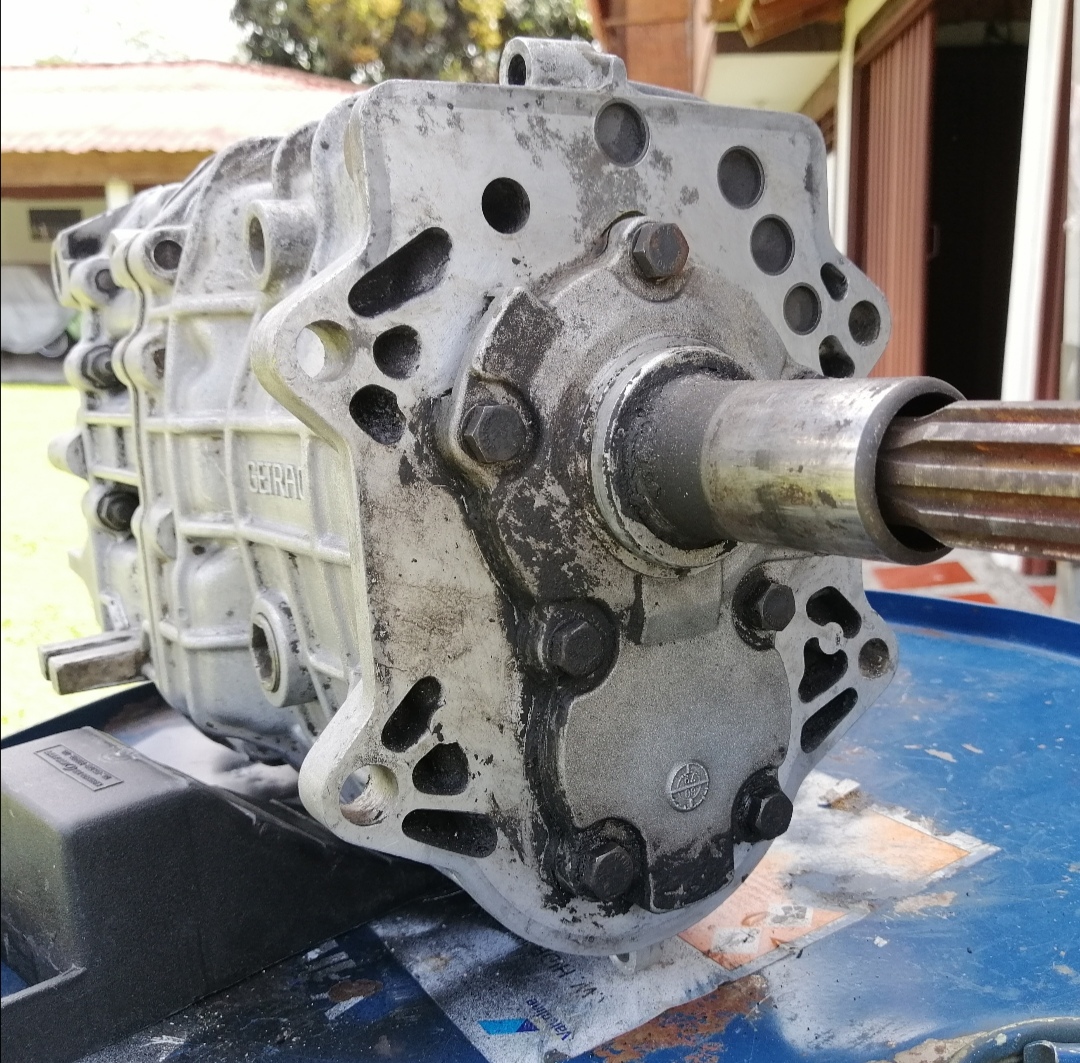

The gear box is in really good shape and there are few marking/engravings that I would like to know where it was fitted and how can be use as well

On the last picture the number 150 appears 3 times on the top of the gear box as well on the bottom appears 000055EU Which I have no idea what are those numbers for

As always your help is much appreciated



[Markos]

@HB Chris - Do we need a transmission FAQ?

@Alejandro Giraldo. The gearbox pictured It is a G265/5 close ratio dogleg transmission. Five gears but the 5th gear is 1:1, same as a four speed.

They are generally more valuable than an overdrive, but not often as desirable for the average driver. They are by no means difficult to sell.



[Markos]

BTW, behind the bellhousing you should find a production date stamp near the input shaft.



[HB Chris]

Markos, I’m on it!



[HB Chris]

Does anyone have a few hi-res pics of a Getrag 262 trans?



[Alejandro Giraldo]

Thank you Markos
Do you probably guess the car it was fitted?

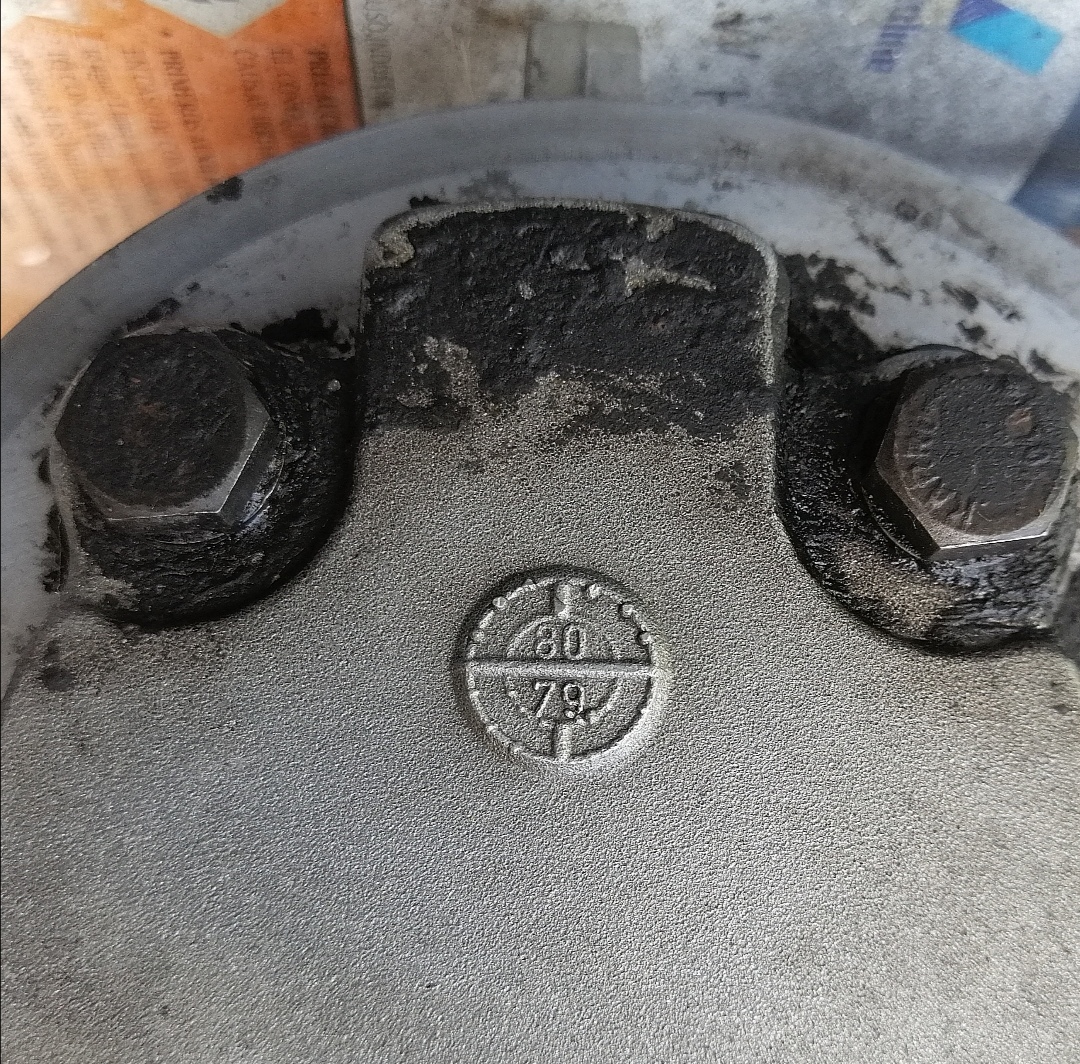

As requested see attached picture with the dates



[autokunst]

Does anyone have a few hi-res pics of a Getrag 262 trans?

I'm happy to take/provide any pics of a 265/5 close ratio if needed (although the pics in this thread are pretty good). Mine is sitting on a dolly and ready for a photo shoot.



[Markos]

Thank you Markos
Do you probably guess the car it was fitted?
As requested see attached picture with the dates

Guess would be a 1979-1981 635csi. Alternatively it could have been an M535i (e12), or an e30 M3.



[Markos]

Thank you Markos
Do you probably guess the car it was fitted?
As requested see attached picture with the dates

Just to clarify, the date stamp is on the transmission, not the bellhousing.



[Jon B]

On the last picture the number 150 appears 3 times on the top of the gear box as well on the bottom appears 000055EU Which I have no idea what are those numbers for...

Alejandro, I suspect the "150" stampings indicate that the separate housing pieces are a matched set, either because they were machined together, or were checked for alignment of various bores and registers.



[Markos]

Does anyone have a few hi-res pics of a Getrag 262 trans?

Some decent pics recently added here:

getrag gearbox identification

Hello. Can anyone help me define how many gears does this gearboxes have? I don't have them near me so I can't just check. I only have these pictures. First one: Second one:

e9coupe.com

The 262 bellhousing does bolt up and work with the 262 front case of the G265/5. I gifted my 262 but kept the bellhousing for the dogleg.



[HB Chris]

Some decent pics recently added here:

getrag gearbox identification

Hello. Can anyone help me define how many gears does this gearboxes have? I don't have them near me so I can't just check. I only have these pictures. First one: Second one:

e9coupe.com

The 262 bellhousing does bolt up and work with the 262 front case of the G265/5. I gifted my 262 but kept the bellhousing for the dogleg.

Thx, got the 262 pics, anyone have pics of the rare ZF Five Speed?



[Markos]

Thx, got the 262 pics, anyone have pics of the rare ZF Five Speed?

The five speed is a ZF S5-18/3. There are pics here and there on the forum.

Example:

ALPINA CSL 5-speed gearbox ZF S5-18/3 (Schnitzer, GS, Koepchen)

Hello, I have a homologated ZF S5-18/3 Gearbox for sale: This homologated for E9 (1969 - 1975) Ratio 1. gear 3.85 2. gear 2.40 3. gear 1.76 4. gear 1.26 5. gear 1.00 R. gear 3.64 It is a original on in quite good condition! No replica! Used by BMW Motorsport, ALPINA, Schnitzer, GS and...

e9coupe.com



[HB Chris]

Thx!



[Alejandro Giraldo]

Guess would be a 1979-1981 635csi. Alternatively it could have been an M535i (e12), or an e30 M3.

@Markos you were spot on buddy

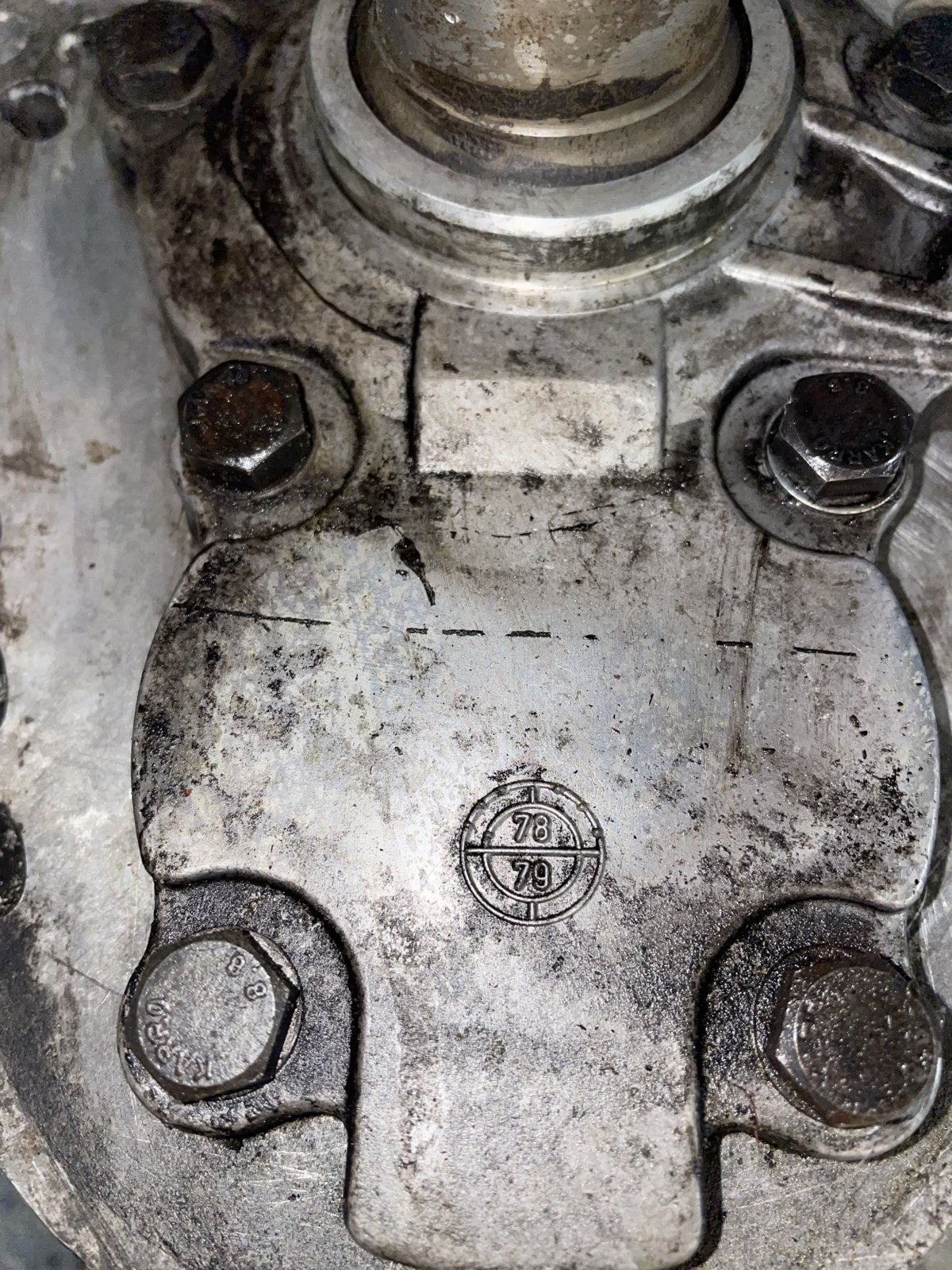

See production year as you stated



[teahead]

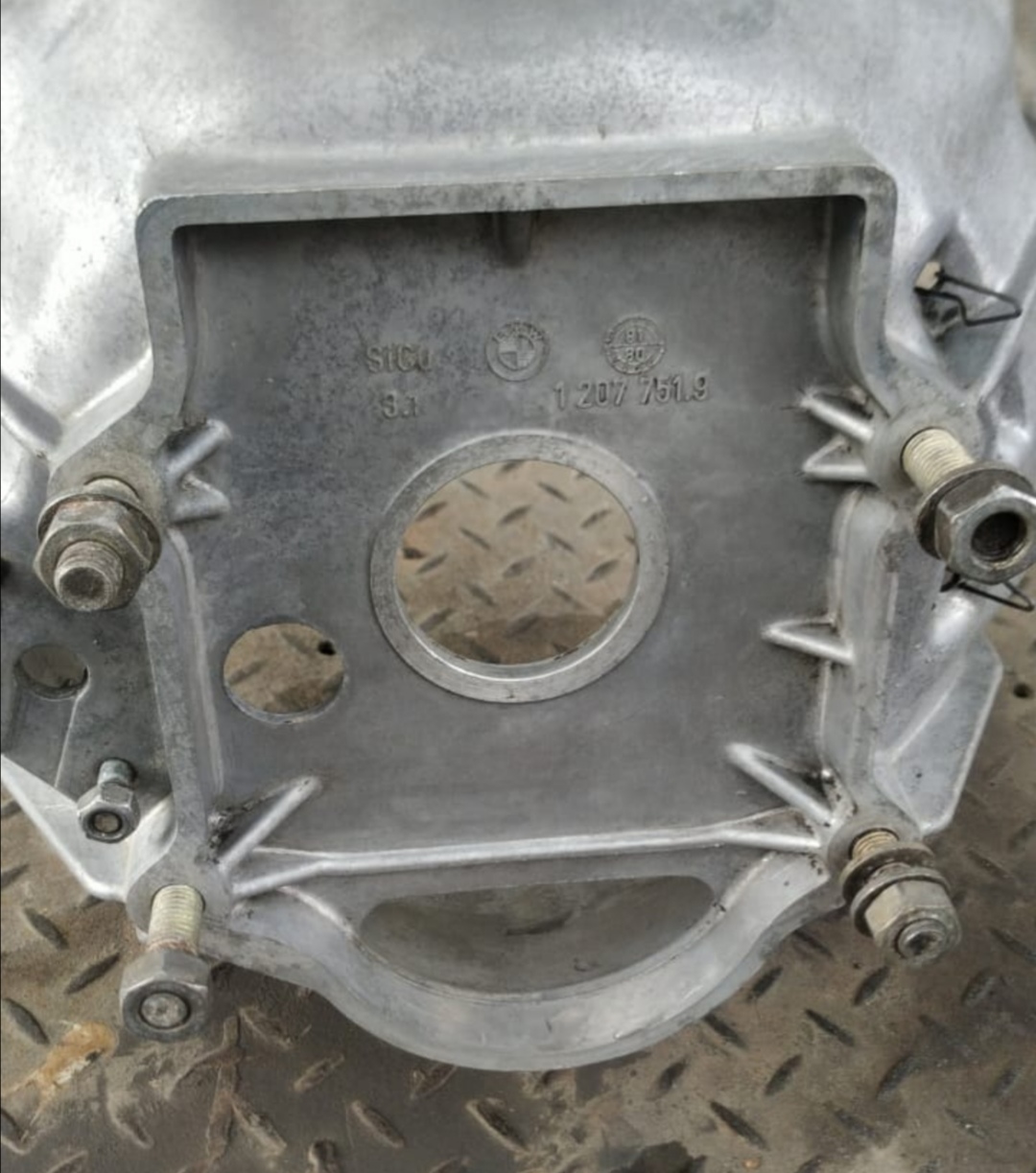

that looks like an M30 bellhousing.

But then again, no clue what an S14 bellhousing looks like.

Defintely non-motronic.



[Alejandro Giraldo]

Hello Rob
That is correct is an M30 bellhousing and we never said that it was an e30 and now knowing the date on the transmission we know know it was not belongs to an e30

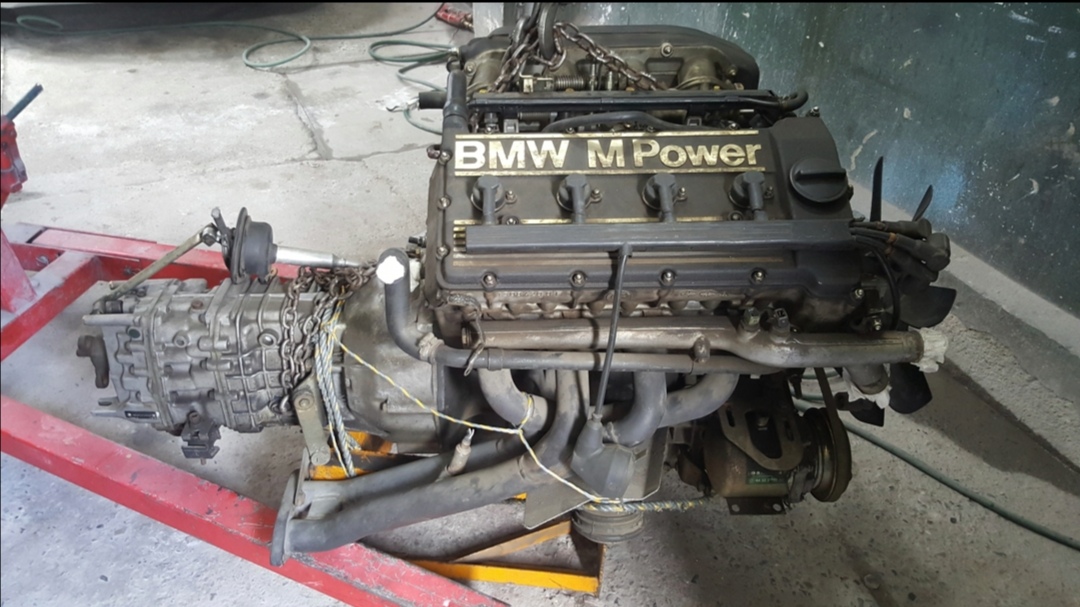

This is the engine that is on my 2002 right now and it came with its original gearbox

Thanks buddy
