Ideas? Thoughts?
Looking for VDO gauge cluster
- Thread starter sfdon
- Start date
....I'll ask my carpenter about the surface, adapting the loudspeaker frame should be in easy job, gauges are available e.g. here

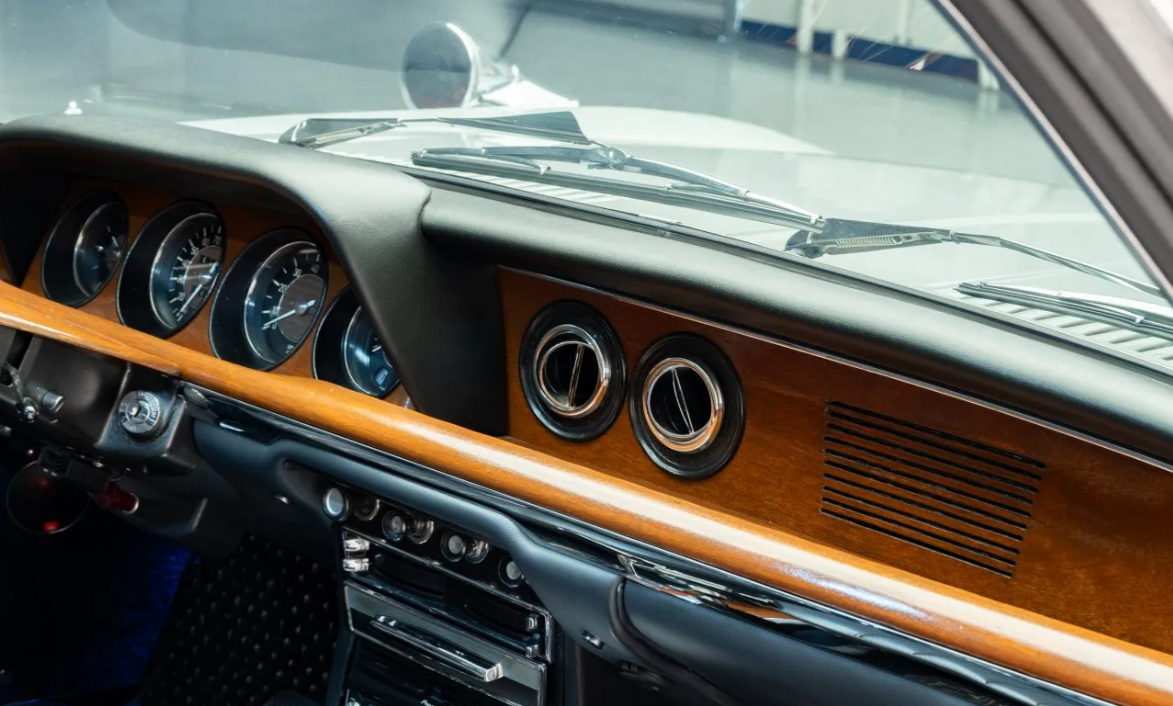

An opinion... gauges in matching veneered wood, in the speaker cavity, to match the implementation of the original 4 gauges would be the most harmonious.
Maybe not possible unless all wood is being redone.
Maybe not possible unless all wood is being redone.
Some thoughts:
The surface of the Alpina faceplate shows the structure of toothbrush painting
...very filigree work.
The faceplate should fit into the loudspeaker opening.
There will be the need to enlarge the cutout of the dashboard wood to allow inserting the gauges.
The faceplate should move a little bit forward by putting a thin layer of wood behind the faceplate.
There should be room for placing the backside gauge mounts.

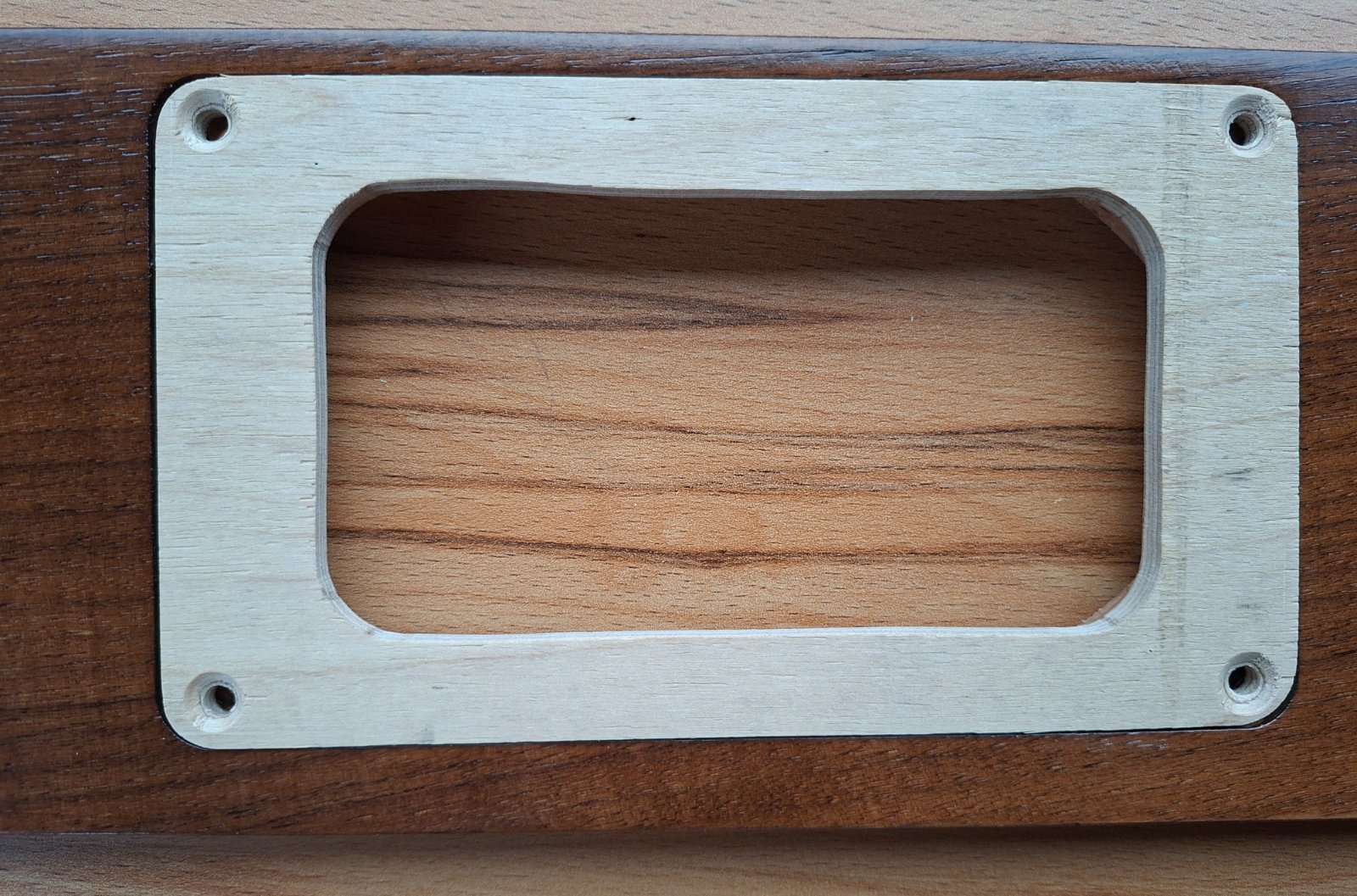

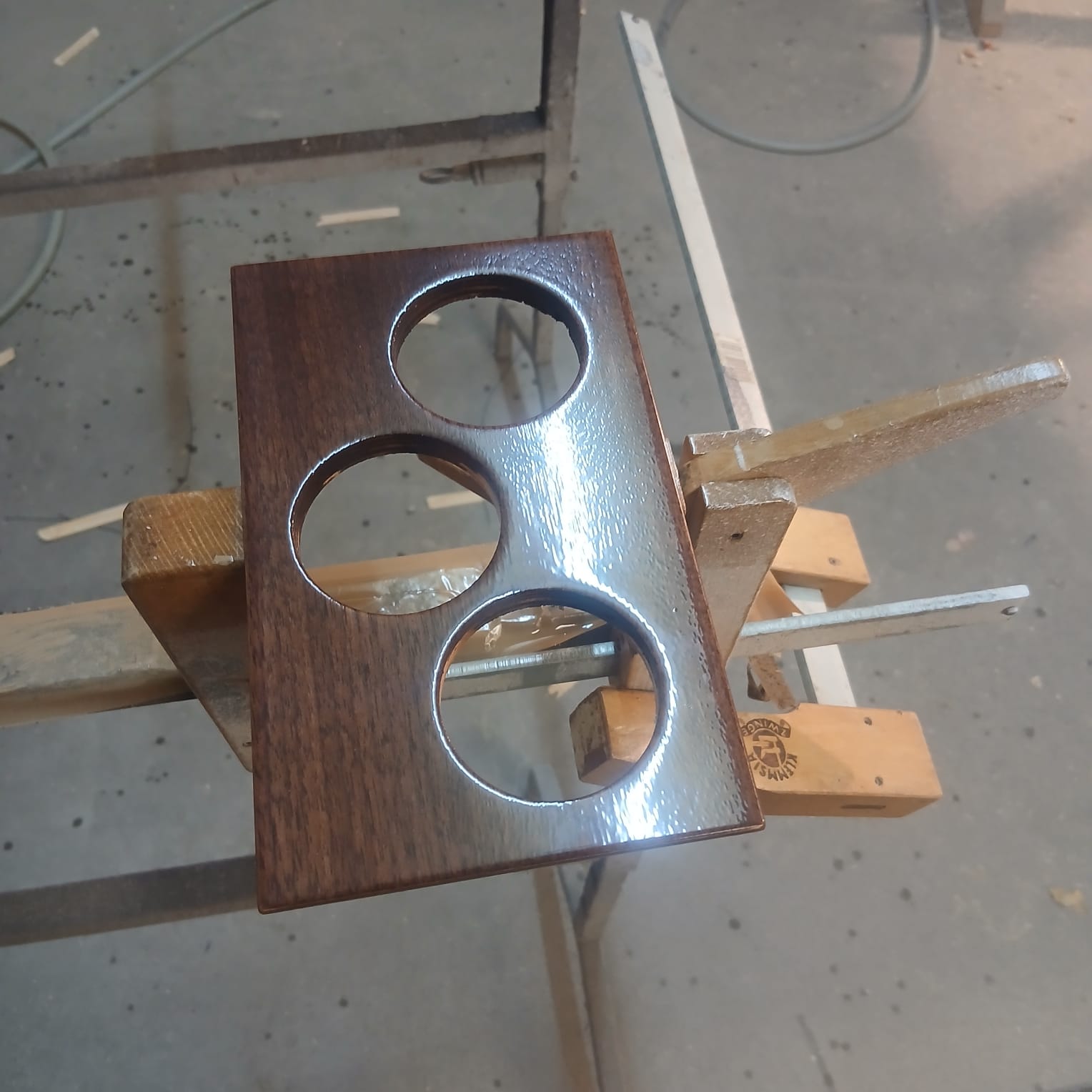

This is a typical support of the loudspeaker veneer. With some modifications it could be the base of the plate for the gauges.
text modified and pic added August 4th
The surface of the Alpina faceplate shows the structure of toothbrush painting
...very filigree work.
The faceplate should fit into the loudspeaker opening.
There will be the need to enlarge the cutout of the dashboard wood to allow inserting the gauges.
The faceplate should move a little bit forward by putting a thin layer of wood behind the faceplate.
There should be room for placing the backside gauge mounts.
This is a typical support of the loudspeaker veneer. With some modifications it could be the base of the plate for the gauges.
text modified and pic added August 4th
Last edited:
Great replies here from nice people. Thank you!

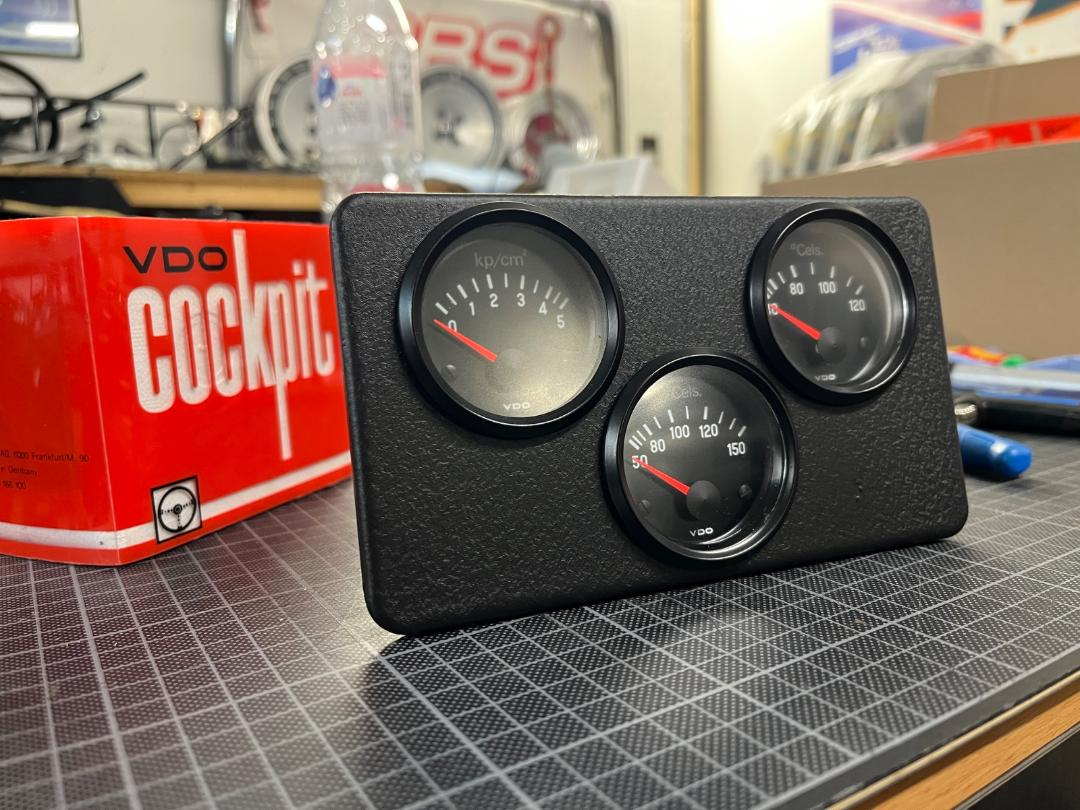

Going with the Hal Boyle 3D printed "Tilted" plate with vintage VDO gauges. And fitment suggestions from Tom!
Going with the Hal Boyle 3D printed "Tilted" plate with vintage VDO gauges. And fitment suggestions from Tom!

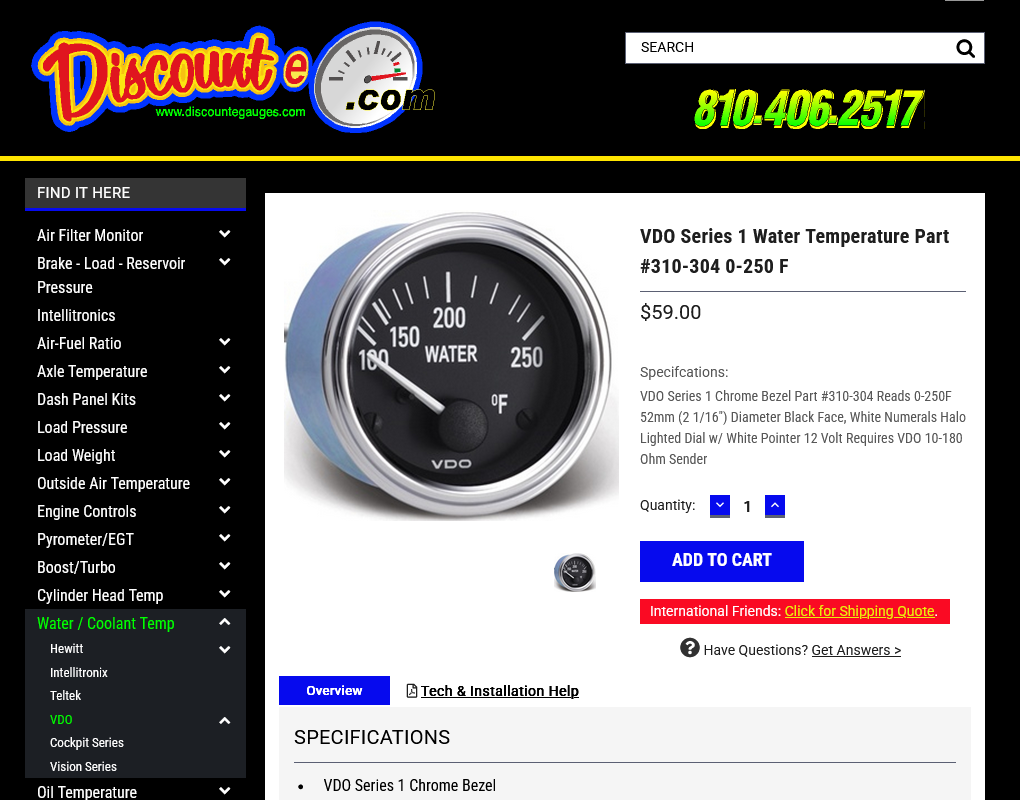

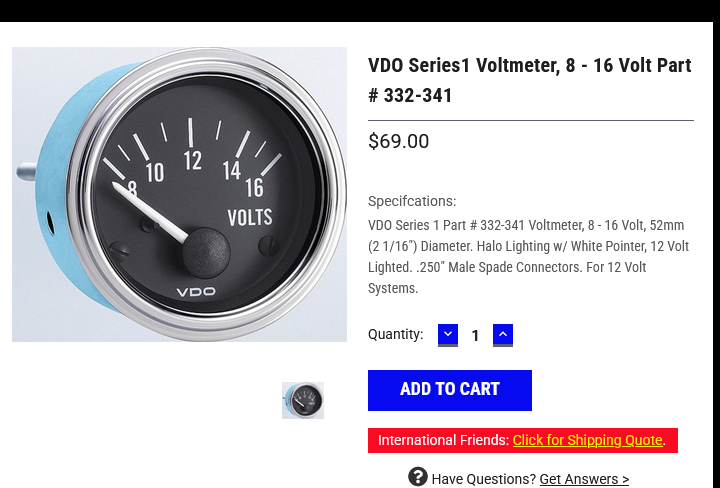

here are some series 1 vdo gauges - new for a reasonable price. these are the 3 that i bought from this guy. i think the sweep style look better with the Alpina style cluster than the center style. be sure to get the correct senders from him too.
Bwana
Well-Known Member
Do you have a link to the gauge mounting? A bunch of physics stuff comes up on Google
Home | 2002s ONLY
2002s ONLY offers only the Best Products for Your Vintage BMW! Passion-Driven Since Before “Vintage” Was Cool.
Hal Boyle- He is the SOURCE!
Last edited:
We haven't offered them commercially yet but if there is enough demand we can certainly put them on our website: www.2002sonly.com. I'm currently experimenting with a wood grain filament that could be tinted to match the color of the rest of the dash

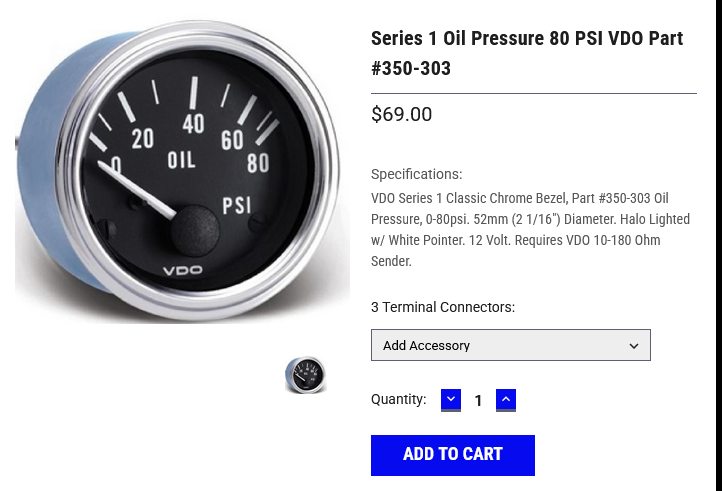

Is the pressure gauge mechanical or electrical?
And somewhere it should have the formula for us that cannot remember the PSI conversion ratio:
PSI = KPA x 0.14503773773020923
Clubsport_CSi
Active Member

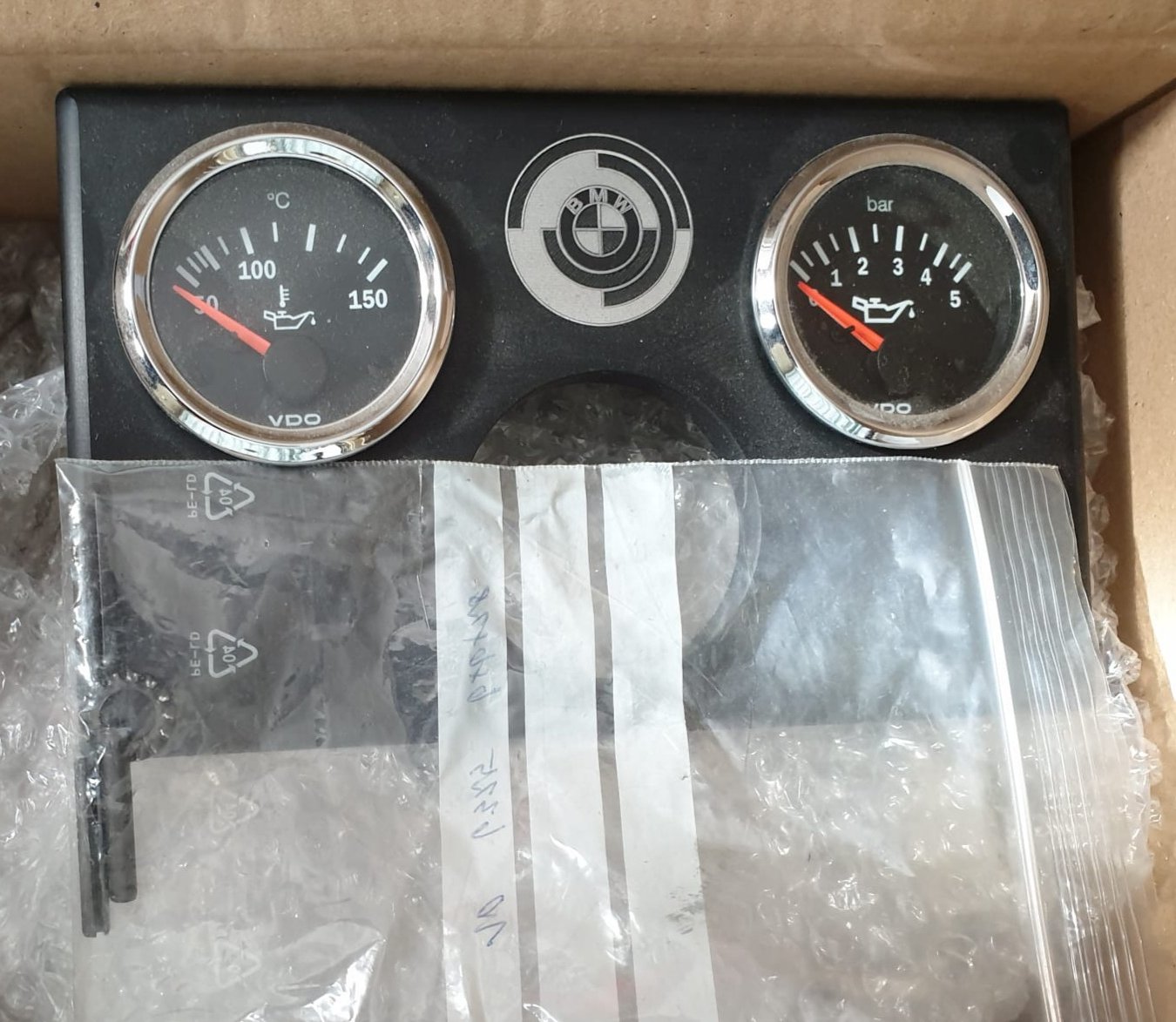

I have this one installed, but do not have a picture after installation at hand. Missing third gauge is AFR.
you can get either, but i like the electrical one in PSI.
There's a thread here:
Mine is metal with textured splatter paint like the black bezels around the main gauges. All Series 1 gauges fit with no mods.
Mine is metal with textured splatter paint like the black bezels around the main gauges. All Series 1 gauges fit with no mods.

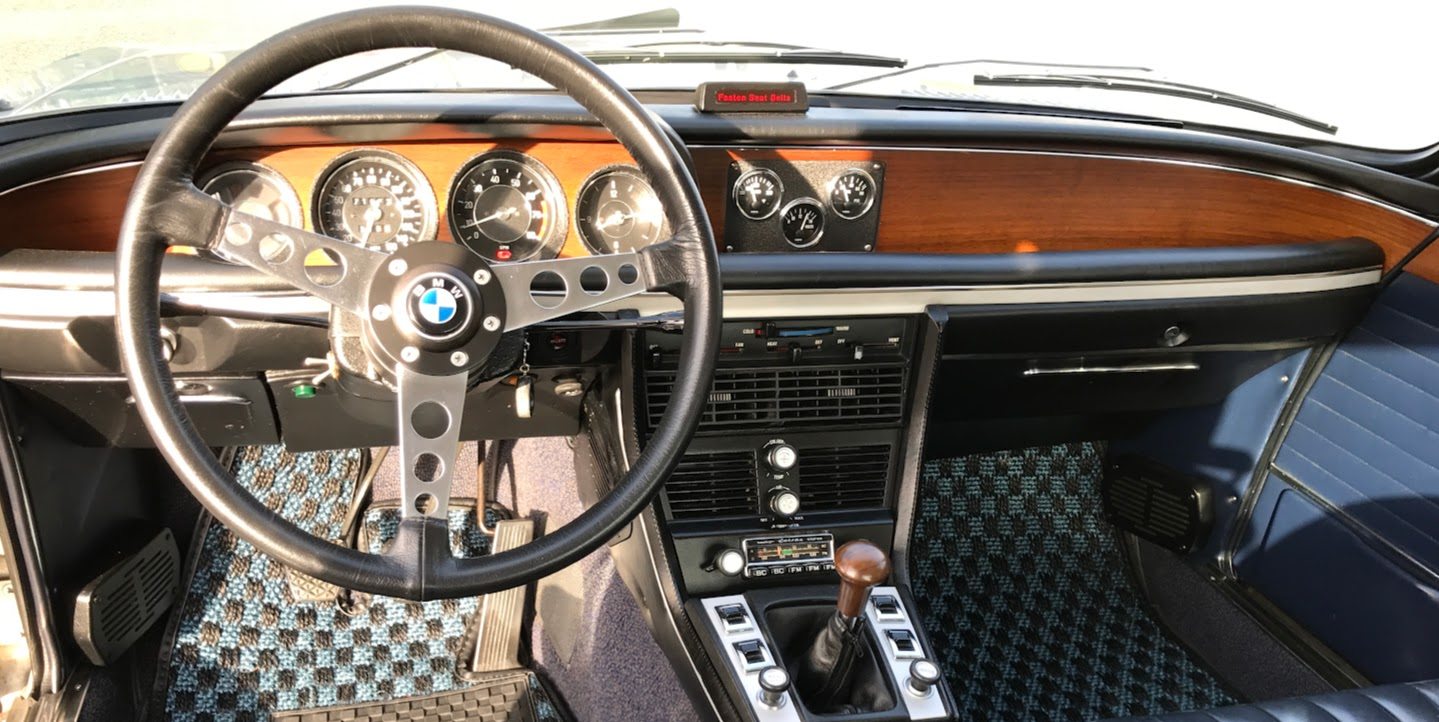

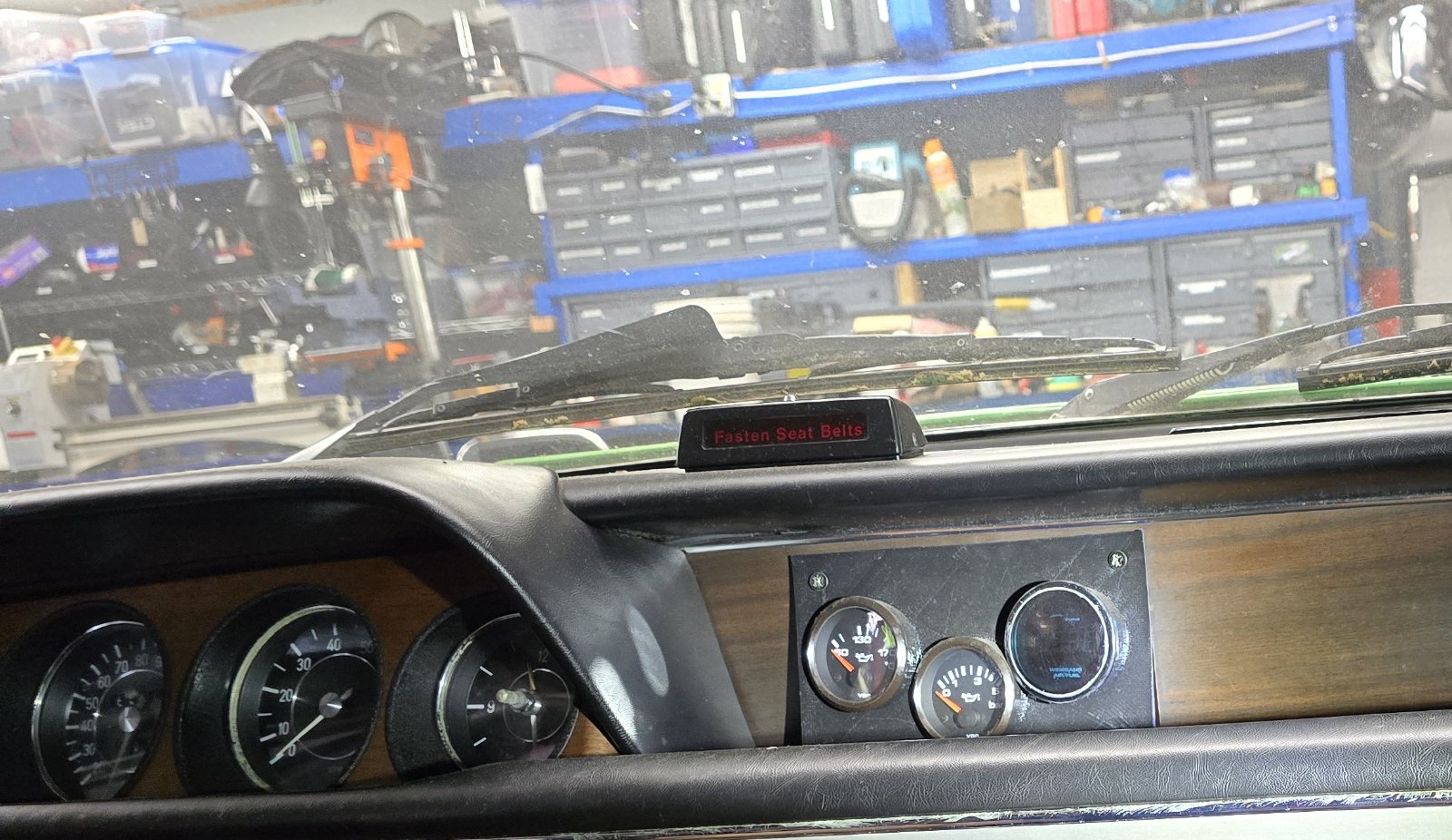

i actually think the Alpina cluster looks better sitting on top of the wood, than being recessed into it. when you try to recess it, you bring more things into play - having all sides sitting flush, having a uniform gap around all edges, etc. look at Steve's, that looks great.
