Master Cylinder rebuild

[GPD]

Rebuilding my clutch master cylinder. Got the replacement pieces from Wallnoth. There is one extra piece and one missing part it seems. Appreciate some help and insight.

There are two rubber gaskets that they sent only one replacement for so one must not matter.

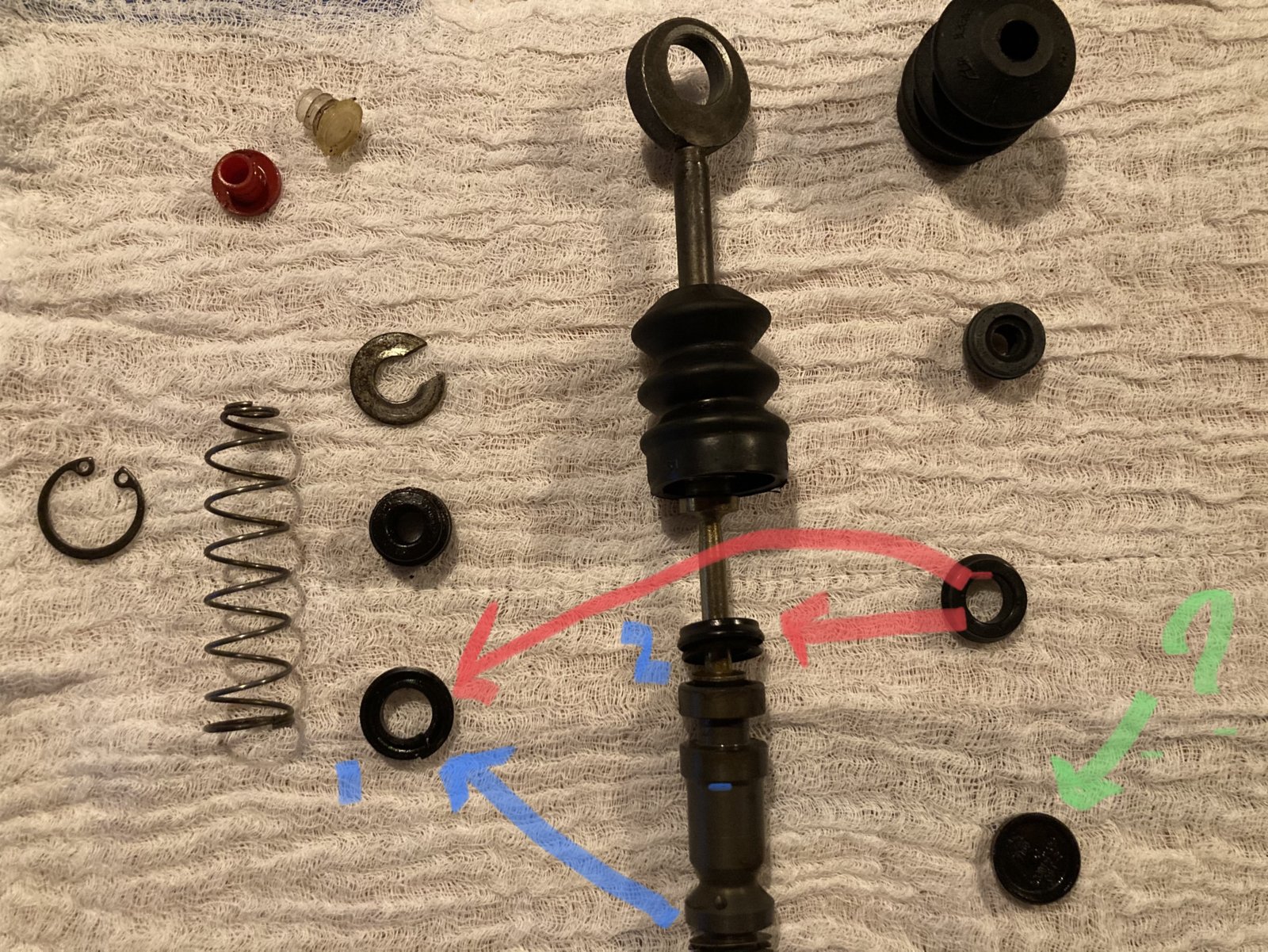

There is one rubber disk that is was not present in the cylinder that was sent.. I assume it goes at the base of the cylinder. Parts on the left are original. Right are new parts.



[deQuincey]

Rebuilding my clutch master cylinder. Got the replacement pieces from Wallnoth. There is one extra piece and one missing part it seems. Appreciate some help and insight.

There are two rubber gaskets that they sent only one replacement for so one must not matter.

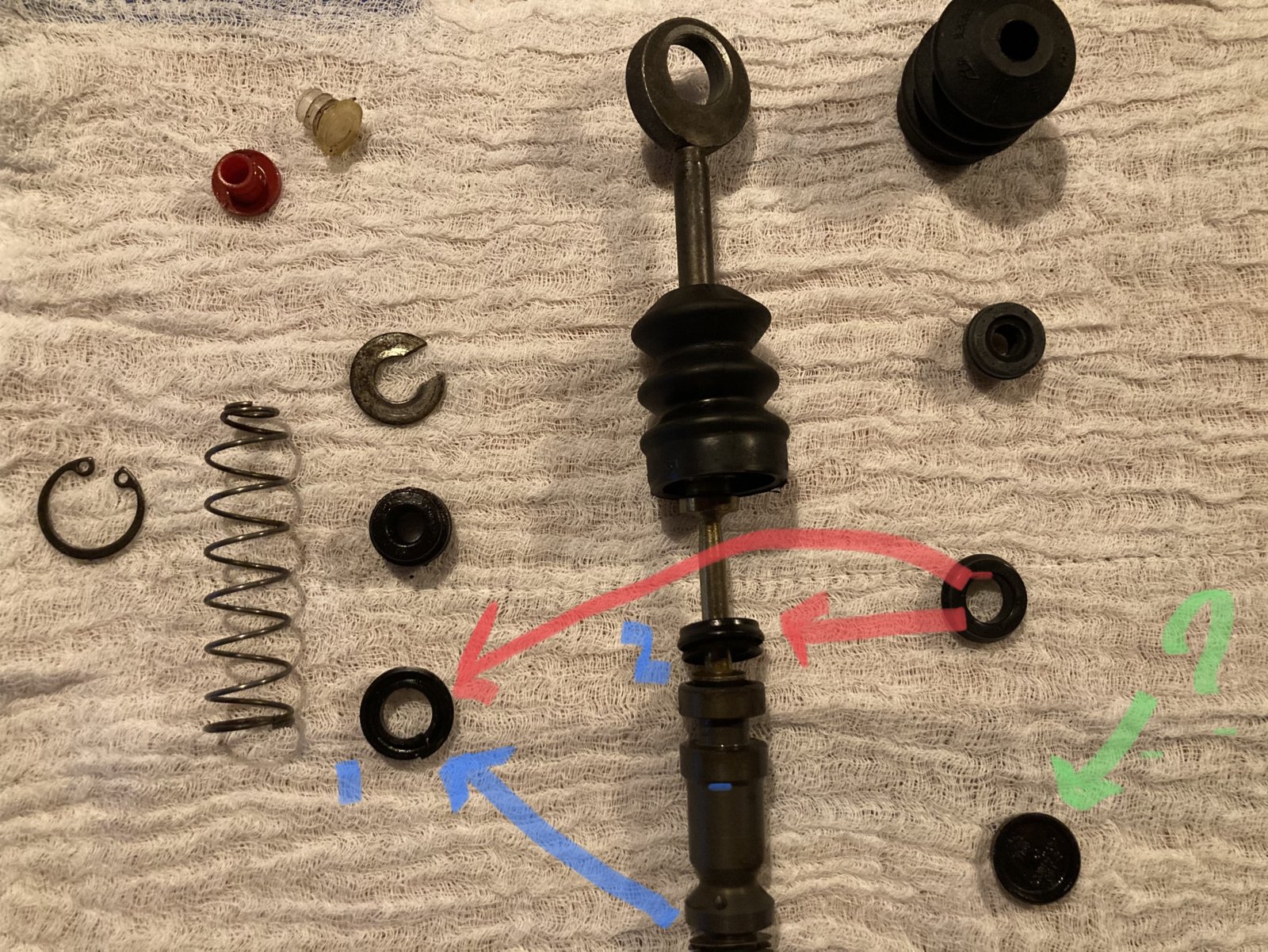

There is one rubber disk that is was not present in the cylinder that was sent.. I assume it goes at the base of the cylinder. Parts on the left are original. Right are new parts.View attachment 126566

here,

renewal of the clutch cylinders

problem: leaks from the master cylinder inwards the pedals area my car was made in 1971, so this is the old system: . removed, out from the car: . got the replacements in bmw

e9coupe.com



[Dick Steinkamp]

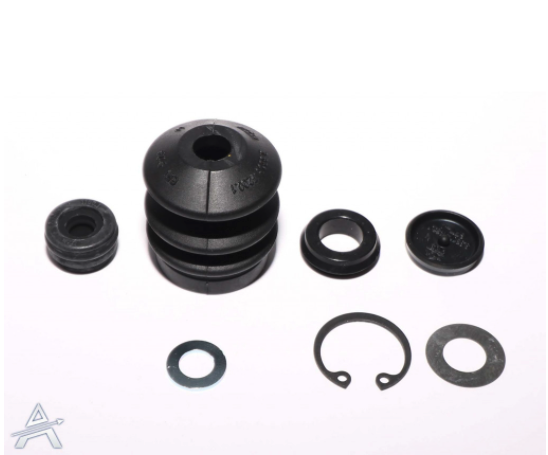

Here are the parts WN pictures with the kit...

Repair kit for clutch master cylinder fits for all models and years of manufacturing you need 1 for 1 car

Repair kit for clutch master cylinder fits for all models and years of manufacturing you need 1 for 1 car

www.wallothnesch.com

It looks like you received what they illustrate (I assume you also received the two washers and the circlip)

The kit is for both the old (pre 73) and the new (73 and up) MCs.

There may be parts unique to the new that you won't use in yours.

Follow deQuincey's guide and you can't go wrong.

​
