Recently painted air box for sale

James1991

Member
Messages
18
Reaction score
10
Location
Liverpool

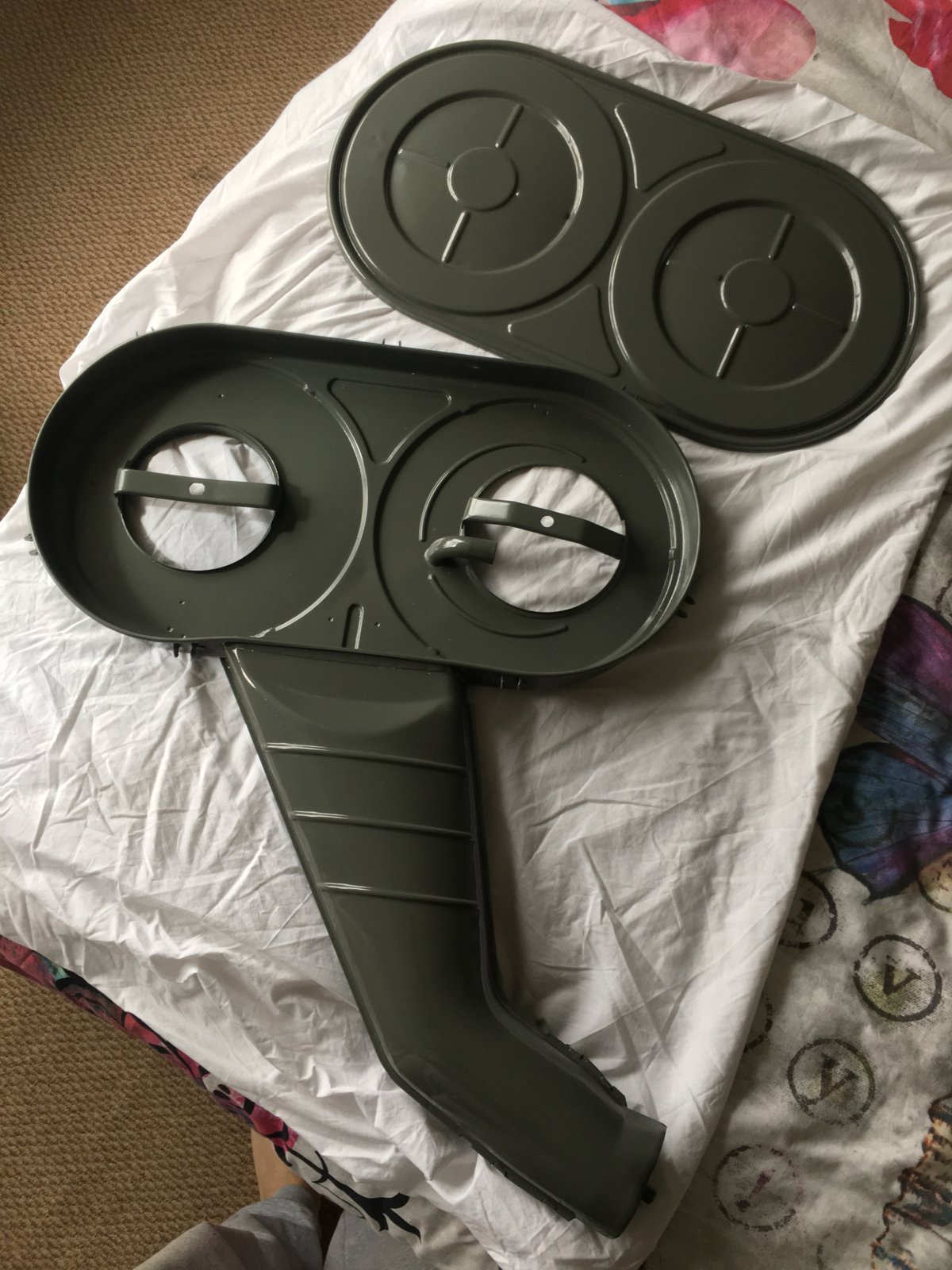

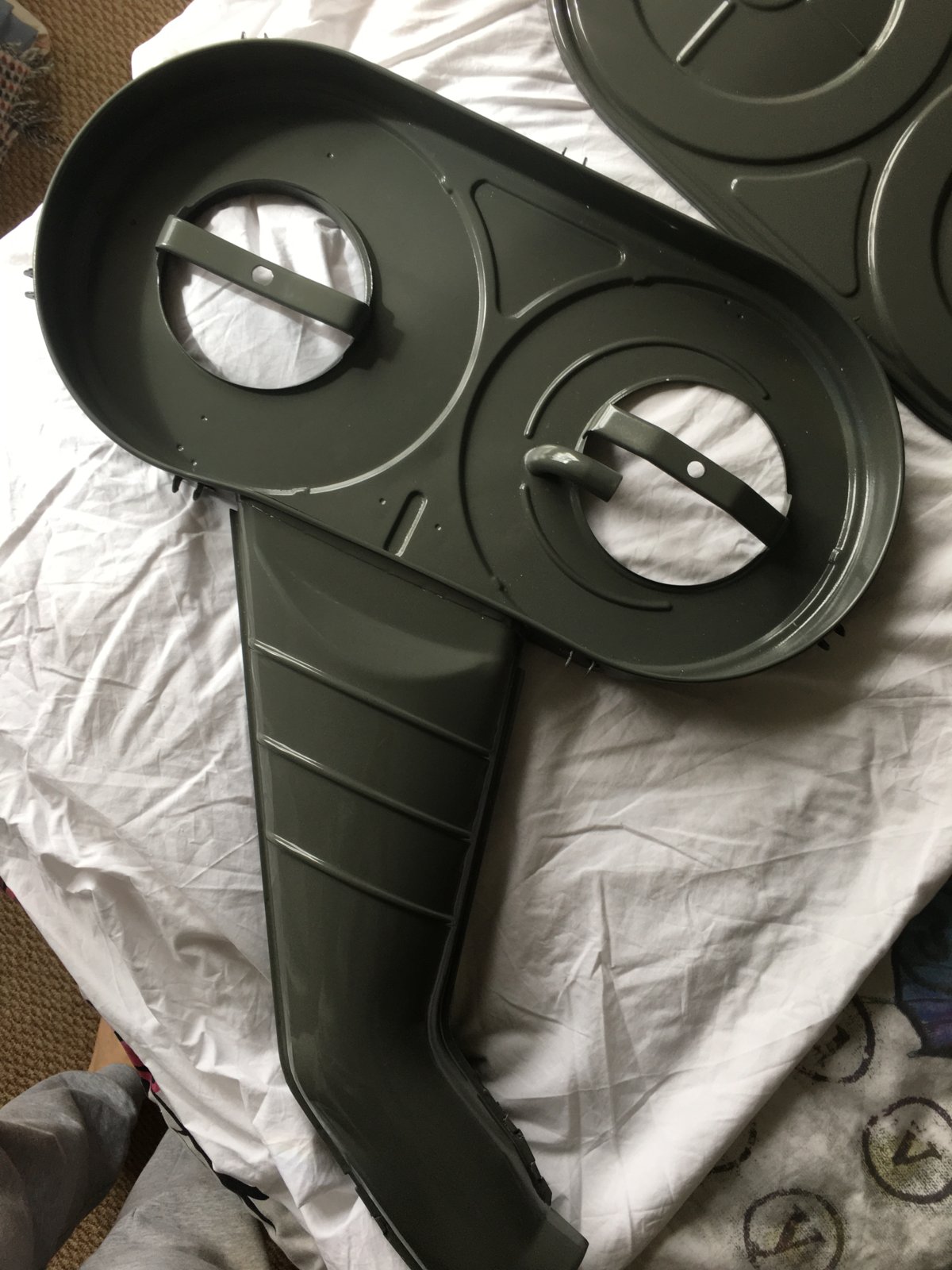

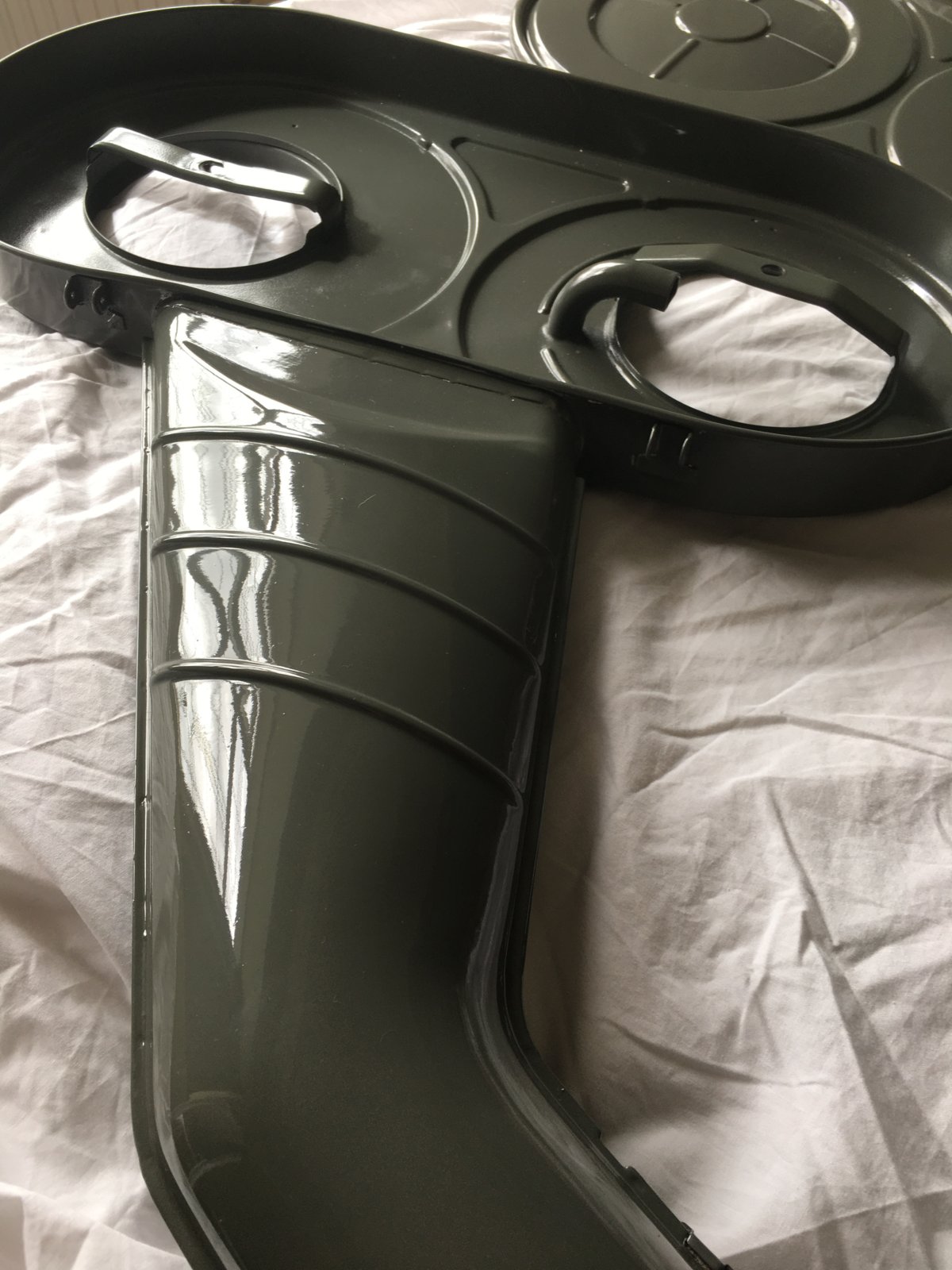

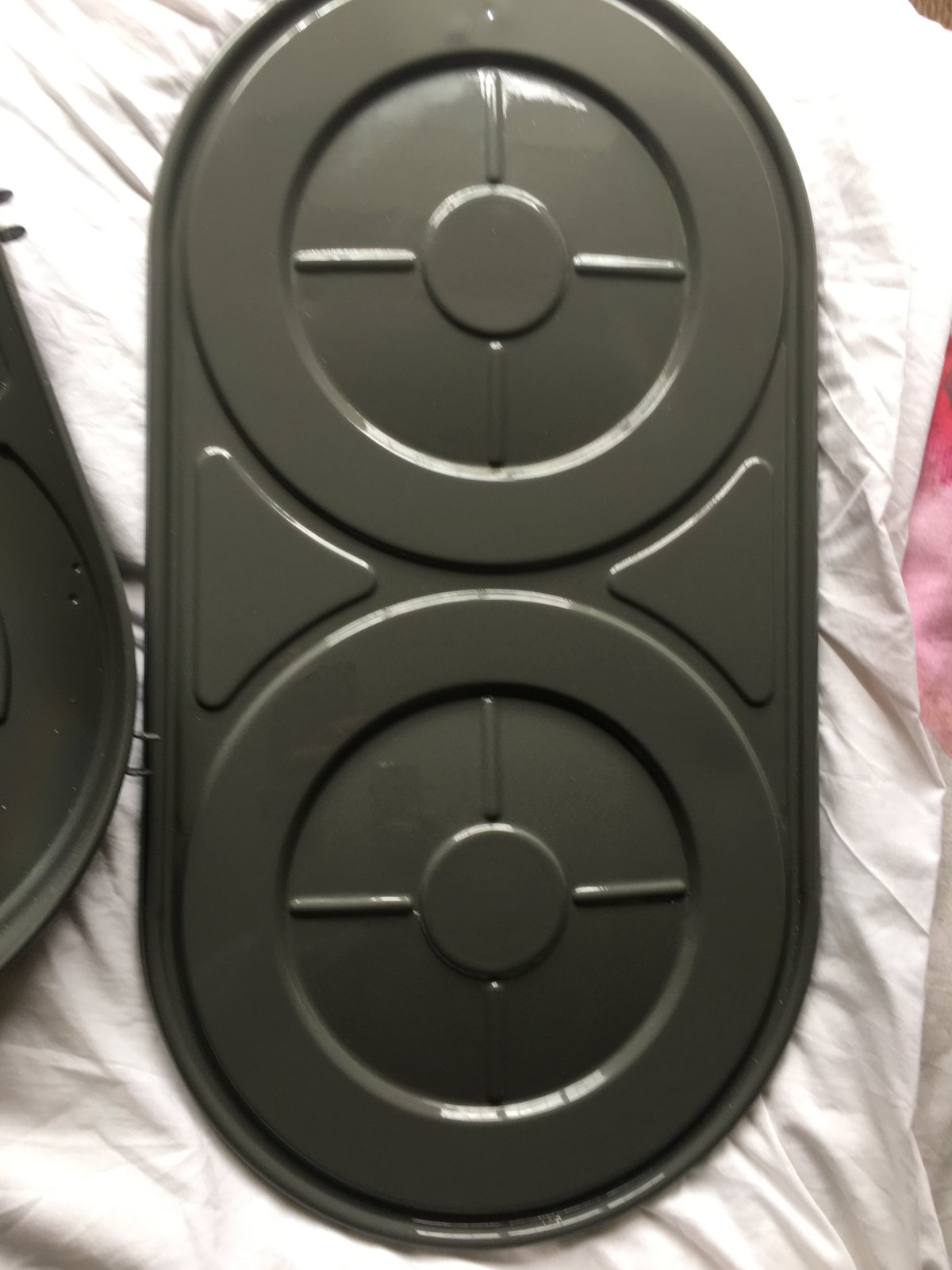

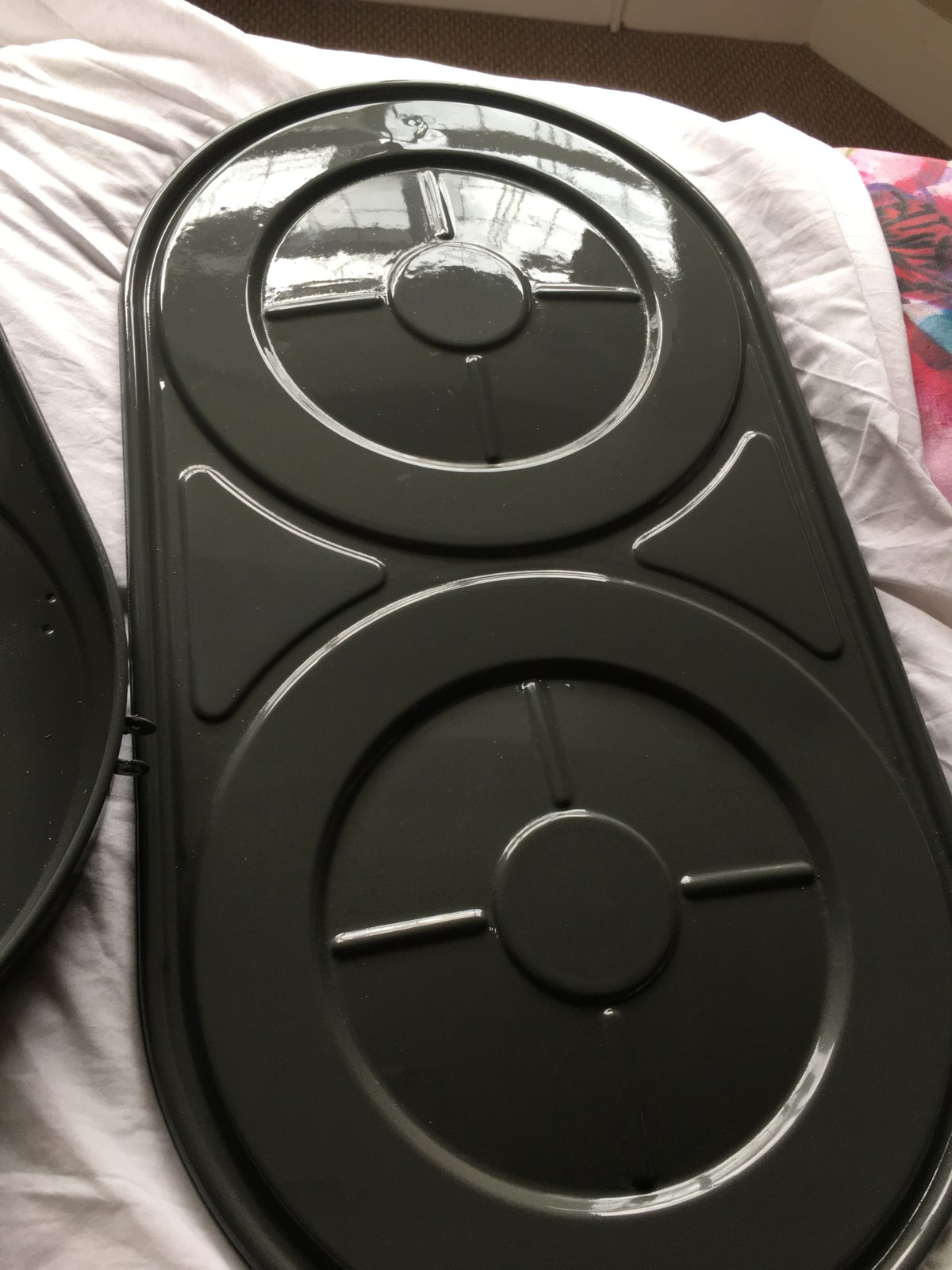

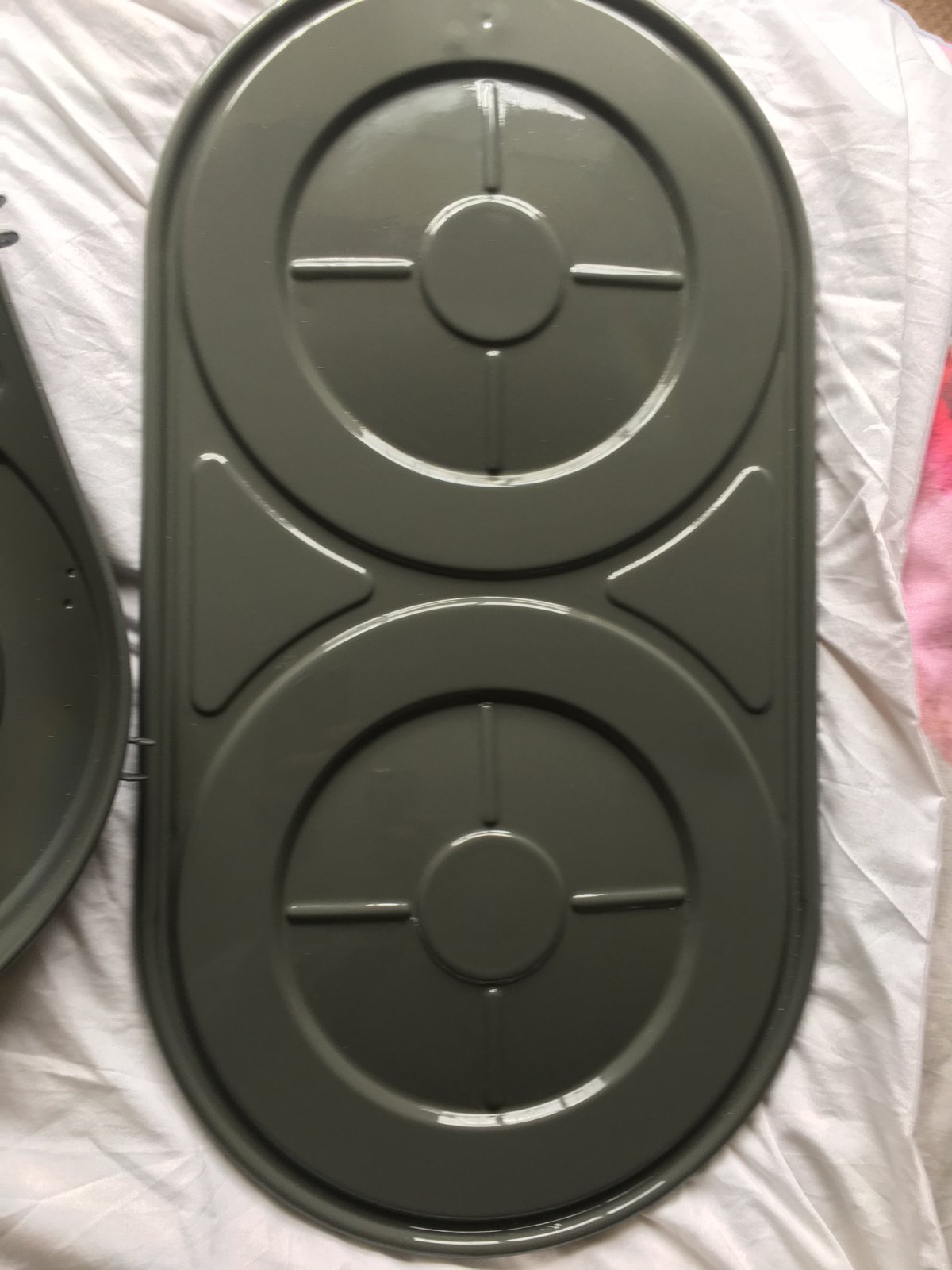

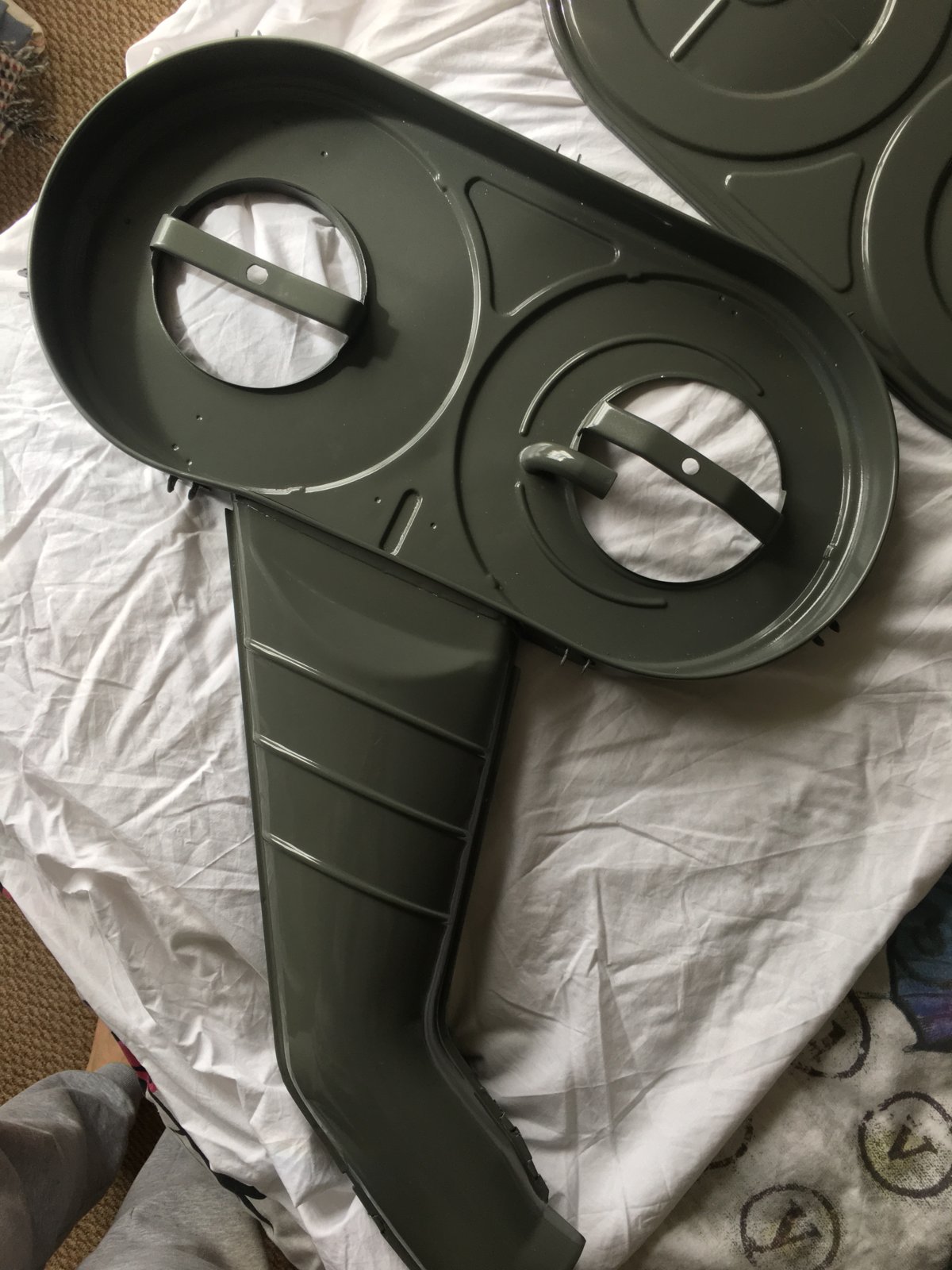

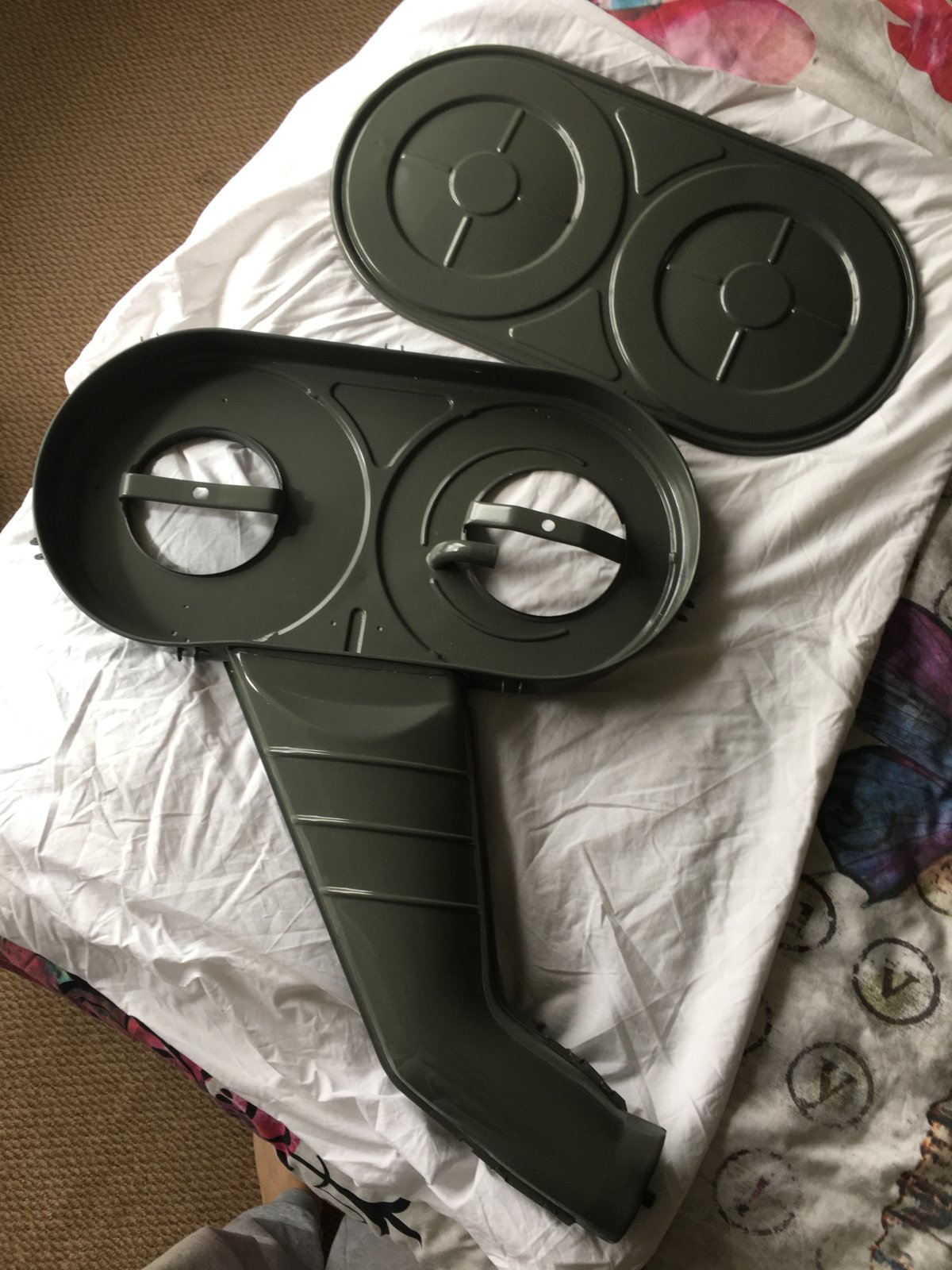

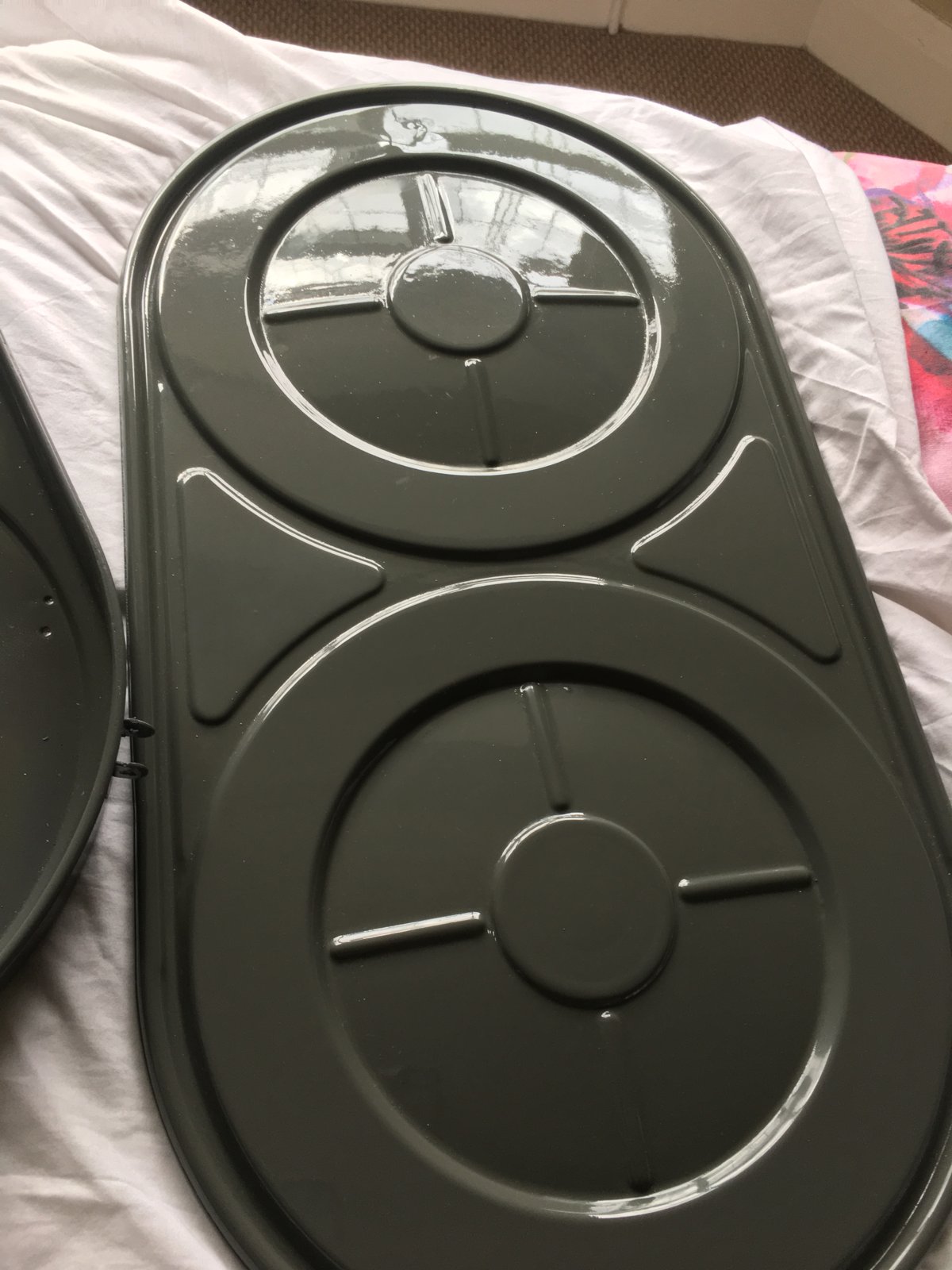

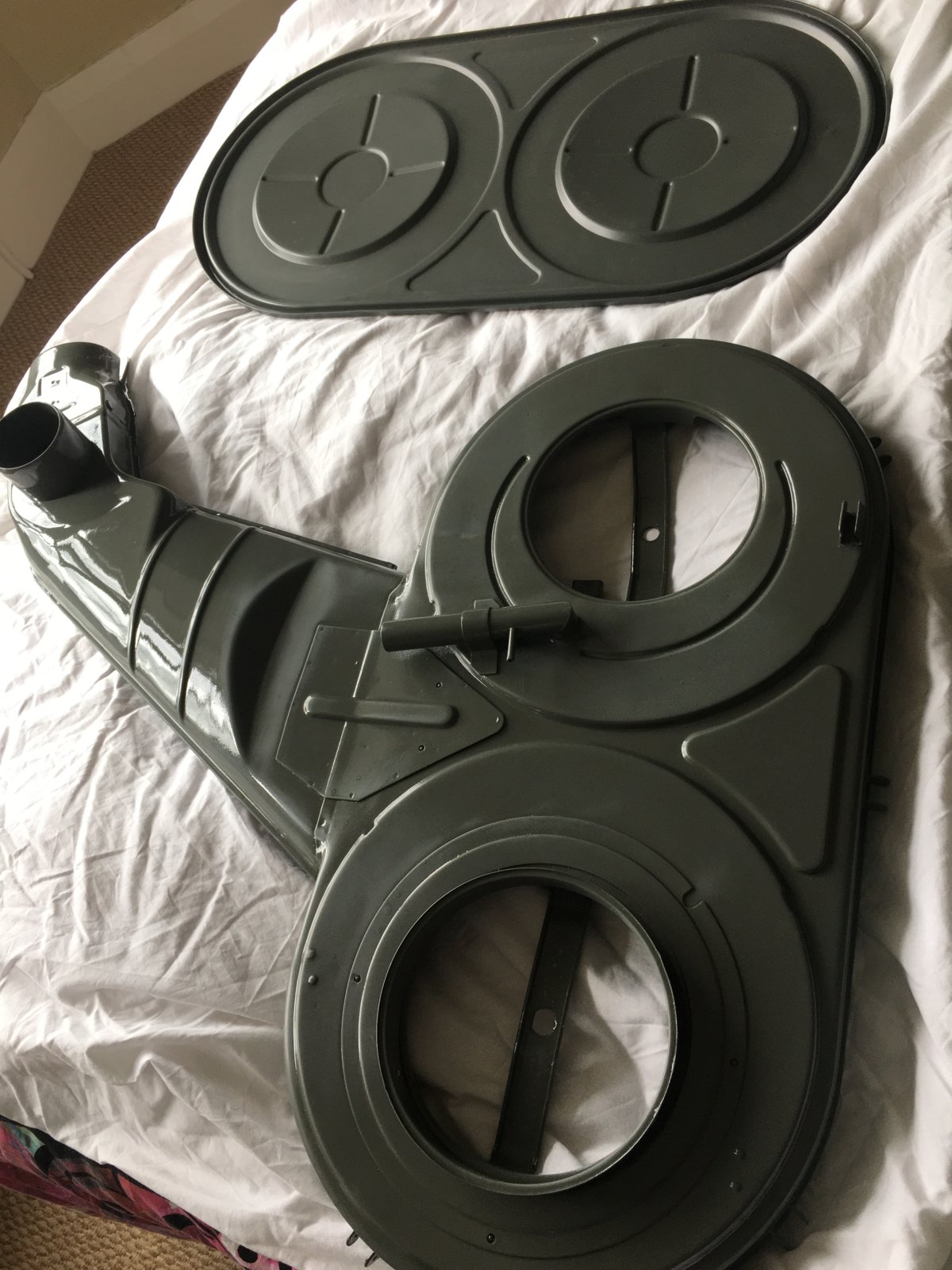

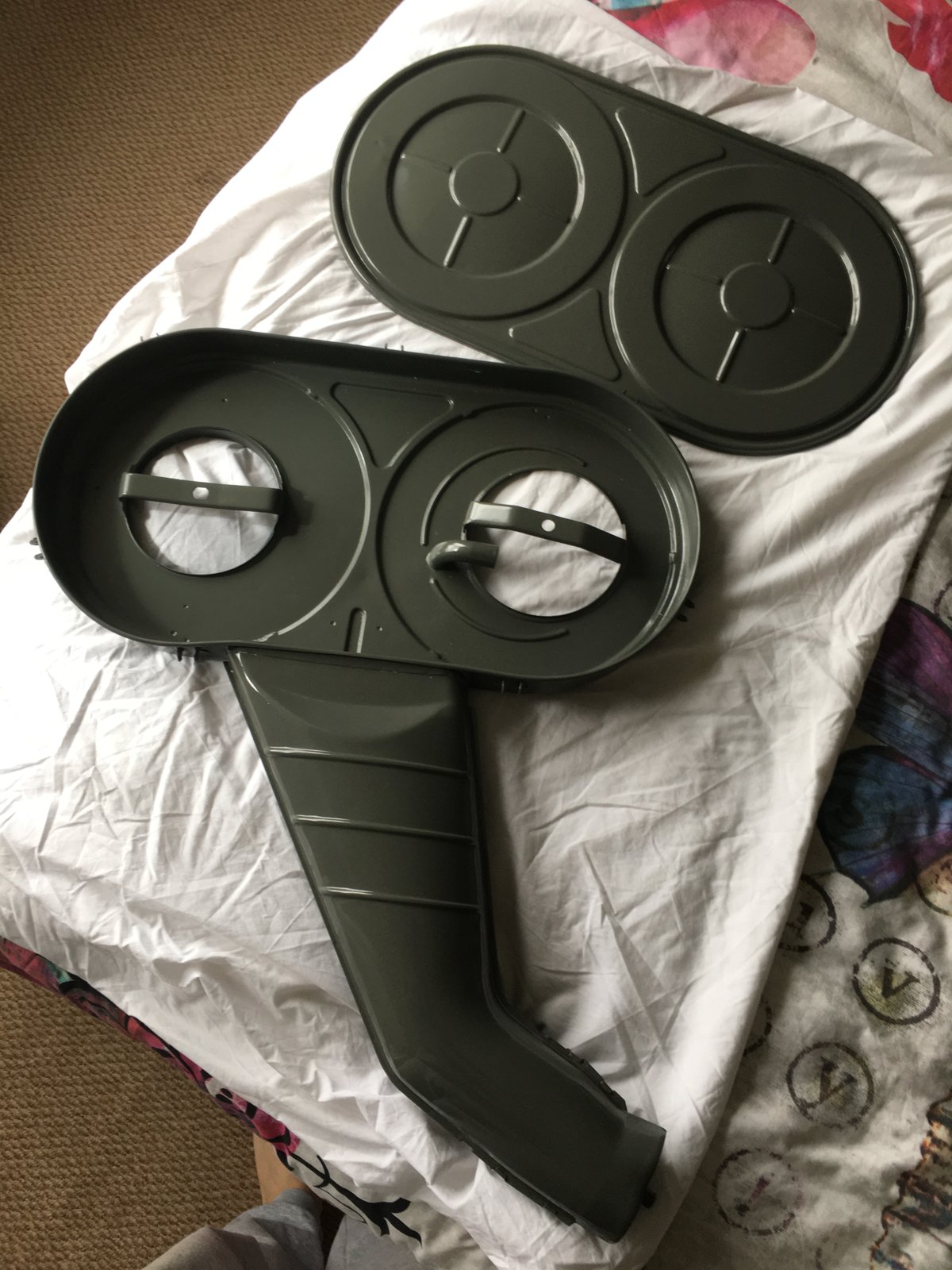

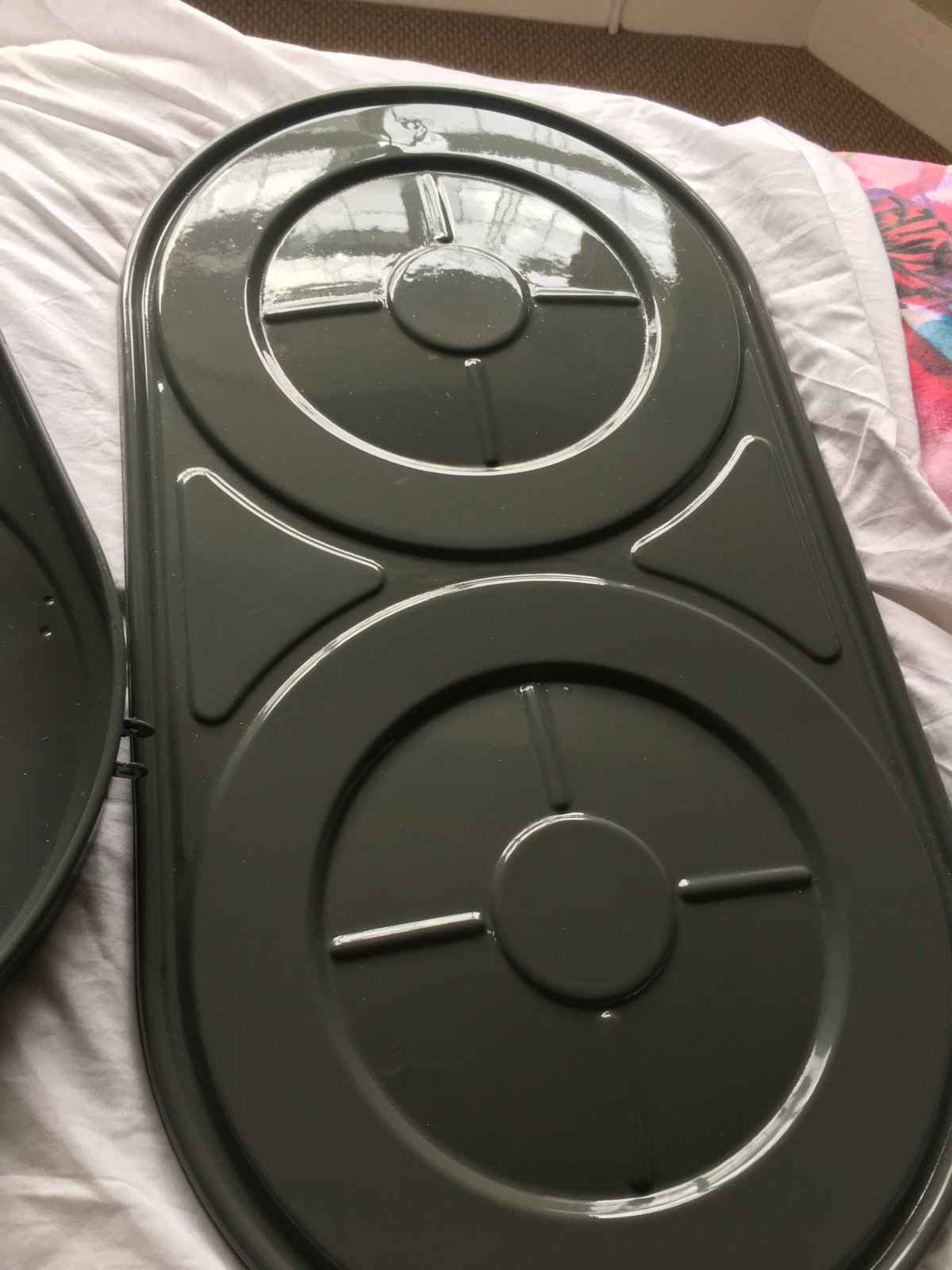

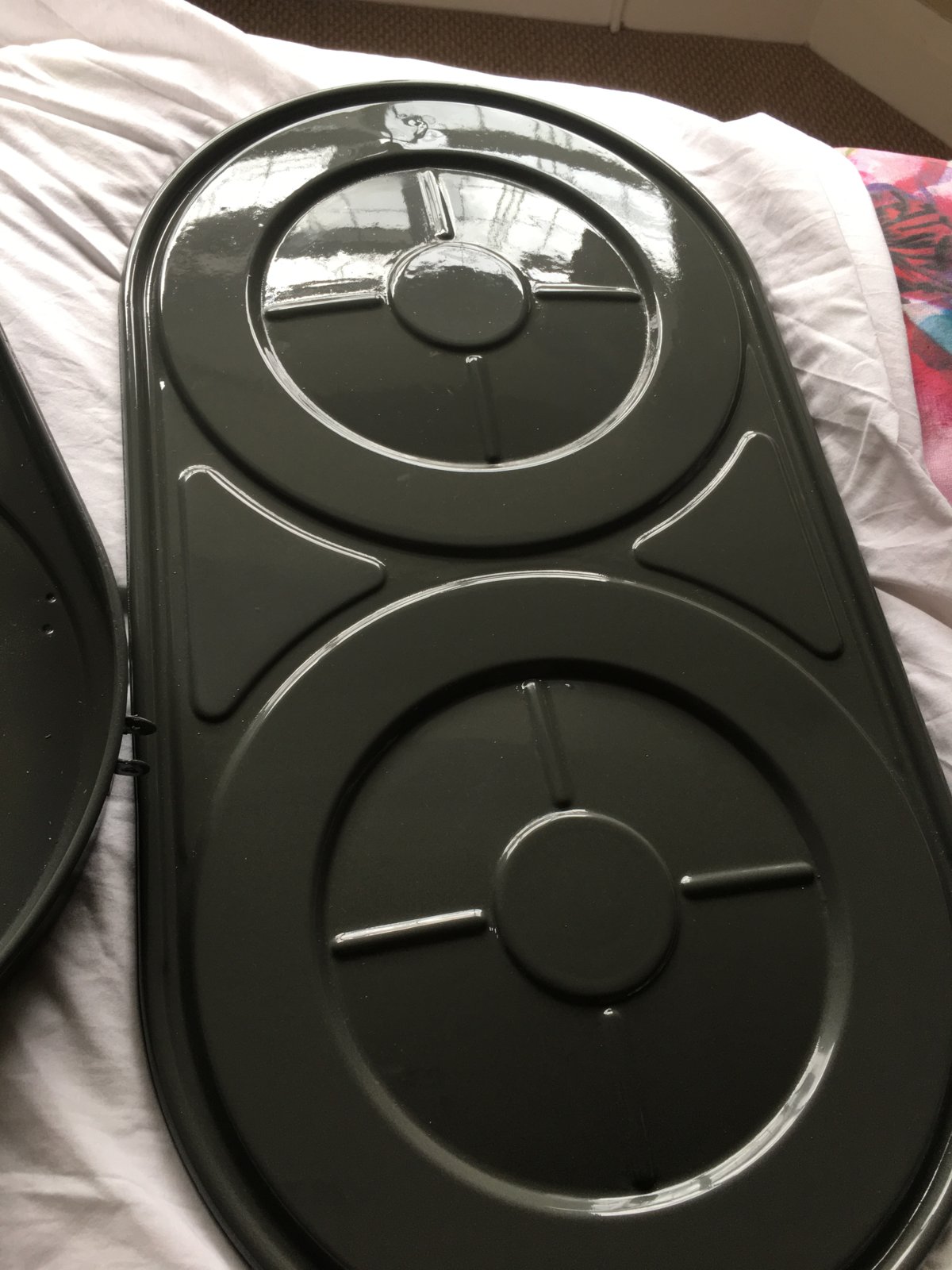

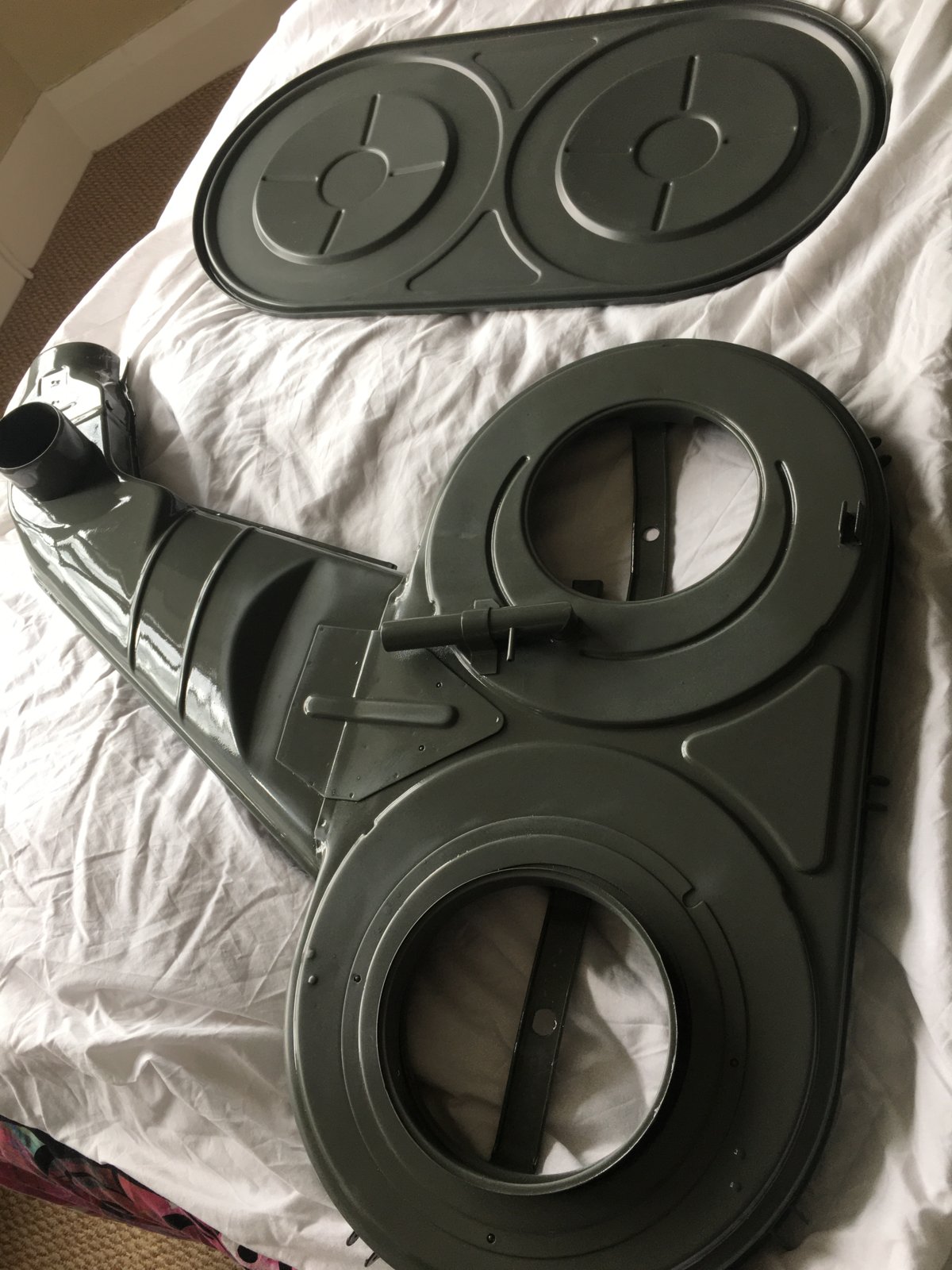

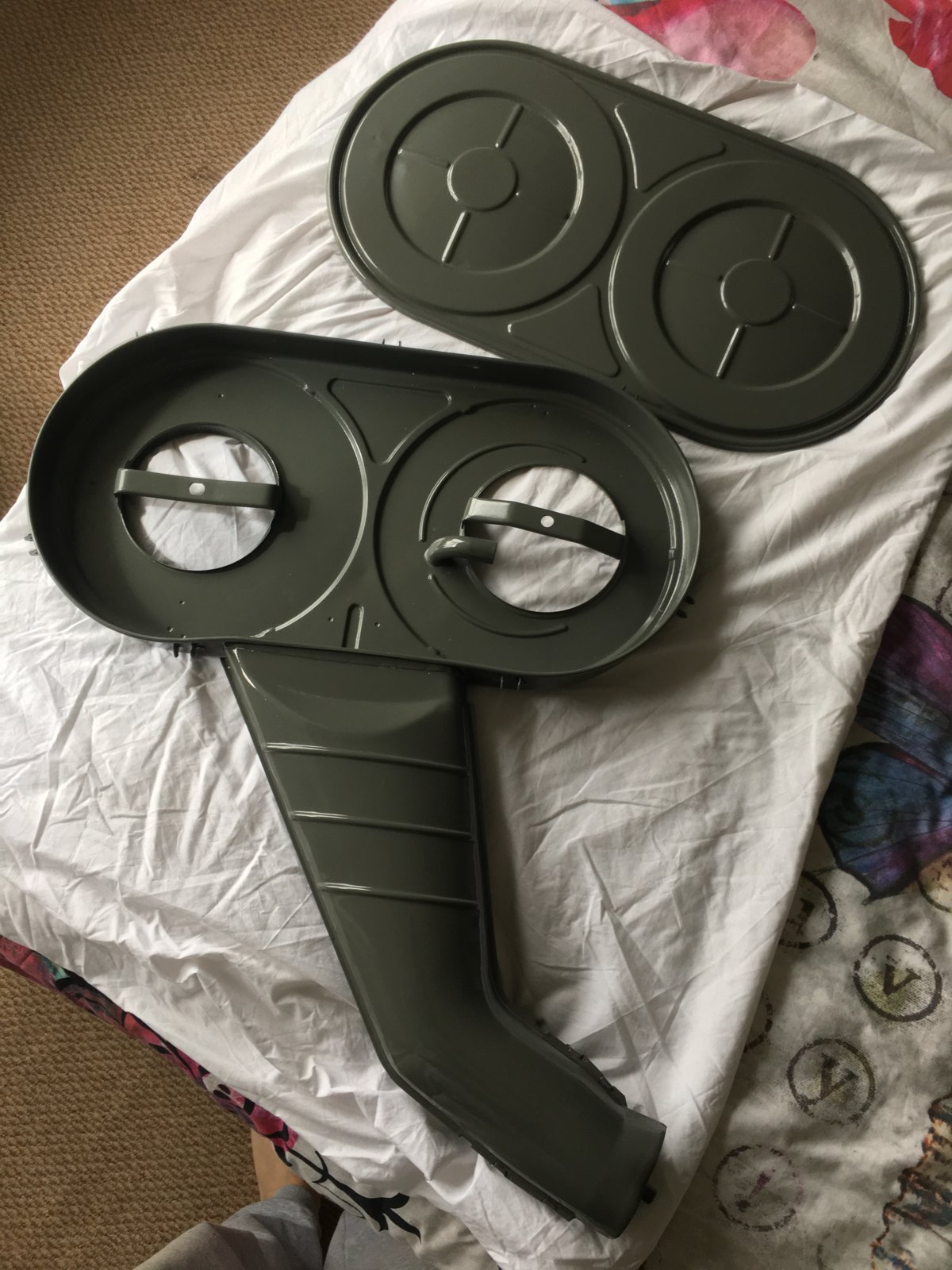

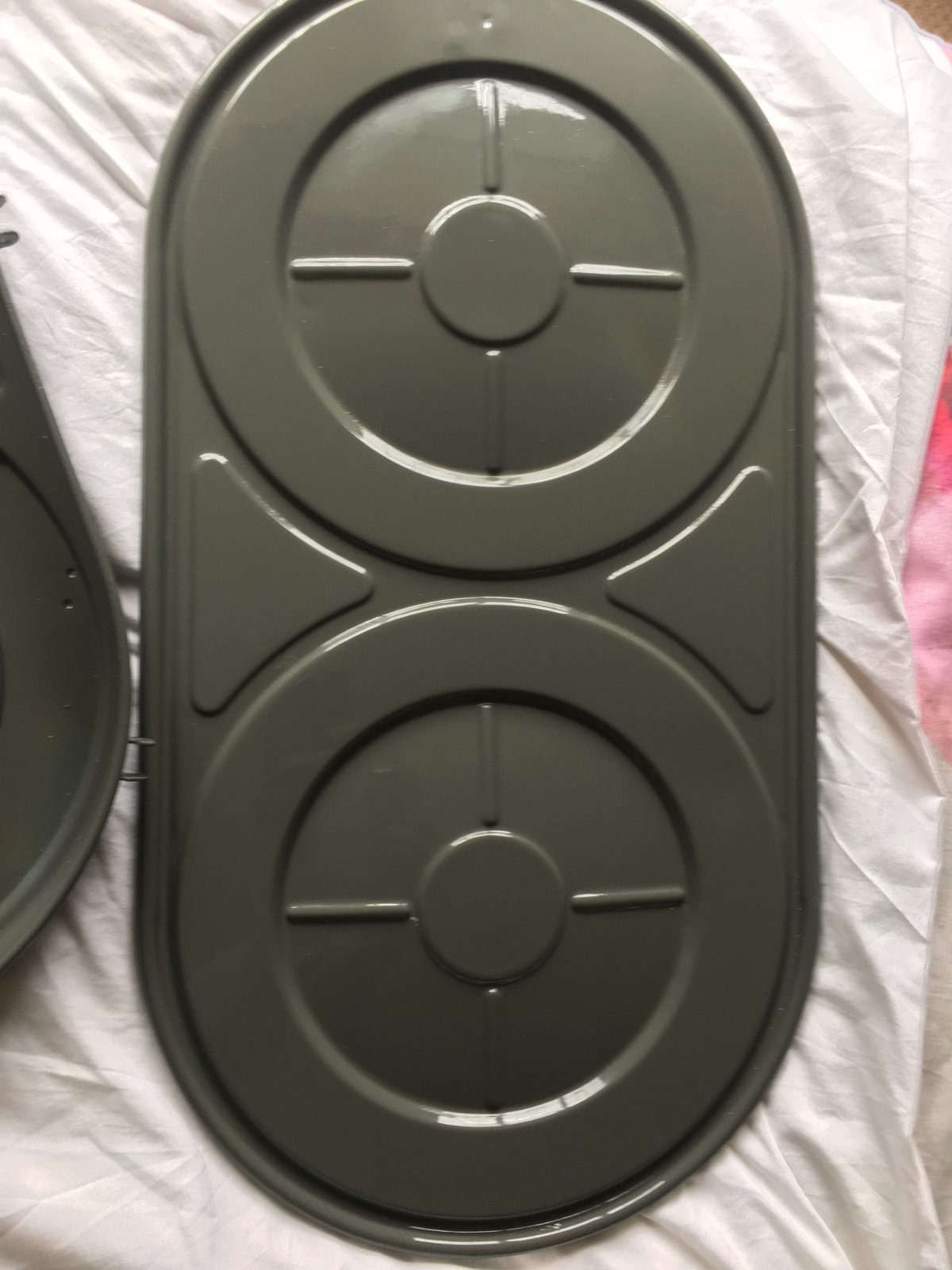

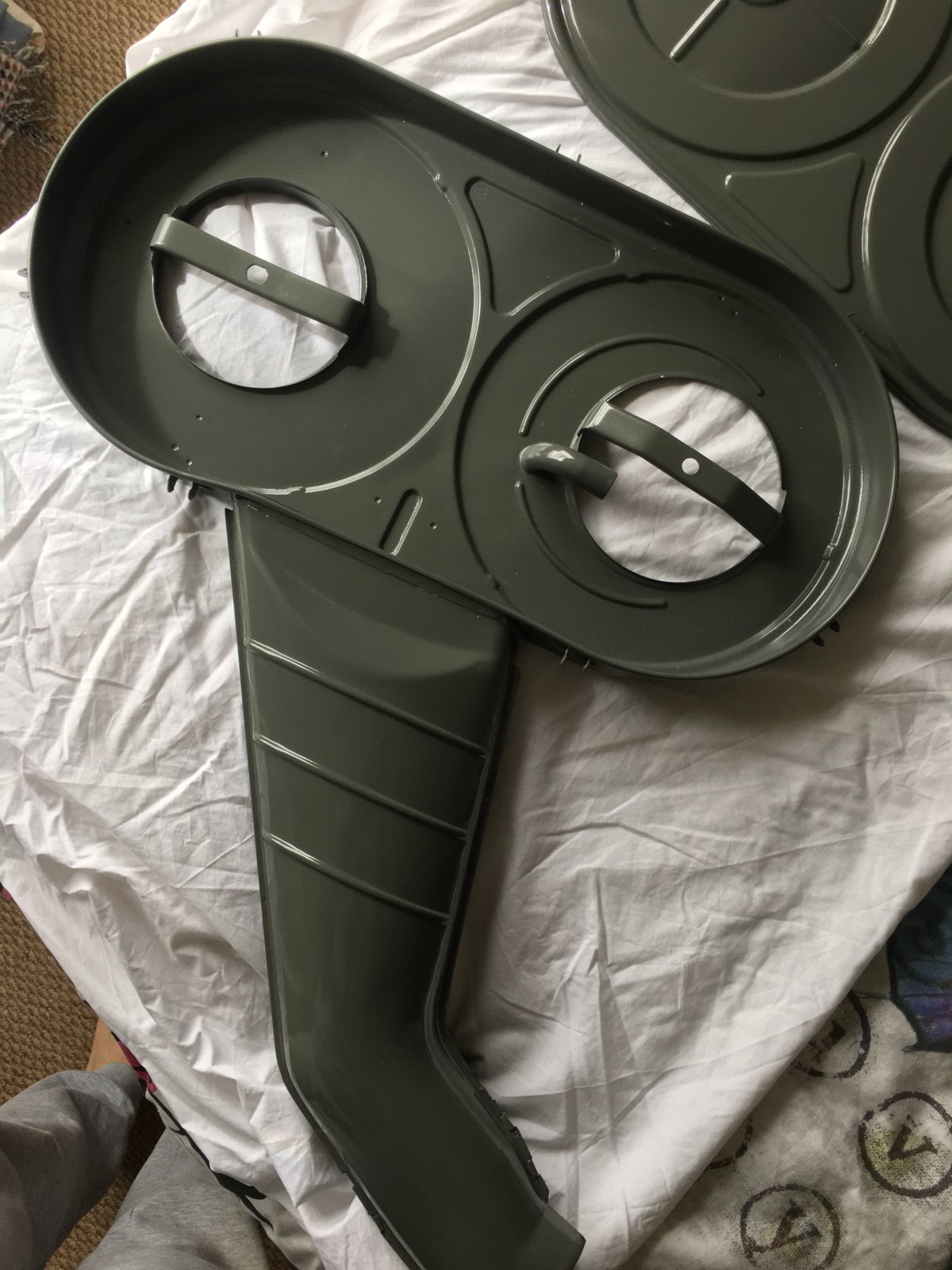

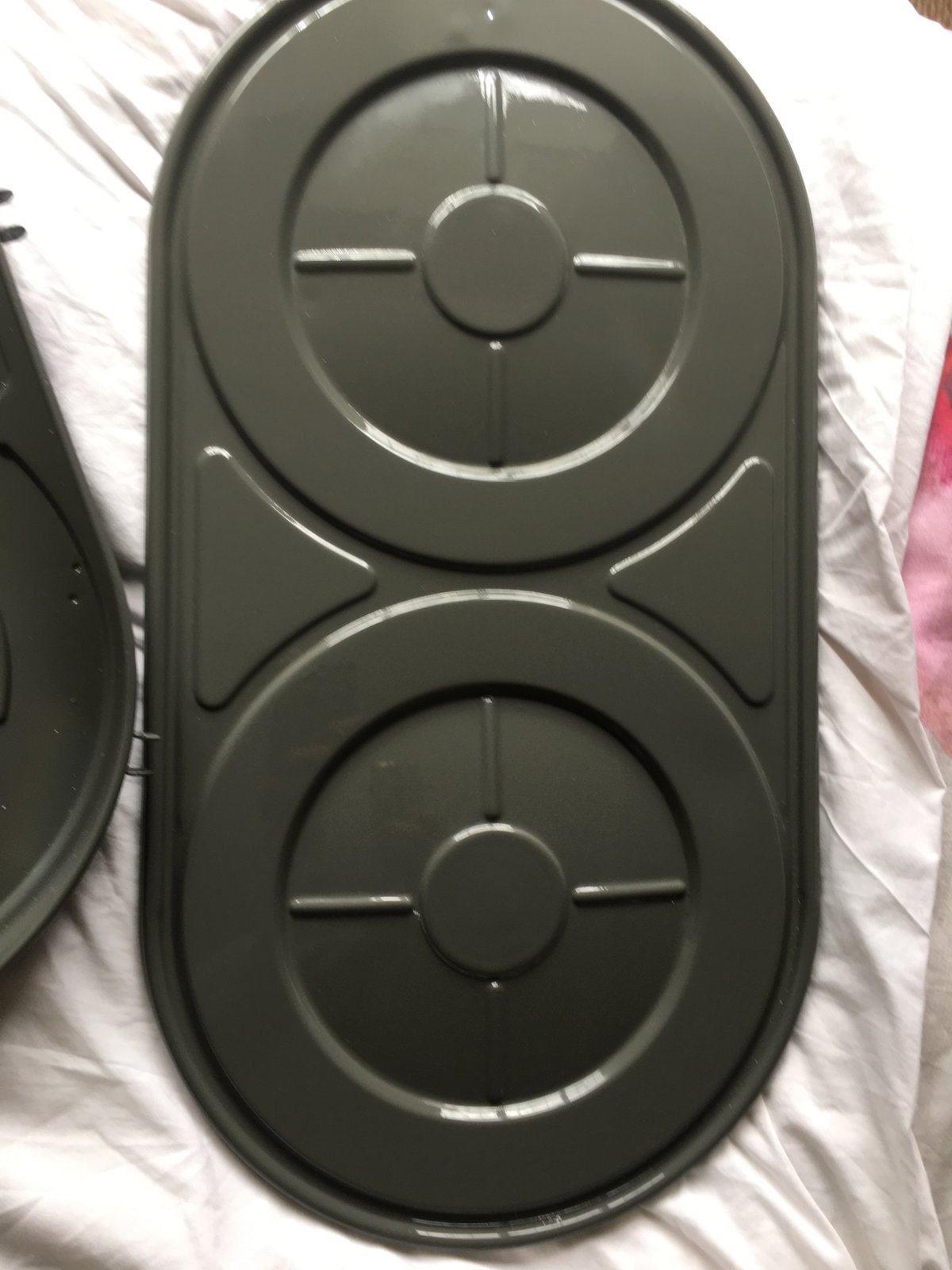

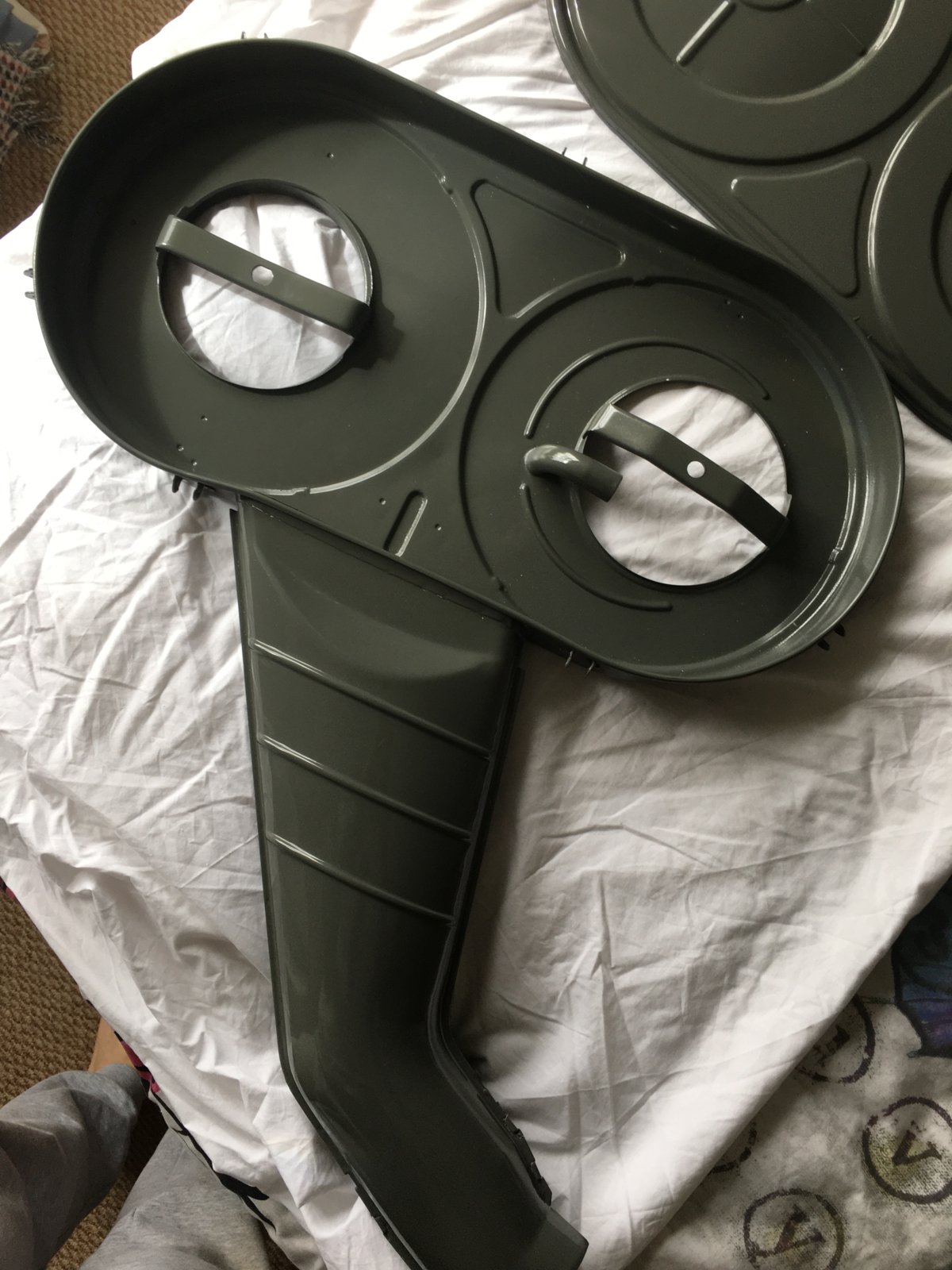

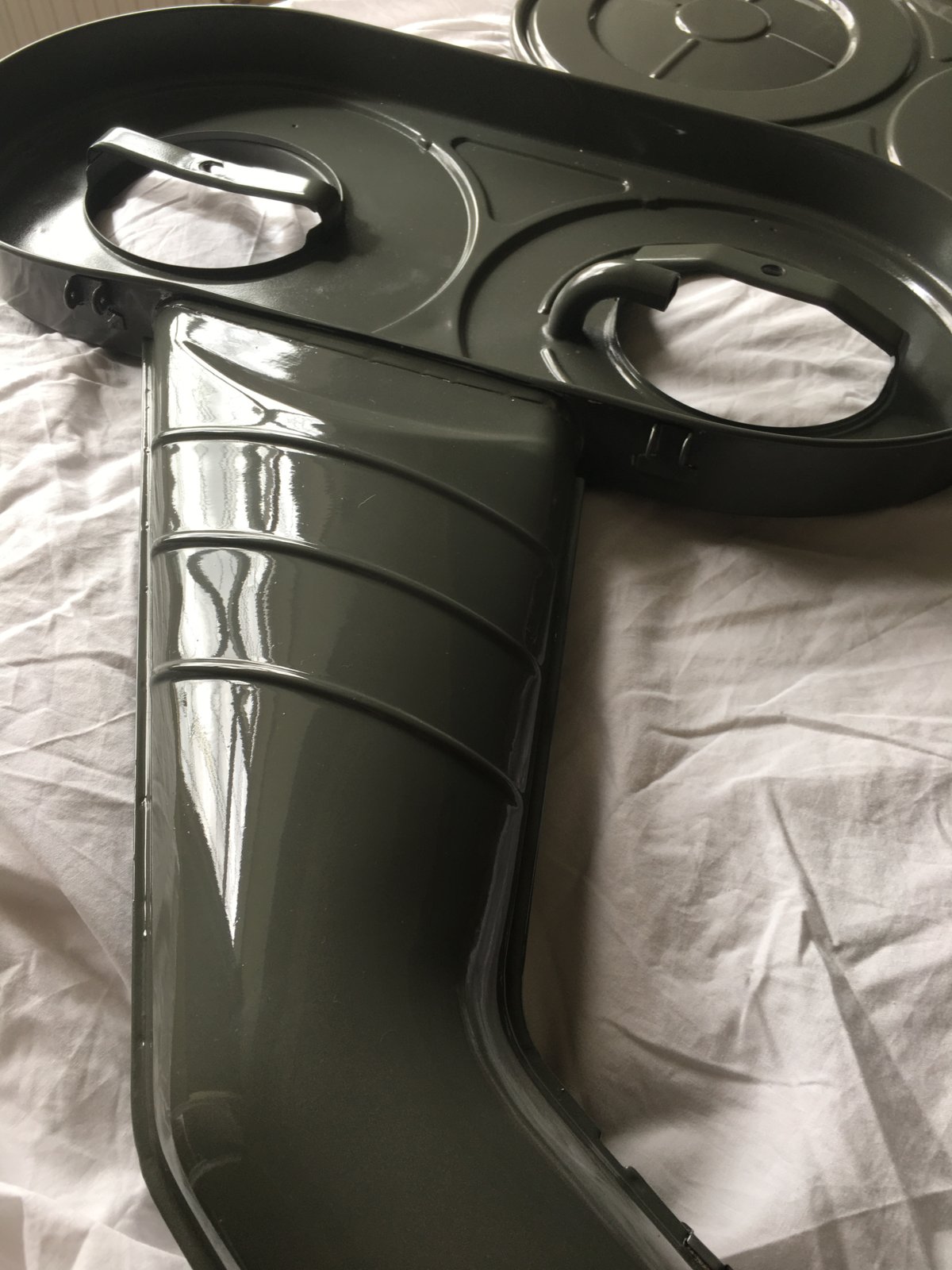

Colour matched to original colour that was on the box and restored and repainted. Will listen to all best offers.
Regards


Attachments

  • 699C02D4-C38C-4357-B472-710221CA6568.jpeg
    267.1 KB · Views: 108
  • 9D9736C9-C244-4E21-9324-308E2E22903C.jpeg
    274.1 KB · Views: 106
  • 85473727-4A29-421A-924E-7472DF79EBD7.jpeg
    241 KB · Views: 104
  • BCE47127-9F17-47D5-8062-F7F3171D86D0.jpeg
    240.7 KB · Views: 108
  • 01C3748C-8A6B-43B8-A376-B87763162DE7.jpeg
    155.2 KB · Views: 104
  • 02E6F768-1E62-4FE6-8EB2-F9ADCE8ADB39.jpeg
    162.7 KB · Views: 104
  • A9754243-7E97-4E48-913A-90BB3B29CEDA.jpeg
    211.6 KB · Views: 98
  • CFC739E2-6BF6-4344-A98C-2B320D4A735F.jpeg
    199.5 KB · Views: 103
  • 15972810-454F-4B31-8A11-DF4335628C86.jpeg
    224.3 KB · Views: 107
  • 0BA6C26E-81AB-4DCC-83CF-DD50C08C739C.jpeg
    255.1 KB · Views: 108
You might want to measure the incoming air tube diameter. (70 mm was for 3L carbed engines, 60 mm was for smaller carbed engines I believe. )

Also different variants exist wrt the mechanism activating the warm air intake off the exhaust shields; this one has the internal expanding/contracting element.

Does anyone know for which engine/ year this is?

Too shiny for my engine bay! Looks nice.
I'd look at your specific vacuum arrangement before buying as there were differences.

Air cleaner has a rubber plug to access the preheat mechanism, this changes to an external mechanism during 3.0CS production deleting the plug, intake hose is 60mm changing to 70mm, preheat hose changes from 50mm to 60mm, changes occur at 2240377 and 2250316
