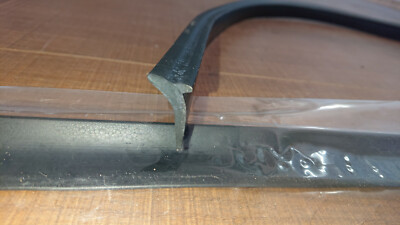

I have forgotten which way this seal faces, is this correct or should it be reversed? The concave side is facing the sill.
Seal Under the Door
- Thread starter HB Chris
- Start date
Well maybe we are both wrong because that is the way I installed mine!
Awesome paint, I'm blinded.
Awesome paint, I'm blinded.
When I replaced mine I did not pay attention to the original ones I pulled out but chose the same orientation as your pic.
I have no idea but your orientation makes the most sense to me. Anything in the blue book by chance?
Perhaps @brainguts can look at his ‘74 barn find, or @ccr2002 can check his minty CS.
Perhaps @brainguts can look at his ‘74 barn find, or @ccr2002 can check his minty CS.

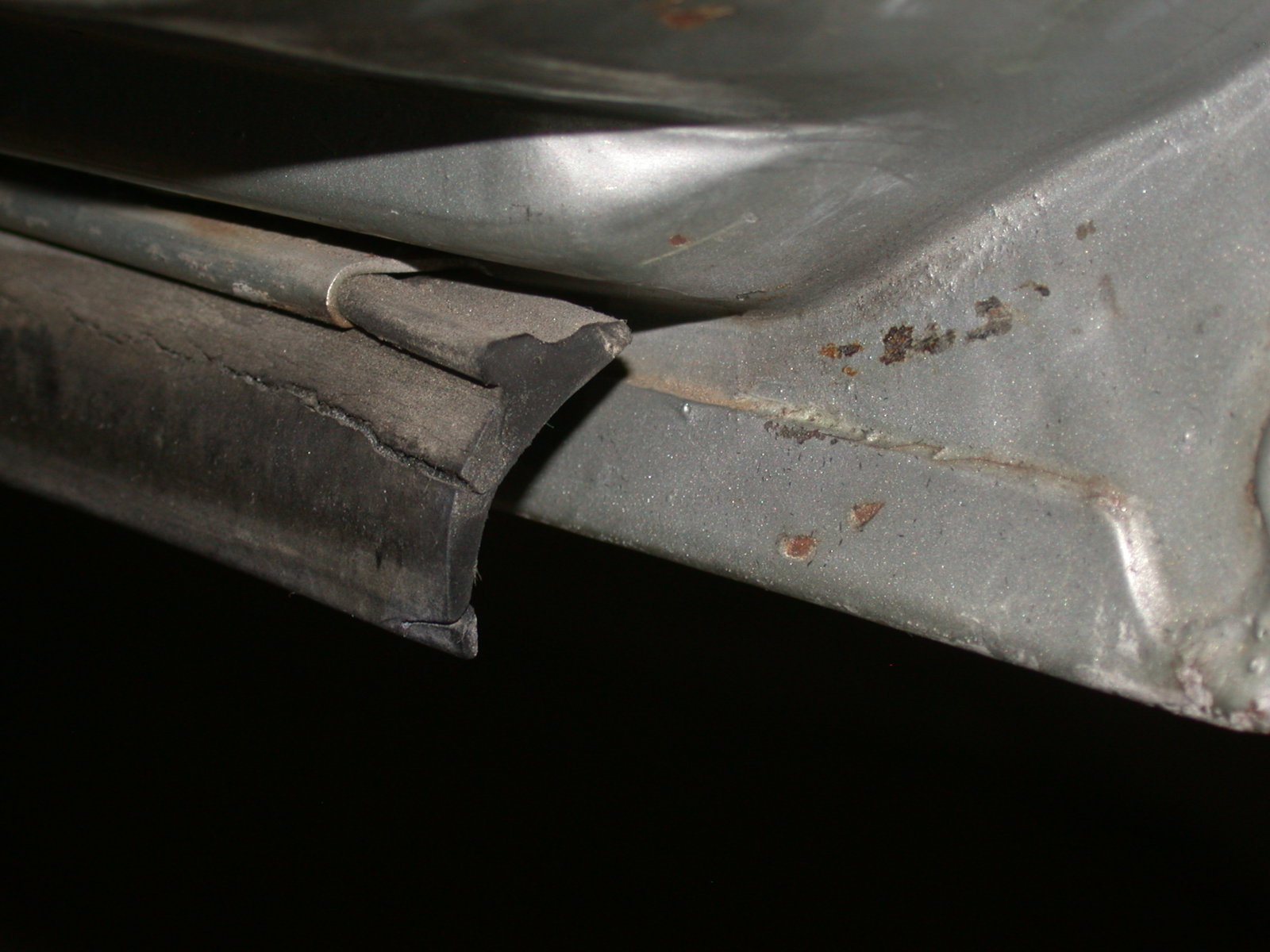

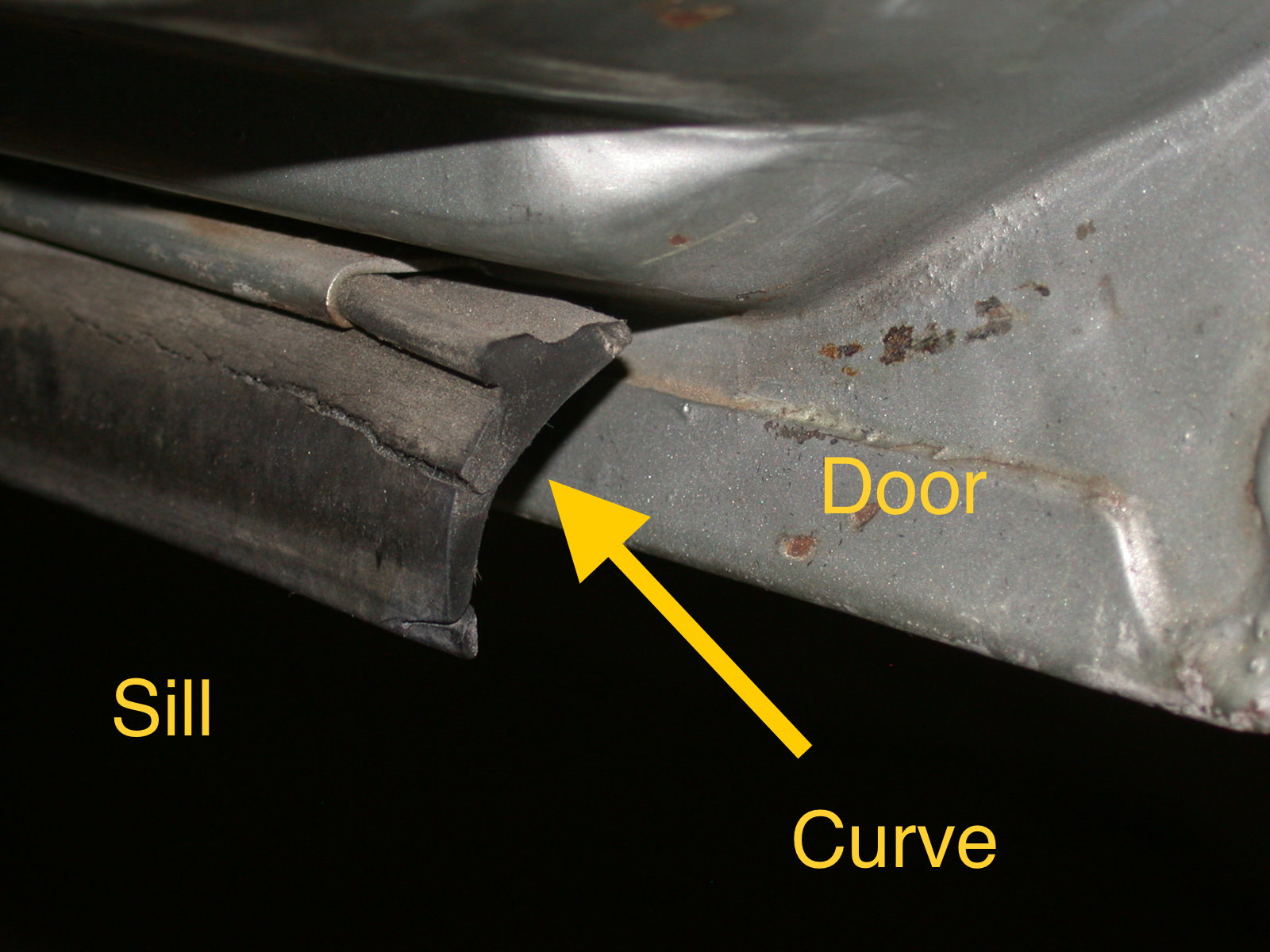

Chris, this is my RH door... original paint, and I suspect the original seal.
It extends over the channel on both ends...
Thank you Jon, I suspected that it should be like yours.
So you are thinking that yours is backwards?
Yes, unless I find my photo
This seems correct to me! This way the water gets directed out, not in
Thanks everyone
Ditto!
Adding to FAQ. Thank you!
Is that seal available? I tried to buy it in the past with no luck.
BMW E9 2,5 CS 2800 3,0 CSi CSL 2000 C CS CA Dichtung an Tür unten neu ! | eBay
Entdecken Sie BMW E9 2,5 CS 2800 3,0 CSi CSL 2000 C CS CA Dichtung an Tür unten neu ! in der großen Auswahl bei eBay. Kostenlose Lieferung für viele Artikel!
www.ebay.de

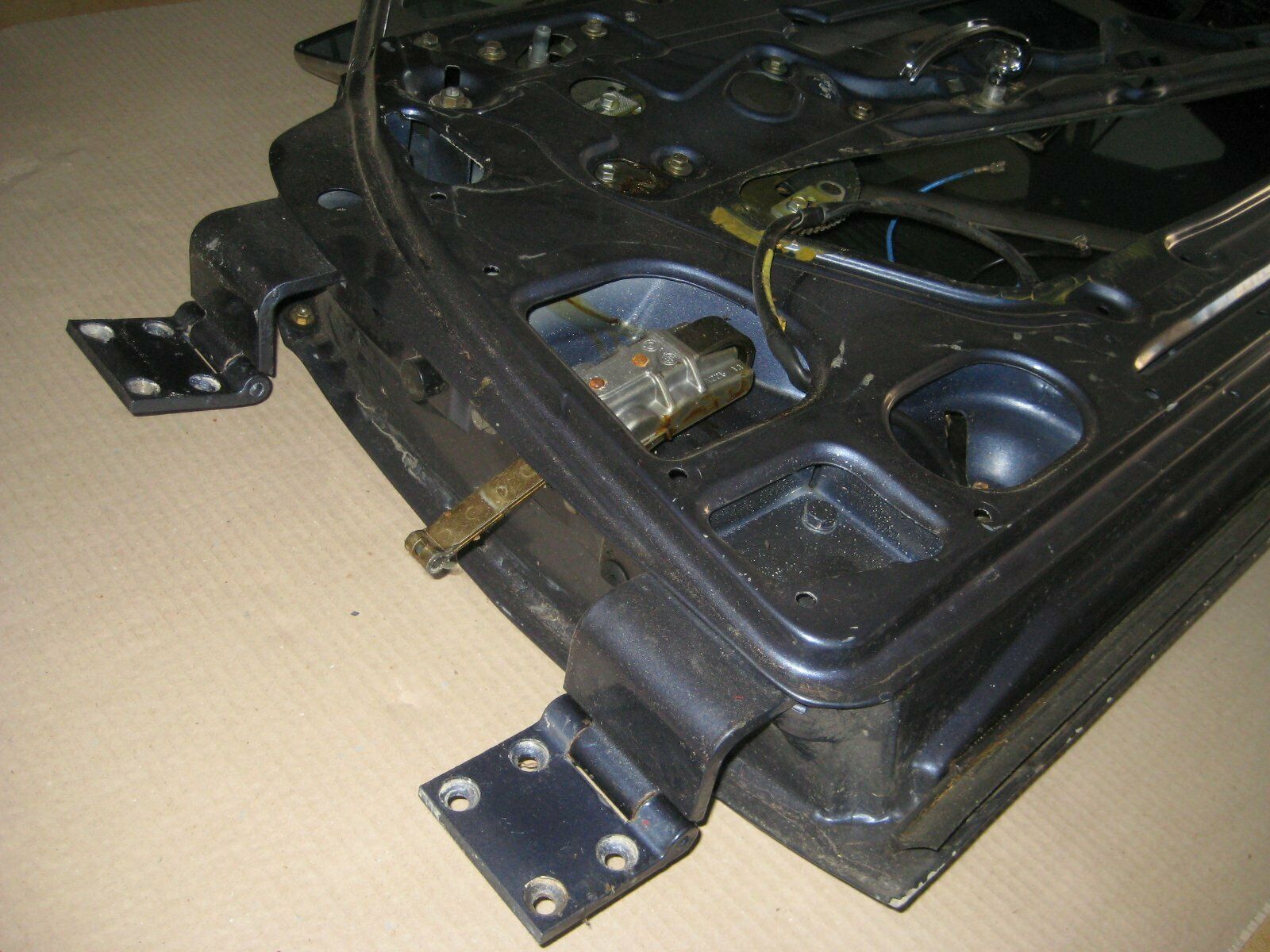

Geez Keshav, you didn't have to remove the whole door!
@Keshav is thorough!
