Temp gauge translation Tip

[Thomas76]

Guys,

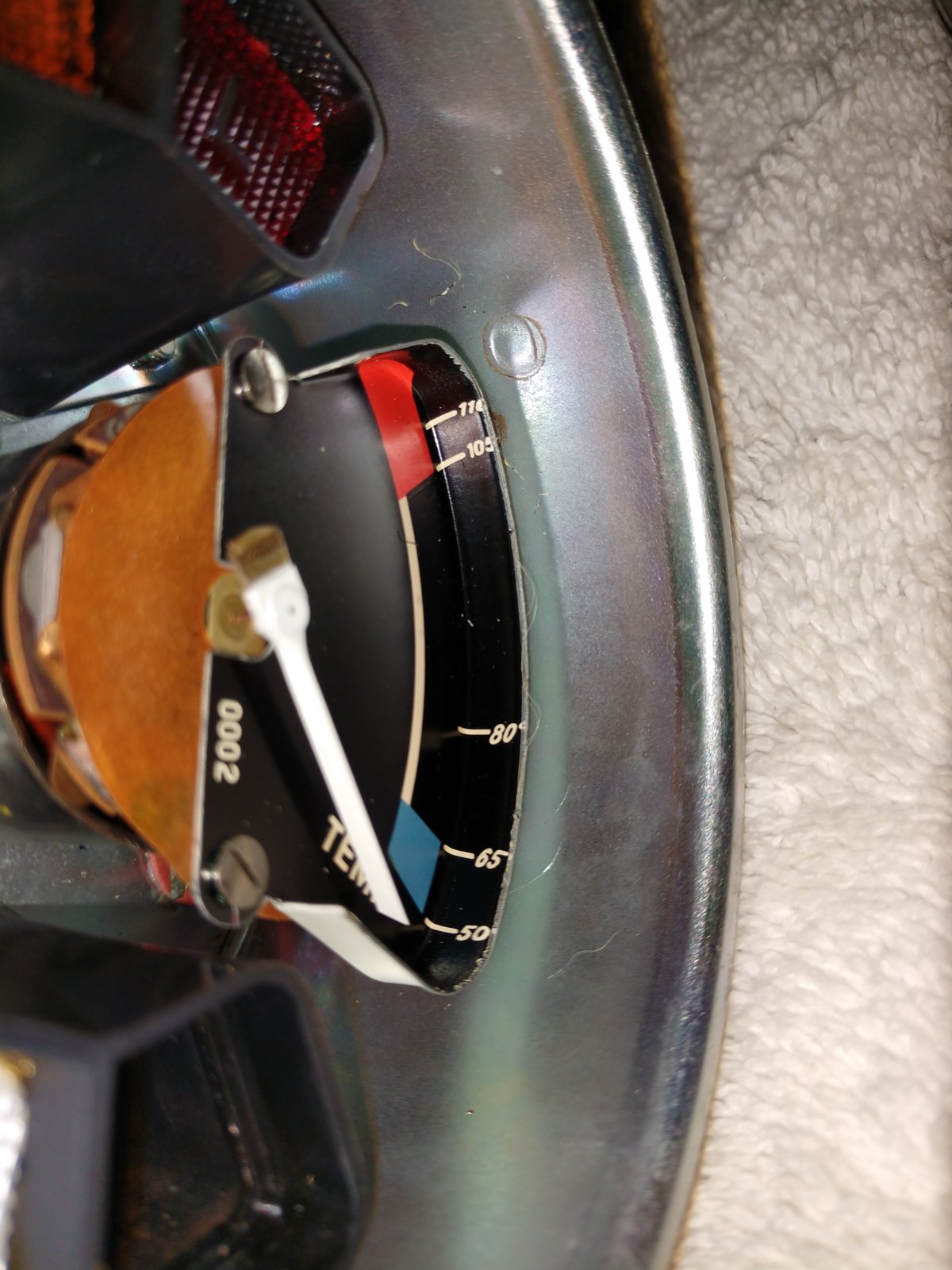

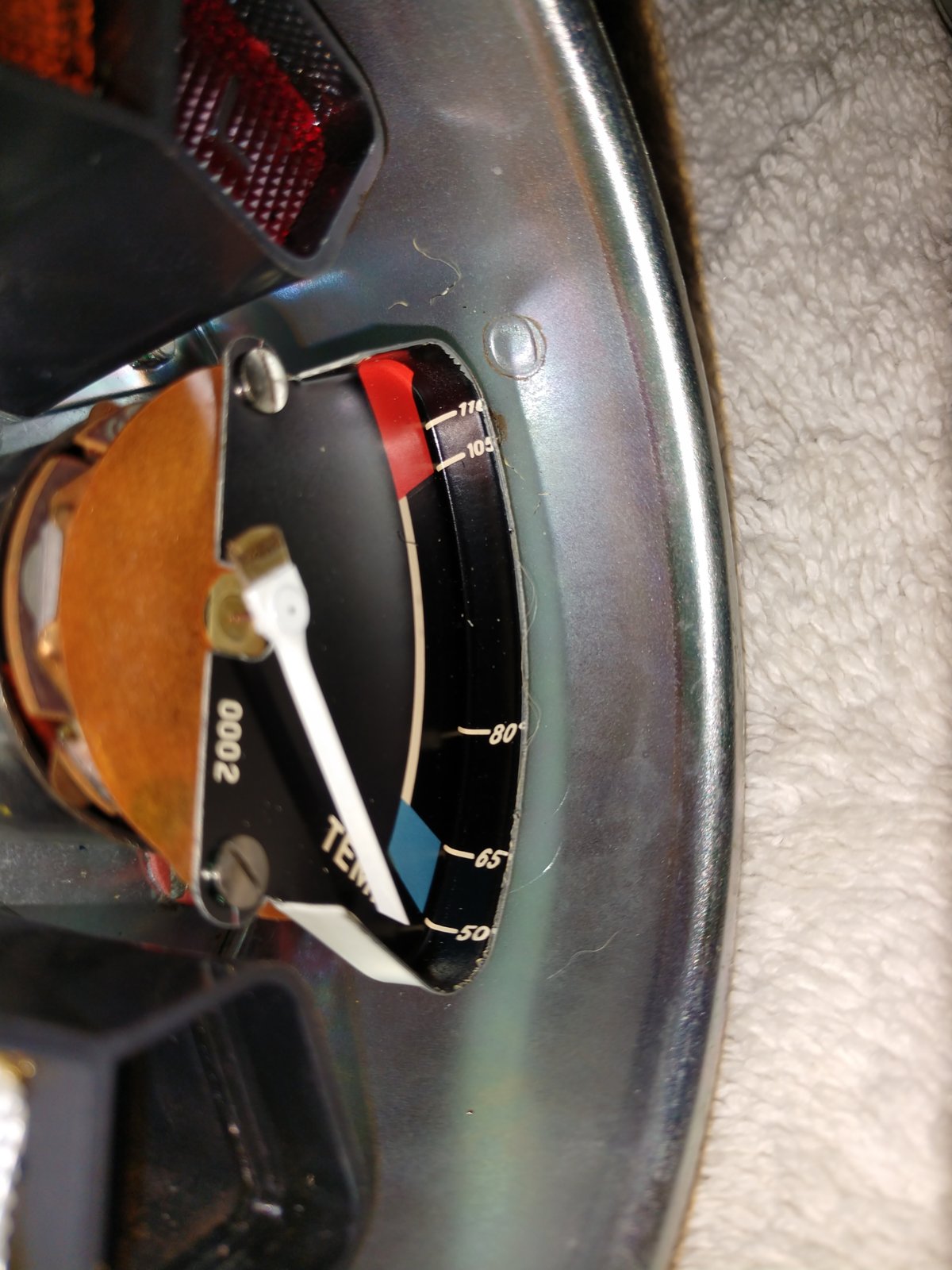

Fun find for this car nerd! Check out the calibration temps on the edge of the gauge. I never knew this was here.



[deQuincey]

Guys,
Fun find for this car nerd! Check out the calibration temps on the edge of the gauge. I never knew this was here.

View attachment 131246

thank you for the photo

when i cleaned the instrument i dissasembled it, but i forgot to take a pic,

thank you



[bill]

Now I can stop saying my temp never gets above 3:30 - 4 o’clock…



[jefflit]

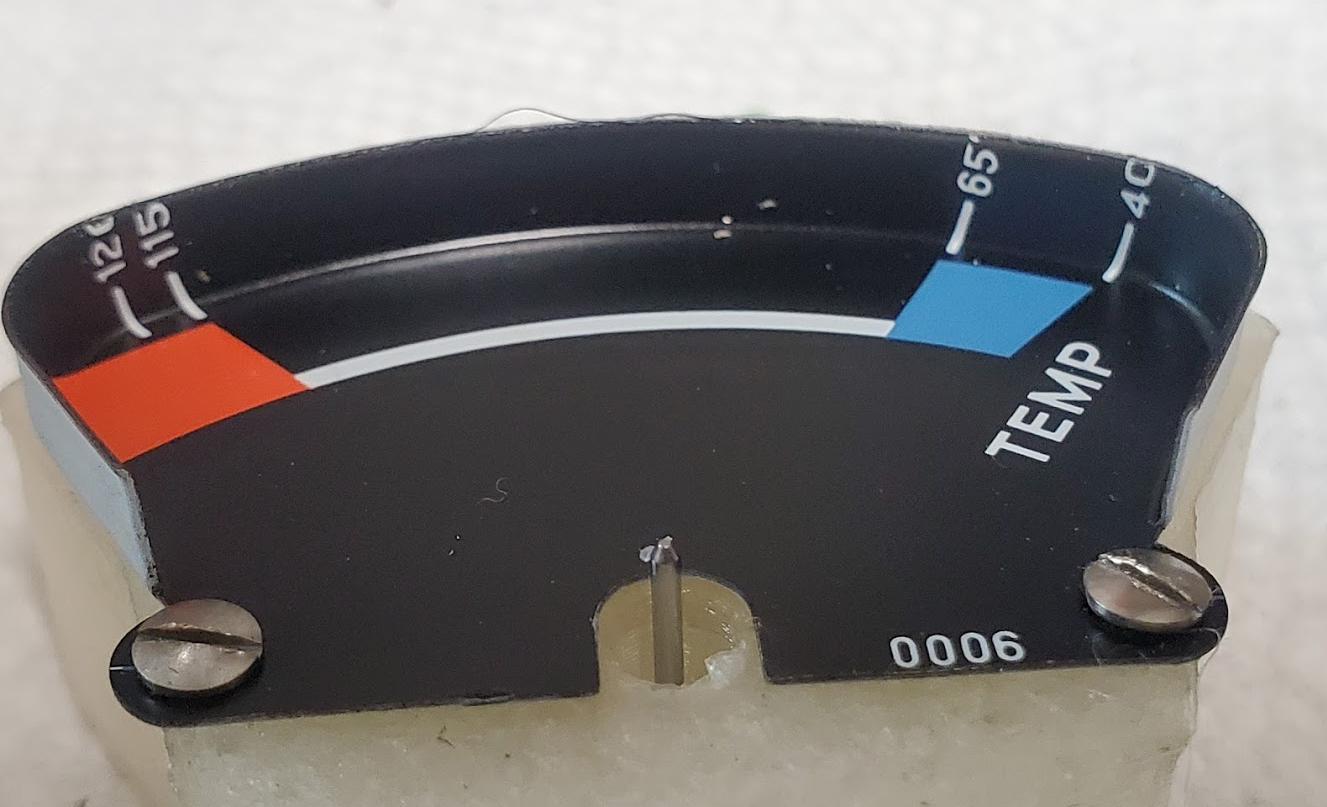

Just when you thought you had absolute values. Let me show you my 73 gauge. The values are different.



[Thomas76]

Strange, maybe the temp sending unit changed over the years? The assumed part number on the face is different as well.



[mulberryworks]

Strange, maybe the temp sending unit changed over the years? The assumed part number on the face is different as well.

Which car is your gauge photo from?



[HB Chris]

Just shows that for once 2800CSs are cooler.



[Arde]

Well, the alternate theory is that nothing can be calibrated in the circuit so somebody just wrote what they measured at manufacturing time...



[Thomas76]

Which car is your gauge photo from?

No good data to add for my car history. Its a 1970CS with a 3.0 from a Bavaria, and who knows if the gauge is original.....



[HB Chris]

No good data to add for my car history. Its a 1970CS with a 3.0 from a Bavaria, and who knows if the gauge is original.....

Your 2800CS has the Ivory font so it most likely is original.
