The speedometer has 3 light sockets, are they interchangeable?
In other words, does it matter if I don't know which one goes where?
In other words, does it matter if I don't know which one goes where?
The speedometer has 3 light sockets, are they interchangeable?
- Thread starter mark99
- Start date
Isn't the bottom one for high beams?
Simufly
Well-Known Member
The top two yes they are back lighting. The bottom one is for the blue hi beam warn.
Is the wire for the bottom one a different color or how do I identify it?
here white
Thanks! the diagram is pretty hard to read
Last edited:
Thanks Mark, that is great!
It is a little hard to tell the colors
I have the blue book, I will scan that page and enlarge it
fortunatly the multi gauge as all the lights in place, I can do one at a time
It is a little hard to tell the colors
I have the blue book, I will scan that page and enlarge it
fortunatly the multi gauge as all the lights in place, I can do one at a time

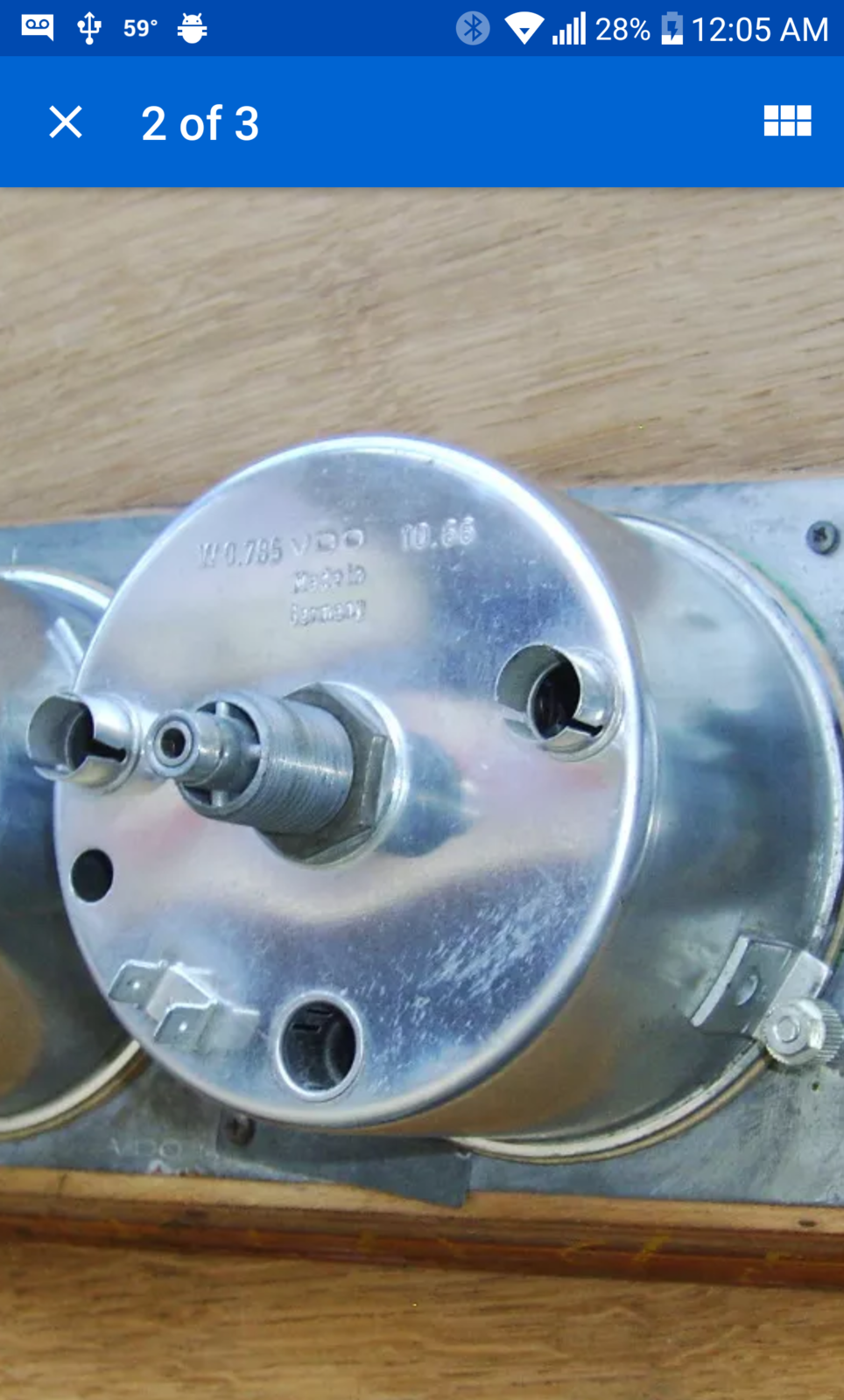

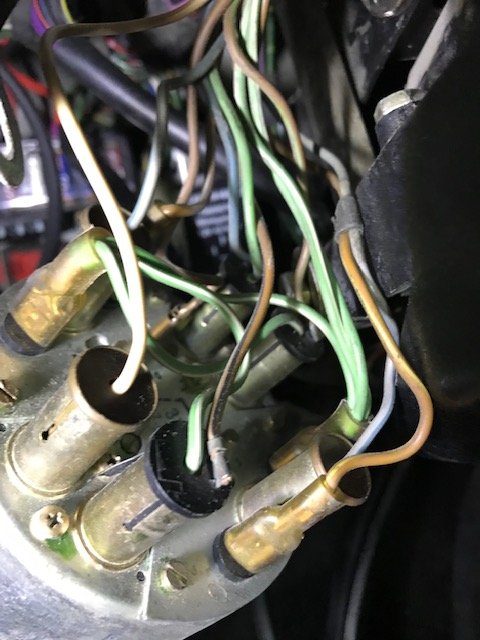

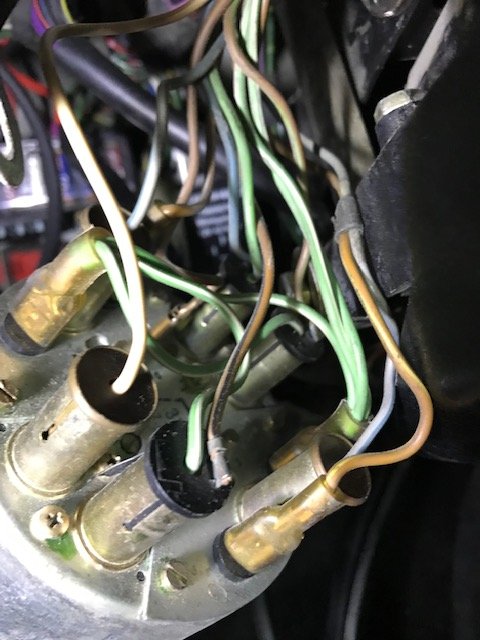

Lots of grey green, and brown. The wires are distinct enough that you will be able to use the photo to decipher. Also pay attention to the factory tape. Start with the shortest wire coming out of the loom and work outward.
Also, zoom in on the pics. If you get stuck I can clean the wires to better show colors. Between pics, the wire length, wire connector type, and socket diameter, it will be difficult to screw up.
Illumination is grey.

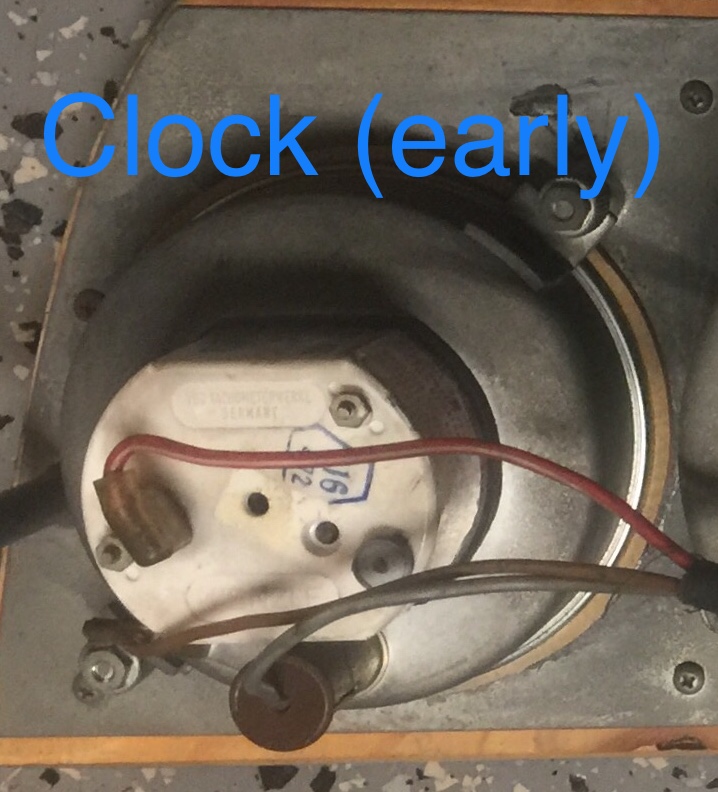

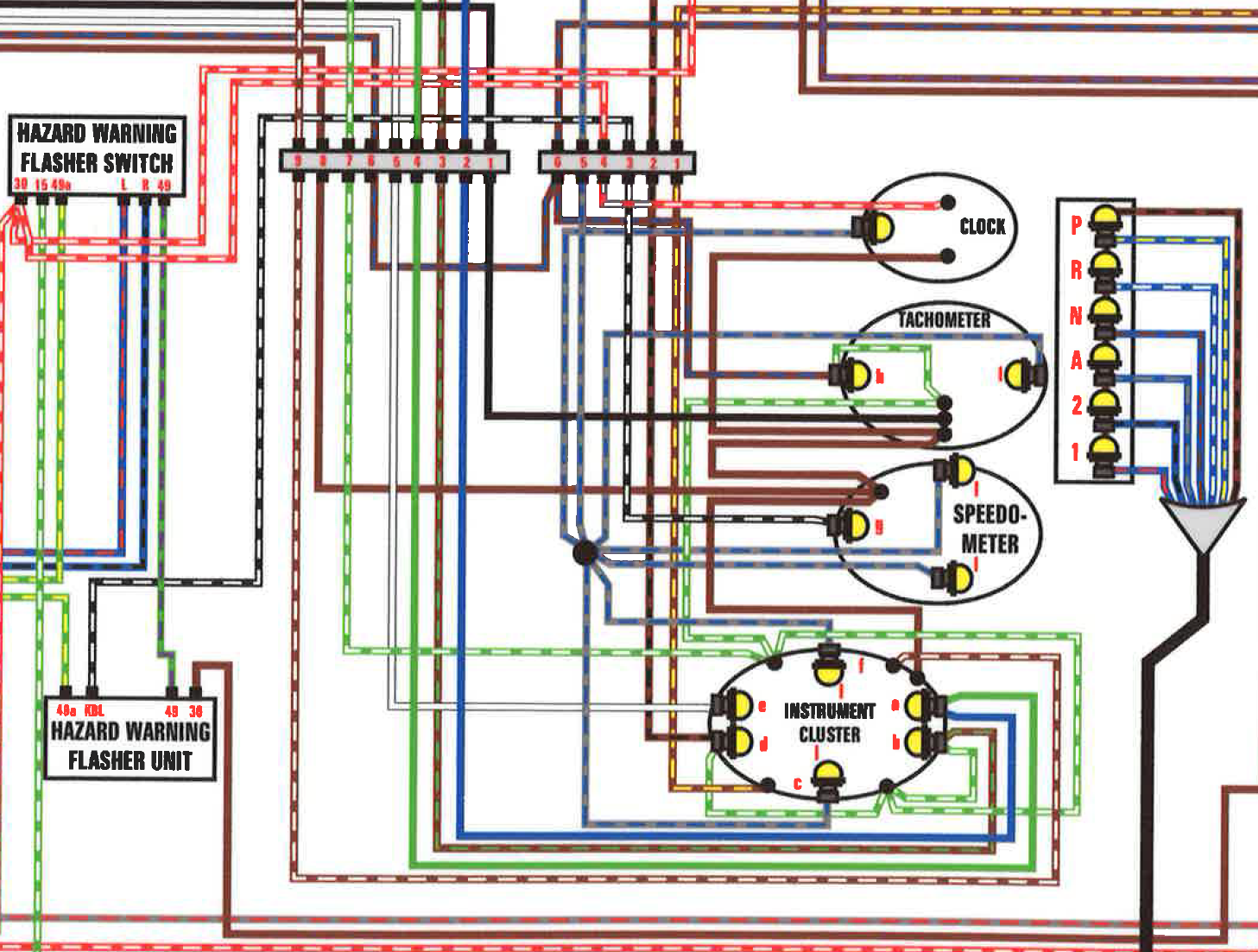

thanks! with a loop I can read the colors on the diagram
That's good to know, is there a table or chart that list all the corresponding colors to functions?
Just the diagram
Mark,
All of the gauge illumination bulbs have grey or grey/blue wires; the functional bulbs have their own specific two-tone colors, black/white for the speedo hi-beam lamp.

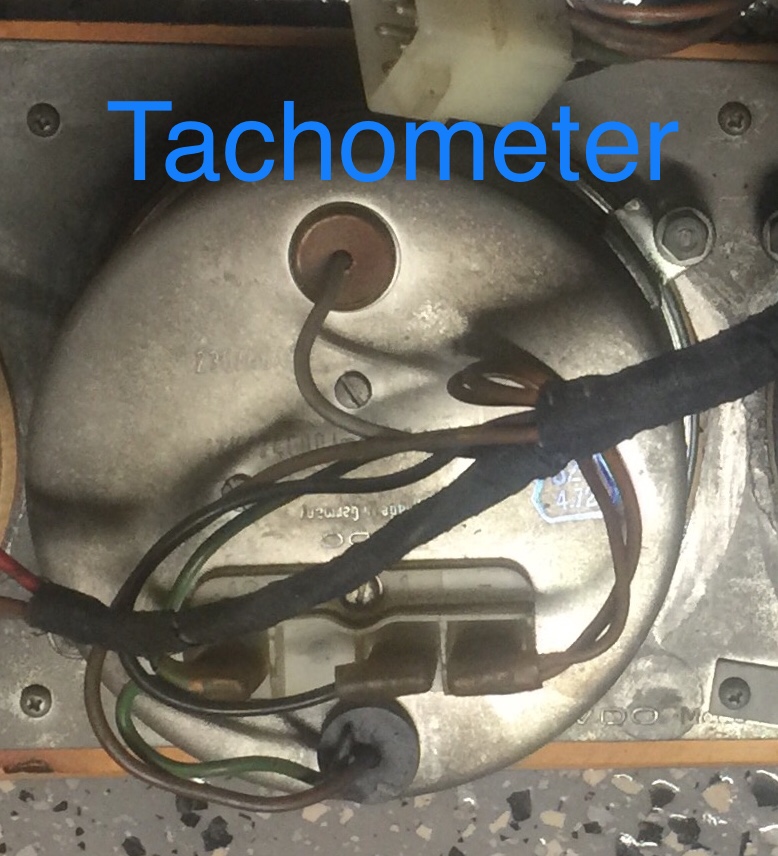

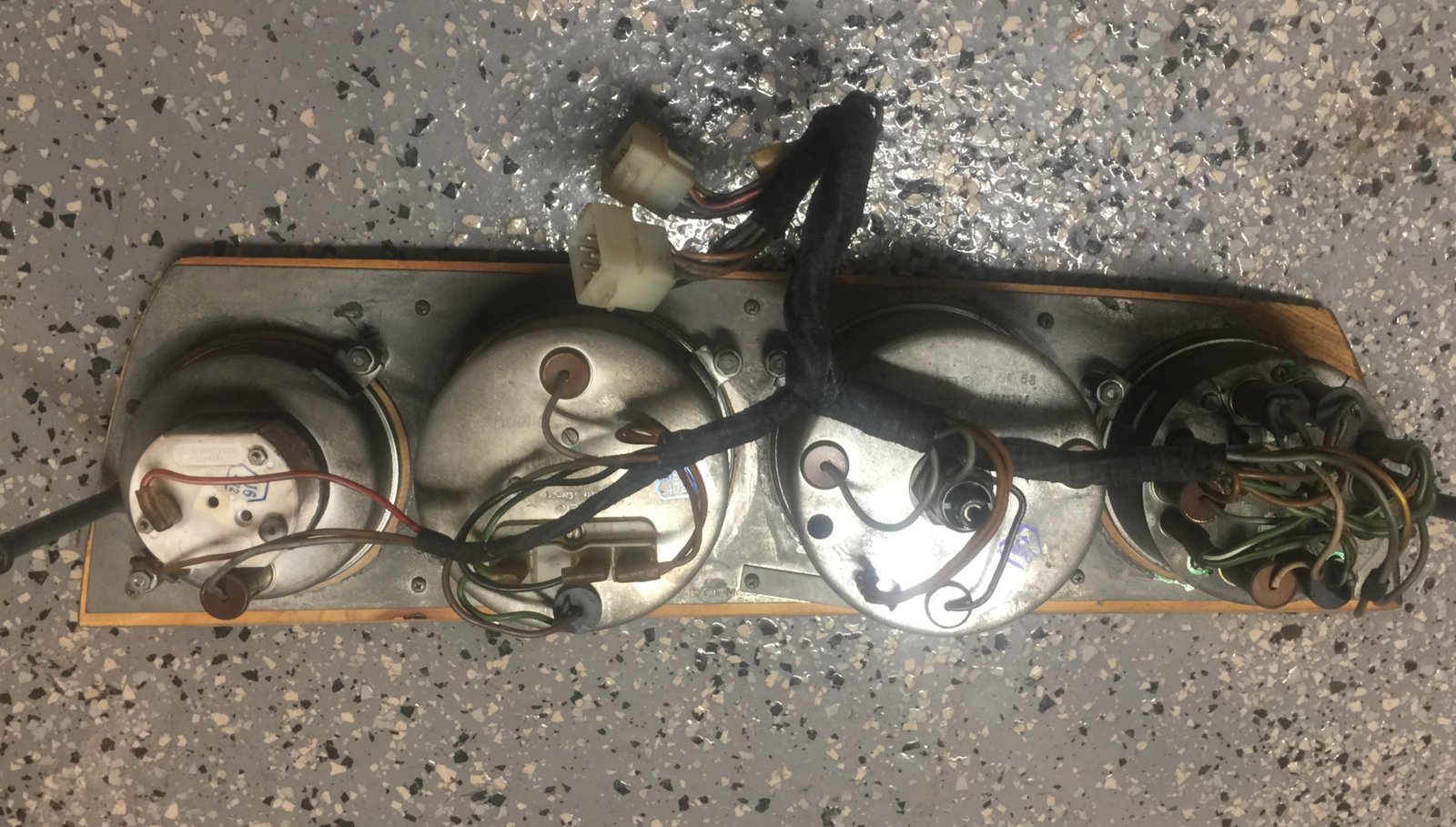

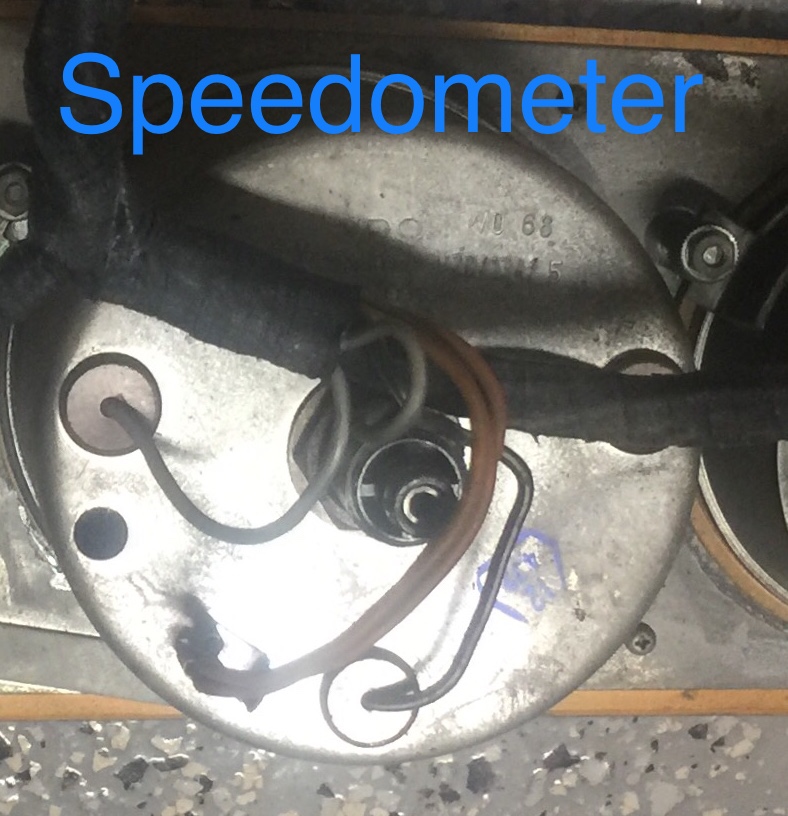

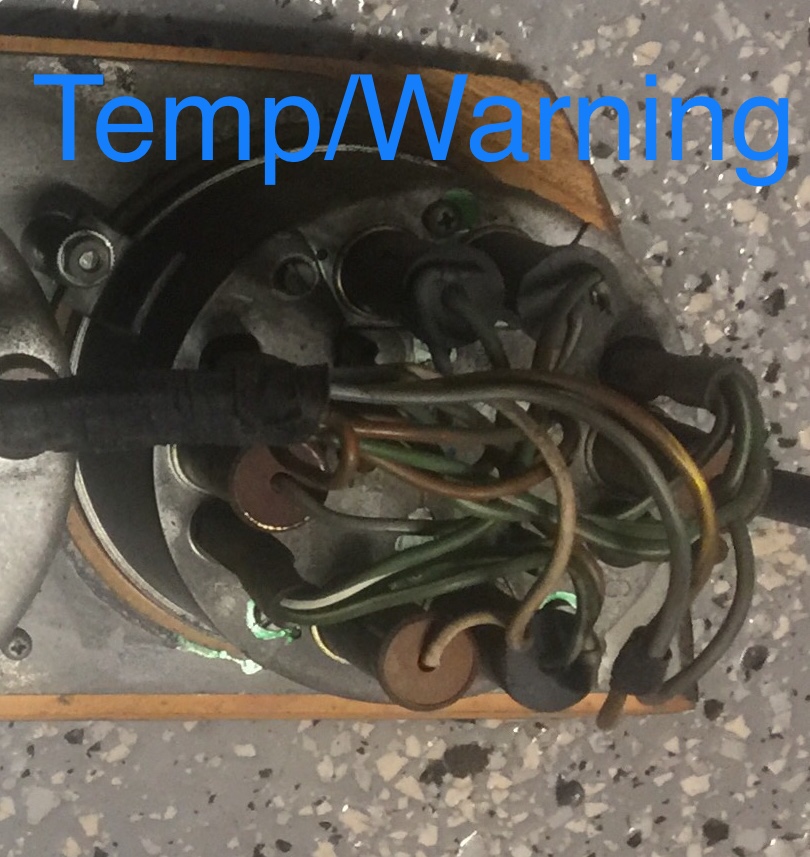

The speedo and tacho are straightforward. The gauge cluster is a little more complex:

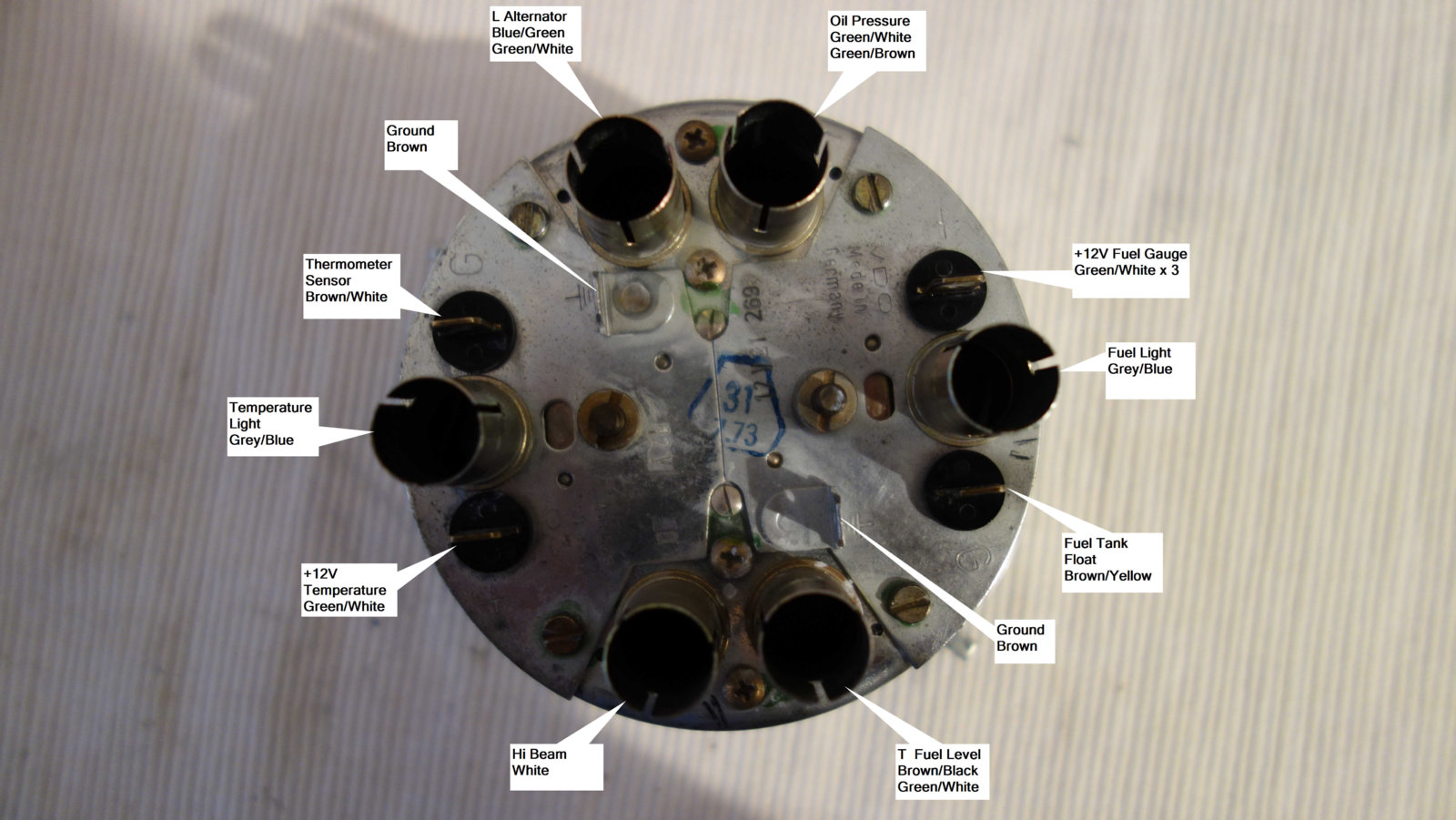

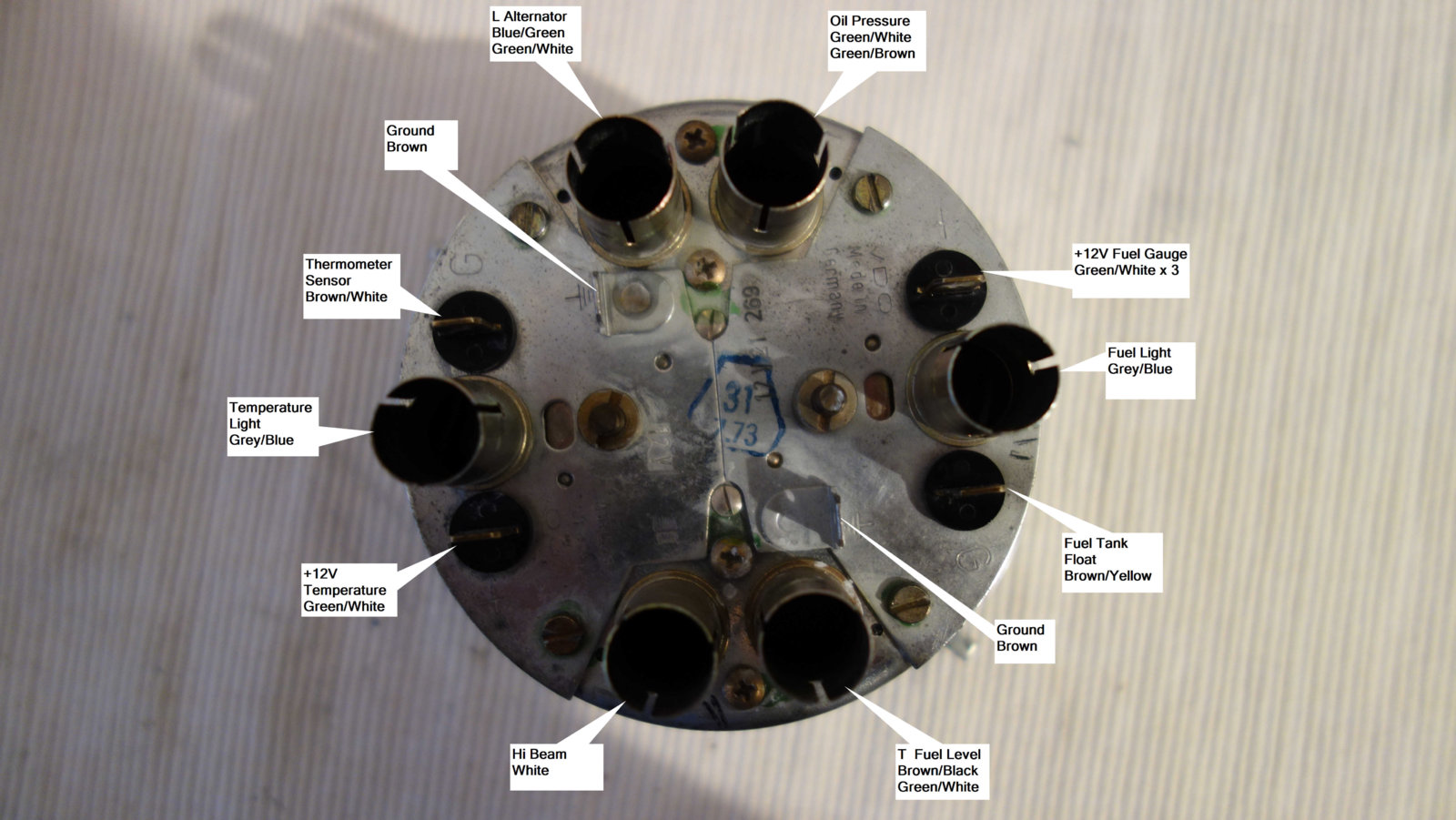

This may help:
All of the gauge illumination bulbs have grey or grey/blue wires; the functional bulbs have their own specific two-tone colors, black/white for the speedo hi-beam lamp.
The speedo and tacho are straightforward. The gauge cluster is a little more complex:
This may help:

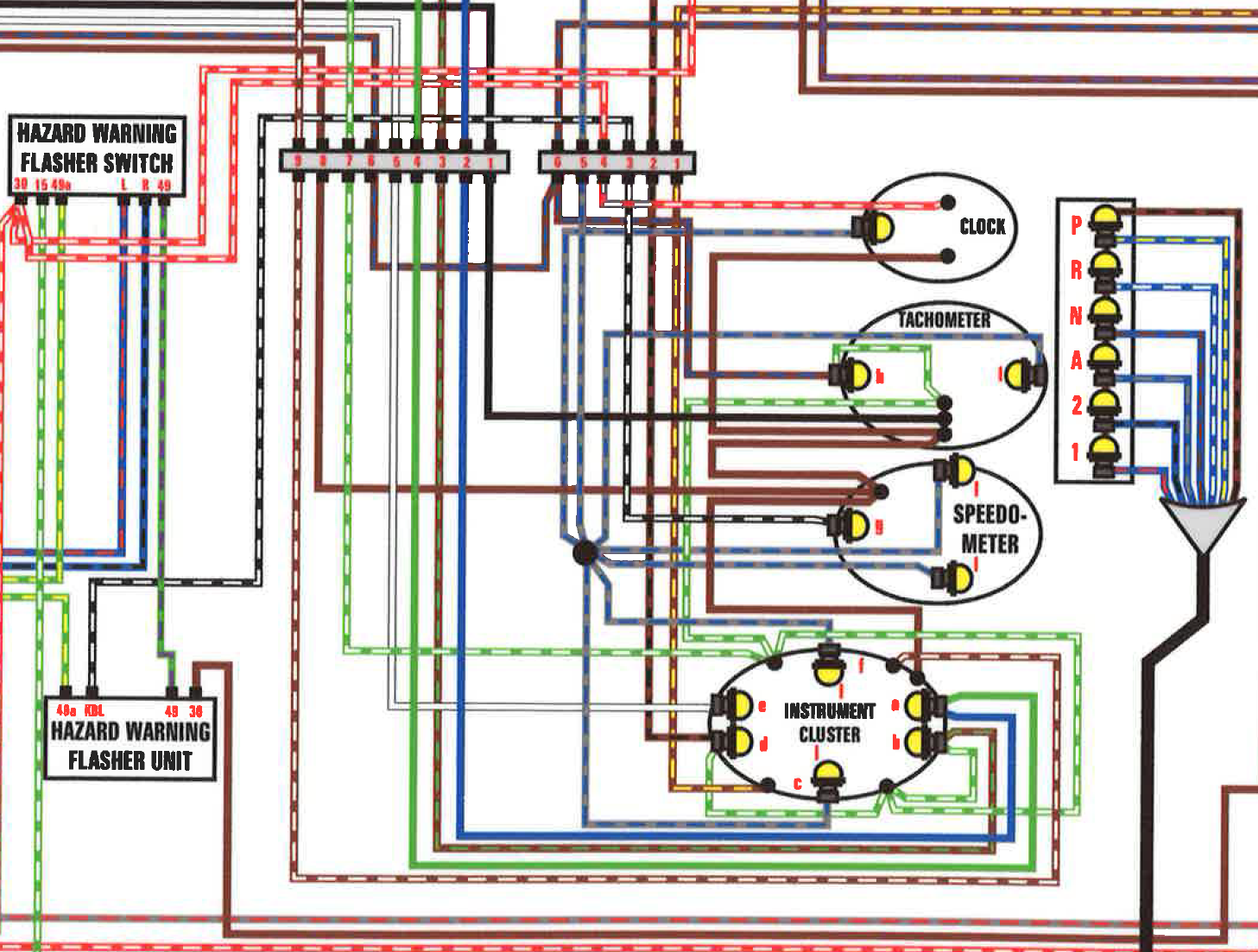

We have wiring diagrams that I posted on this site two years ago from the factory books. I have found that the Prosperos diagrams don’t always have the right colors.
www.e9coupe.com

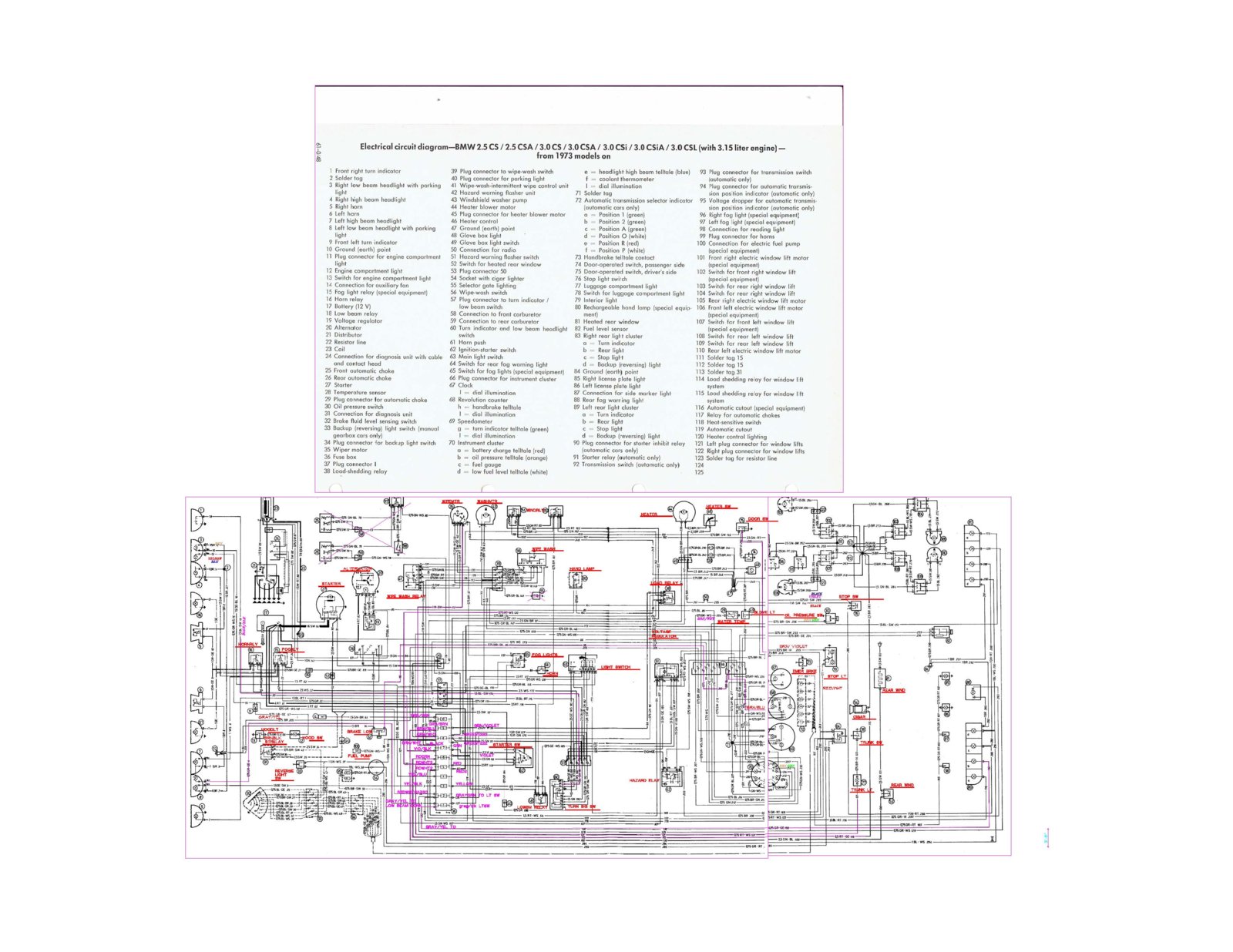

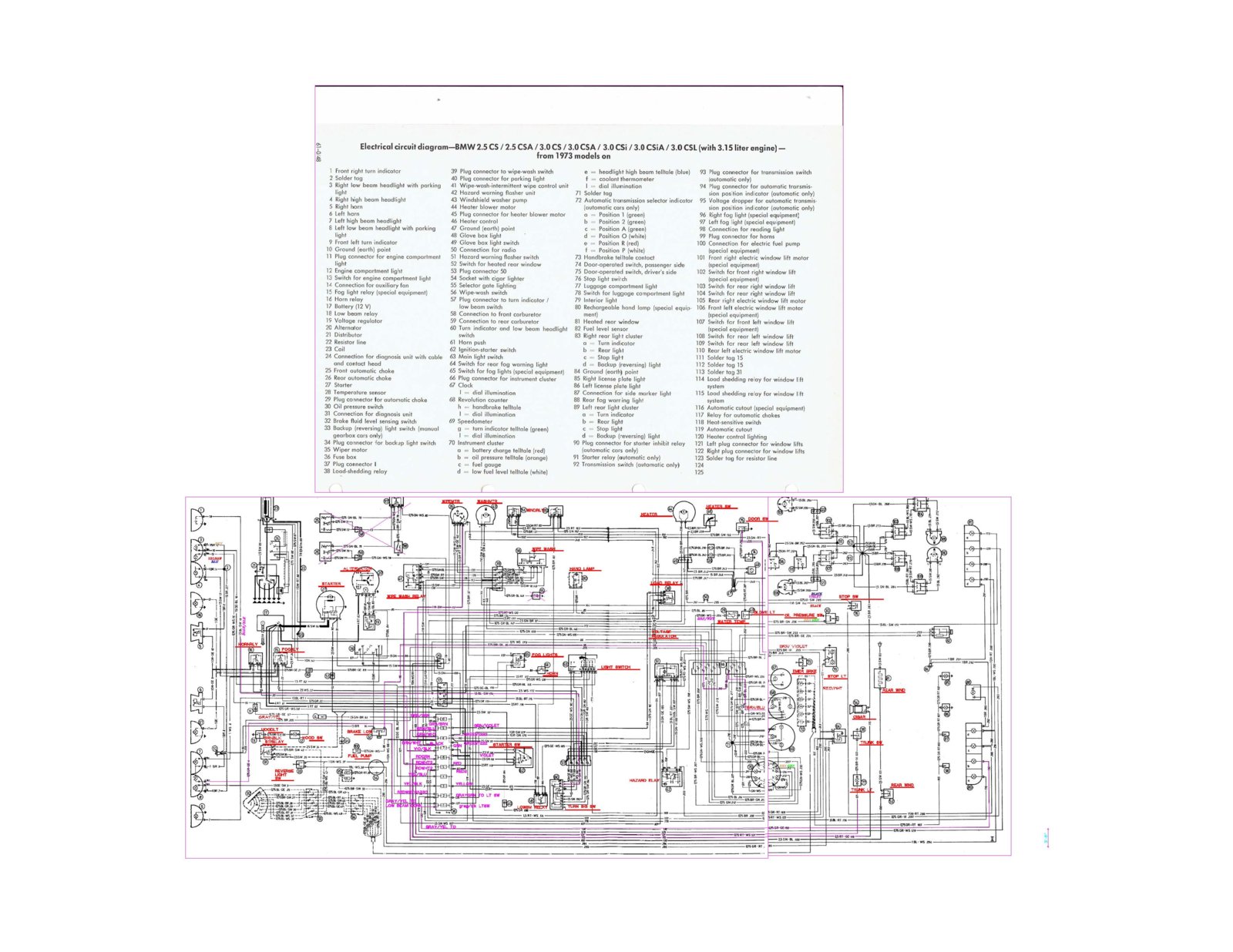

Wiring diagram - late '73 - '75 e9's
I have searched several times for a wiring diagram of our e9's that were built late in '73 through '75 (I have a '74). There are quite a few changes made to these cars, but one specific and easy to spot one is the wiring/mountings for the window motors. The late cars used 2 wire connections...
www.e9coupe.com
Last edited:
Are the colored ones the Prosperos? I have the blue book, readable with a loop!We have wiring diagrams that I posted on this site two years ago form the factory books. I have found that the Prosperos diagrams don’t always have the right colors.
Wiring diagram - late '73 - '75 e9's
I have searched several times for a wiring diagram of our e9's that were built late in '73 through '75 (I have a '74). There are quite a few changes made to these cars, but one specific and easy to spot one is the wiring/mountings for the window motors. The late cars used 2 wire connections...
Yes. Blow up the diagrams up at Kinkos to 24x36 as I described in that post.
What car are we talking about?
Every coupe I know of has the turn signal light in the speedo.
Hi beam is in the combo gauge.
Forgive me if I’m lost here.
