I am re-installing the under dash panels and I am trying to figure out what the switches and buttons are for. I remember reading something about this in the past from @HB Chris but all my searches have gone nowhere. My coupe is a '74 so its electrics are slightly different. Here is what the panel looks like:

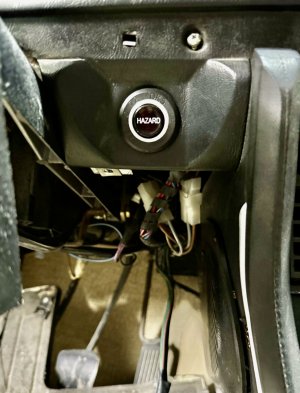

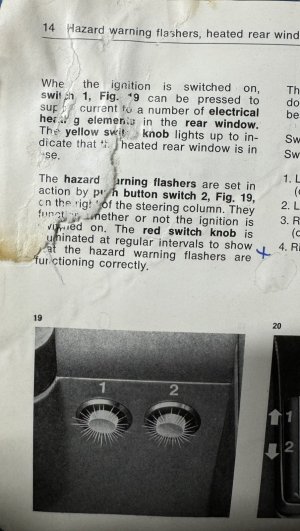

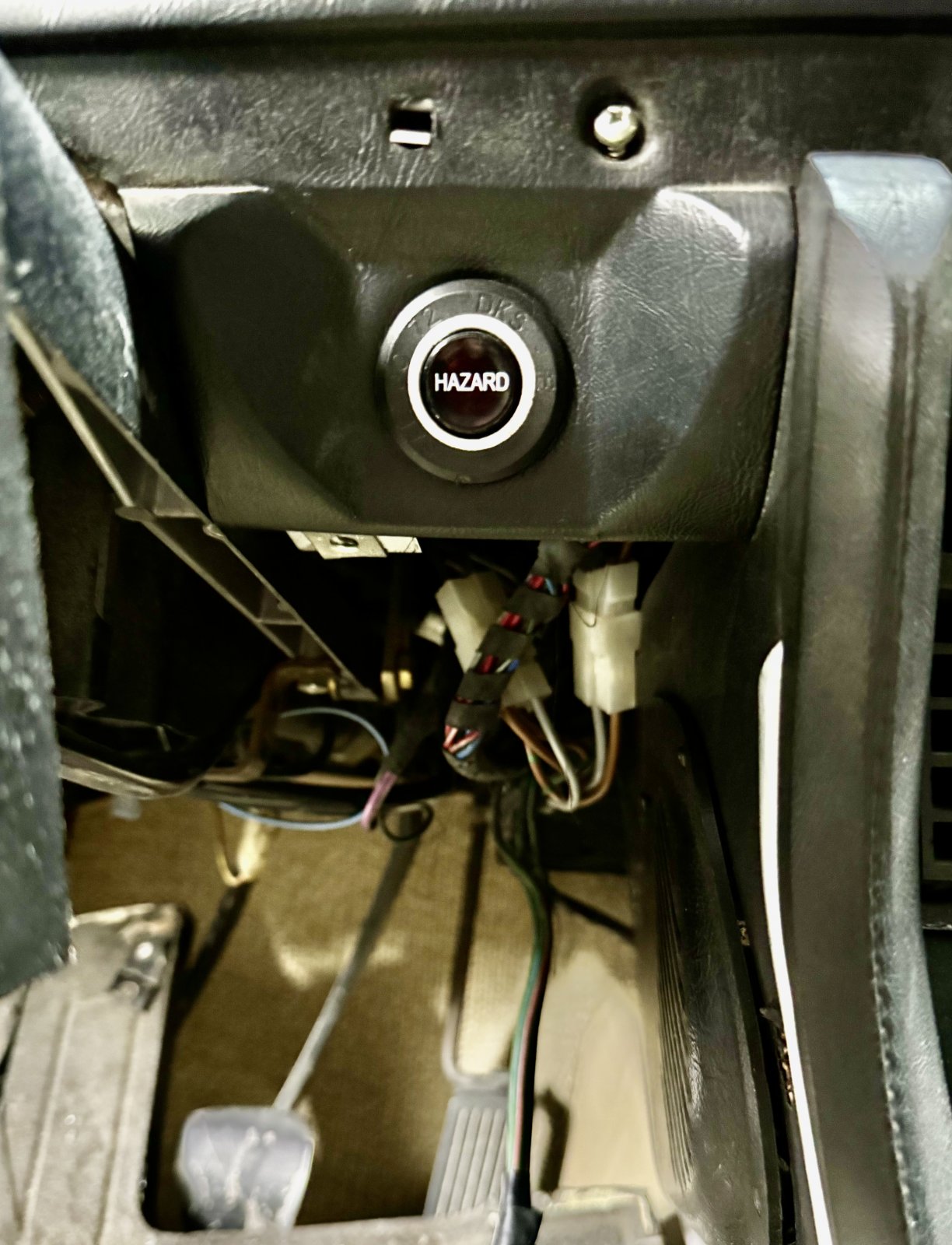

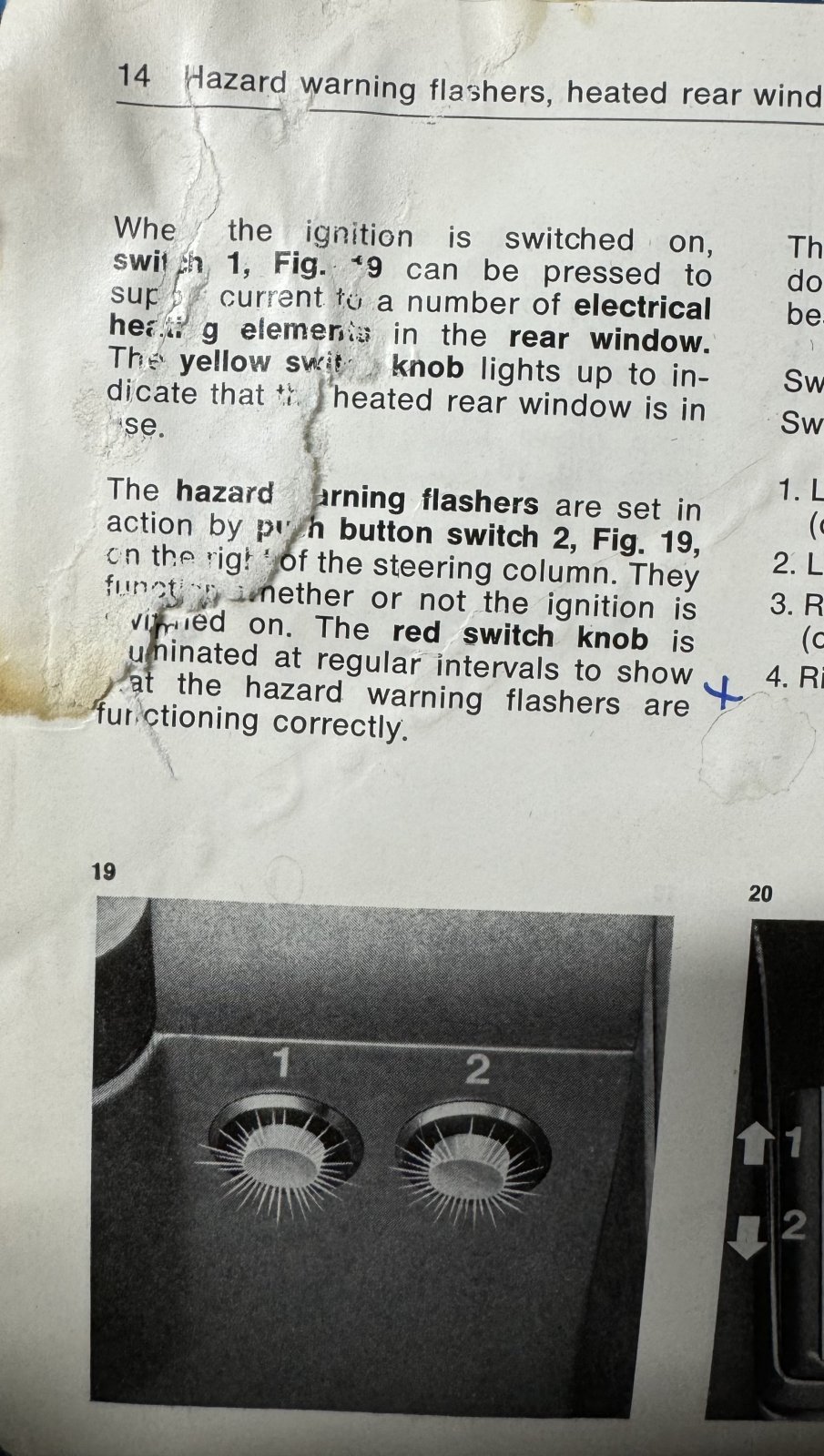

According to the manual, (which shows a pic for another year) on the left, the green button is for the optional fog lights. On the right, there is supposed to be a matching shape yellow button for the rear defroster. Note that the hazard switch (which is #2 in their pic) is installed right above that in the dash fascia panel on my car

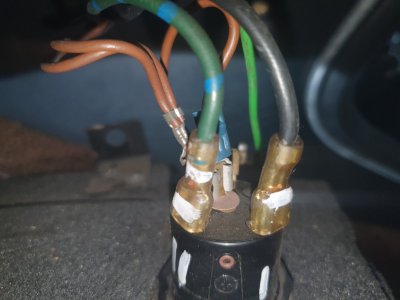

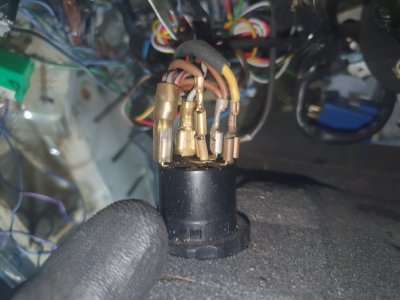

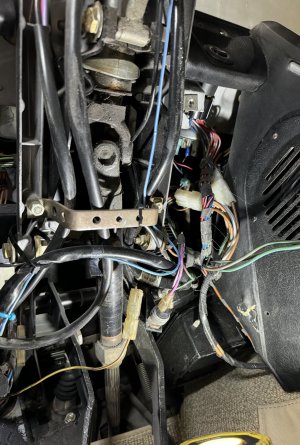

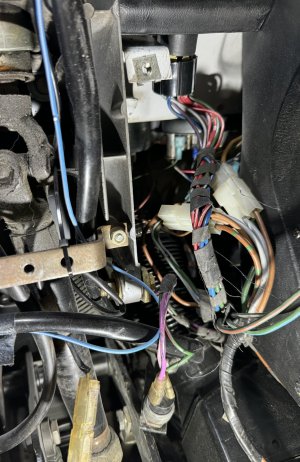

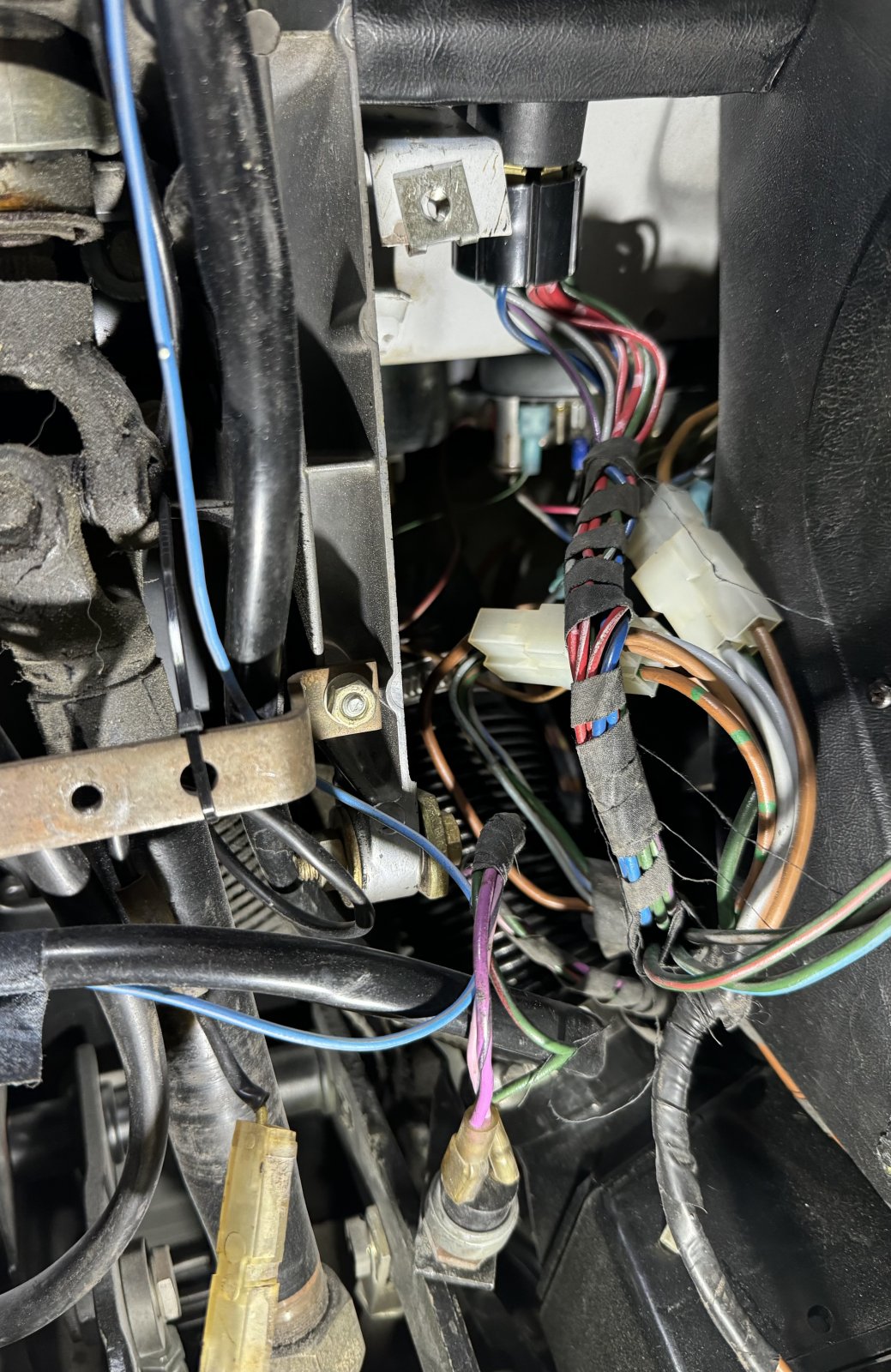

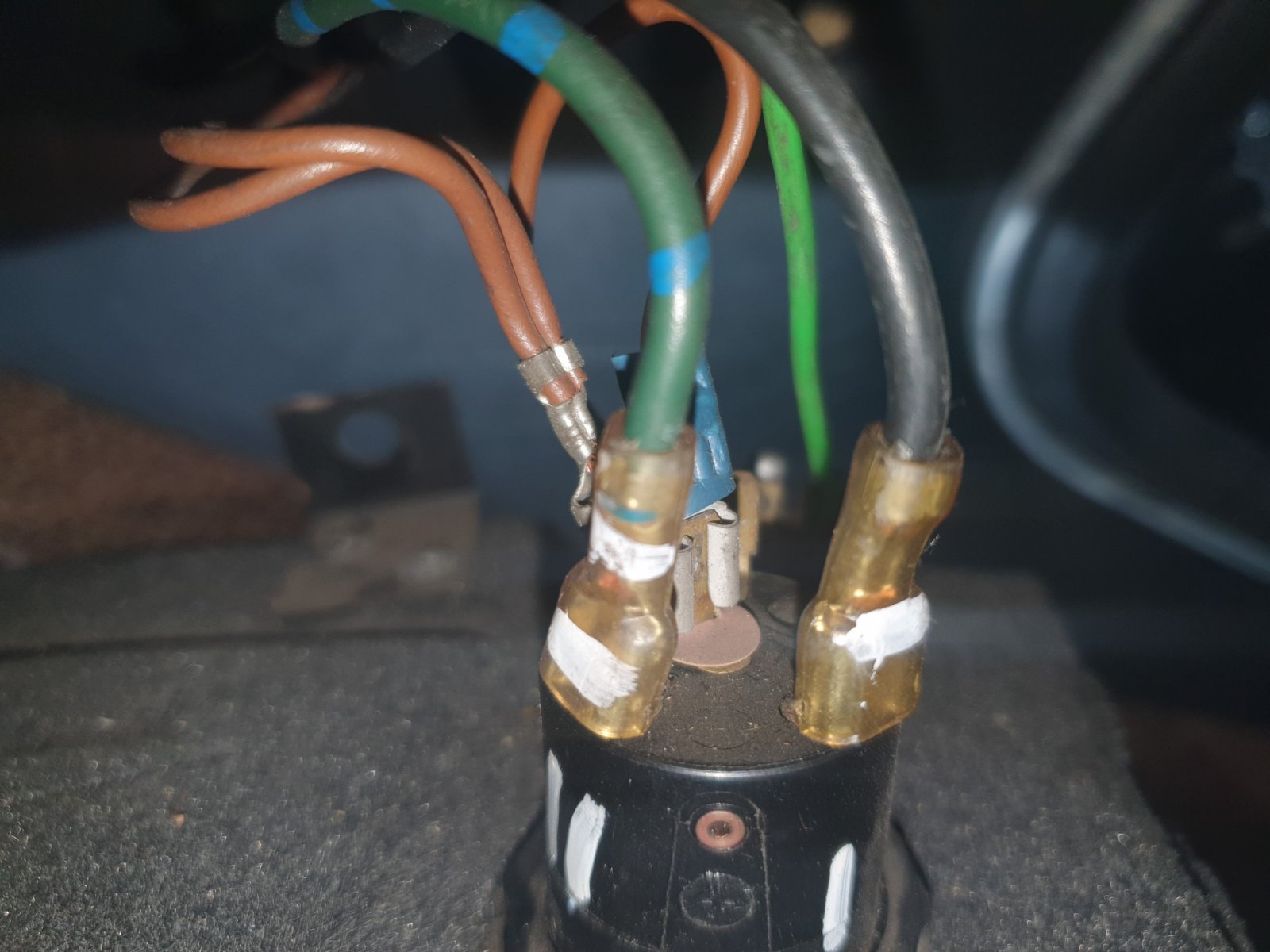

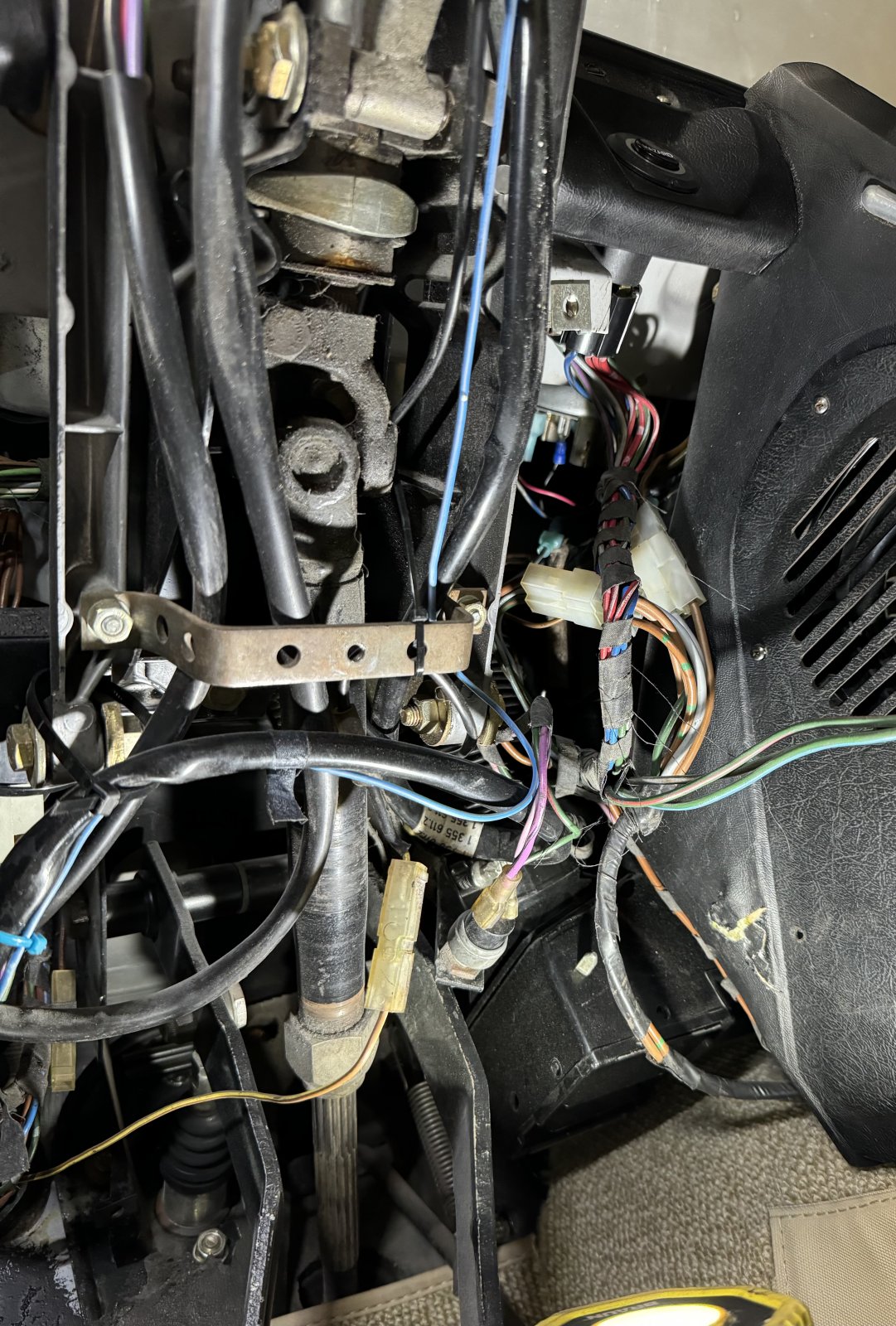

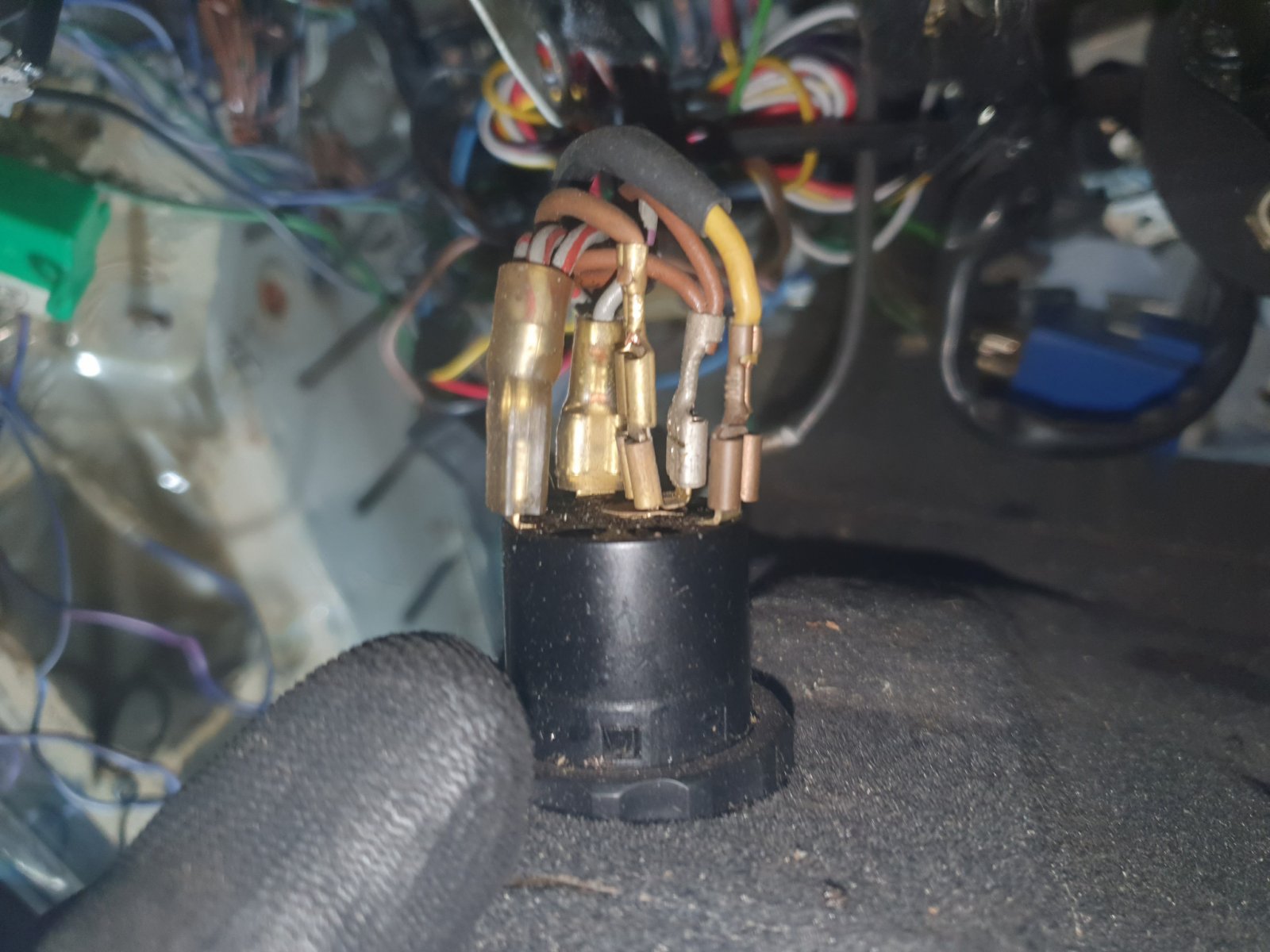

This button is nowhere to be found in my parts boxes and I cannot remember if it was there when I took it all apart 6 or 7 years ago. When I look at the electrical schematic, it show that the rear defroster switch has a Blue and green wire coming into it and a black wire coming out of it. I find no wires like that anywhere in that general area

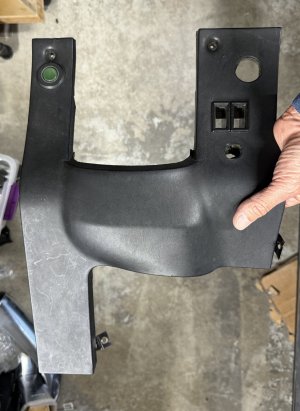

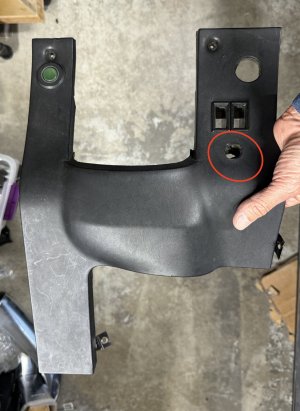

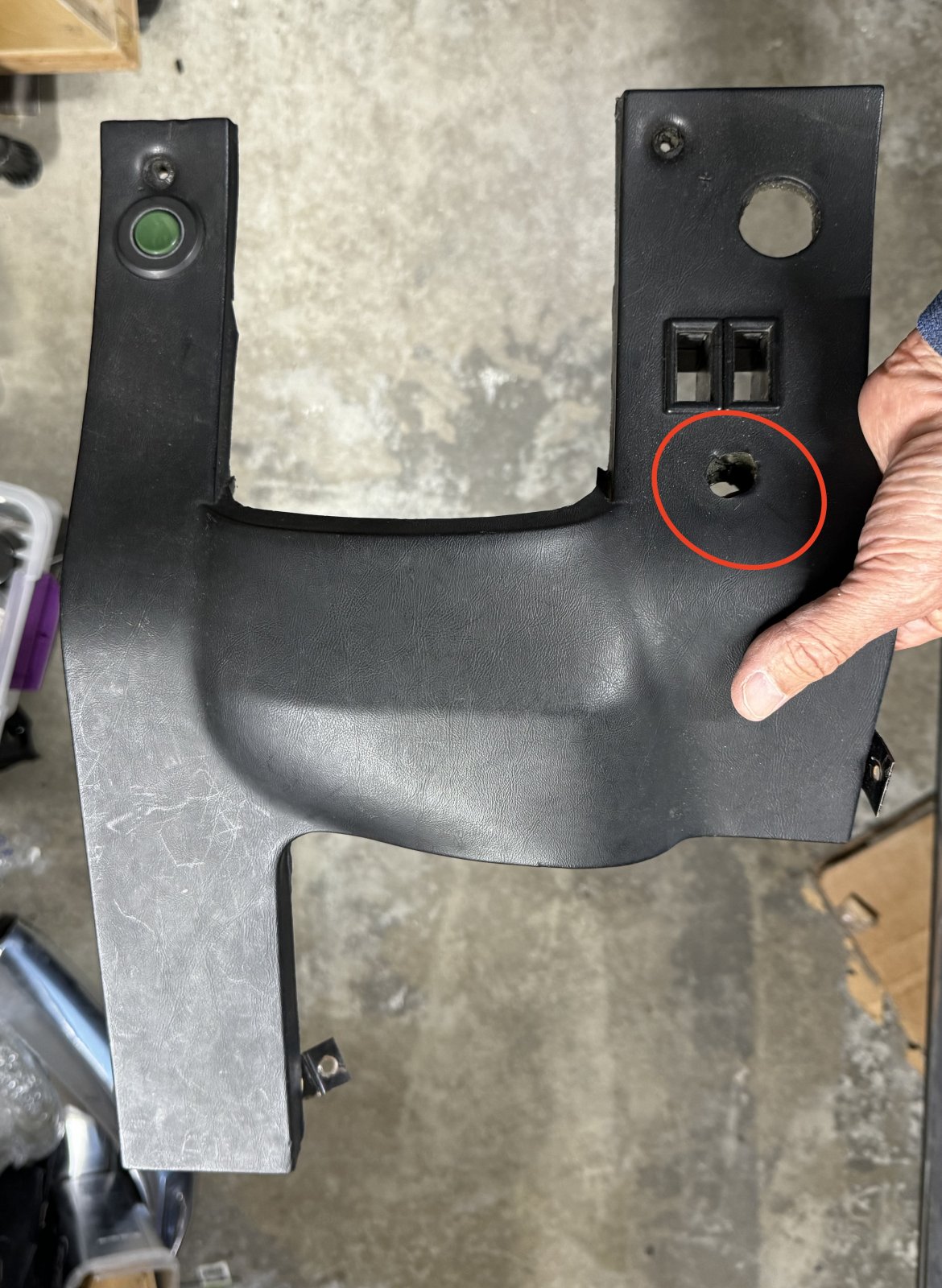

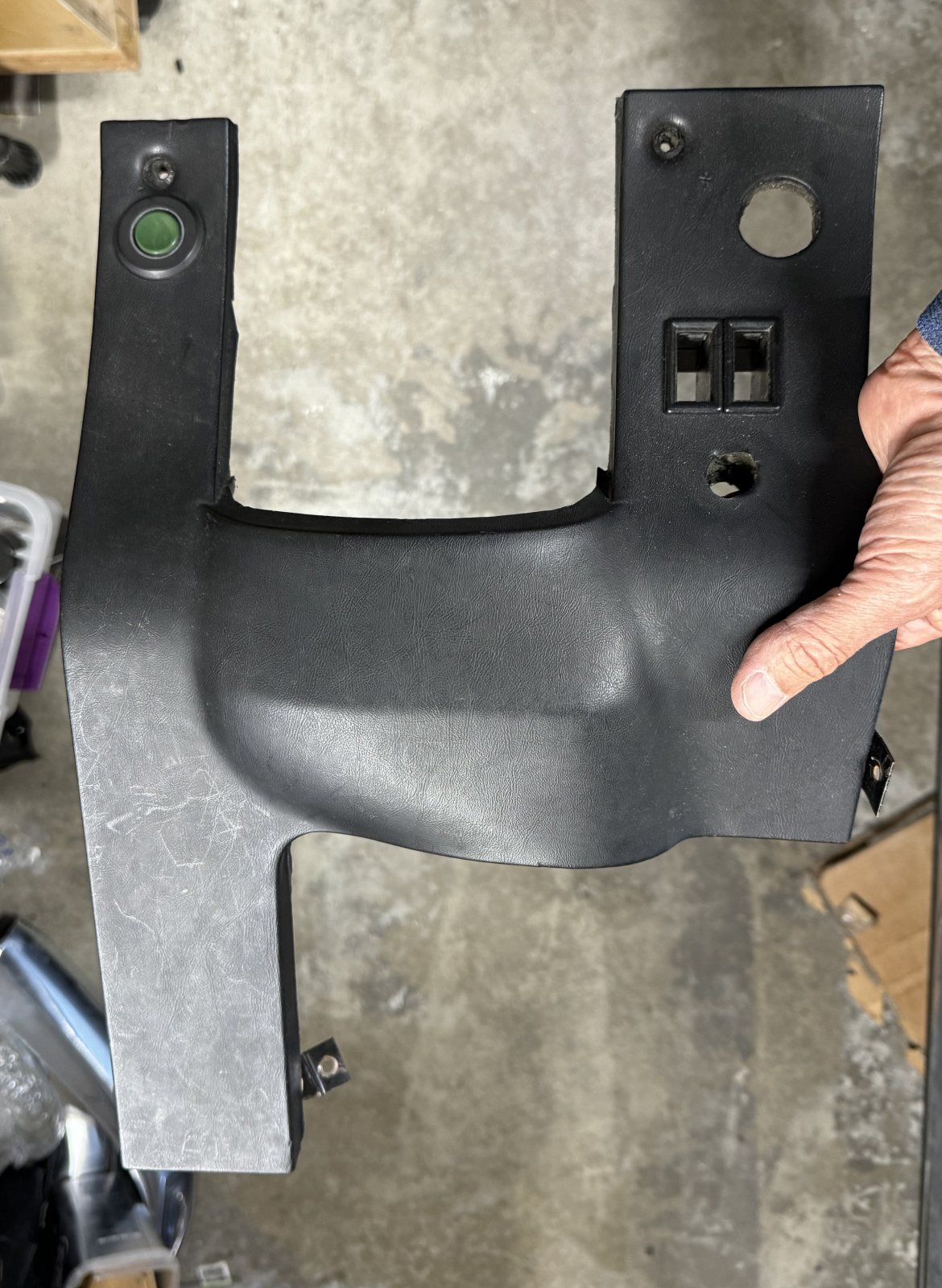

The rectangular holes are for the window relays so that is cool. But below those, there is another smaller hole which I cannot find a reason for. Does anyone else have that hole?
According to the manual, (which shows a pic for another year) on the left, the green button is for the optional fog lights. On the right, there is supposed to be a matching shape yellow button for the rear defroster. Note that the hazard switch (which is #2 in their pic) is installed right above that in the dash fascia panel on my car
This button is nowhere to be found in my parts boxes and I cannot remember if it was there when I took it all apart 6 or 7 years ago. When I look at the electrical schematic, it show that the rear defroster switch has a Blue and green wire coming into it and a black wire coming out of it. I find no wires like that anywhere in that general area
The rectangular holes are for the window relays so that is cool. But below those, there is another smaller hole which I cannot find a reason for. Does anyone else have that hole?
