The 3 tabs - wires or the rear brake pipe or ???
Last edited:
What goes in these inner fender wall tabs?
- Thread starter Stevehose
- Start date

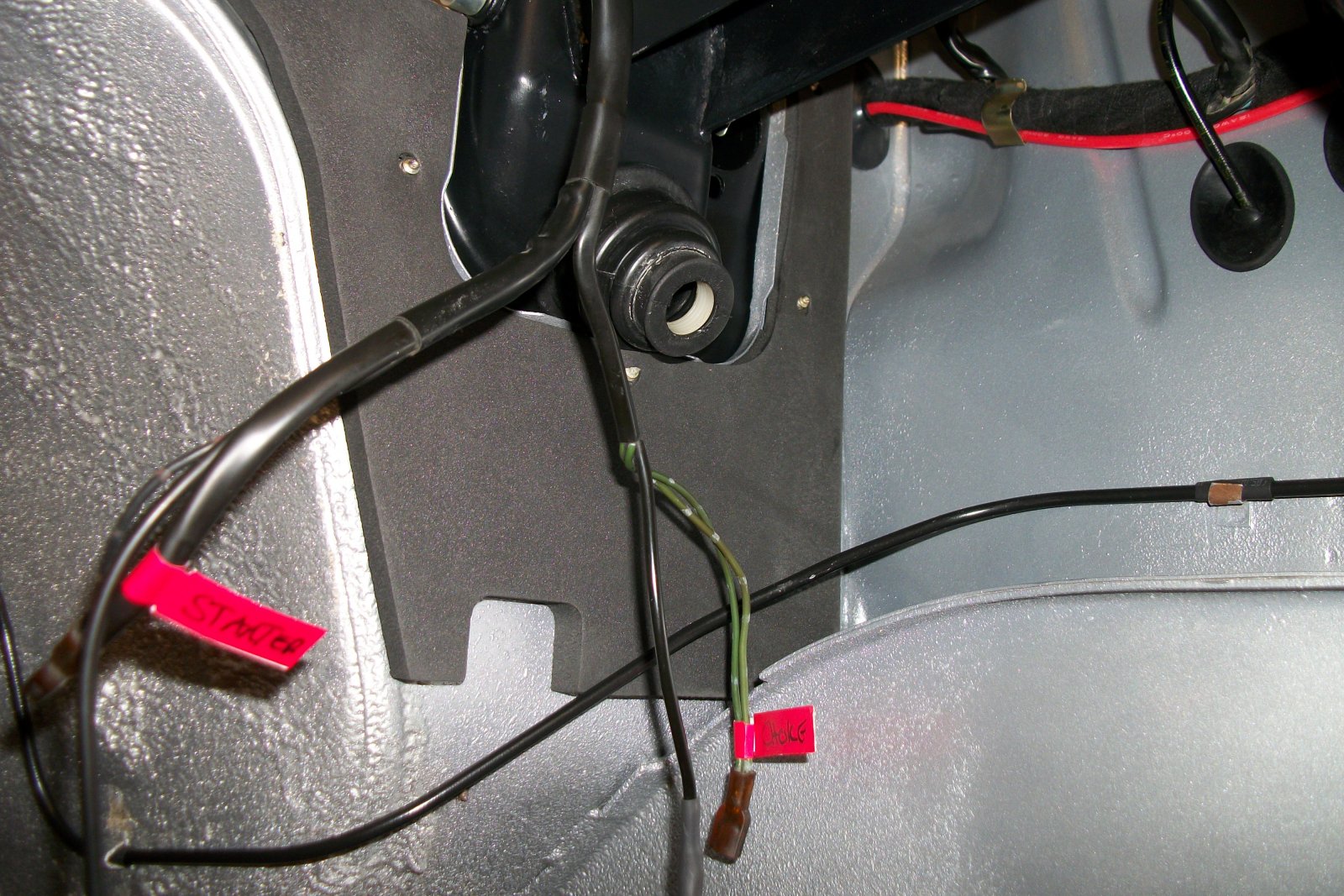

I thought I had a good picture of this, but the only shots I have seem to already be partially disassembled. But it seems my front right brake line that passes from the EDIT: left to right is resting in the bottom tab.
Last edited:
checking my car…
I can’t get a clean photo. Looks like lower rear most tab is for solid rear break line. The other two has a plastic line that originates from the firewall aft of the glove box and terminates under my battery tray in to thin air. It may have gone to the charcoal canister that was mounted there.
I’m pretty sure I removed it when I’d did my engine swap 12 years ago.
I can’t get a clean photo. Looks like lower rear most tab is for solid rear break line. The other two has a plastic line that originates from the firewall aft of the glove box and terminates under my battery tray in to thin air. It may have gone to the charcoal canister that was mounted there.
I’m pretty sure I removed it when I’d did my engine swap 12 years ago.
Last edited:
One of them is for the rear brake pipe. My 1970 only had but one tab that low. There were several removal clips higher for the harness. I suspect the forward most tab is for the rear brake pipe just before it makes a 90 degree turn up to the master cylinder which mine does not have.

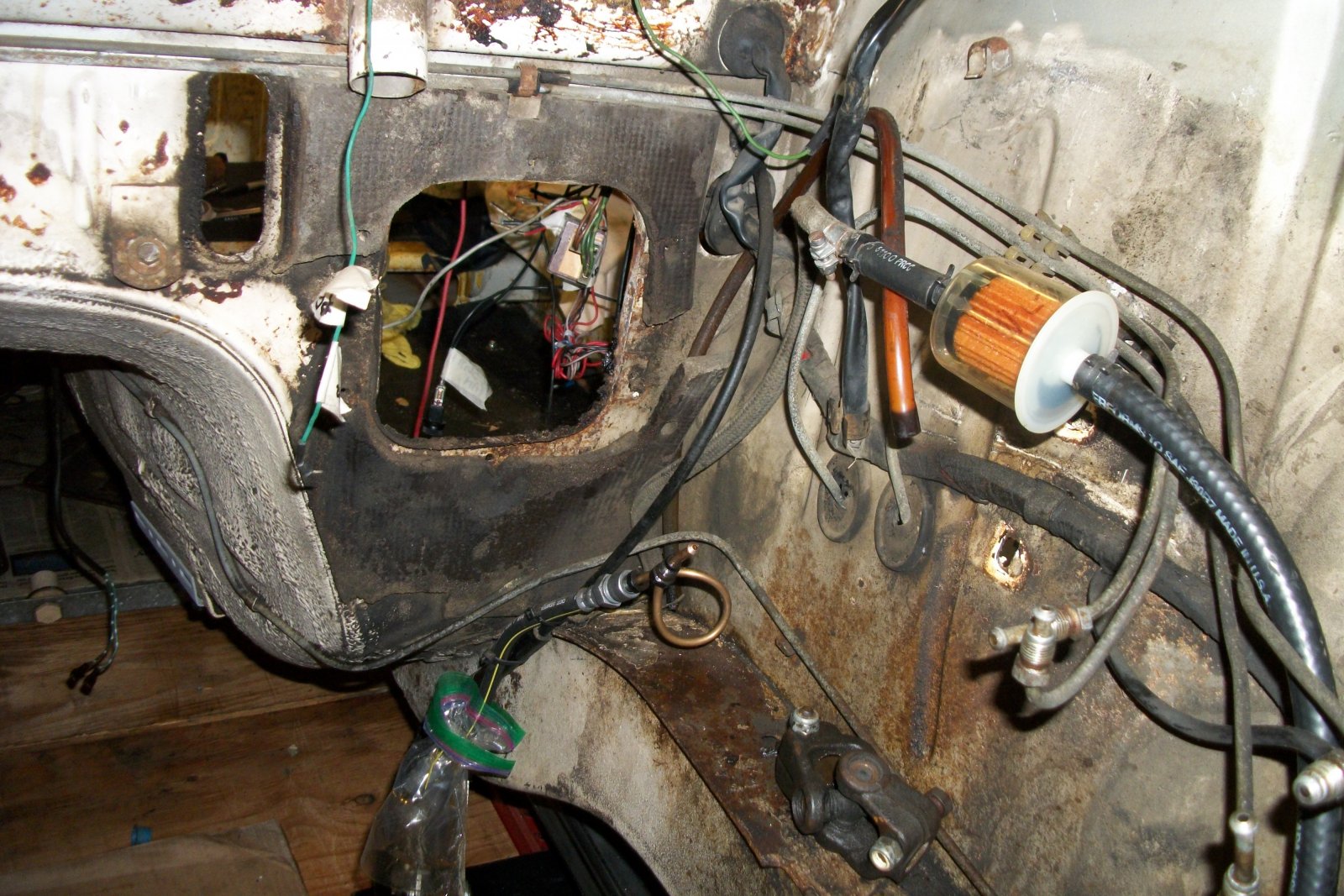

An ugly before photo showing my one lower tab and higher clips for harness. You can see 2 additional clips on the tunnel wall for the rear brake pipe.

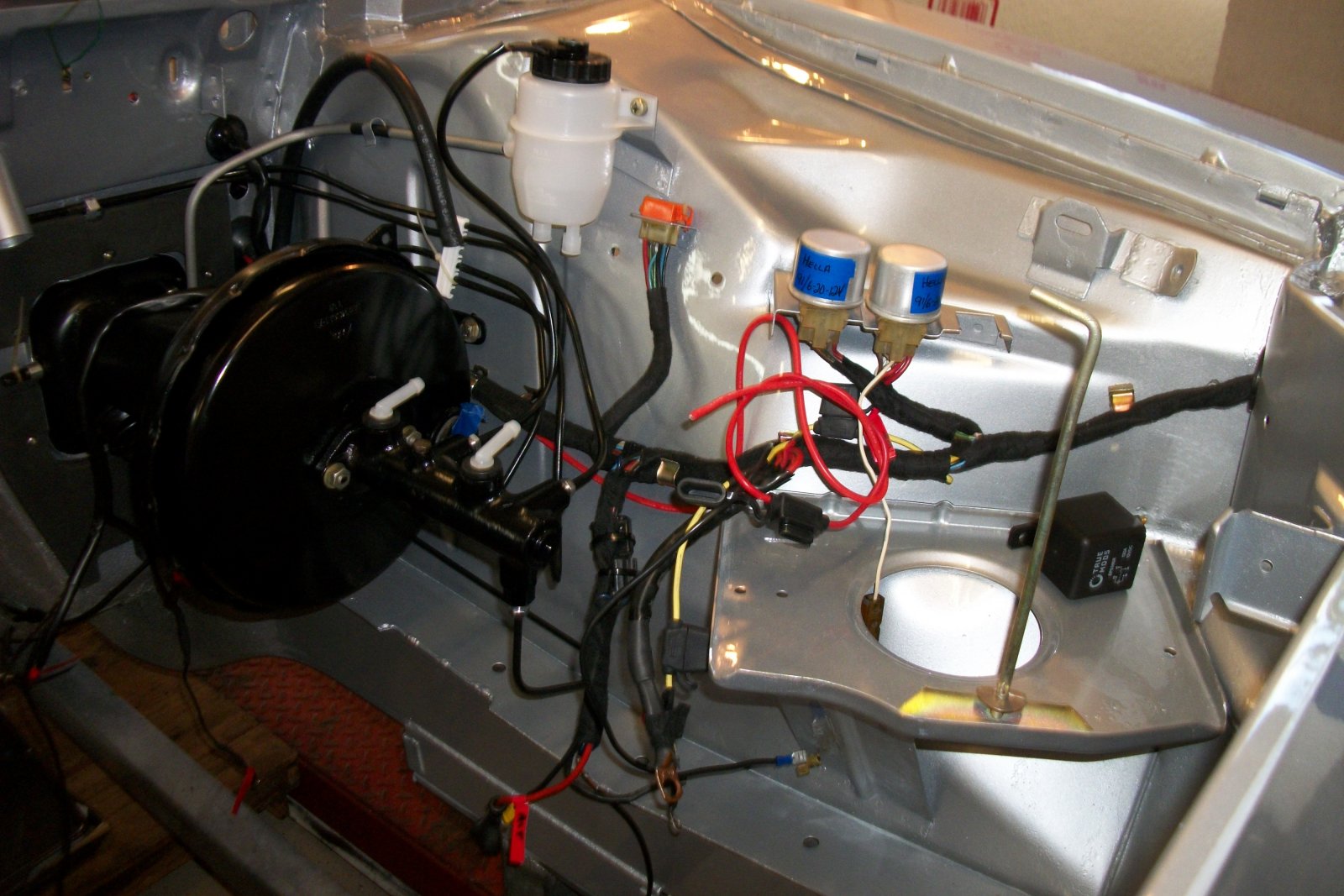

Here is a shot after reassembly. Again I suspect your most forward tab is to better secure the rear brake pipe as it goes up to the MC. You can see the yellow harness clips. I have no wiring harness that low so why your extra rear tab? As others suggested it might be something to do with the charcoal cannister in the trunk which I do not have.
Steve stop over and take a look at mine as I am pretty sure I got it back together as it came apart.
jjs2800cs
An ugly before photo showing my one lower tab and higher clips for harness. You can see 2 additional clips on the tunnel wall for the rear brake pipe.
Here is a shot after reassembly. Again I suspect your most forward tab is to better secure the rear brake pipe as it goes up to the MC. You can see the yellow harness clips. I have no wiring harness that low so why your extra rear tab? As others suggested it might be something to do with the charcoal cannister in the trunk which I do not have.
Steve stop over and take a look at mine as I am pretty sure I got it back together as it came apart.
jjs2800cs
Makes sense, thanks!
Oh boy, I was way off. I can see that, despite my disassembly photos, I am going to have a lot of questions to post when I am putting Raven back together.
Yes perfect @jjs2800cs and I just discussed this and you’re correct - the other 2 appear to be for the blue charcoal canister line. Thanks!checking my car…
