WTB: gauge cluster wiring harness… or at least light bulb holders

Bmachine

Bmachine

Well-Known Member
Site Donor $
Site Donor $$
Messages
3,625
Reaction score
1,893
Location
Northern California coast
I need several of the lightbulb holders that plug into the back of the instrument gauges. So if someone has either that whole wiring harness or at least several of the light bulb holders I would very much appreciate it.
Thank you


Hi Again. I was unable to find them in my inventory. Will check with my son to see if they are in his inventory.
Have a great night.

These are standard ones.

Do not know if you really need plastic but metal were widely used, not only in BMW.
I'm sorry, I do not have one at hand to provide, but there were several links to classic car electric parts shops in US and UK where I have seen such in the past.

I knew I have seen it:

Bulb Holders

Electrical wiring products, parts and accessories for vintage and classic cars
www.autoelectricsupplies.co.uk www.autoelectricsupplies.co.uk

The harness (at least mine) has black plastic and zinced metal holders.

The supplier that Krzystof informed is about has a few different sizes.

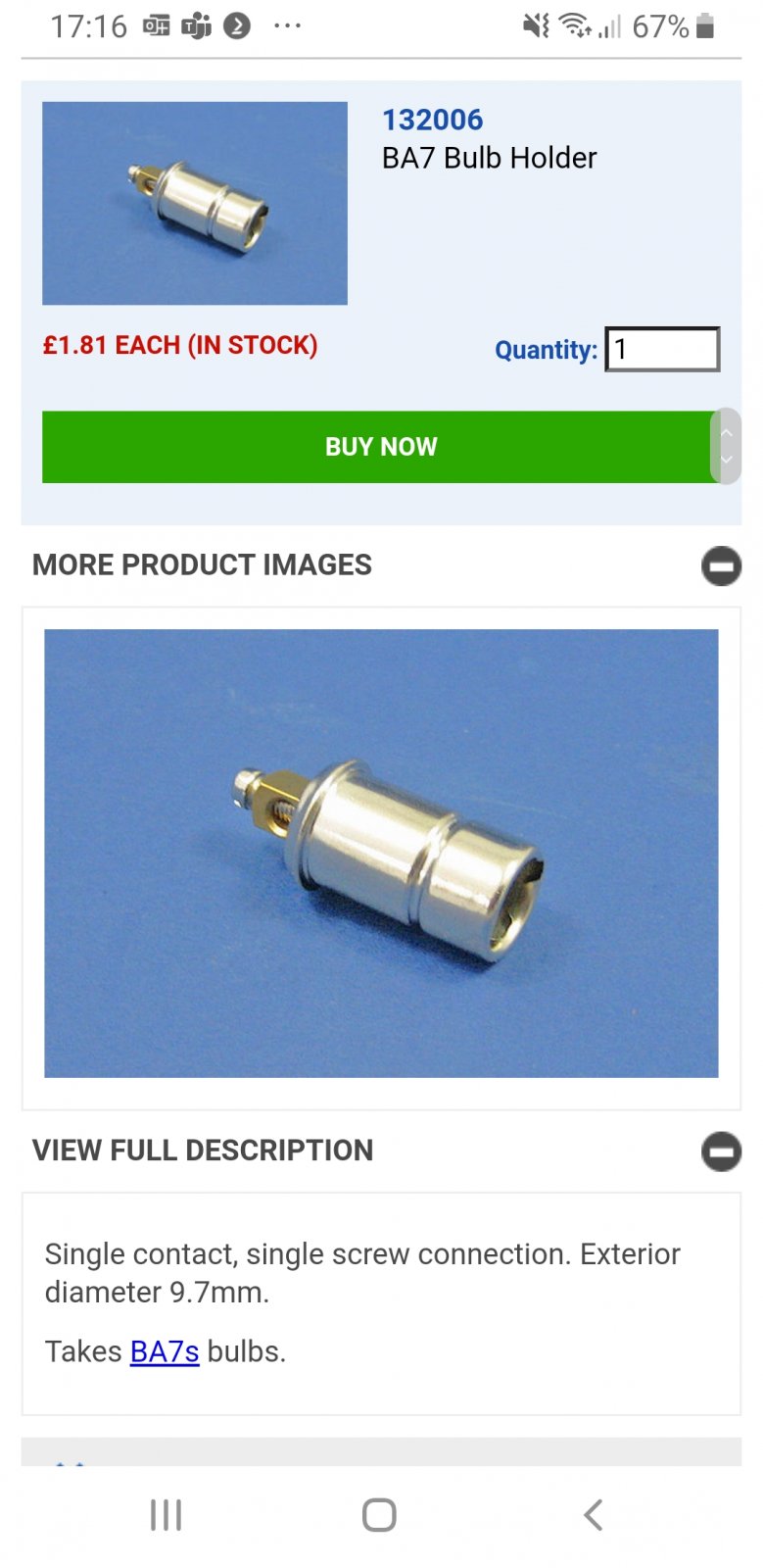

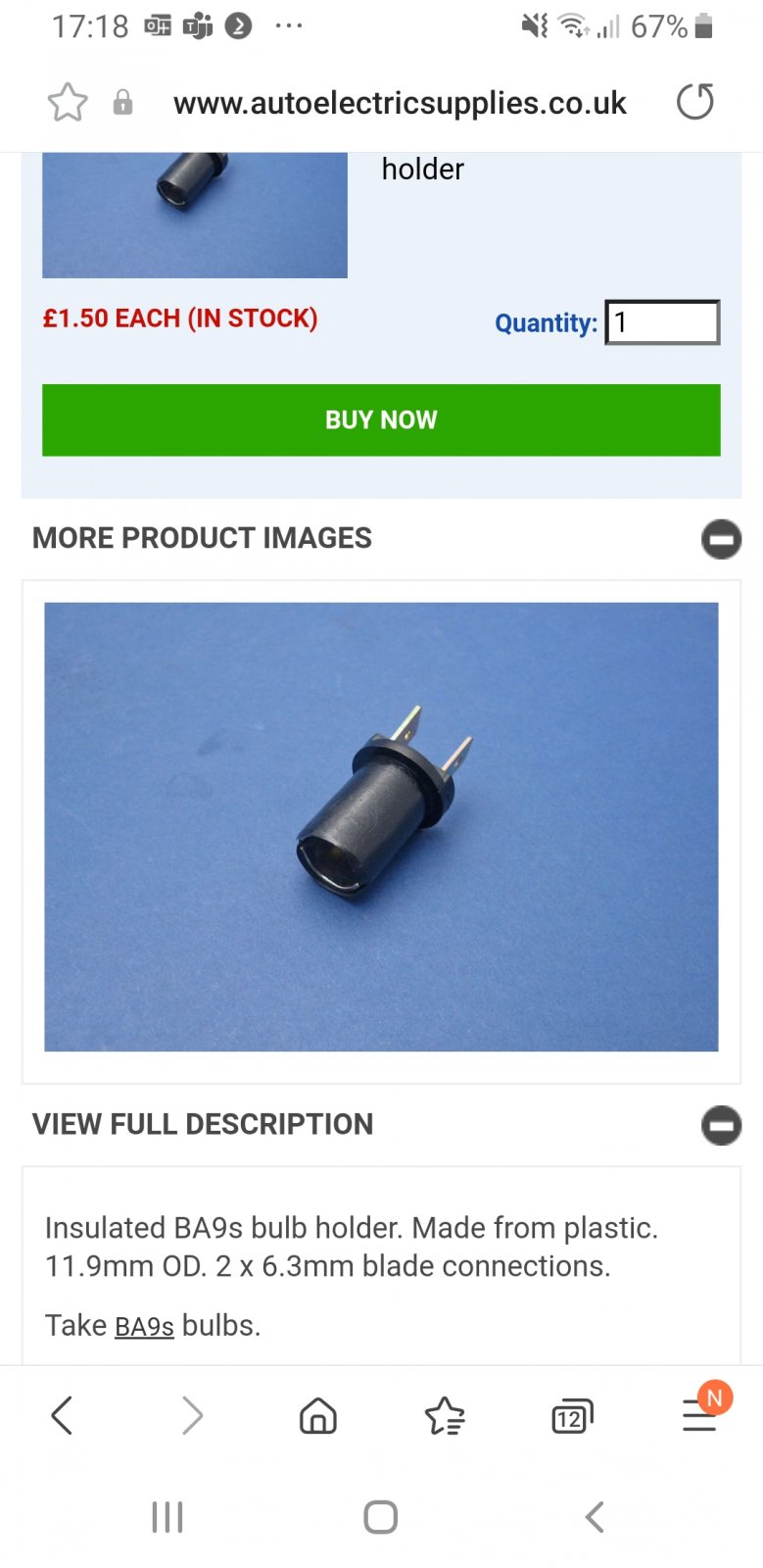

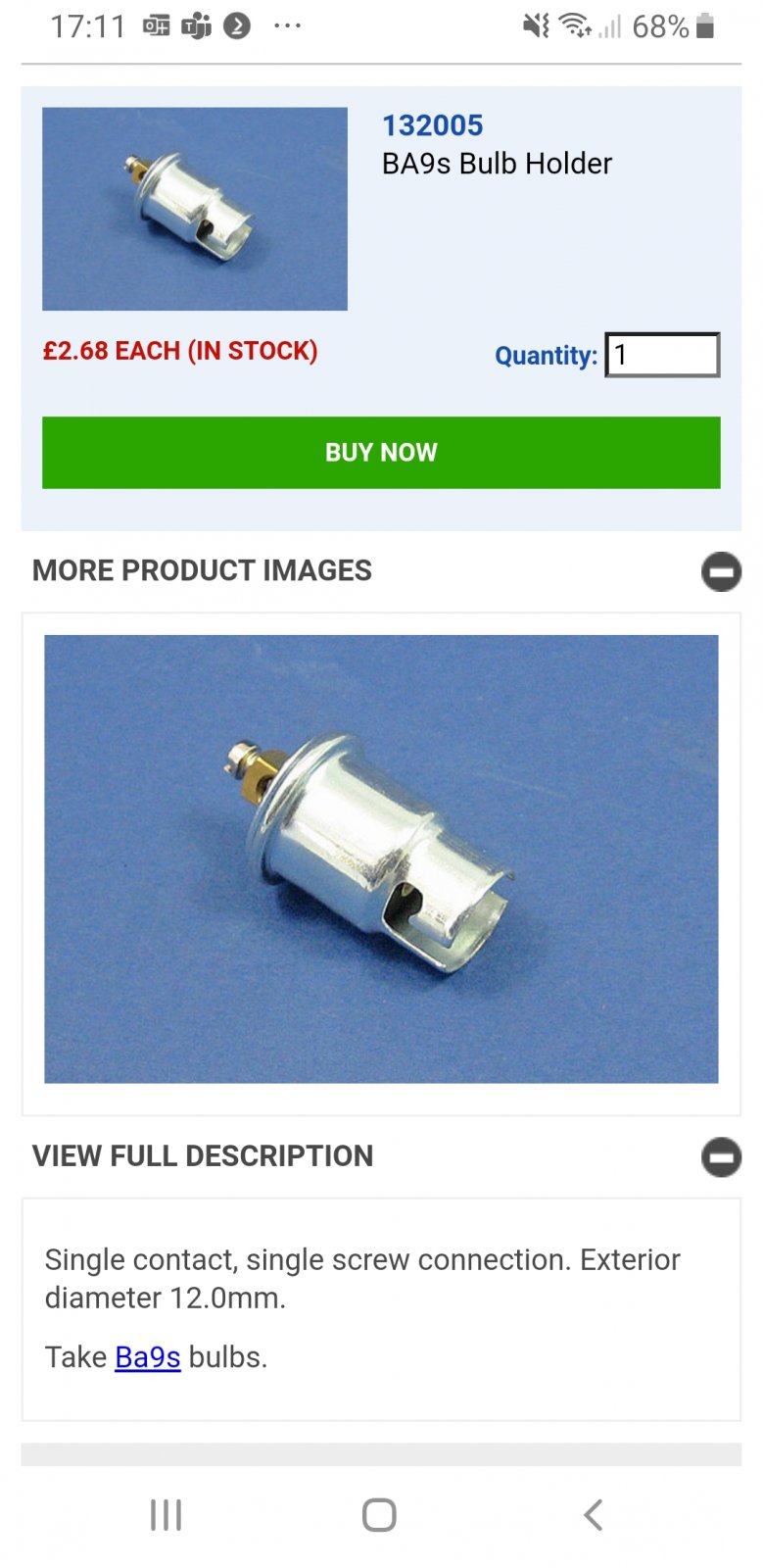

Attached screen prints of their metal 9.7 mm and 12.0 mm options, and plastic

What diameter do our black plastic and the metal holders have?



Erik.


Attachments

  • Screenshot_20220712-171148_Samsung Internet.jpg
    Screenshot_20220712-171148_Samsung Internet.jpg
    123.1 KB · Views: 59
  • Screenshot_20220712-171635_Samsung Internet.jpg
    Screenshot_20220712-171635_Samsung Internet.jpg
    116.1 KB · Views: 51
  • Screenshot_20220712-171832_Samsung Internet.jpg
    Screenshot_20220712-171832_Samsung Internet.jpg
    114.2 KB · Views: 66

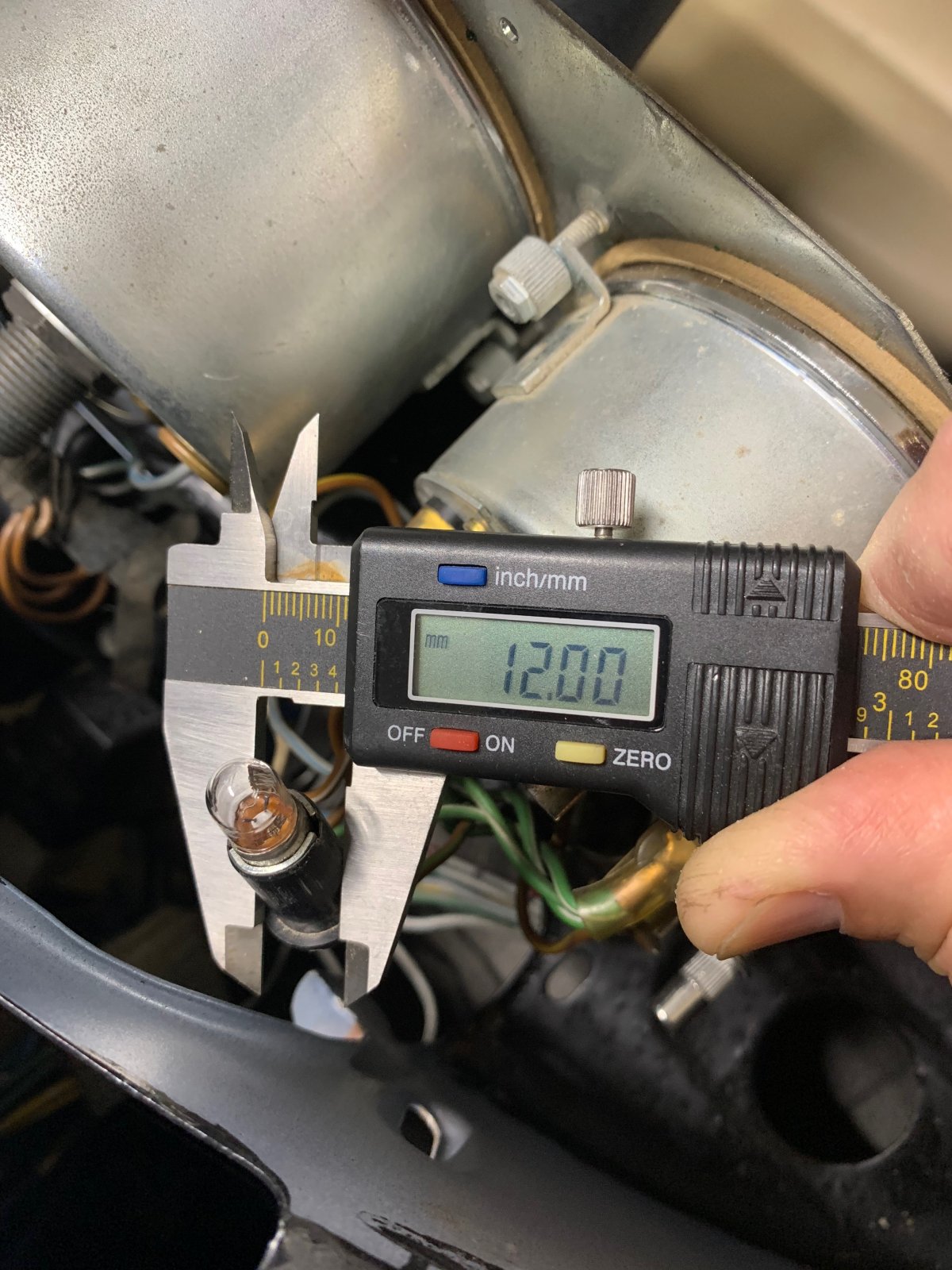

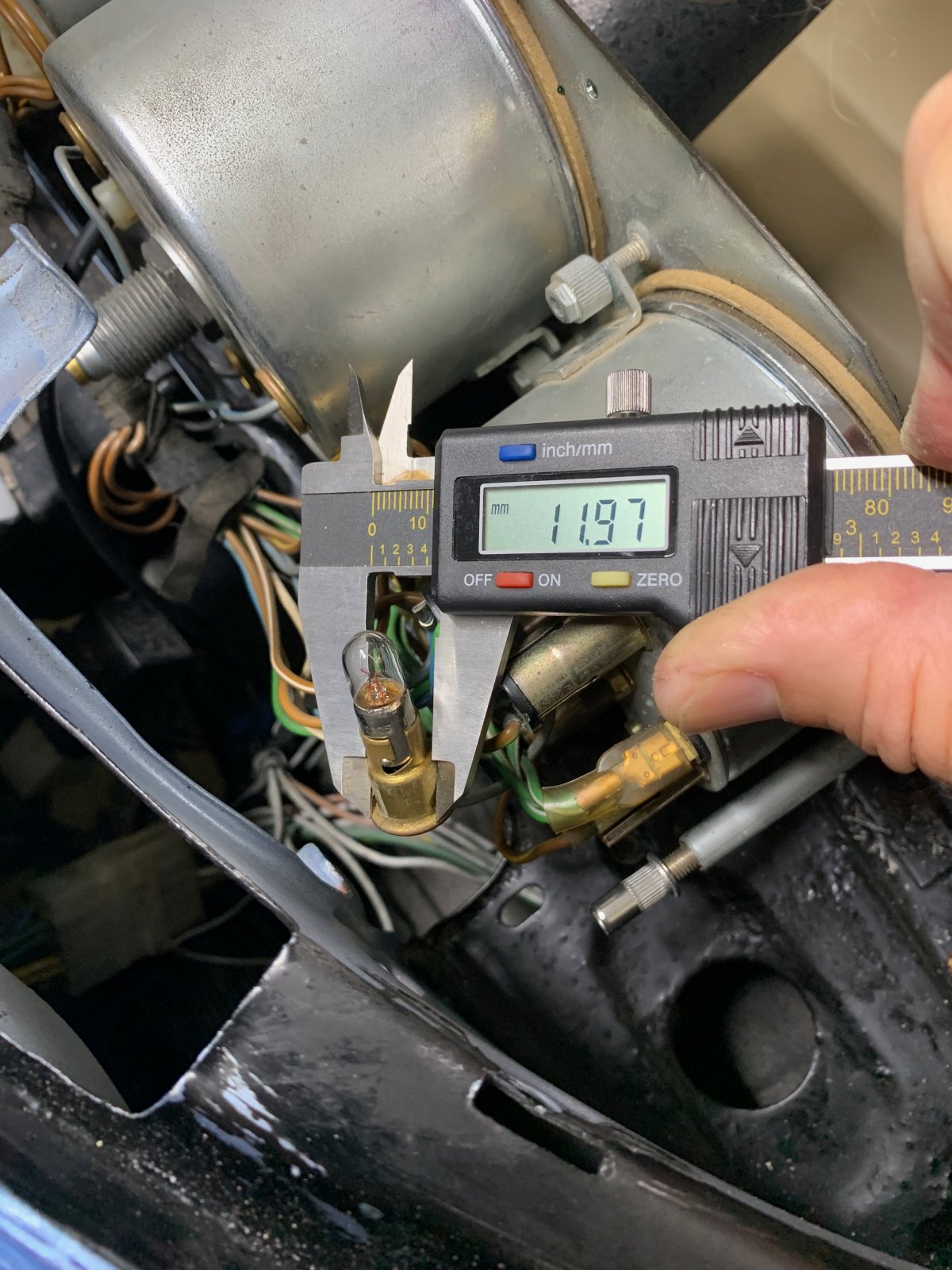

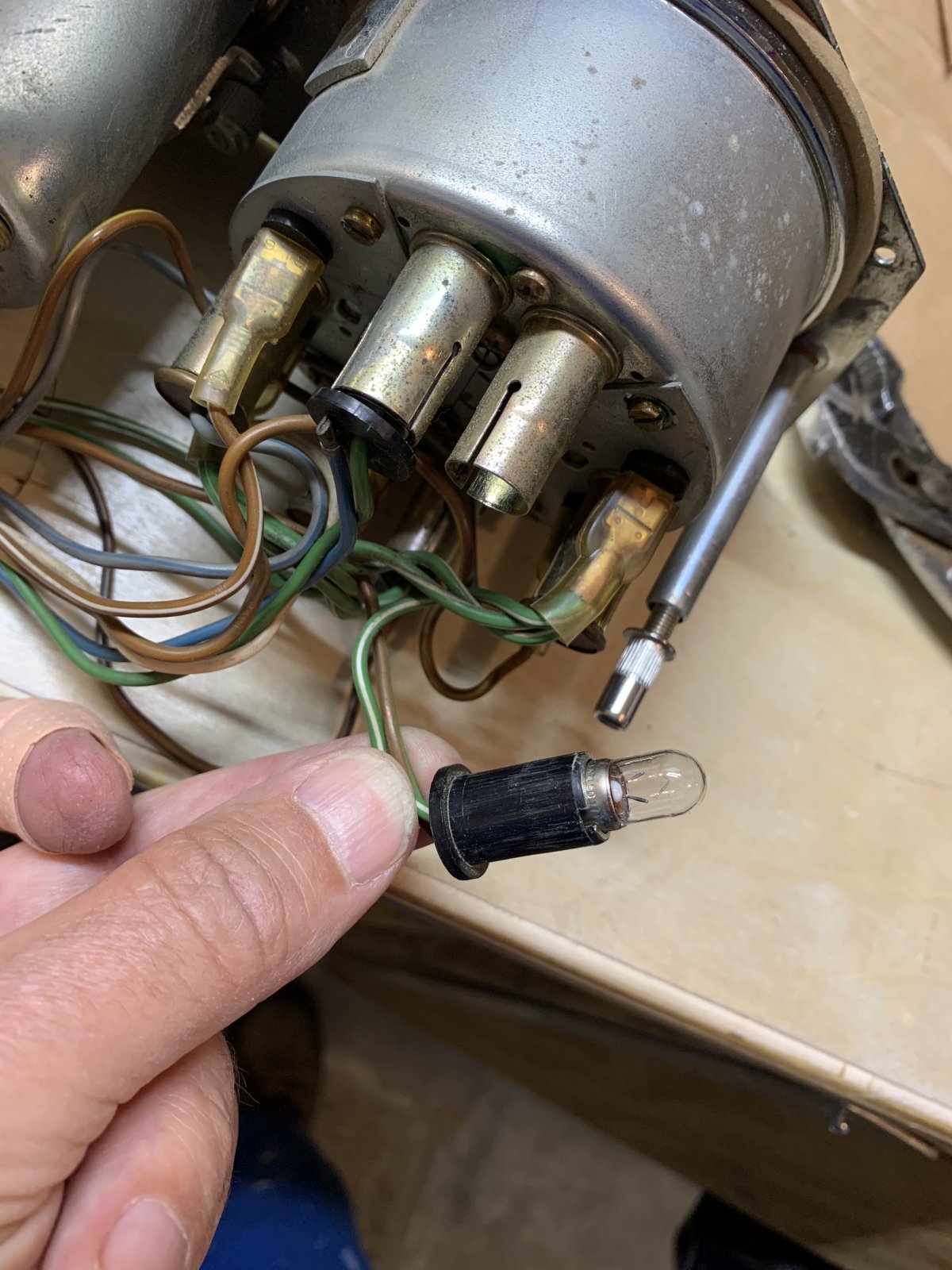

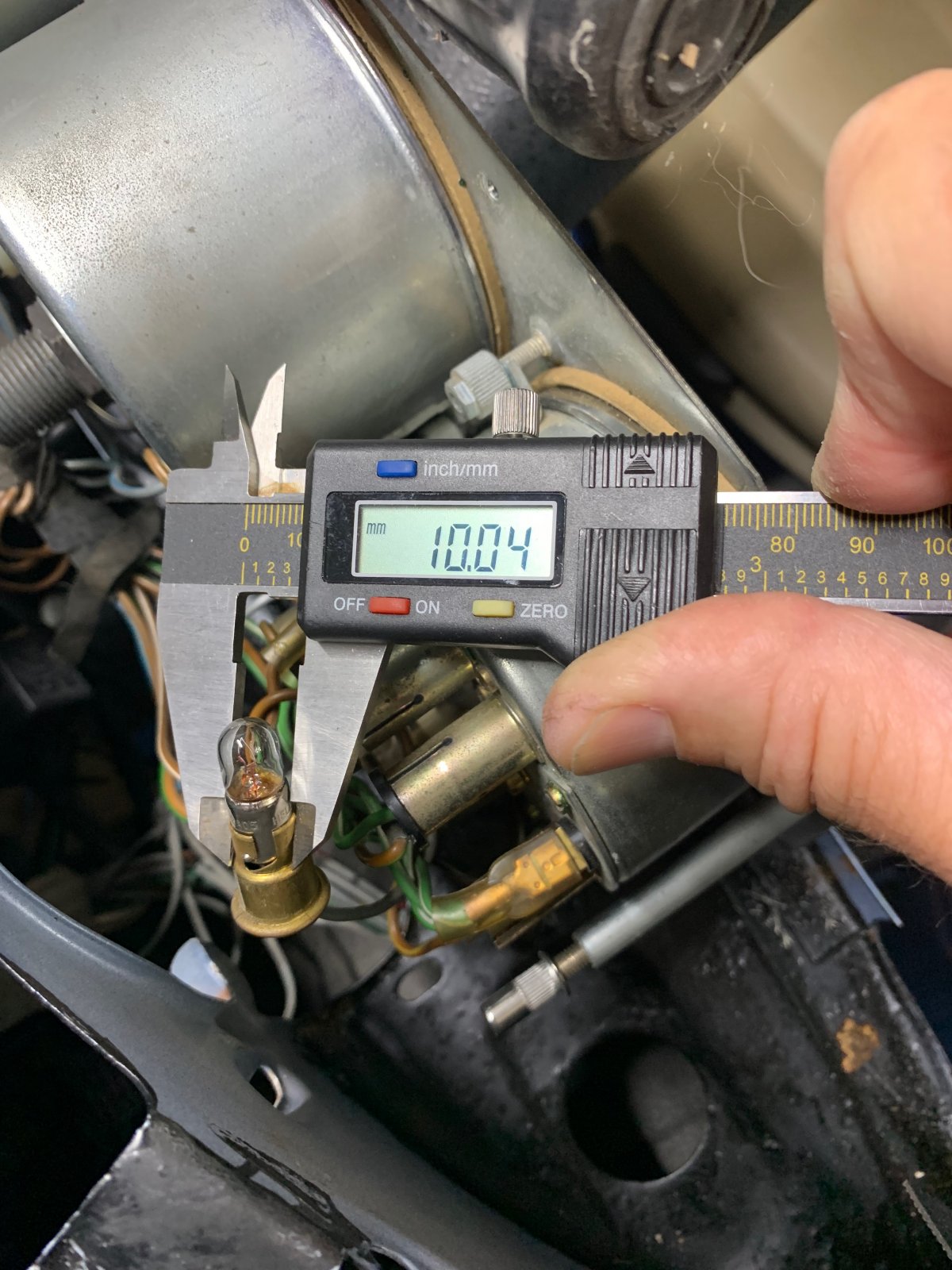

Diameter appears to be 12mm. The idiot lights (Oil, battery, etc) are plastic 2 conductors and the instrument ones are brass single conductor since they use chassis ground/earth. The instrument ones have a smaller "step" as well which is 10mm but the 12mm one makes the contact.

IMG_9609.jpg IMG_9610.jpg IMG_9611.jpg

Hi Again. I am sending you one gauge with harness attached. I had trouble removing the harness so I'm sending the complete gauge. You can take what you need and send back what you don't need.
Please email me your full name and address and I will mail it out asap. You can pay me whatever you feel it's worth plus the cost of shipping.
Thanks

Shipped gauge and harness today by USPS PRIORITY MAIL. TRACKING NUMBER 9505 5129 5407 2194 3475 16. Expected delivery Sa 7/16.

Harry,

The E9 Board system ate your conversation and I, apparently, got your email wrong. Can you send it again? I have the updated list of parts.

Regards, Jon
