WTB the bracket that attaches to the AC evaporator attachment plate

M

mark99

Well-Known Member
Site Donor
Messages
1,505
Reaction score
260
Location
Kirkland WA
WTB the bracket that attaches to the AC evaporator attachment plate

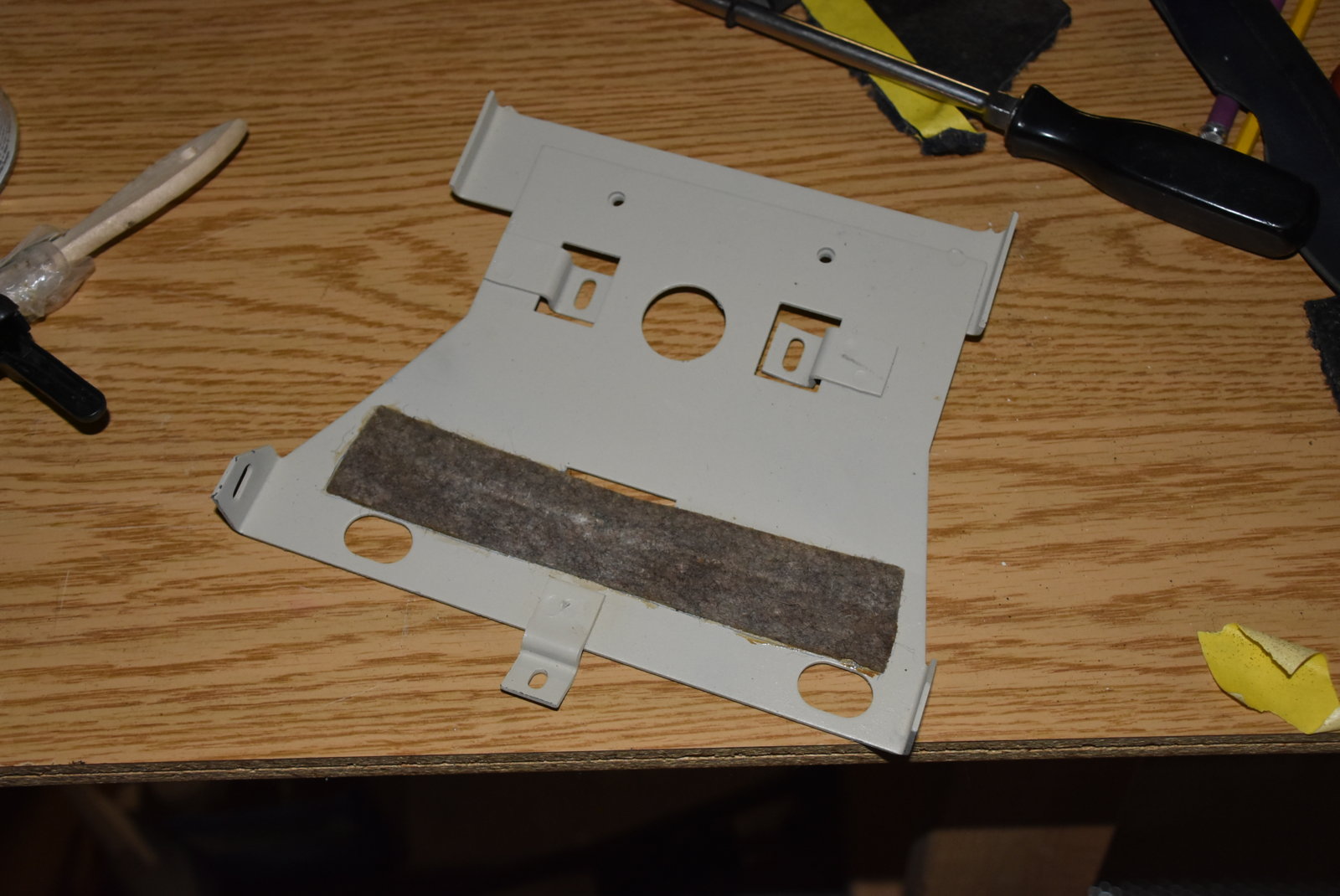

My plate is shown in the first photo, sitting on the table top

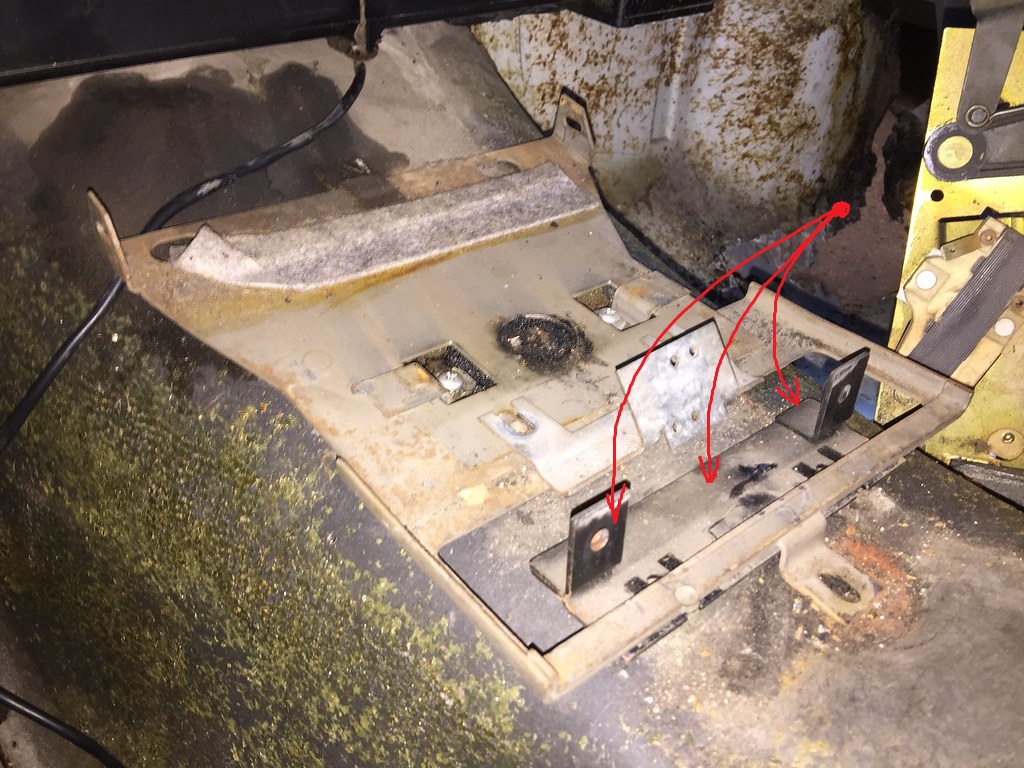

I think I am missing a bracket that attaches towards the rear of this plate, see second photo
Not that my plate is slightly different than the one shown in the car with the bracket attached
Thanks!





plate with bracket mark up 1.jpg

@mark99,

If you don’t have much luck, this should be very easy and quick to fabricate with aluminum angle. You will need a taller piece for the tunnel portion of the bracket. Since angle is symmetrical you will need to trim down the top piece. An angle grinder or band saw will cut through aluminum like butter.

Markos said:
@mark99,

If you don’t have much luck, this should be very easy and quick to fabricate with aluminum angle. You will need a taller piece for the tunnel portion of the bracket. Since angle is symmetrical you will need to trim down the top piece. An angle grinder or band saw will cut through aluminum like butter.
Click to expand...
I was trying to avoid making one, it is really a T bracket, the horizontal leg goes forward and aft for stability, so I would have to figure out how to do that
Maybe it doesn't have to do that

mark99 said:
I was trying to avoid making one, it is really a T bracket, the horizontal leg goes forward and aft for stability, so I would have to figure out how to do that
Maybe it doesn't have to do that
Click to expand...

I doubt that it matters but you can get an aluminum T. I only recommend aluminum because it is a lot easier to work with.

Hope ya find one! It's gonna take a LOT of patience to reinstall the AC box and that plastic vent contraption on top, give yourself plenty of time. ;)

Thomas76 said:
Hope ya find one! It's gonna take a LOT of patience to reinstall the AC box and that plastic vent contraption on top, give yourself plenty of time. ;)
Click to expand...
What hold the vent thing in place? friction? there doesn't seem to be any fastener holes, clips etc.

Patience is also ‘holding’ it together....lots of it in fact.


Sent from my iPhone using Tapatalk
