WTB - trunk support pieces

[rsporsche]

guys in looking through things at the painter's shop, i have found a few things missing that i need to replace. the first things are pieces for the trunk hold open support.

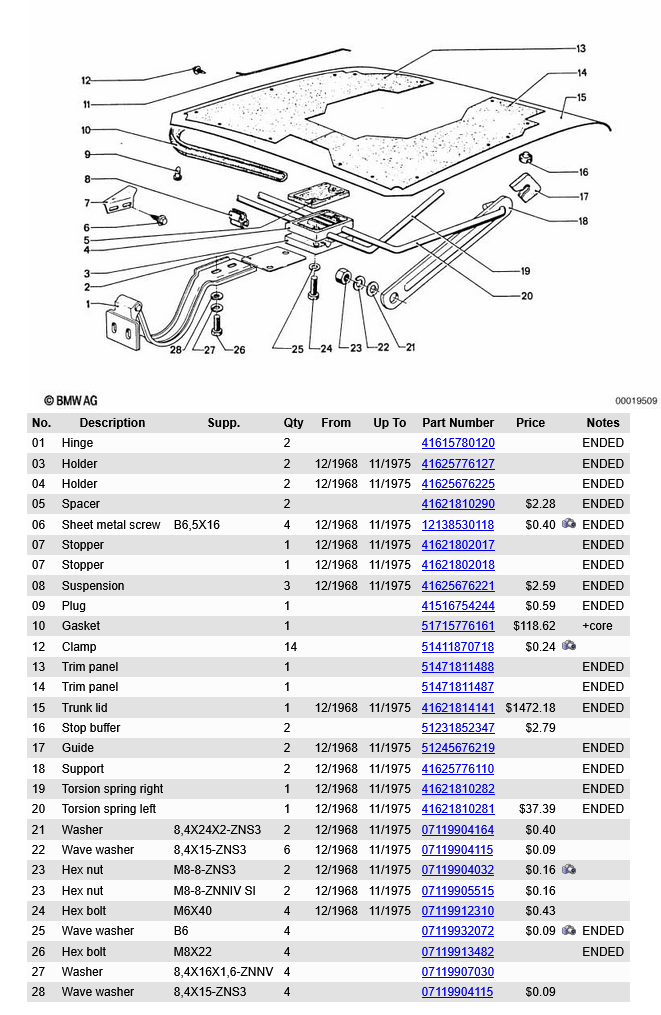

i am looking for the
#2 plate
#5 spacer
#18 support arm (2)



[jmackro]

What about part #17, the "Guide", p/n 51245676219? That shows as "Ended". Anyone have a lead on a supplier who might be 3-D printing or otherwise reproducing these?



[rsporsche]

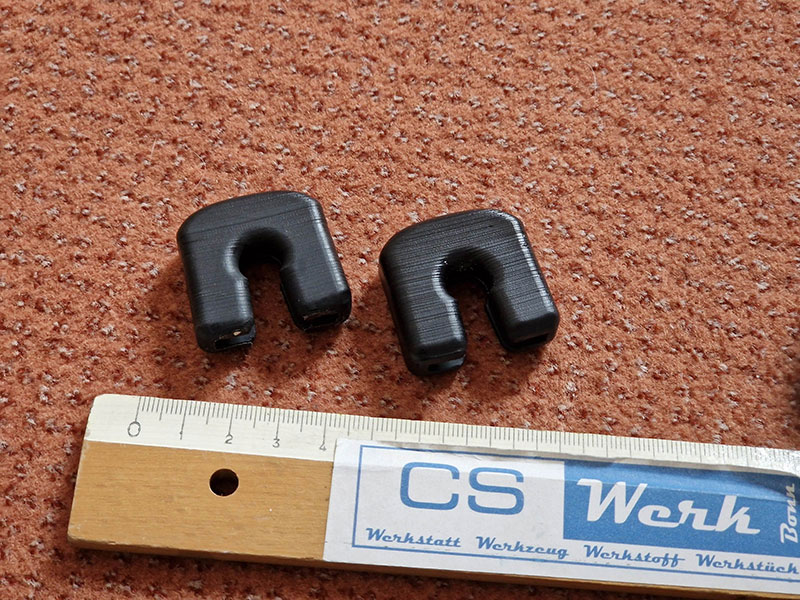

Jay, you can buy those from Christoph Bier at CSWerk.de

BMW E9 Endkappen - CS Werk Bonn

Produktname: Endstücke Scharnier Heckdeckel Set Farbe: schwarz seidenmatt Teilenummer: entspricht 51 24 5 676 219 Lage: Position 17 in Skizze Sonstiges: 3D Druck Preis: 14,00 € + Versandkosten* *Versandkosten innerhalb Deutschland: Diese richten sich je nach Größe, Gewicht und Versandziel...

www-cs--werk-de.translate.goog



[Koopman]

I guessw these may be what you are looking for.
Let me know if they are.



[rsporsche]

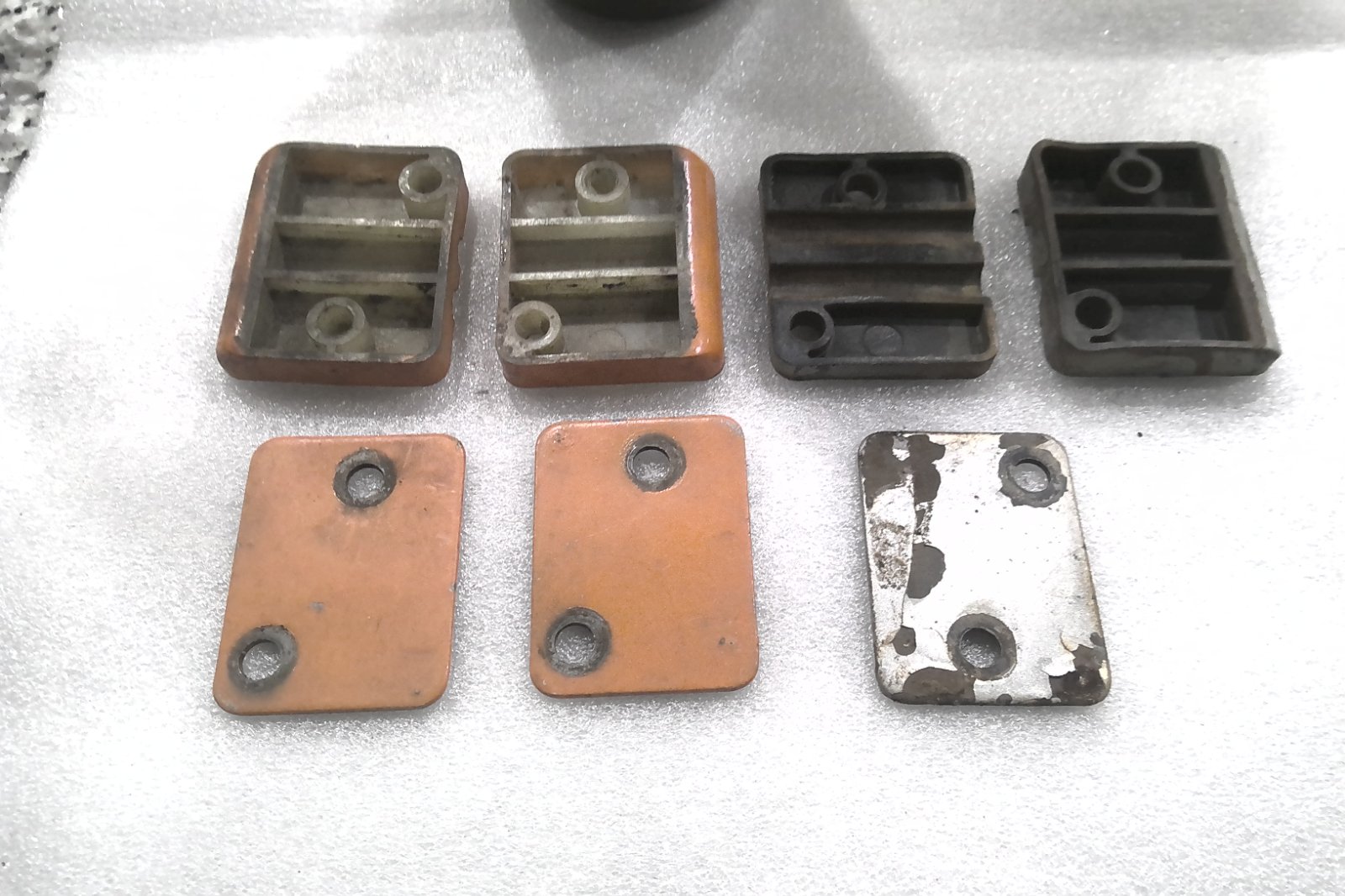

Harry, at least one of the pieces is. one of the pieces is a thicker spacer that goes between the pieces that hold the torsion bars and the trunk lid ... the thin piece goes between the trunk hinge and the other piece that holds the torsion bar. the pieces that hold the torsion bars have the 2 half-round slots in them. i bought a new set of those from CS-Werk already, so i don't need those 4 pieces. i just need one of the thin plates and the slightly thicker spacer.



[Koopman]

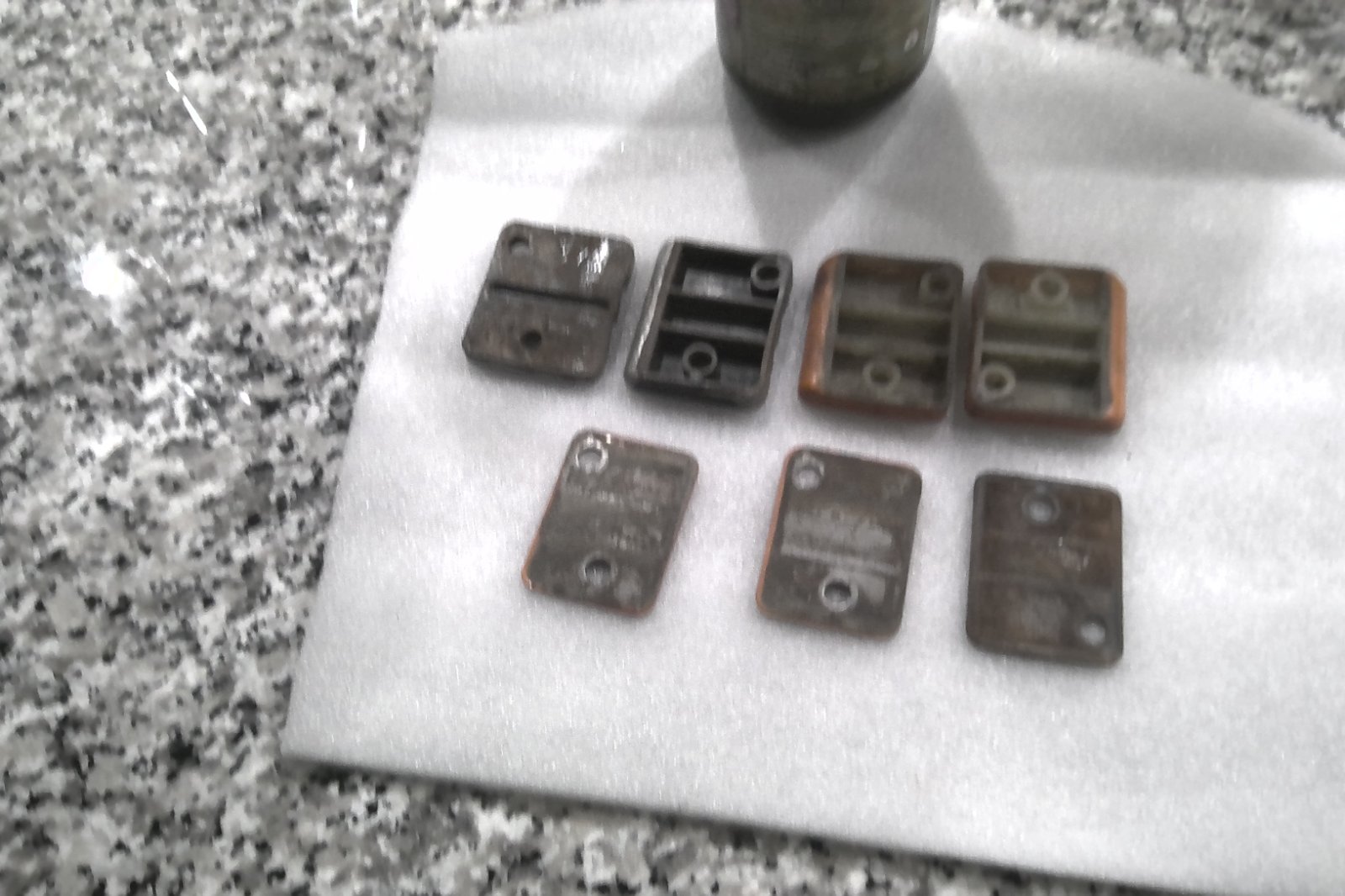

One of the orange pieces and the one next to it that looks rusty????



[rsporsche]

One of the orange pieces and the one next to it that looks rusty????

those 3 pieces all look to be the same part. you need 2 of them for a coupe ... i still have 1 set of this one. the other part i need is the thicker spacer ... and it doesn't look like you have that one.



[jmackro]

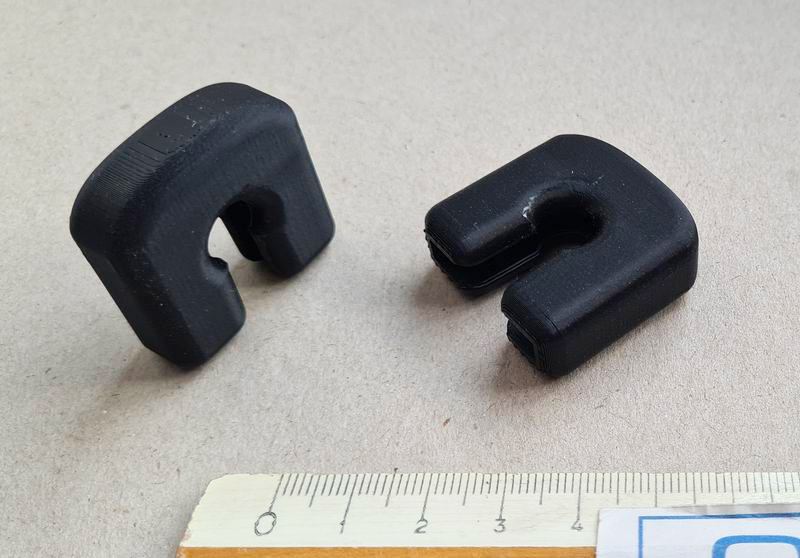

Jay, you can buy those from Christoph Bier at CSWerk.de

BMW E9 Endkappen - CS Werk Bonn

Produktname: Endstücke Scharnier Heckdeckel Set Farbe: schwarz seidenmatt Teilenummer: entspricht 51 24 5 676 219 Lage: Position 17 in Skizze Sonstiges: 3D Druck Preis: 14,00 € + Versandkosten* *Versandkosten innerhalb Deutschland: Diese richten sich je nach Größe, Gewicht und Versandziel...

www-cs--werk-de.translate.goog

OK, thank you!
