A/C Wiring Diagram for 1975 CSi – Need Help

[HB Chris]

Early thru `73 has a heater fan bypass relay above the fuse box that was eliminated in 74/75 as it is now part of the revised a/c fan switch.



[ScottAndrews]

Early thru `73 has a heater fan bypass relay above the fuse box that was eliminated in 74/75 as it is now part of the revised a/c fan switch.

Is there a diagram for that anywhere?



[Dlc]

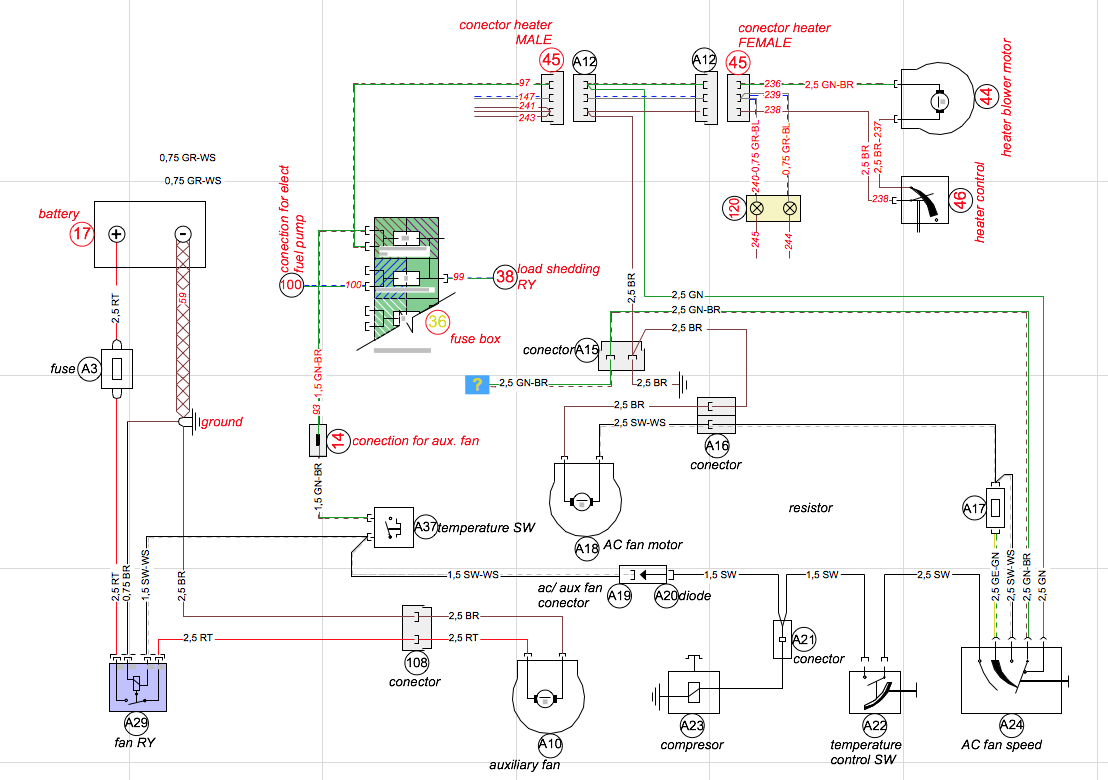

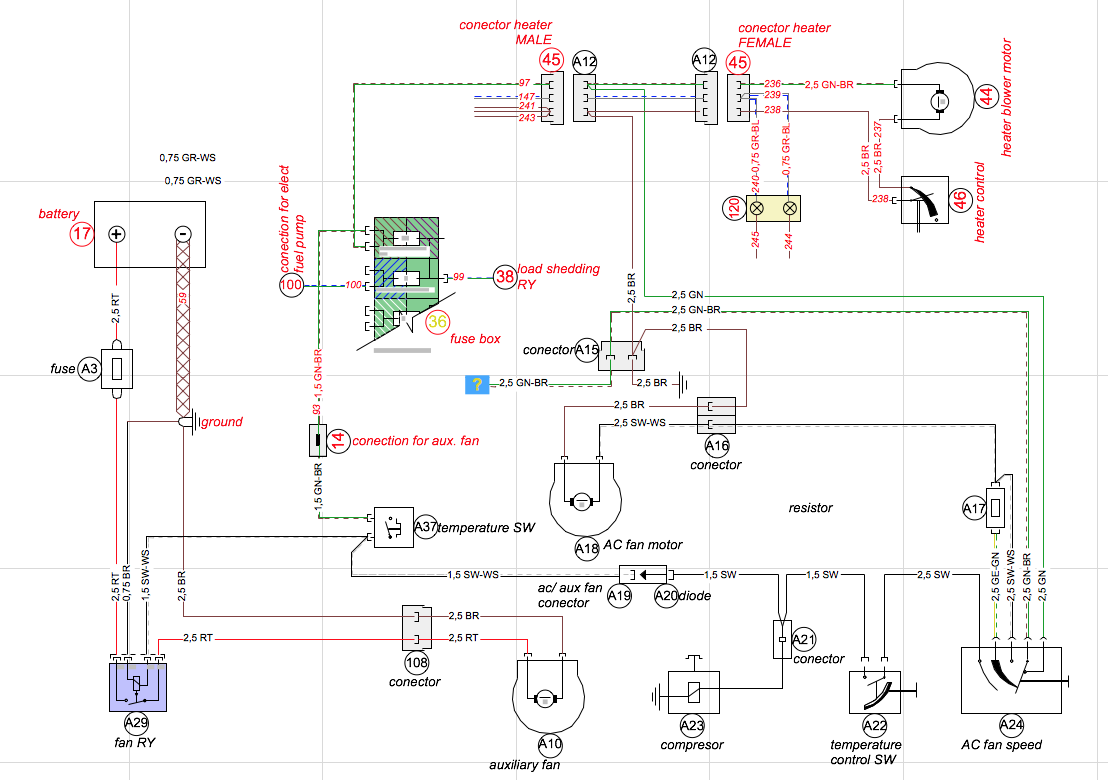

https://e9coupe.com/forum/media/ac-wiring-diagram-73-75-jpg.4625/



[Dlc]

https://e9coupe.com/forum/media/ac-wiring-diagram-73-75-jpg.4625/

and here is the earlier version:

https://e9coupe.com/forum/media/2800cs-ac-wiring-diagram-png.4622/

both available in the media section



[ScottAndrews]

and here is the earlier version:

https://e9coupe.com/forum/media/2800cs-ac-wiring-diagram-png.4622/

both available in the media section

Thanks!!
