E9 Parts dimensions, drawings, technical info and models

[Ohmess]

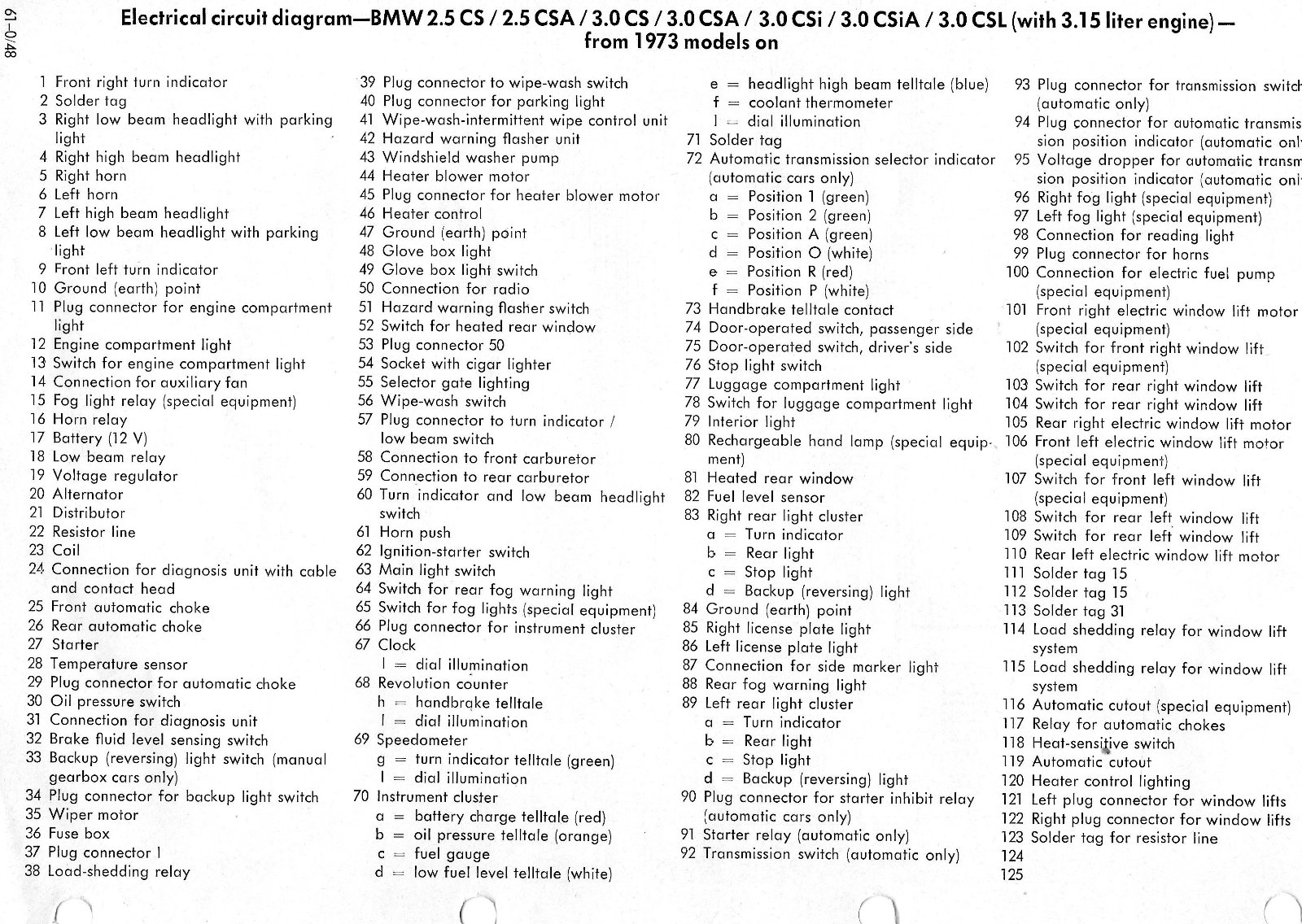

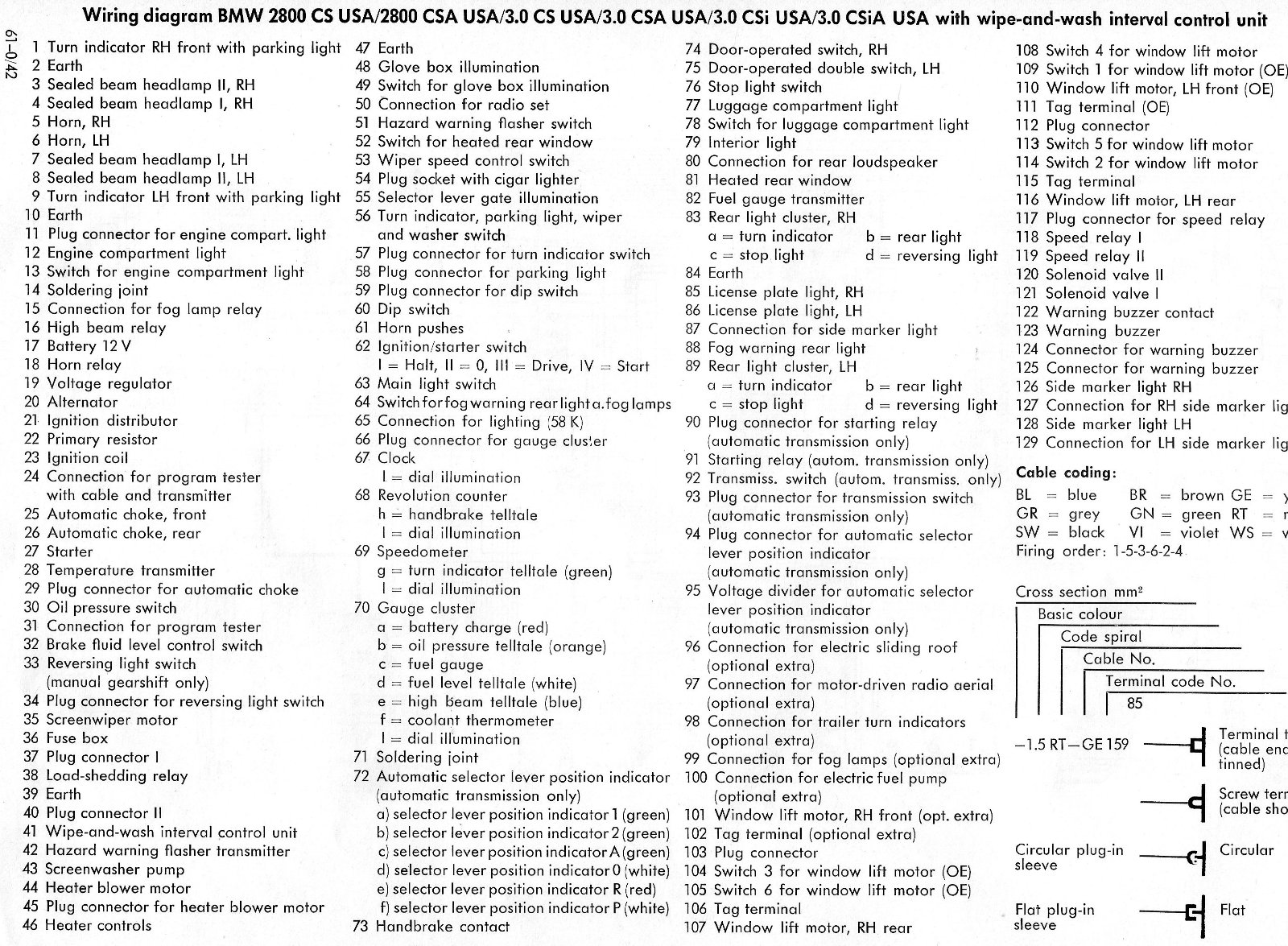

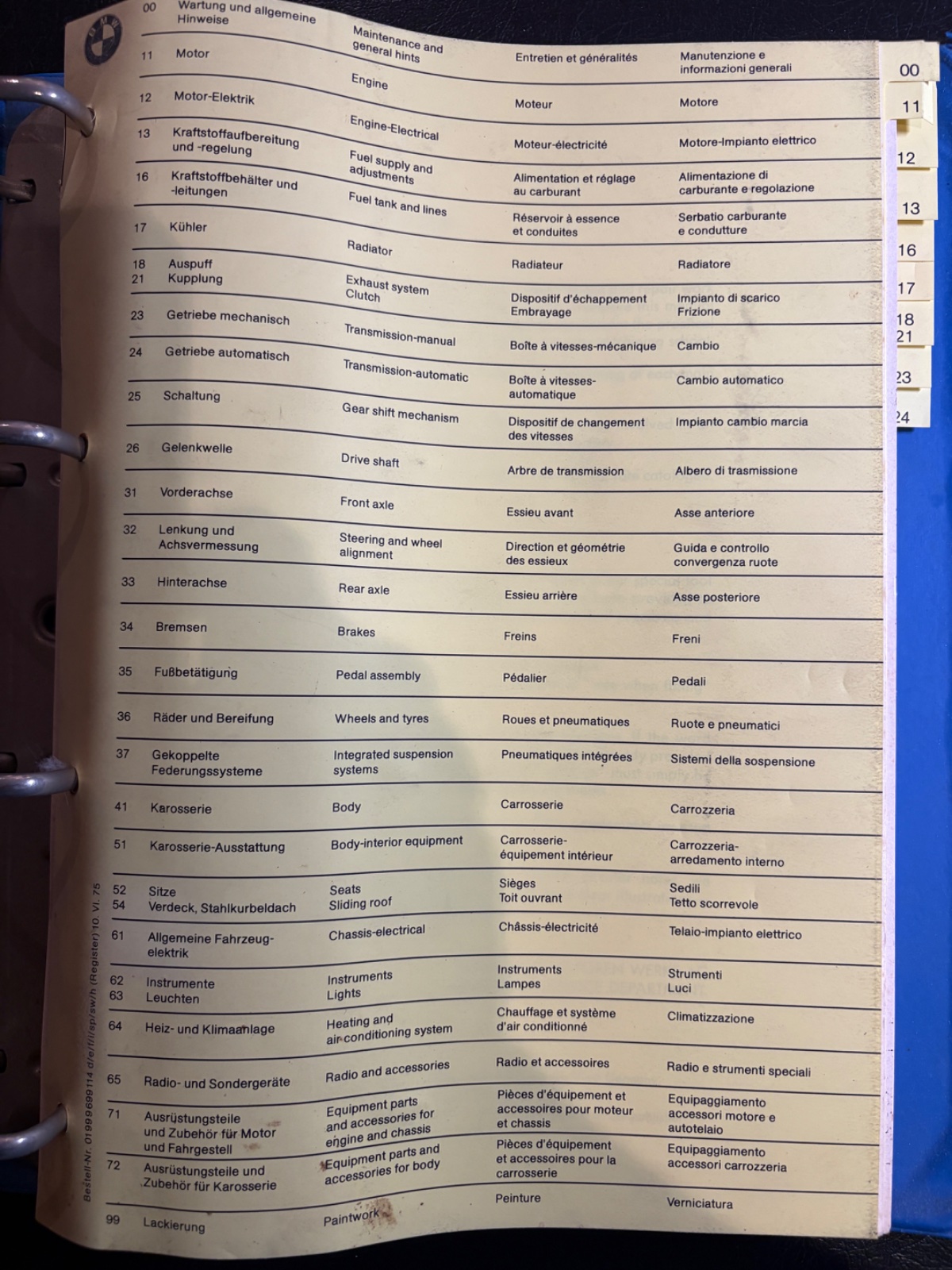

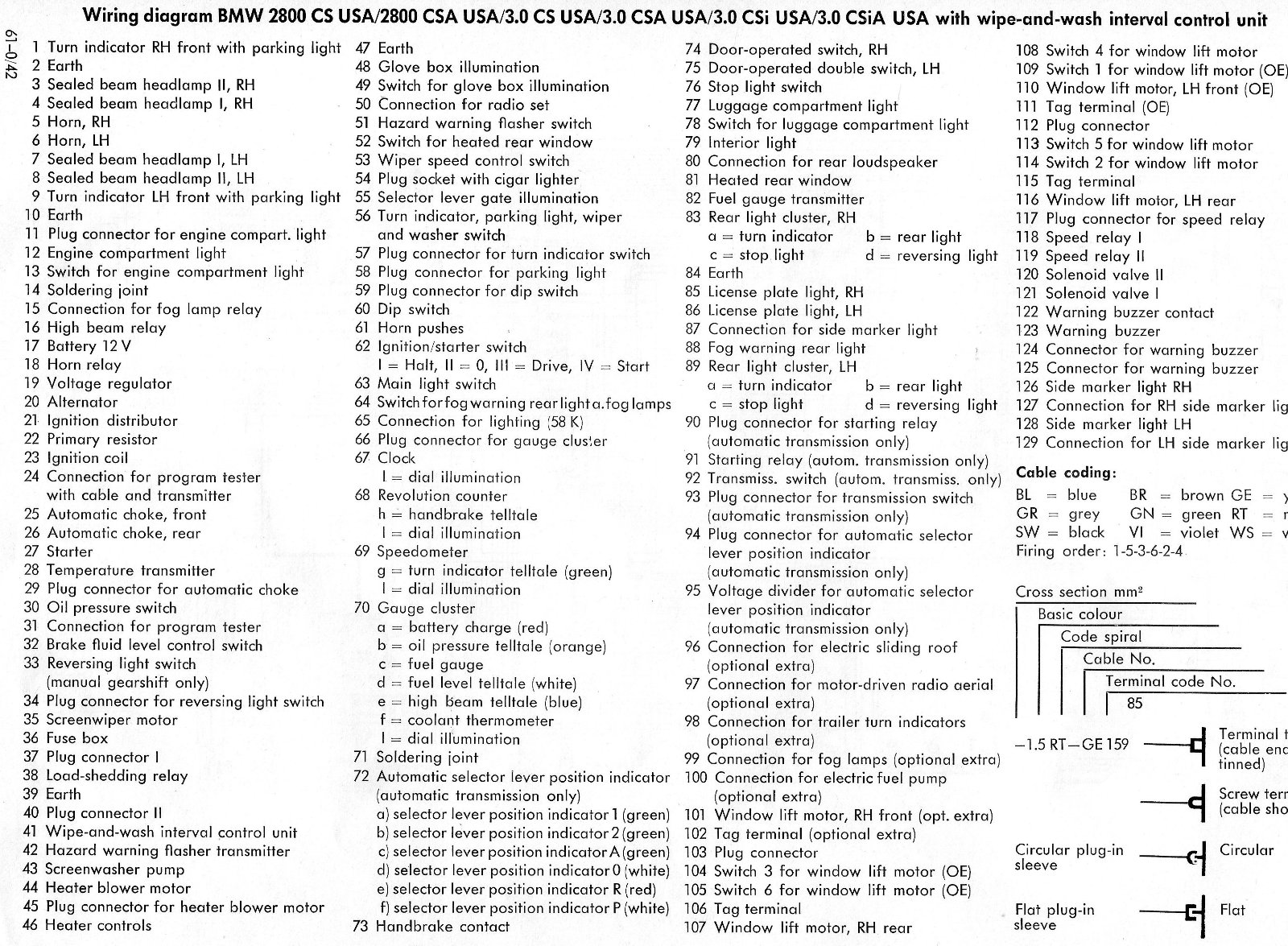

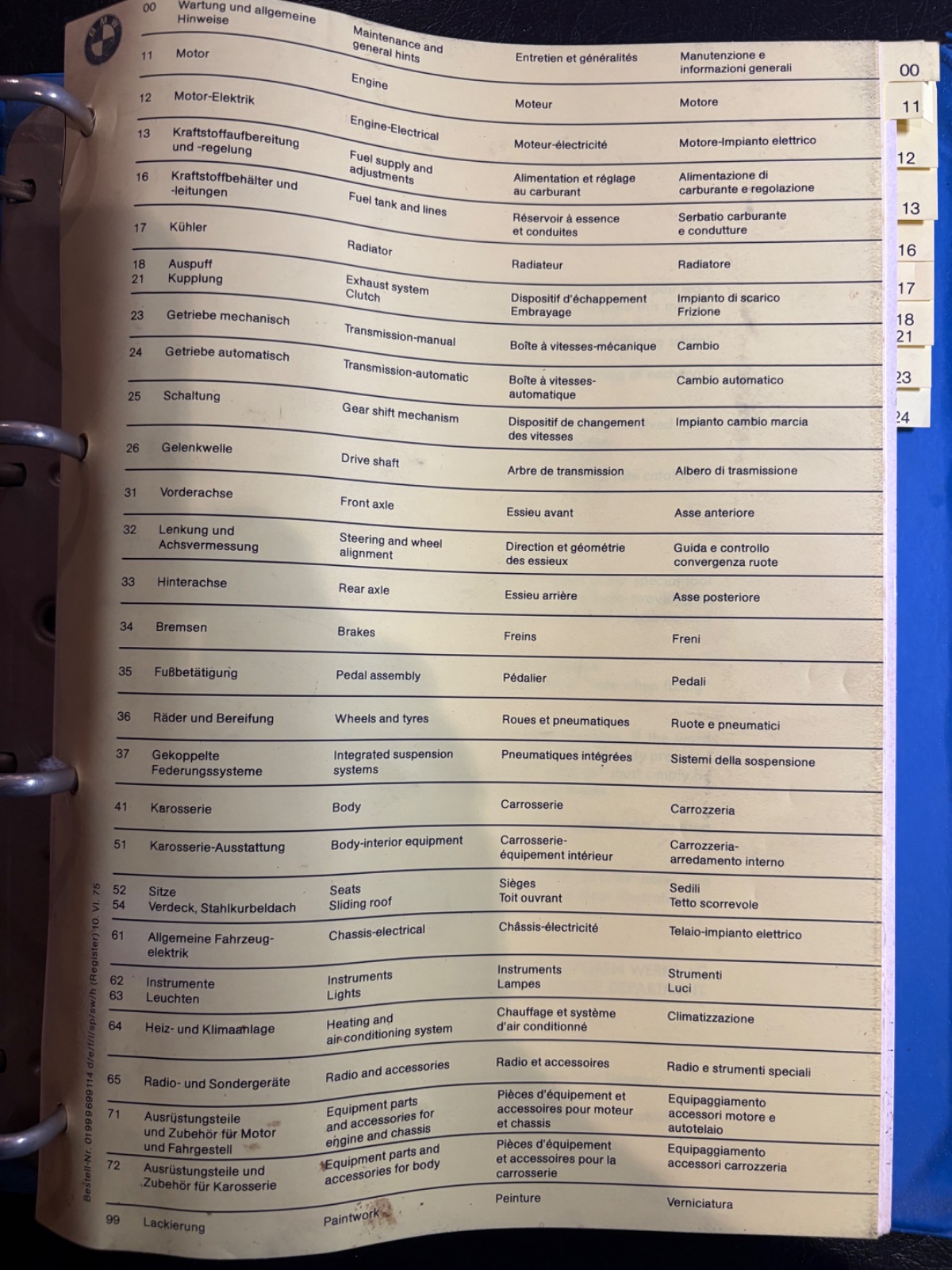

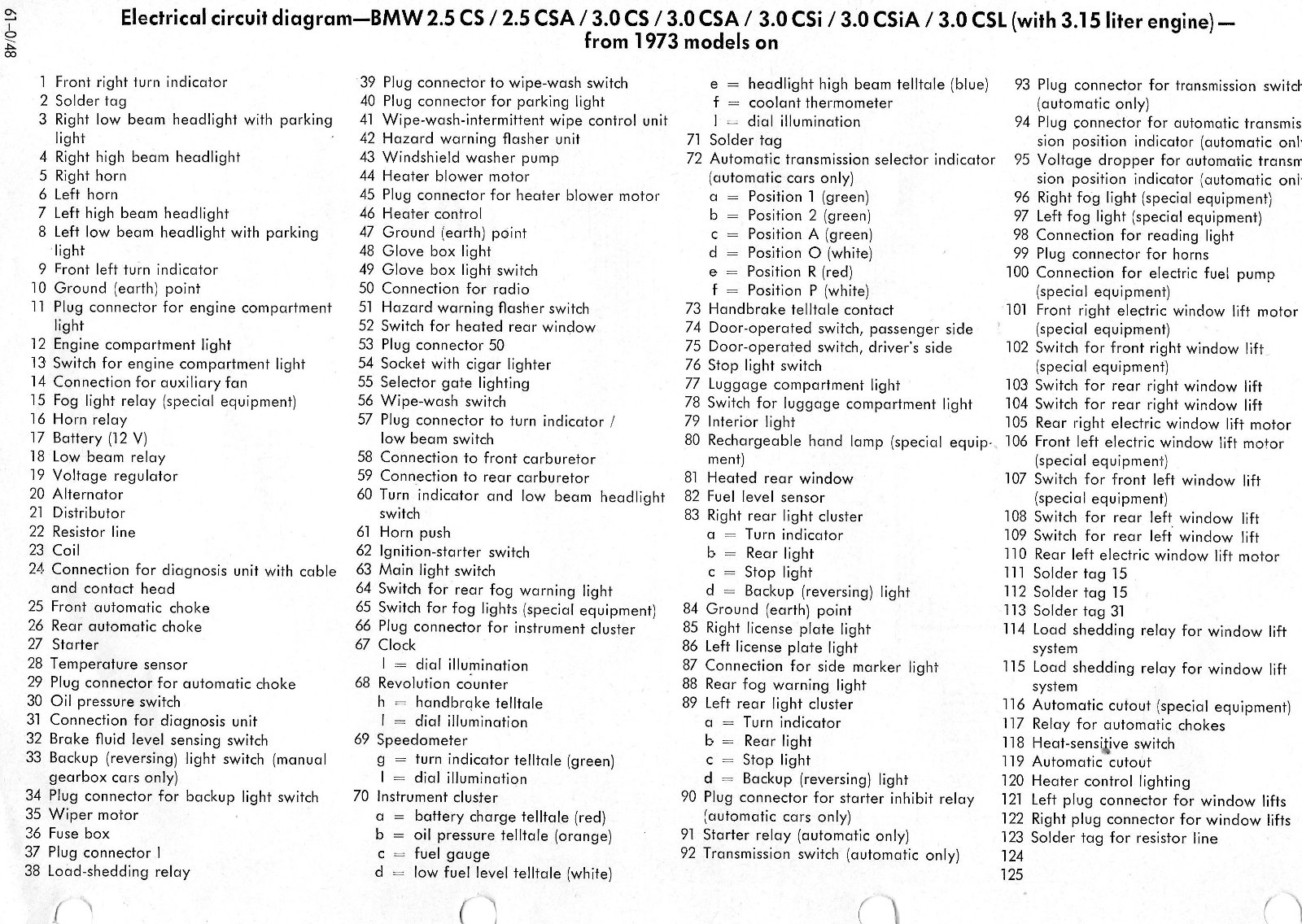

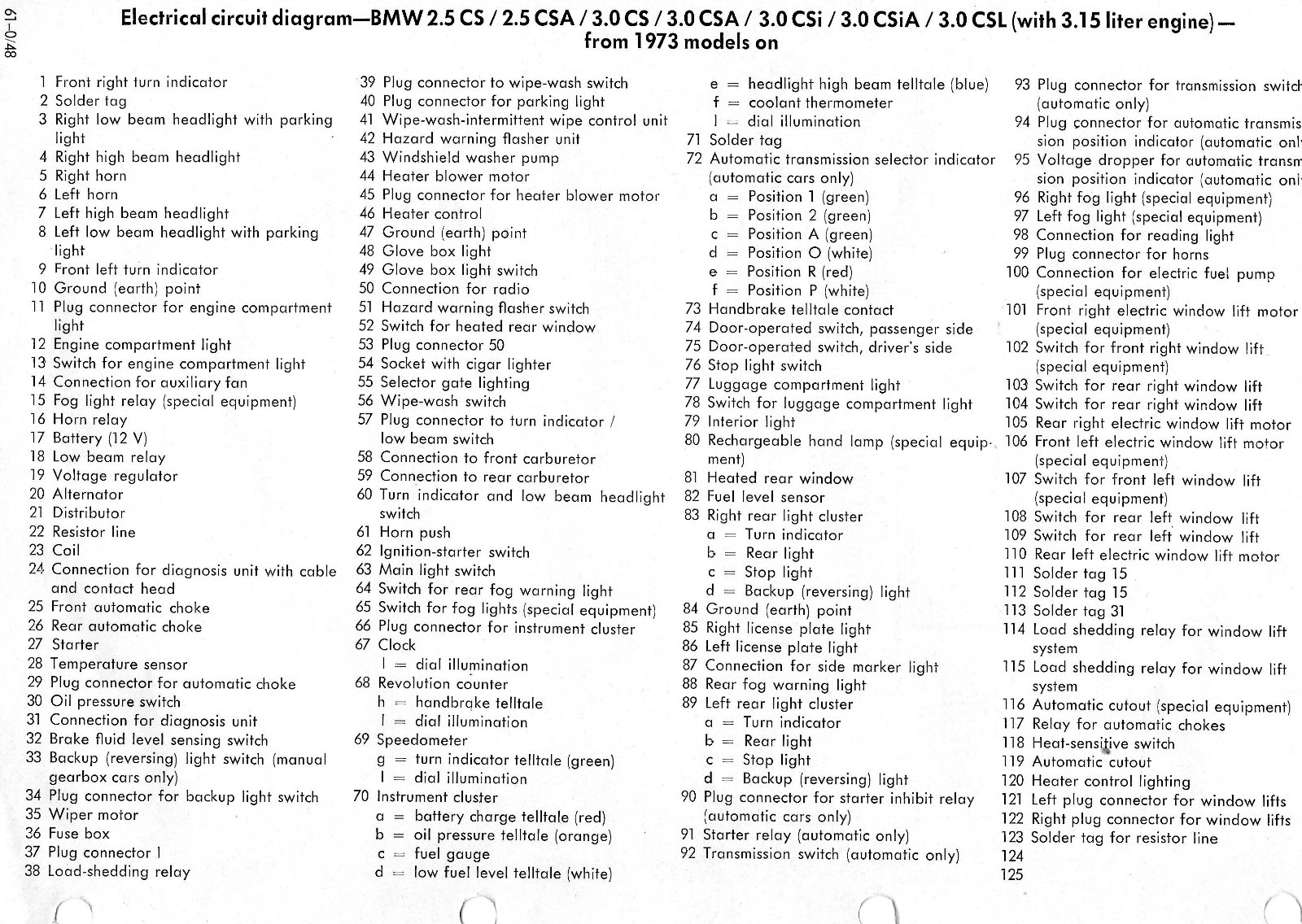

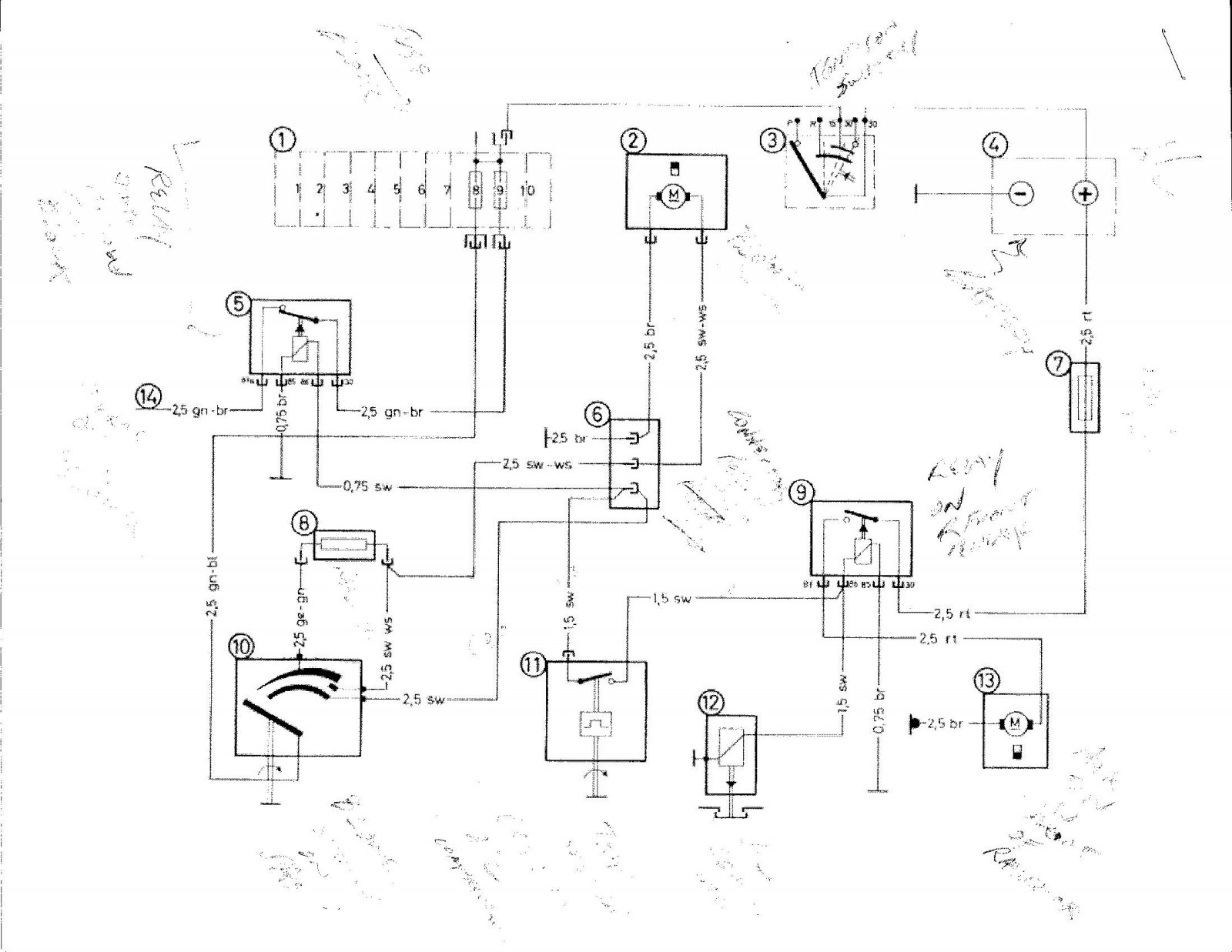

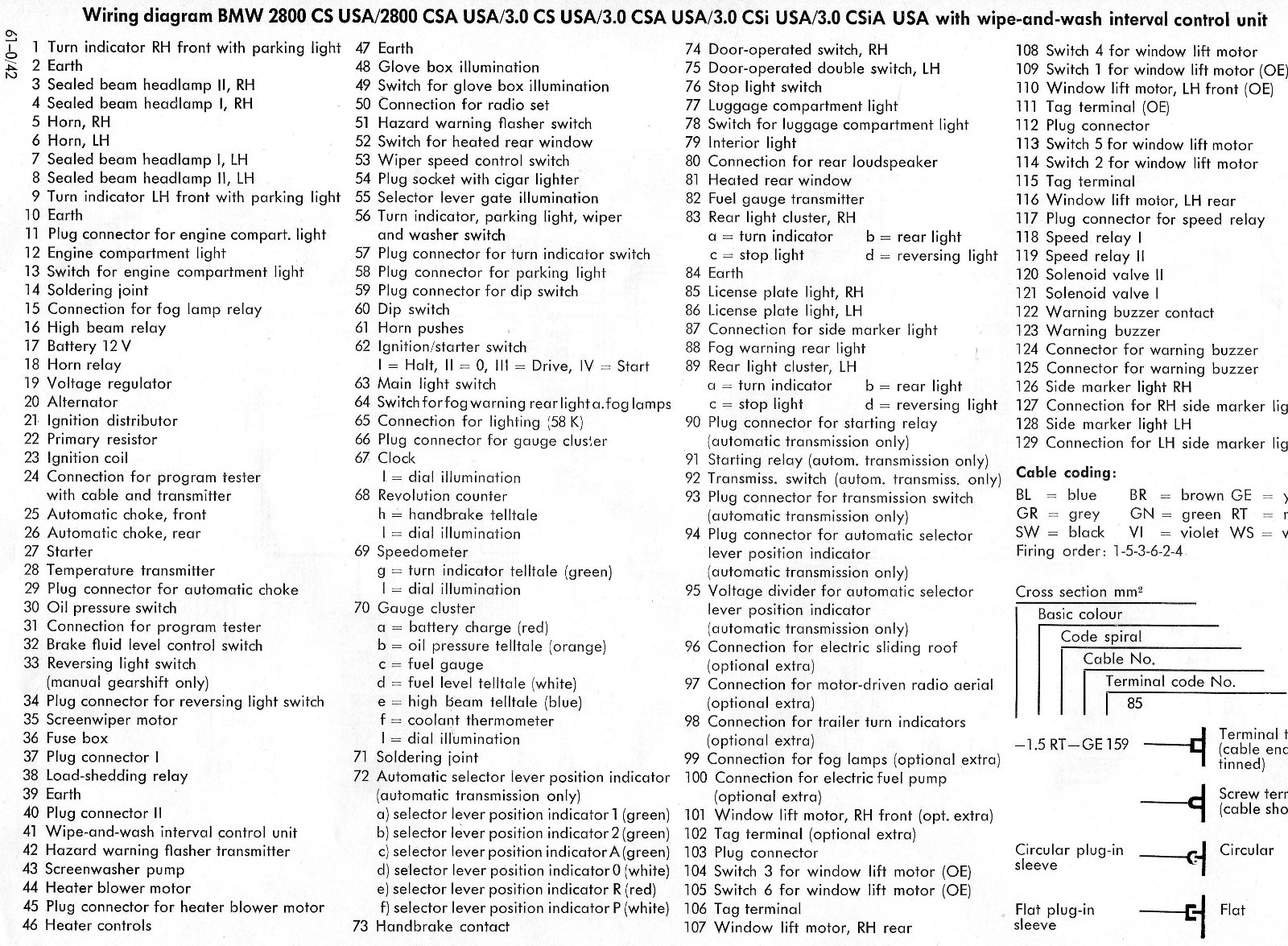

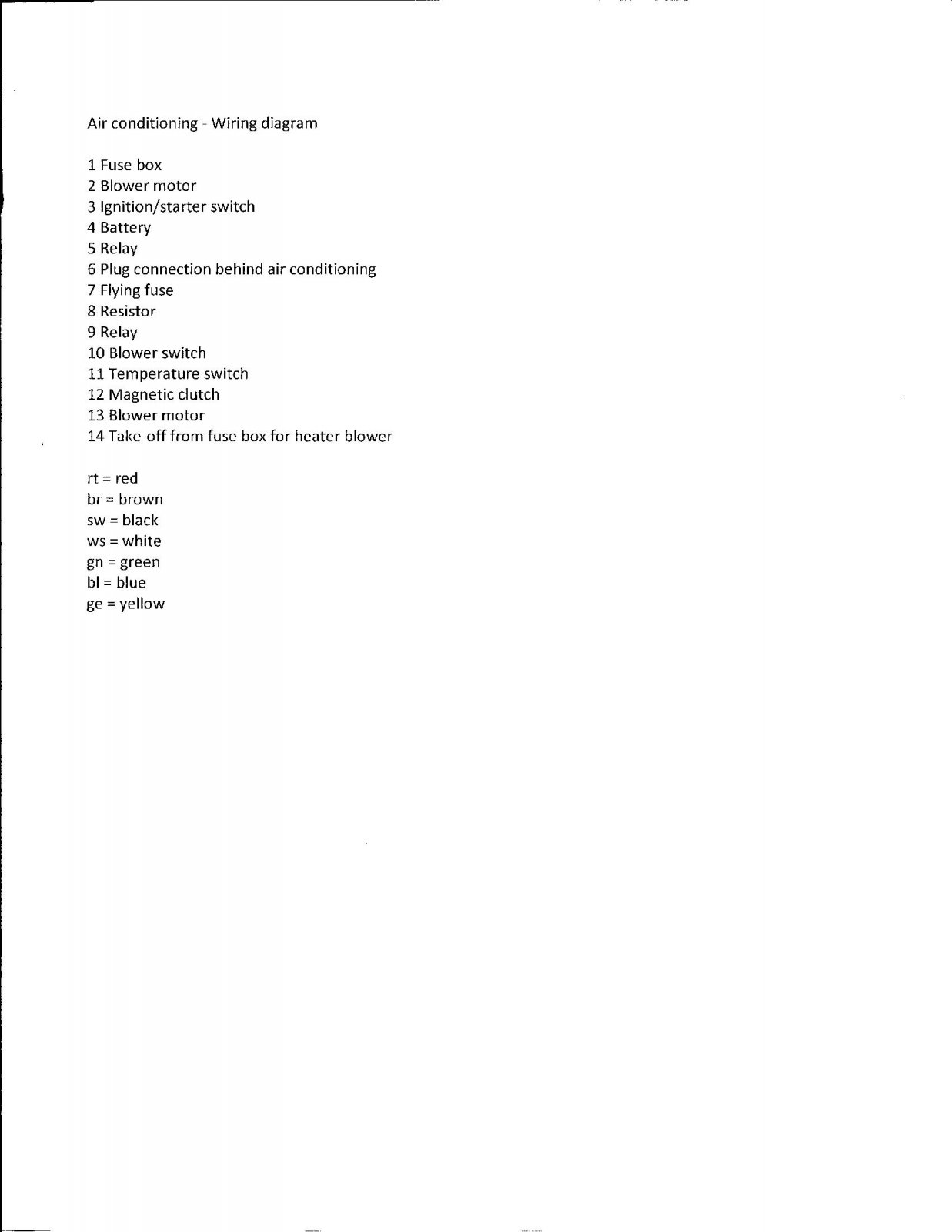

And, if this is helpful, here is the diagram I have for the A/C electrical:



[rsporsche]

here is a pdf of a drawing of the gauge panel, very similar to the Alpina panel. it is made from a piece of sheet metal that is 1.5mm thick and painted on both sides with a black textured paint. if somebody needs the autocad file to have it cut out ... send me a PM



[frogish]

Great great thread! Does anyone have a drawing of the side panels in the trunk? (the ones sitting against the fenders)



[rsporsche]

you have to remember that the side panels in the original car were simply elephant skin glued to the inner side of the fender. there were NO panels per se. if you want panels, i would recommend that you contact @alprada70 and buy a set that he is making ... they are quite nice.
