E9 Steering Box?

Zaprace

Zaprace

New Member
Messages
6
Reaction score
3
Location
Manchester

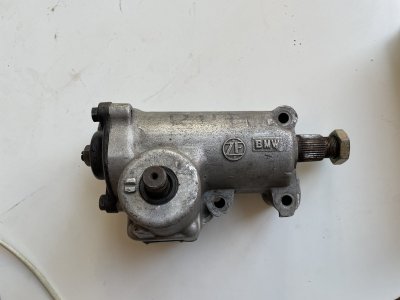

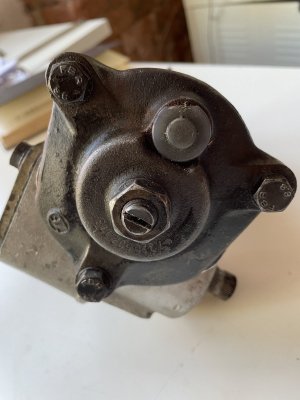

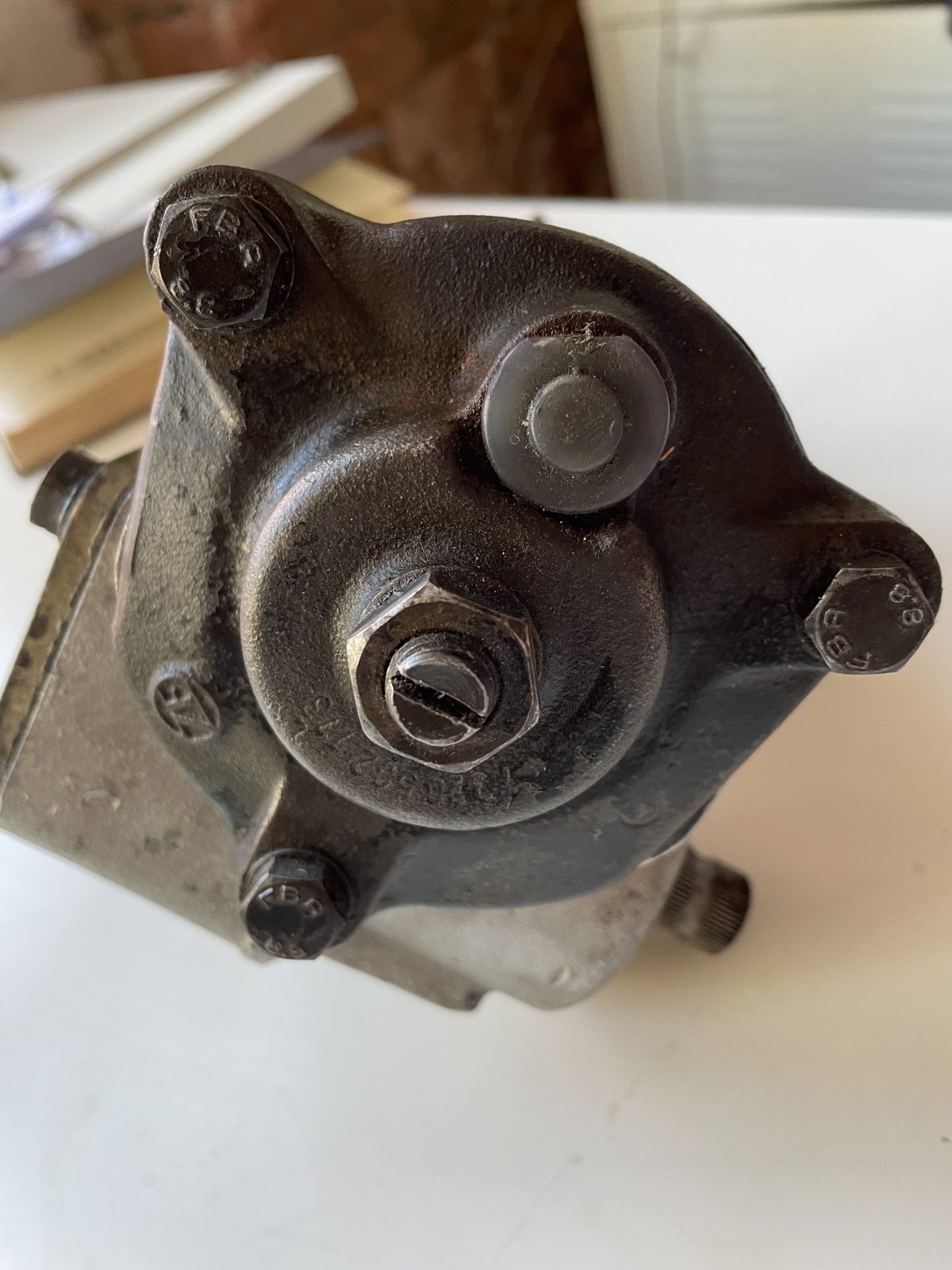

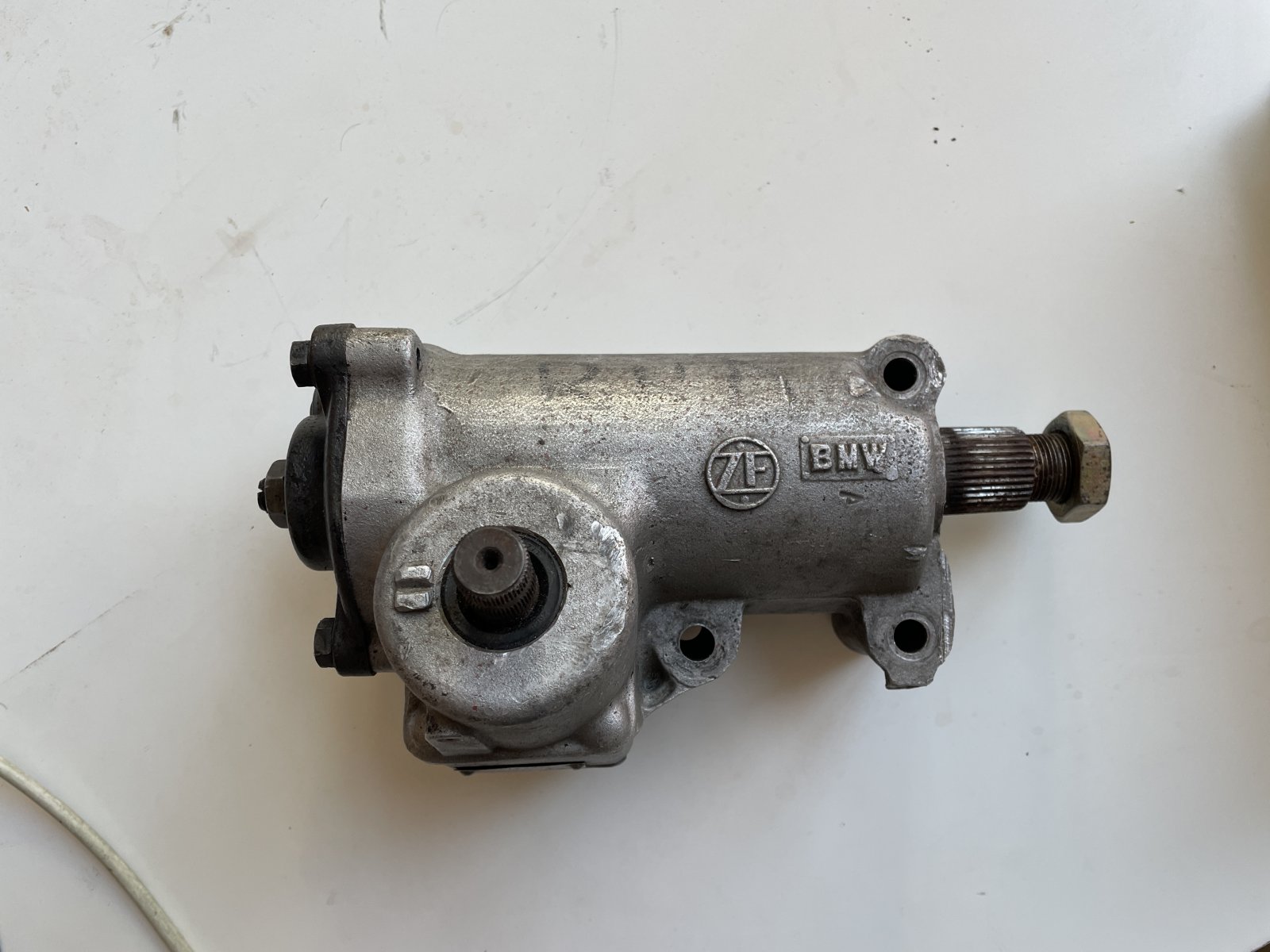

Early right hand drive steering box, maybe from an CS? I've seen another with the same 120 number (ending) but any definitive info would be appriciated.
Someone thought it could be from an E3 but that would be unlikely.

Many thanks, Art


Attachments

  • IMG_2147.JPG
    189.4 KB · Views: 67
  • IMG_2148.JPG
    259.9 KB · Views: 53
  • IMG_2149.JPG
    236.1 KB · Views: 57
  • IMG_2150.JPG
    273.9 KB · Views: 56
Last edited:
Keshav

Keshav

Well-Known Member
Site Donor $$
Messages
2,772
Reaction score
2,784
Location
Germany
Zaprace said:
Early Right Hand Drive steering box, maybe from an early CS? I've seen another with the same 120 number (ending) but any definitive info would be appriciated.

Many thanks, Art
Click to expand...
Hi Art,

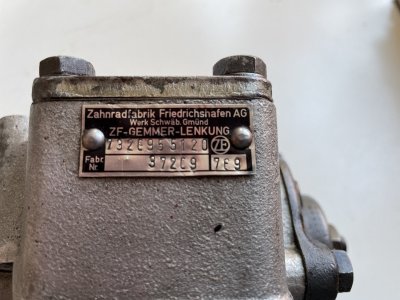

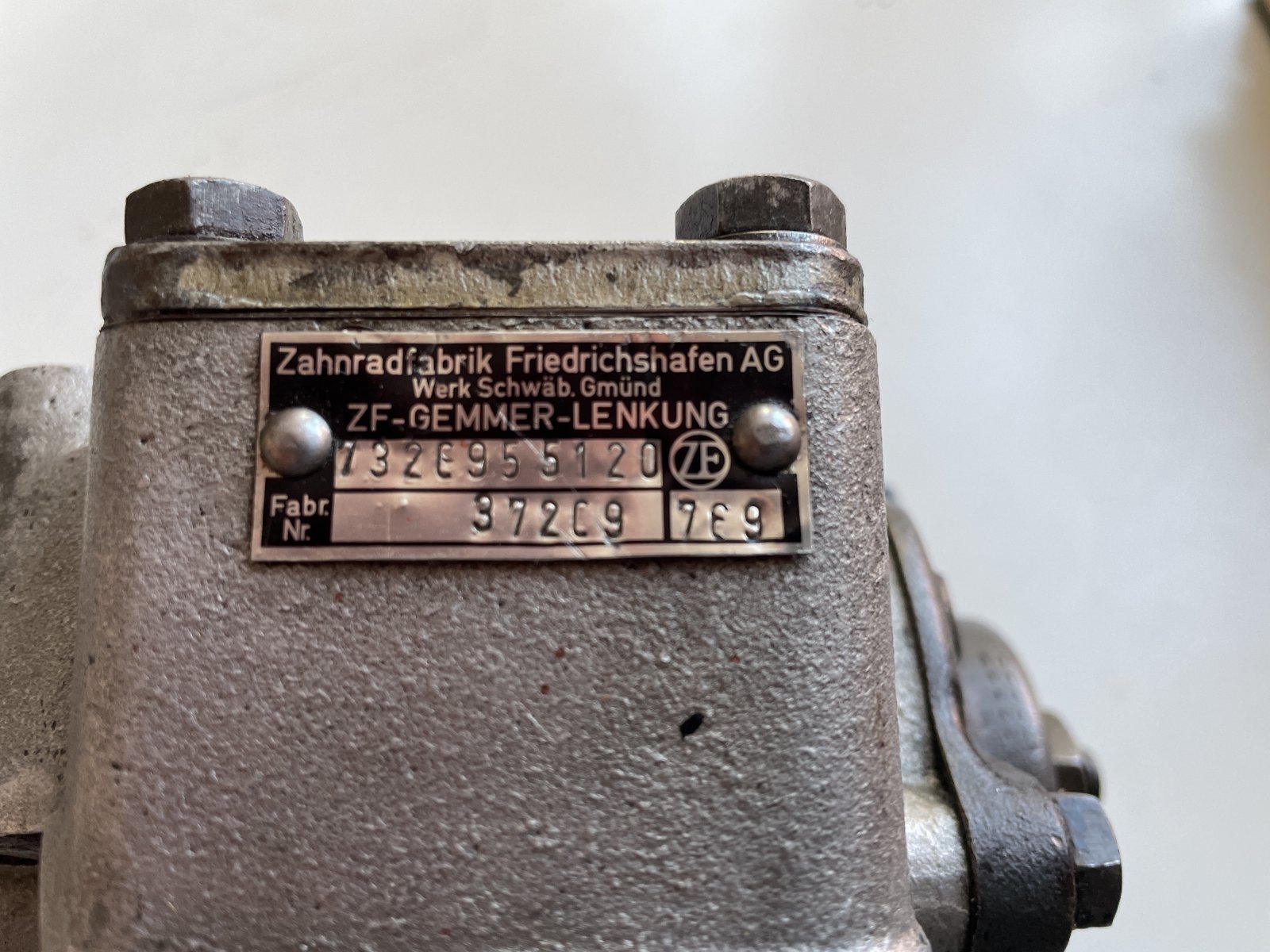

That is correct… RHD Manual steering box is 512 0 or 7 or 9 as the various plaques are stamped as opposed to the LHD which is 5108
My take is insufficient admittedly :)

regards
Keshav


Last edited:
Zaprace

Zaprace

New Member
Messages
6
Reaction score
3
Location
Manchester

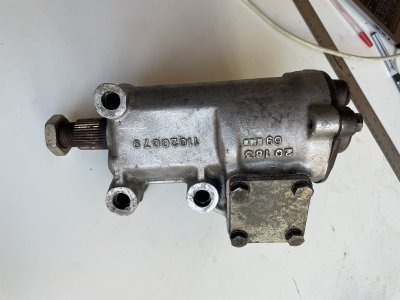

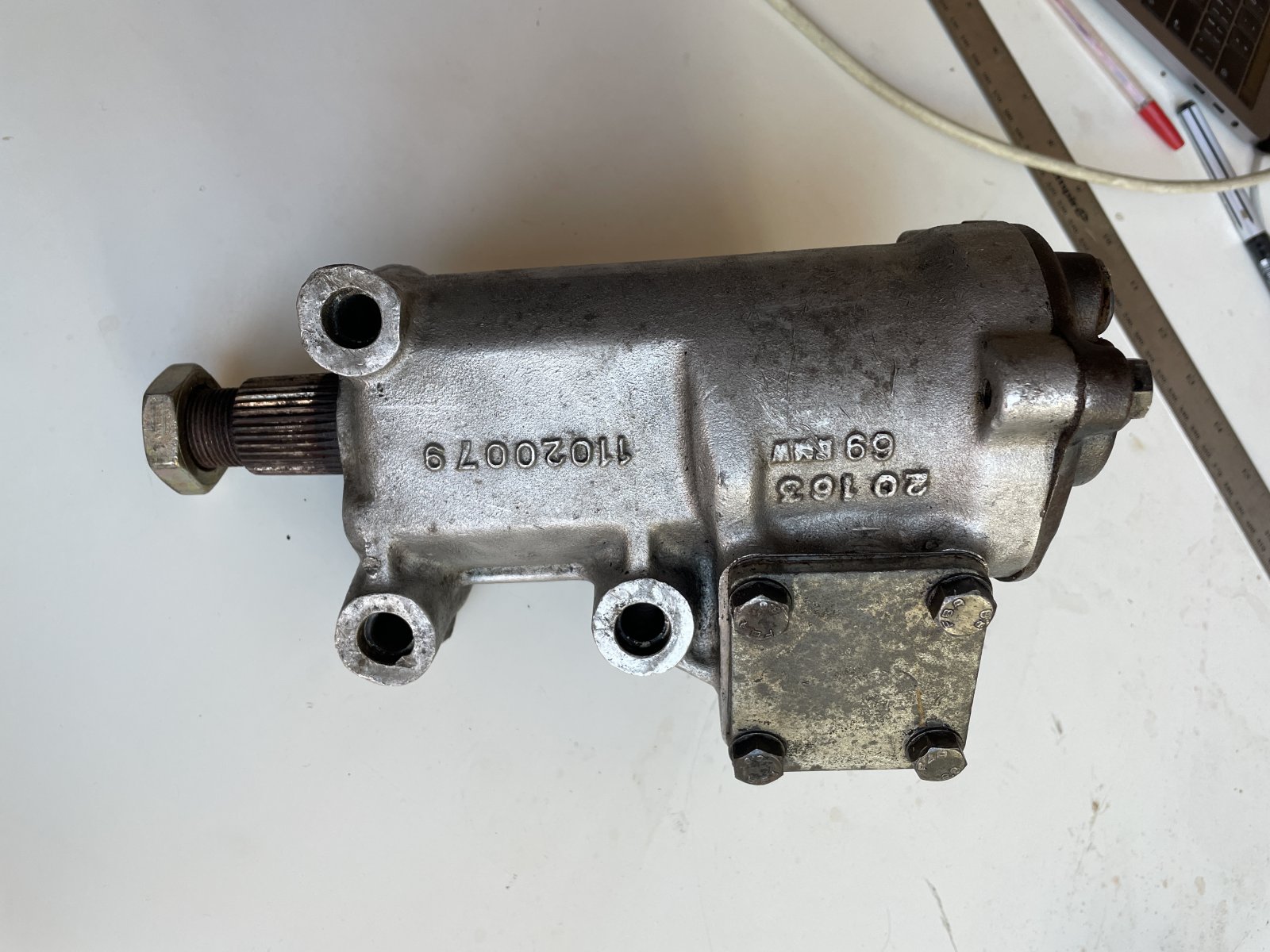

Thanks Keshav, so the case production year is 69 and definity from an E9? Does it give any clue to the original model?

Keshav

Keshav

Well-Known Member
Site Donor $$
Messages
2,772
Reaction score
2,784
Location
Germany
Case number shows 69….. probably from a 2800 E3 or an early E9 if ordered without power steering. LHD early E9‘s had manual steering too other than ordered with PS.
Surely @roundel would be able to clarify more accurately!

Or @Paul Baker who’s bound to have a box on hand

Last edited:
Keshav

Keshav

Well-Known Member
Site Donor $$
Messages
2,772
Reaction score
2,784
Location
Germany

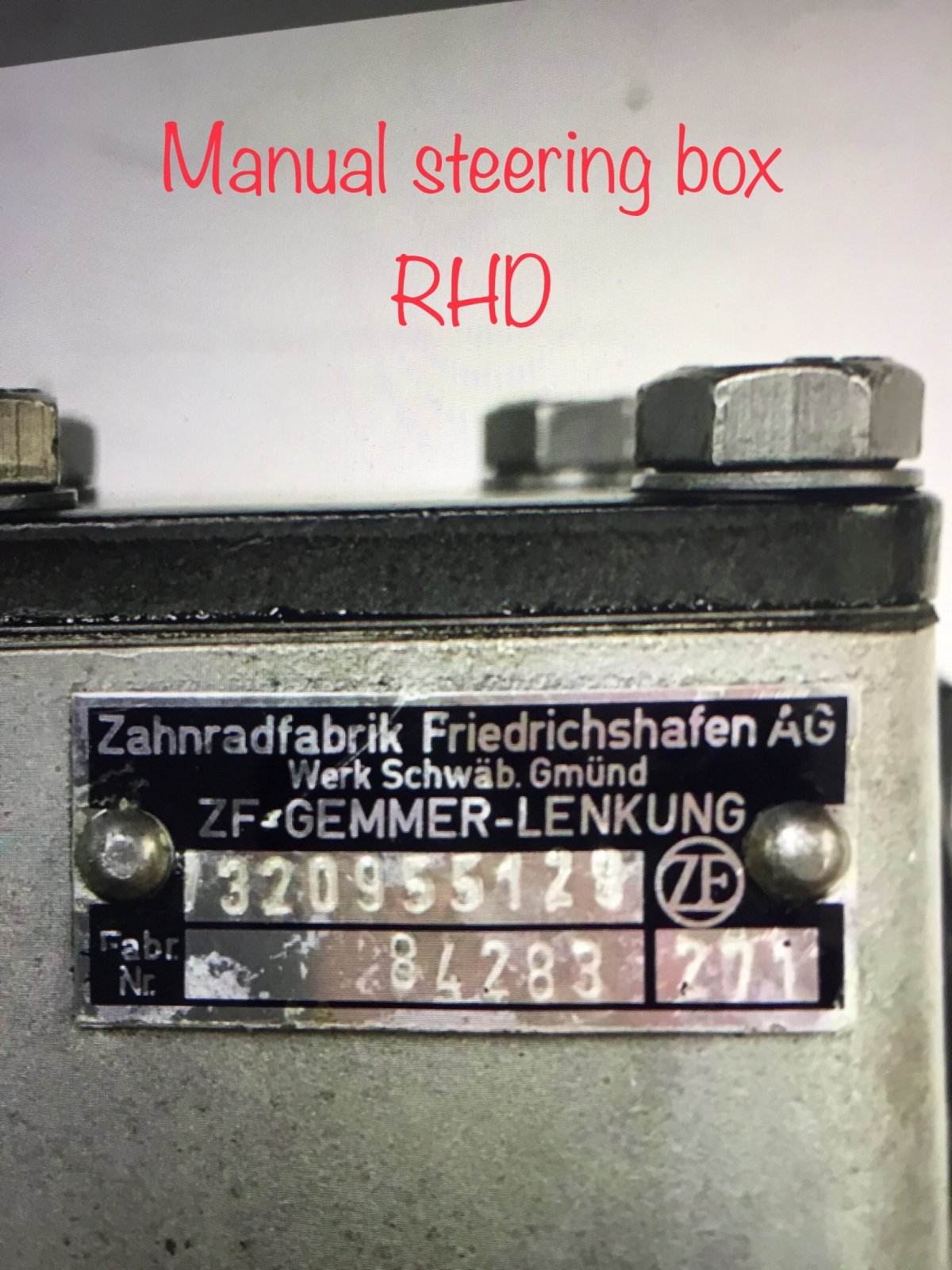

To complicate matters, heres another RHD Manual box offered with 5127…..
I also have to wonder which boxes the 2000CS used (whether RHD 2000 CS were ever available)? The one you posted looks quite different (casing) to the one below…..

RHD manual steering box

RHD manual steering box, as used in CSL, etc, 1973 production date $1000 delivered worldwide Paypal preferred. Be advised that shipment cannot be insured for $1000 if you request stated value of less than that…. my emai is [email protected] Al Taylor’s Sports Cars LLC located NC USA. Thanks...
e9coupe.com e9coupe.com

Keshav

Keshav

Well-Known Member
Site Donor $$
Messages
2,772
Reaction score
2,784
Location
Germany
For anyone interested, I have a manual LHD steering box with shaft for sale…….
