Gasket Maker - Intake Manifold

[TG-2002-320i-328ci]

Currently re-assembling the top end of my M30, and I realized that when I pulled the Starter Valve and Connection Flange from the manifold, there was no gasket between the Connection Flange and the manifold. There is a slight residue, so the last person to work on that part of the engine likely used a gasket maker instead of the OEM Gasket (11611730741) - of which production ended years ago and I cannot find any stock remaining.

What is this boards go-to gasket maker? Loctite 518?

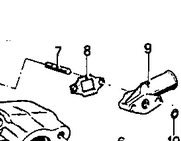

(Picture Item 8)



[Ohmess]

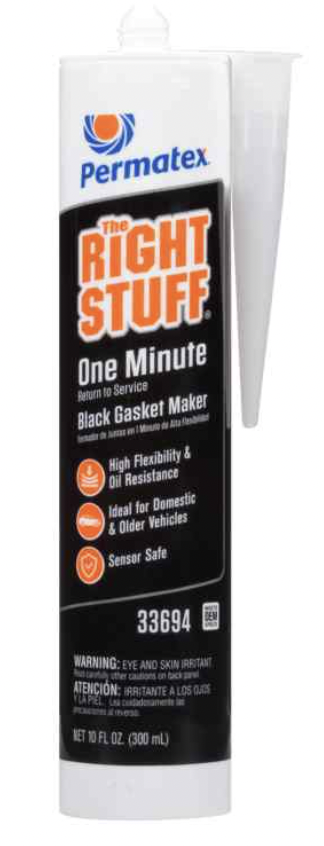

I've used Permatex gasket maket in similar applications. The Loctite product seems even better.



[rsporsche]

either that or just cut your own gasket. my guess is this is not a high-pressure connection and either should work just fine as long as you have a good seal.



[Bert Poliakoff]

Get some gasket material, Autozone should sell it. Lay it over the manifold openings and tap easelly with a small hammer around the edges including the ports. If done properly you will end up with a nice gasket you can trace the others from or just do the same thing with each port. I had to do this for a Ferrari motor for which no gaskets were available and it worked perfectly.



[Dick Steinkamp]



[Stevehose]

I 2nd making your own gasket, I've done many for the Webers



[Bert Poliakoff]

The problem with gasket maker etc, is if you put too much on it will get squeezed out on the sides and can contaminate your oil and block passages. I had an Etype and used it to seal up the cam covers. It wasn't great..at least for that application. I was also warned about the "leak" problem of the gasket maker after the fact. Luckily, and just scraped it off So after many tries I had the cam covers machined flat and no problems after that with a "cardboard" gasket



[OCCoupe]

I make my own gaskets if the original ones aren’t available. The problem with the cold start valve is that it is a fuel supply and most gasket maker materials are not fuel resistant.



[wkohler]

I actually just made a gasket for this part. I bought a small package of gasket paper 58 years ago and still have 500 ft of it. Very useful.



[TG-2002-320i-328ci]

Currently re-assembling the top end of my M30, and I realized that when I pulled the Starter Valve and Connection Flange from the manifold, there was no gasket between the Connection Flange and the manifold. There is a slight residue, so the last person to work on that part of the engine likely used a gasket maker instead of the OEM Gasket (11611730741) - of which production ended years ago and I cannot find any stock remaining.

What is this boards go-to gasket maker? Loctite 518?

(Picture Item 8)

On further review (when cleaning the port), sure enough, there was remnants of an old paper gasket. Much like the C-pipe gaskets, it had become "one" with the accumulator, so it took the same method of scraping to get rid of it all.

Considering the potential of fuel contact, I've ordered gasket material and will make my own.

Thanks for all of the suggestions and replies.

Still on track to return the car to the road on my normal yearly goal of October 15 (when temperatures are dipping below the 90s during the day).



[Bmachine]

For anyone interested in the gasket makers originally discussed here, this guy does really good comparative tests:



[sfdon]

Make ever so sure that your new home made gasket does not occlude the port it is sealing. The "cannon" gasket opening serves not only to deliver the cold start air from your AAV, it also has the long cold start injector shaft through and past the gasket. Getting sloppy on making a gasket too small will give you a low cold start idle.



[TG-2002-320i-328ci]

Make ever so sure that your new home made gasket does not occlude the port it is sealing. The "cannon" gasket opening serves not only to deliver the cold start air from your AAV, it also has the long cold start injector shaft through and past the gasket. Getting sloppy on making a gasket too small will give you a low cold start idle.

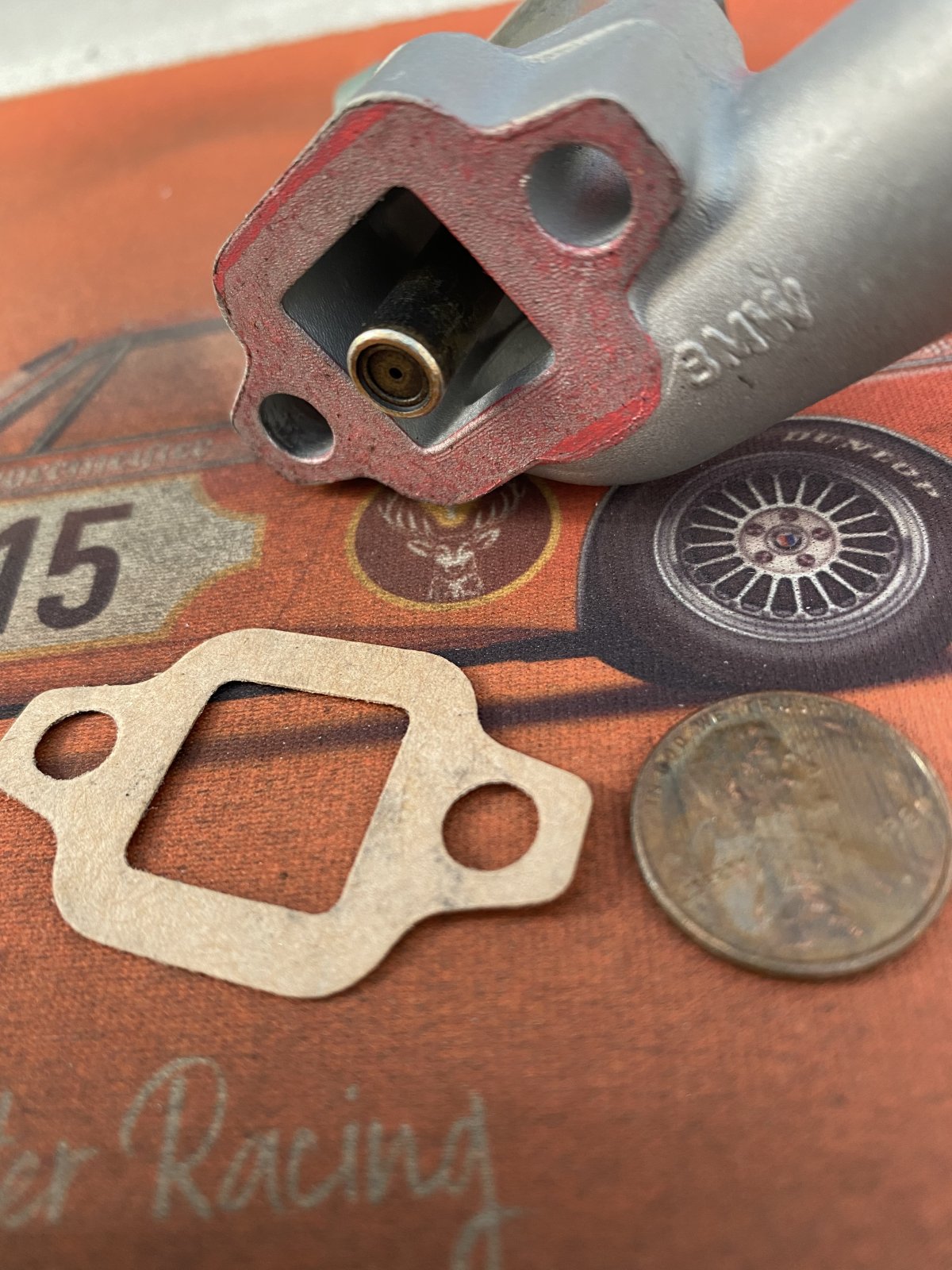

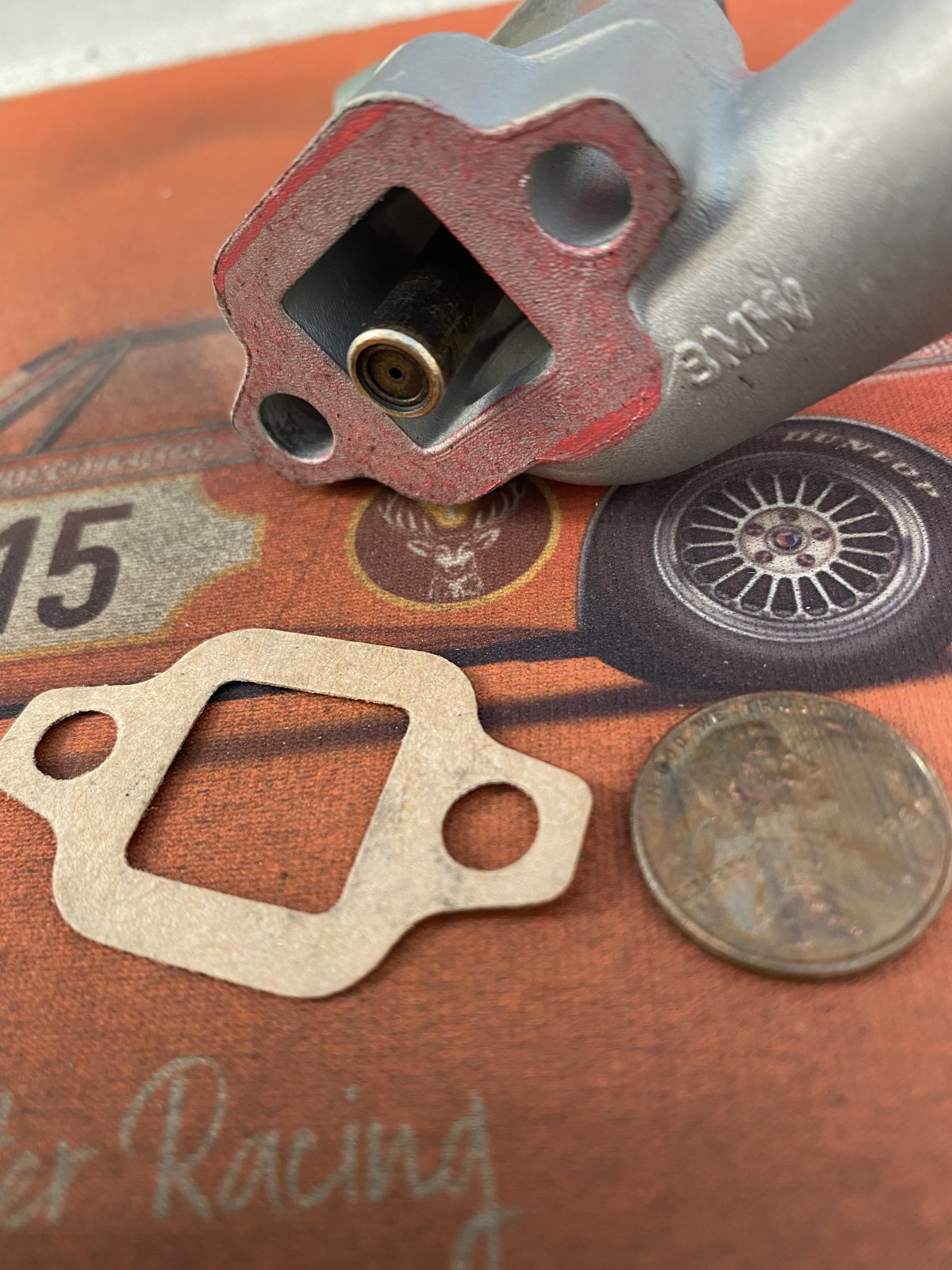

Thanks - gasket material arrived today and I think I did a decent job. I made a few and chose the best one. The most difficult part was making that 15mm square. We'll see how the low idle is when I get it all back together and ready to run.



[sfdon]

If there is any problem- let me know. I sell them for 3.00 plus shipping.
