heater hose direction

[bluecoupe30!]

Trying to replace the in/out water hoses to my heater. Been off for 2 years in my "heater delete" experiment) I thought I had photos of "before" but seem to have every other angle but what I need. Have looked at blue book and it looks like either hose can connect to back of cylinder head according to photos page 64-21/1. So, I wonder if it really matters? Can some of you tell me what your top hose connects to? (BTW, I have a '72 carbed car). Thanks, Mike



[bluecoupe30!]

Perhaps I can clarify, of the 2 heater pipes coming through the firewall, where does the hose attached to the top pipe, go? In my case I forget if it goes to the back of the cylinder head, or under my carb manifold. Anyone?



[Stevehose]

top pipe to cylinder head



[deQuincey]

Perhaps I can clarify, of the 2 heater pipes coming through the firewall, where does the hose attached to the top pipe, go? In my case I forget if it goes to the back of the cylinder head, or under my carb manifold. Anyone?

top goes to carbs manifold, bottom goes to cyl head,

IMHO the curve of the hoses says it very clearly



[deQuincey]

top pipe to cylinder head

ok steve simultaneous responses with contrary answers, that is no good ;-)
but the debate will provide some wisdom to us all



[bluecoupe30!]

Thank you Steve and deQuincy. This is exactly what I have come across in manuals and photos of engine bays. I wonder if it even matters. Real OEM shows part numbers but not where each pipe attaches after it leaves heater outlet or inlet. It will be interesting to hear from others as well. Thanks. Mike



[deQuincey]

Thank you Steve and deQuincy. This is exactly what I have come across in manuals and photos of engine bays. I wonder if it even matters. Real OEM shows part numbers but not where each pipe attaches after it leaves heater outlet or inlet. It will be interesting to hear from others as well. Thanks. Mike

ye s, we need to solve this mistery



[Markos]

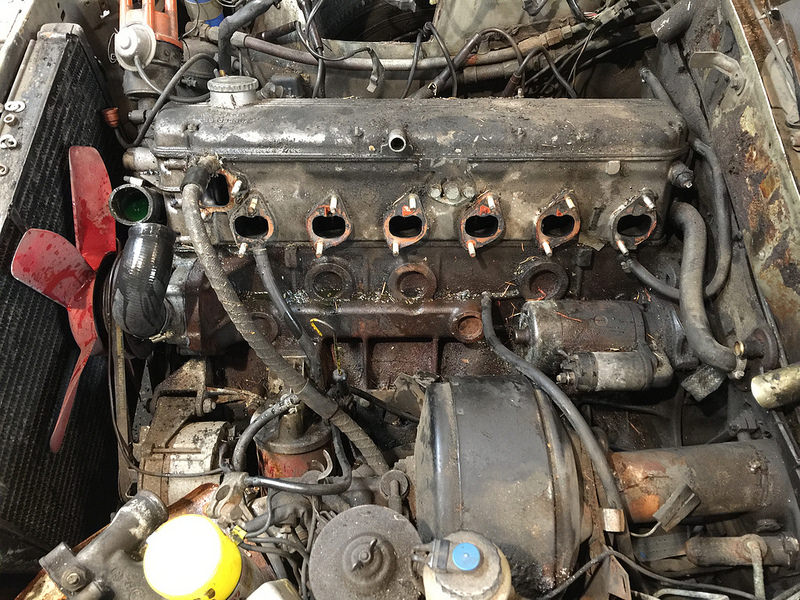

No carbs on this CSI motor but the pic confirms @deQuincey’s assertion.



[deQuincey]

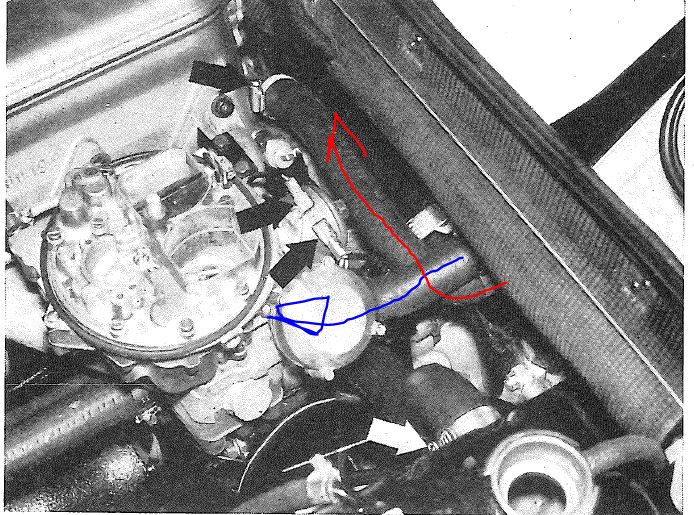

this pic of the manual, goes in the direction of top to carbs, bottom to head



[bluecoupe30!]

this pic of the manual, goes in the direction of top to carbs, bottom to head
View attachment 58124

This is a great photo deQuincey. Thank you for posting. And Markos, that's amazing, not much left on that engine, but the key hose in question. Thanks. I am going with bottom hose to cylinder head! Excellent help as usual.



[w. chen]

Yes lower hose from core to cylinder head. Upper to manifold.

W. Chen



[Stevehose]

I stand corrected! I'll have to check what I did on my bypass plumbing, it probably doesn't matter.



[HB Chris]

I stand corrected! I'll have to check what I did on my bypass plumbing, it probably doesn't matter.

The heater isn’t directional so it doesn’t really matter.



[bluecoupe30!]

The heater isn’t directional so it doesn’t really matter.

Yeah but the suspense was exhilarating!



[rsporsche]

No carbs on this CSI motor but the pic confirms @deQuincey’s assertion.


View attachment 58123

you do realize that the return hose is different for CSi and CS

heater hose inlet - 64211354603 (same both models)

heater hose return (carbs) - 64211361180 ... this is a double bend hose with both ends parallel

heater hose return (injection) - 64211354041 ... this is a single bend L shaped hose



[Markos]

you do realize that the return hose is different for CSi and CS

I’m well aware but it is good that you shared . The CSI and the later fuel injected cars have a metal coolant pipe
that spans the length of the block:

Like this (@sfdon). I kept my pipe...



[bluecoupe30!]

you do realize that the return hose is different for CSi and CS

heater hose inlet - 64211354603 (same both models)

heater hose return (carbs) - 64211361180 ... this is a double bend hose with both ends parallel

heater hose return (injection) - 64211354041 ... this is a single bend L shaped hose

Sure do. I might add that if you act now, BavAuto has the "injection" ...041 hose on SALE for $8.



[rsporsche]

i've got the 041 and the 180 hose so i can figure out which will work better for my b34 engine ... i presume that the 041 hose will be what i need.
