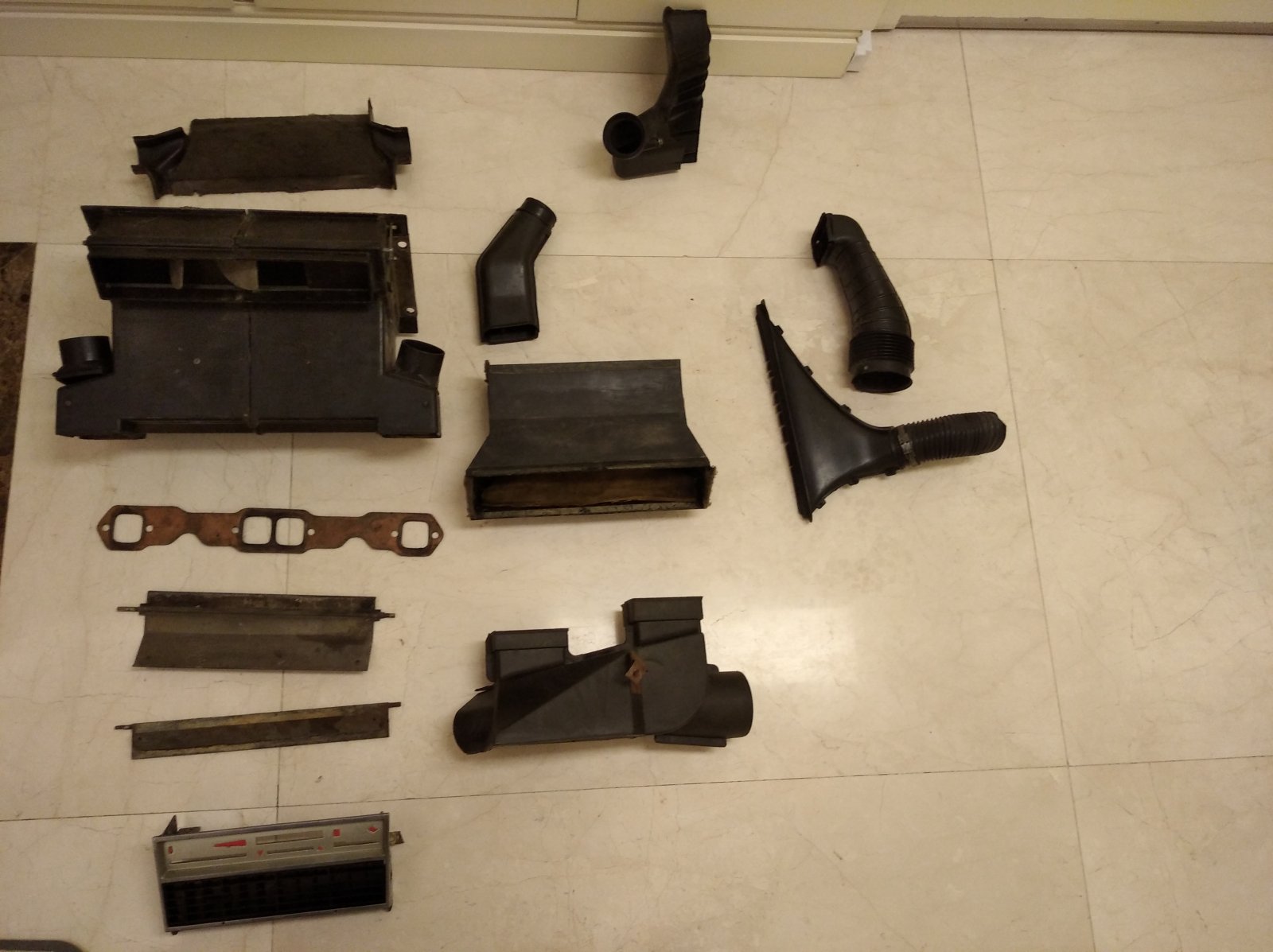

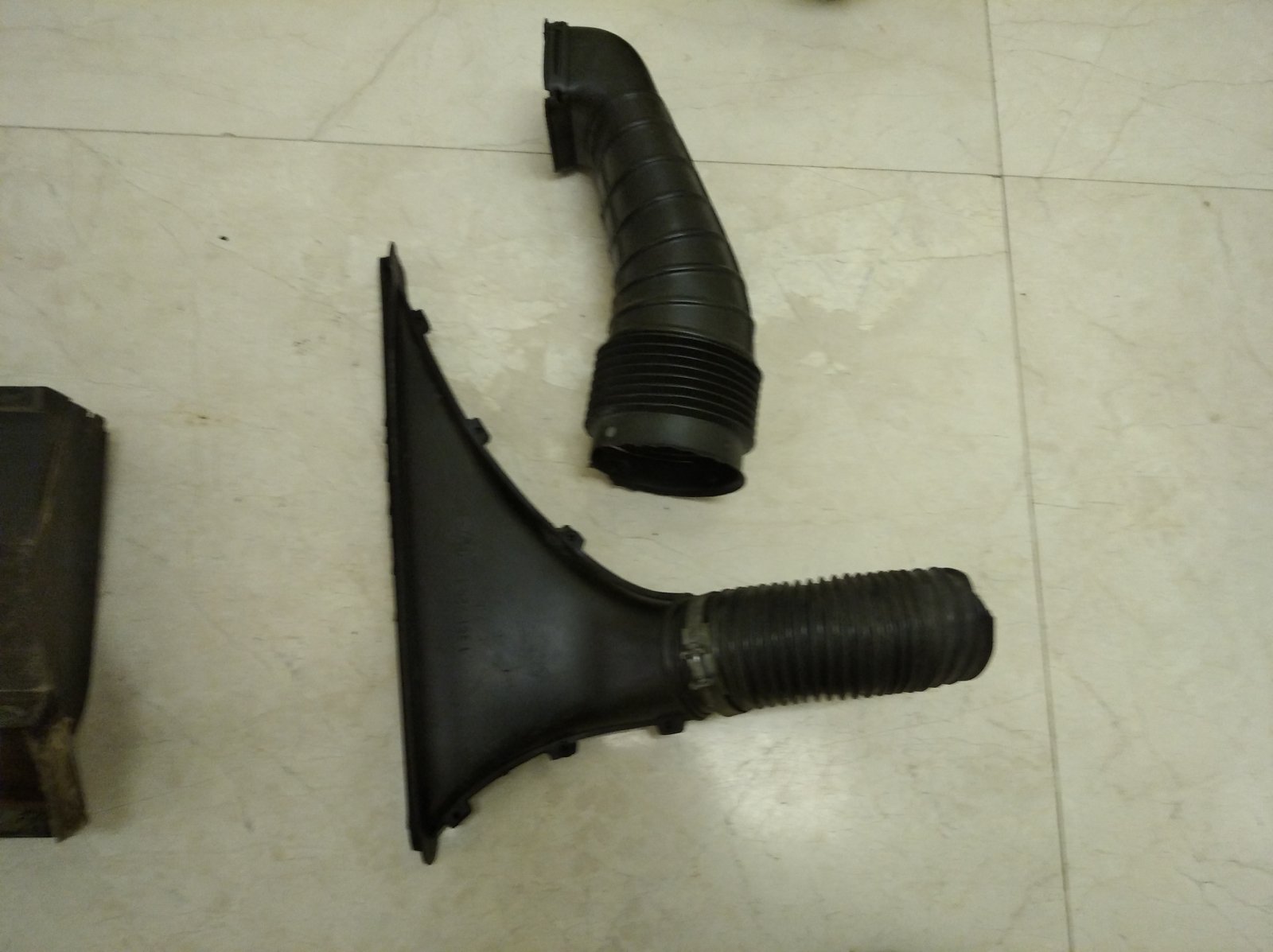

This is my heating system plastic parts. It wasn't on the car when I bought it so it is kind of a puzzle for me.


I found out I was missing the other side of this thing then I got it. Now Hoping I am not missing anything else.

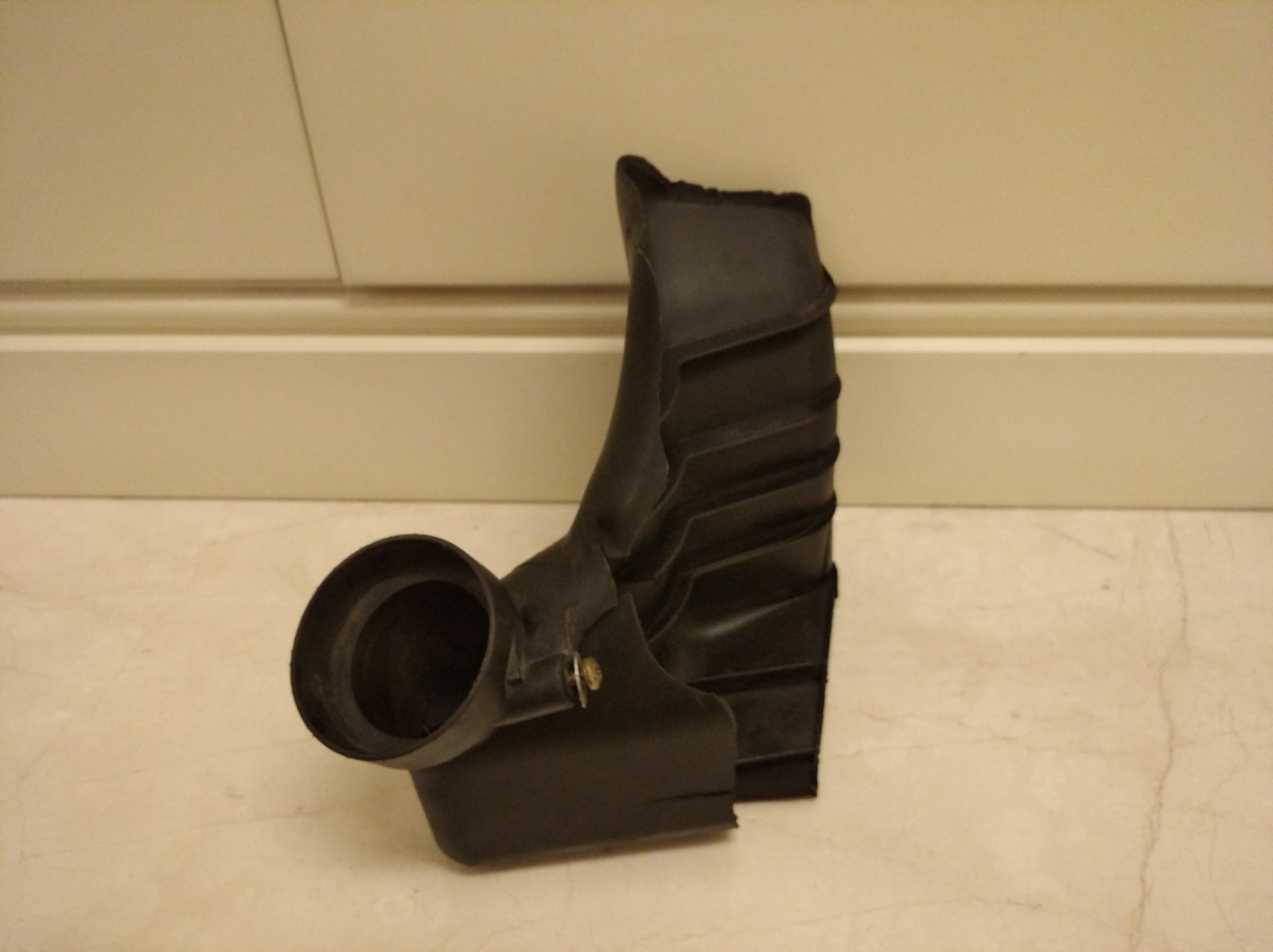

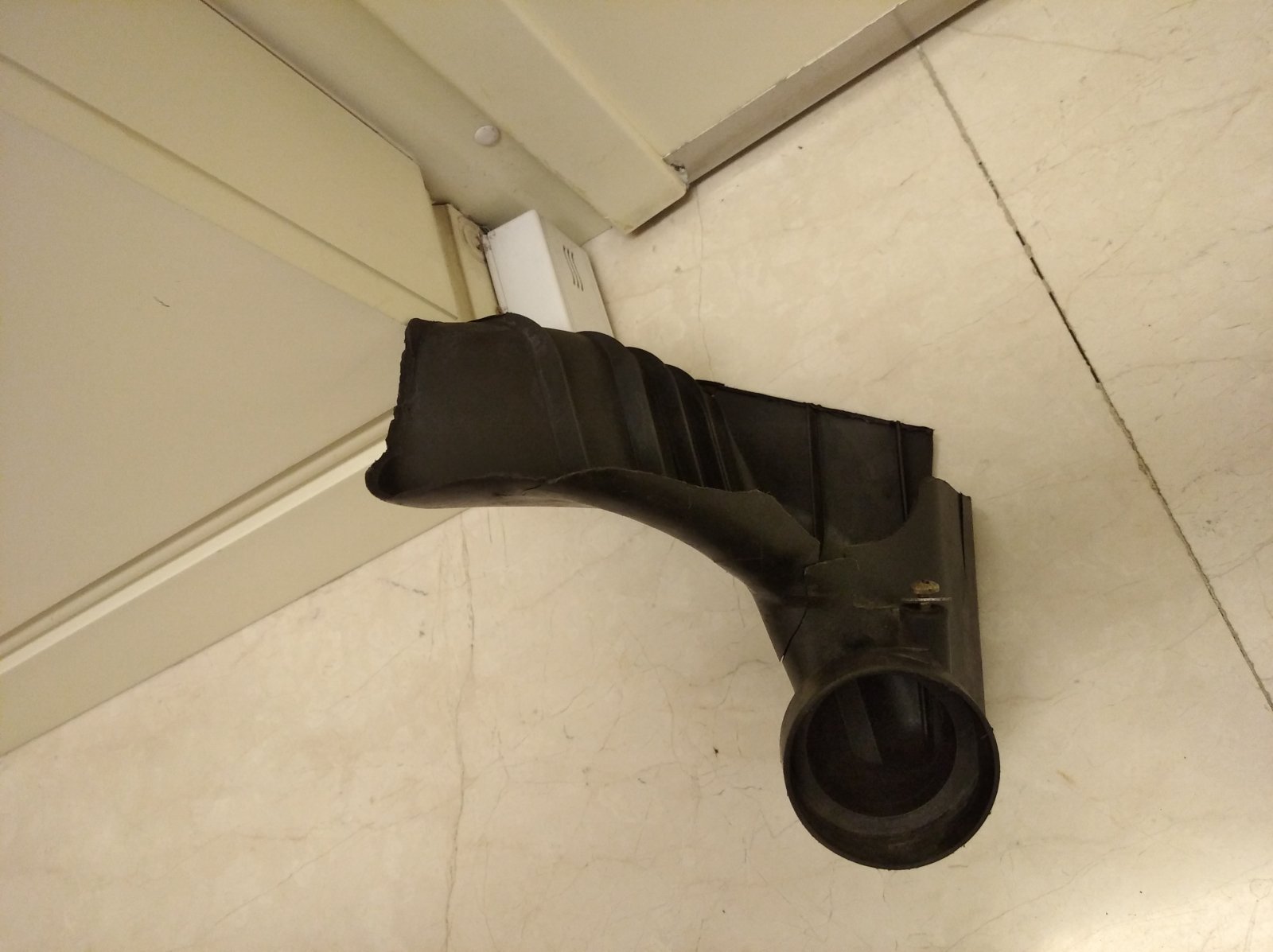

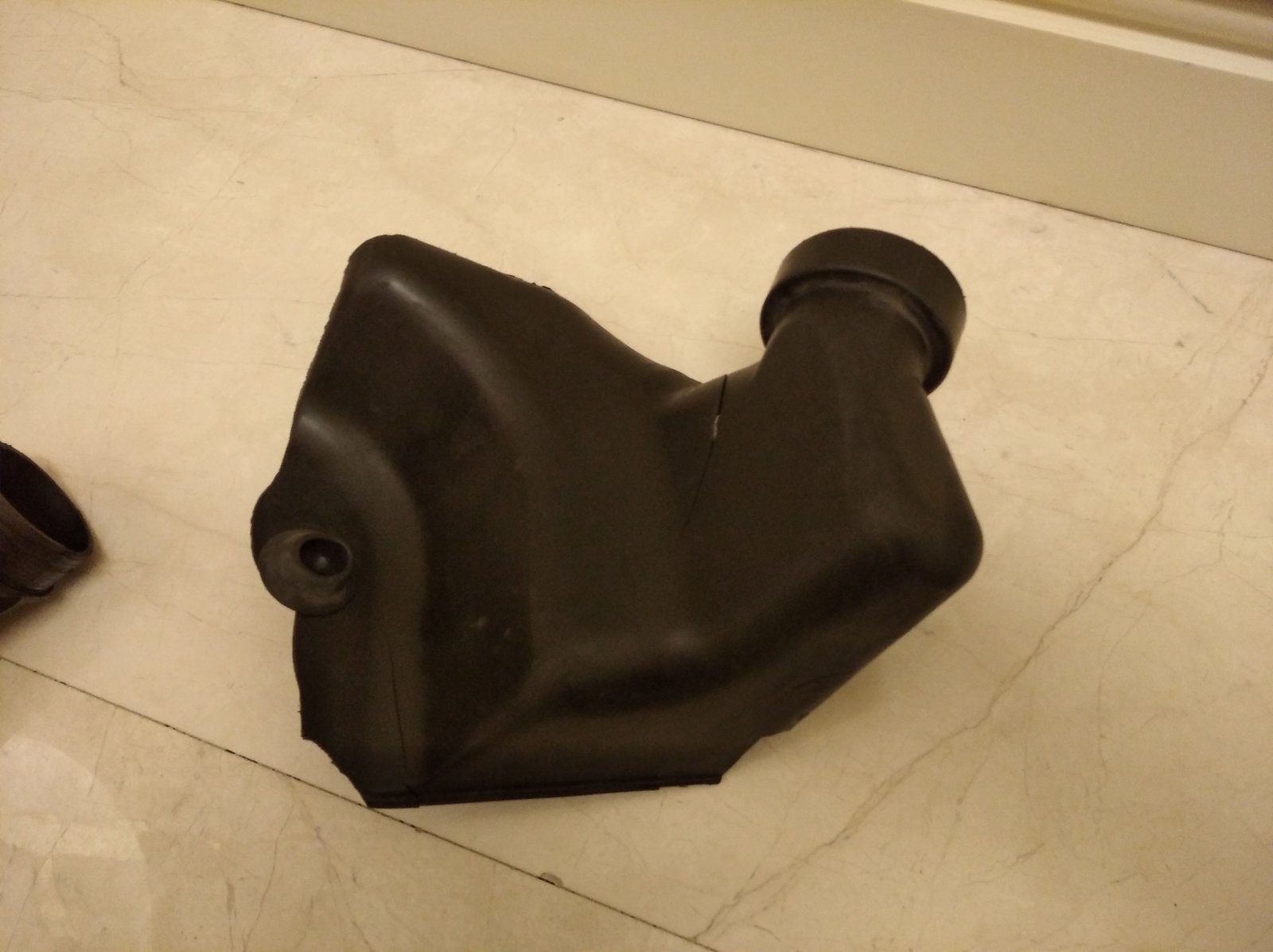

My questions is... this half broken part belong to the heating system or not. (it may be mixed in to my parts so that is why I am asking)





Also let me know if I am missing something.

I took them out again this is the updated version without the chevy stuff but I still don't know what is that broken part. Maybe that is also chevy part.


HB Chris said:
Two parts upper left and one on far right are not e9. Silver upper panel looks like e3.
Click to expand...
1675448406048 - Copy.jpg


I think this type comes up in early 70s E9 but color is always black in E9.
My car is 1972 E9 but I don't know why this heater panel is silver with no paint on it.
Plus it has some drill holes on it too.

Last edited:
If this has not been pointed out yet, you seem to have 2 intermediate pieces. In latest photo, on left. One is correct for E9, the other, in lowest position in photo, fits E3. (it shows the openings for the hoses that channel air to the left and right sides of the dash. In the very front you have the flaps that fit inside your heater.

bluecoupe30! said:
If this has not been pointed out yet, you seem to have 2 intermediate pieces. In latest photo, on left. One is correct for E9, the other, in lowest position in photo, fits E3. (it shows the openings for the hoses that channel air to the left and right sides of the dash. In the very front you have the flaps that fit inside your heater.
Click to expand...
also E3 part.jpg


You mean this is for E3 right ?
