Hood Torsion Bar Repair

Kenneth Olsen

New Member
Messages
8
Reaction score
19
Location
La Conner, WA, USA
Having just completed this project, I thought it might be useful to memorialize it here. Thanks to those who helped me get through this.

Hood Torsion Bar installation

There is significant torsional load in this system. It is essentially a loaded mousetrap. Work carefully and always understand the next step. Removal is the reverse of installation.

1. Refinish mounting brackets, torsion arm stops and torsion tube to your satisfaction; clean, abrade, prime, paint.

2. Clean torsion block threads with 6mm tap to 20 mm depth

3. Clean or replace torsion block...do not paint.

4. Collect required nuts and bolts, or re-use existing:

• torsion block: 2 each 6mm x 25mm hex bolt, with washer and split washer

• mounting bracket: 2 each sheet metal screw to fit speed nut on hood mounting plate

• swivel bolt for fender mount location of swivel arm

5. I assume you've left the torsion rods in place. If not slide the rods into torsion tube and insert the long arm into the torsion arm on each side.

6. Lightly grease torsion block where it will insert into torsion tube

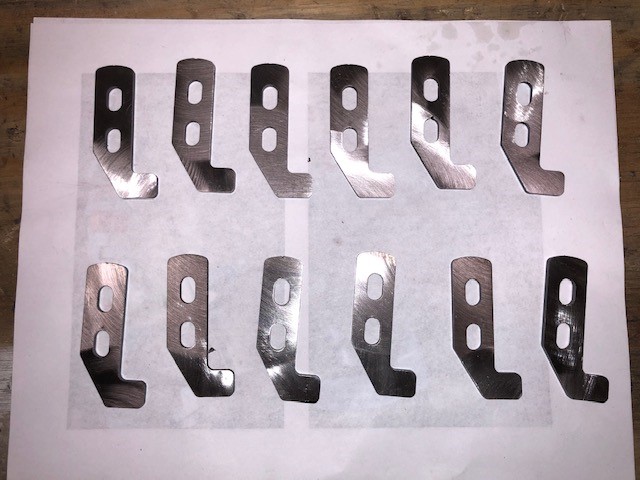

7. Place torsion block into mounting bracket and lightly snug up the 6mm bolts just to hold the torsion bock and arm stops onto the mounting bracket. It is recommended to use 2 arm stops on each bracket so they do not bend under load. This is also why we use 25mm bolts instead of the original 15mm ones.

9. Offer up the assembled torsion block and mounting bracket to the torsion tube end, inserting the short torsion rod end into the torsion block, while simultaneously capturing the torsion tube between the mounting bracket and torsion block. When the tube is inserted into the bracket/block, tighten the 6mm bolts to hold the bracket and block square to the tube.

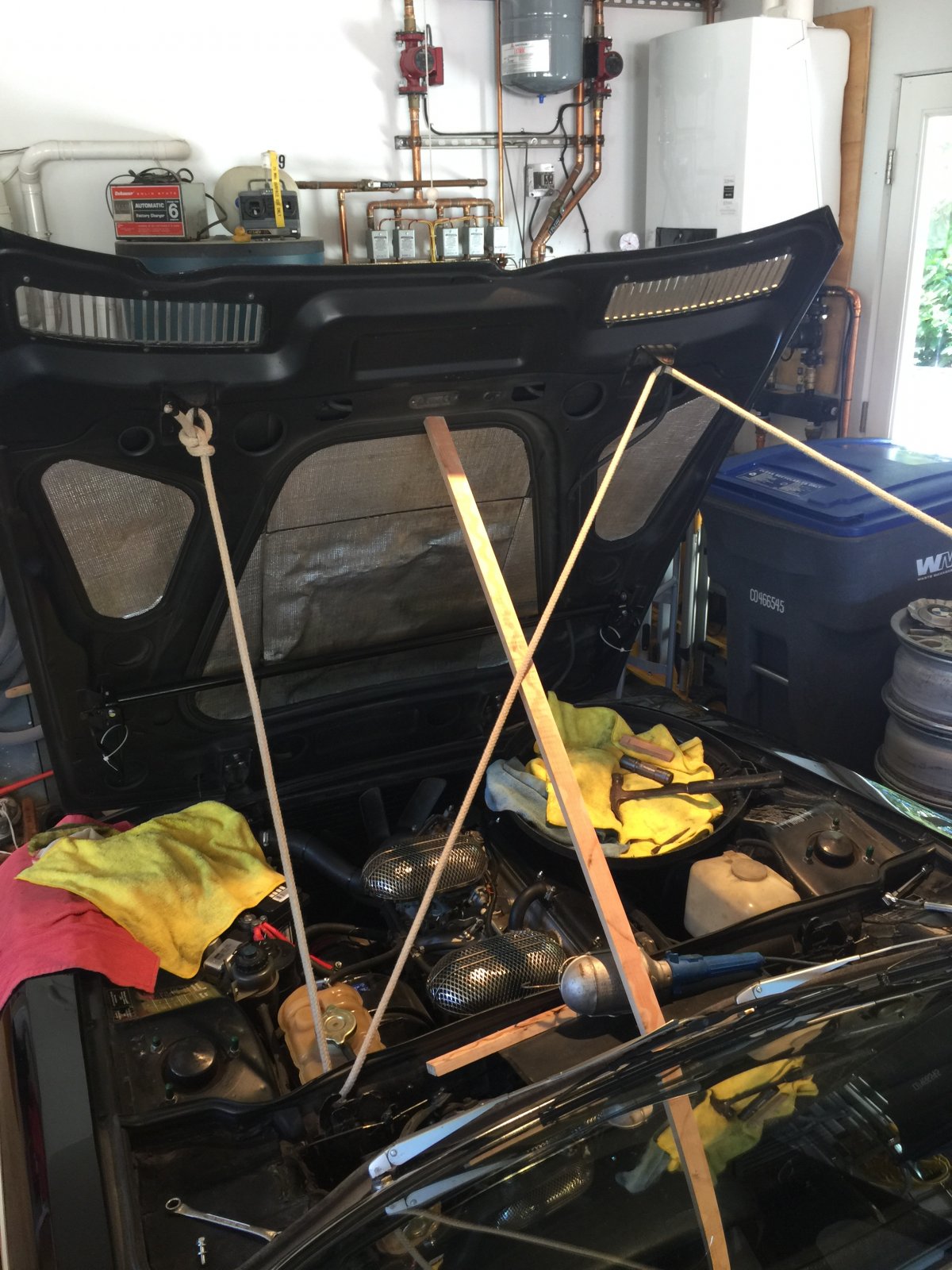

10. Open the hood and place a wooden stick (approx. 3'-6") in the center to hold it open and, importantly, tie the hood down against the stick with a rope from the hood latch brackets to the firewall (or just slip the rope through the vent window frame when the door is open, and then close the door.) The reason for this is that you will inevitably apply force to the hood causing the stick to fall away, at which point the hood will fall on your noggin and push your face into those nice clean Weber carbs. The point of all of this is to immobilize the hood in an upright position.

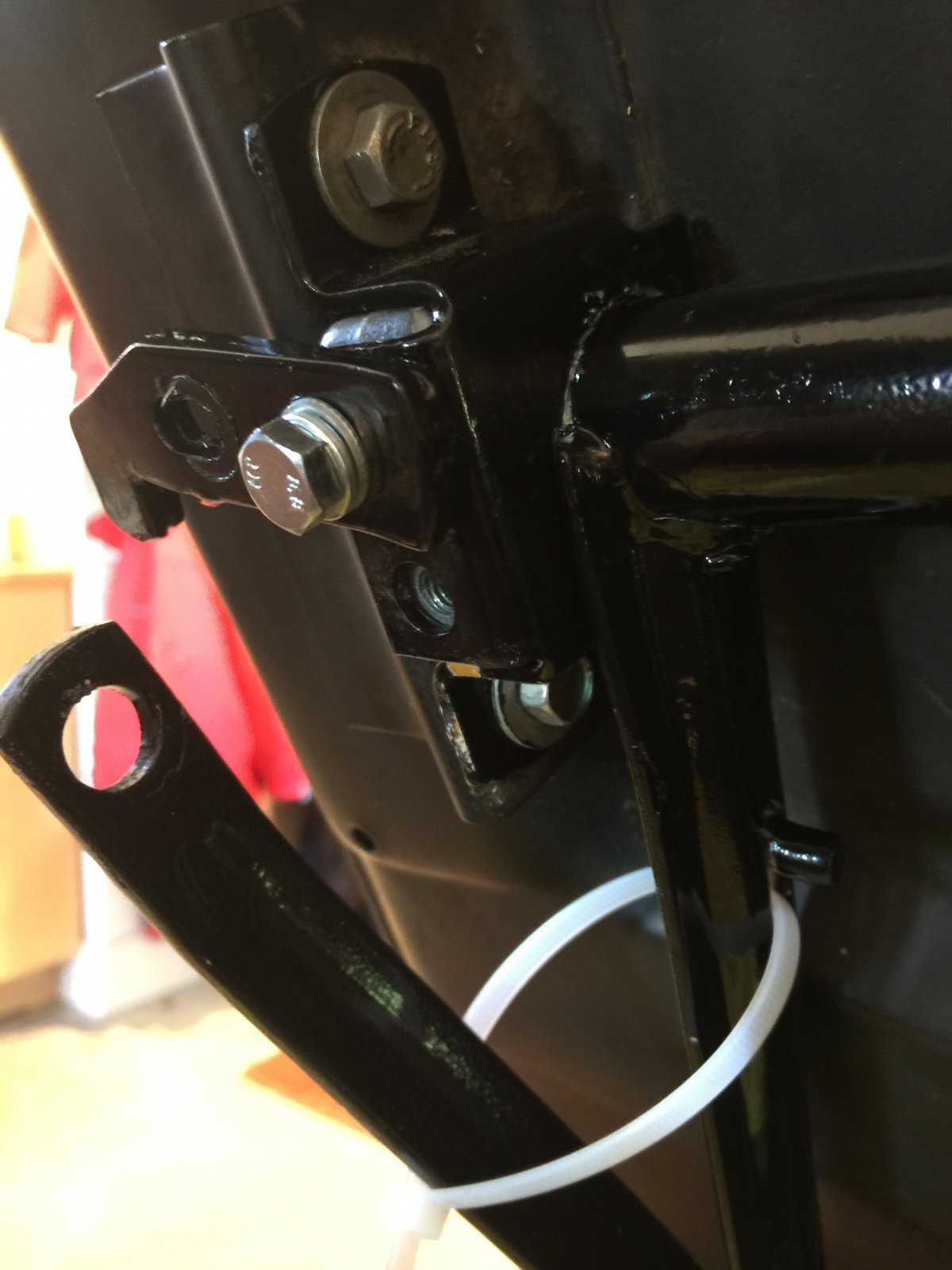

11. Loosely secure the swivel arms to the torsion arms with a zip tie. The object is to avoid having the swivel arms flailing around trying to scratch your fender paint.

12. Bring the torsion rod assembly to the hood and carefully bring the mounting brackets to the mounting plates on the hood. You will find that the torsion arms will be facing down and towards the front of the hood, and that the holes in mounting bracket will not immediately line up with the holes in the hood mounting plate due to some small torsion already in the system. I found that I could secure the top (rear) screw on both sides loosely. Then with several taps of the bottom (front) of the mounting bracket with a hammer and wood block on the mounting bracket, I could then align the bottom (front) hole to accept a screw. This screw will be difficult to place as it will be nearly covered by the torsion arm...persevere and work with the tips of your fingers, and get a 10 mm open end wrench in there to do the work. Leave everything loose until all fasteners have been inserted in the right locations then tighten everything up.

You now have the torsion tube, torsion arms and bracket connected to the hood. However, the torsion arms are pointed down (forward), and must be pulled up (back) about 90 degrees.

13. To do this loosen the lower (front) bolt on the arm stops, and swing the arm stop away from the center of the car to allow the torsion arm to swing up and to the rear. With a helper, so both sides can be worked at once in order to balance the torsional load, use one hand to pull back and up on the torsion arms (there will be resistance) until the arm stops can be swiveled into place and bolted with the other hand in order to prevent the torsion arms (now under load) from swinging down and forward. Slowly and simultaneously release the torsion arms to rest on the stops. The mousetrap is now loaded.

14. Now you can attach the swing arm to the fender bracket with the swivel bolt. You may need to raise or lower the hood a bit to do this. So at this point remove the wooden stick holding the hood up and the ropes holding it against the stick, and have your helper raise or lower the hood so that the swing arms can be attached to the fender bracket with the hardware that you have saved.

15. At this point all the attachments are made. With the hood up, the torsion arms should be resting on the arm stops, and there should be a small angle at the hinge between the torsion arm and the swing arm. Lowering the hood should cause the hinge to move toward the rear of the car, allowing the torsion arm and the swing arm to pivot into overlapped alignment. This will also increase the torsion in the system, as it is designed to do, so that the weight of the hood is reduced by the torsion in the system. When the hood is fully open, the torsion arms will be against the stops with torsion on them to keep the hood open.
