side drafts and tii brake booster

[autowerks]

some guy on ebay is selling one inch trumpets that do away with having to replace your brake booster, the cost is $39.00 for two, I have ordered a couple.



[Markos]

some guy on ebay is selling one inch trumpets that do away with having to replace your brake booster, the cost is $39.00 for two, I have ordered a couple.

I think you really want to keep all of your trumpets equal length if possible...



[autowerks]

then you have to order 3 sets of trumpets



[Markos]

then you have to order 3 sets of trumpets

Agreed. I think that you are the "you" in that statement.



[zinz]

How close are your current trumpets? What filters are you planning on using?

I use a UNI Filter with a 15 degree angled mount and it clears a standard booster on my 2002... You might have similar results with your set up? You have pics?

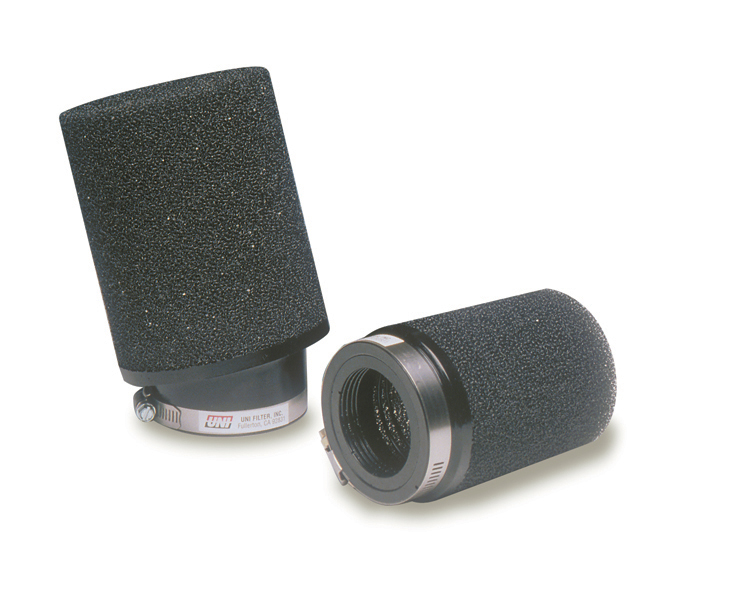

UNI part #UP6245AST (filter on left in this pic)

Ed Z



[autowerks]

Thanks guys, my trumpets are too close about an inch and half from the booster



[shanon]

Pierce Manifolds in Gilroy, CA may have additional options.

Have seen shorter horns out there. Also neat low profile screen options instead of socks.

Hth.



[autowerks]

checked and they did not have any



[m5bb]

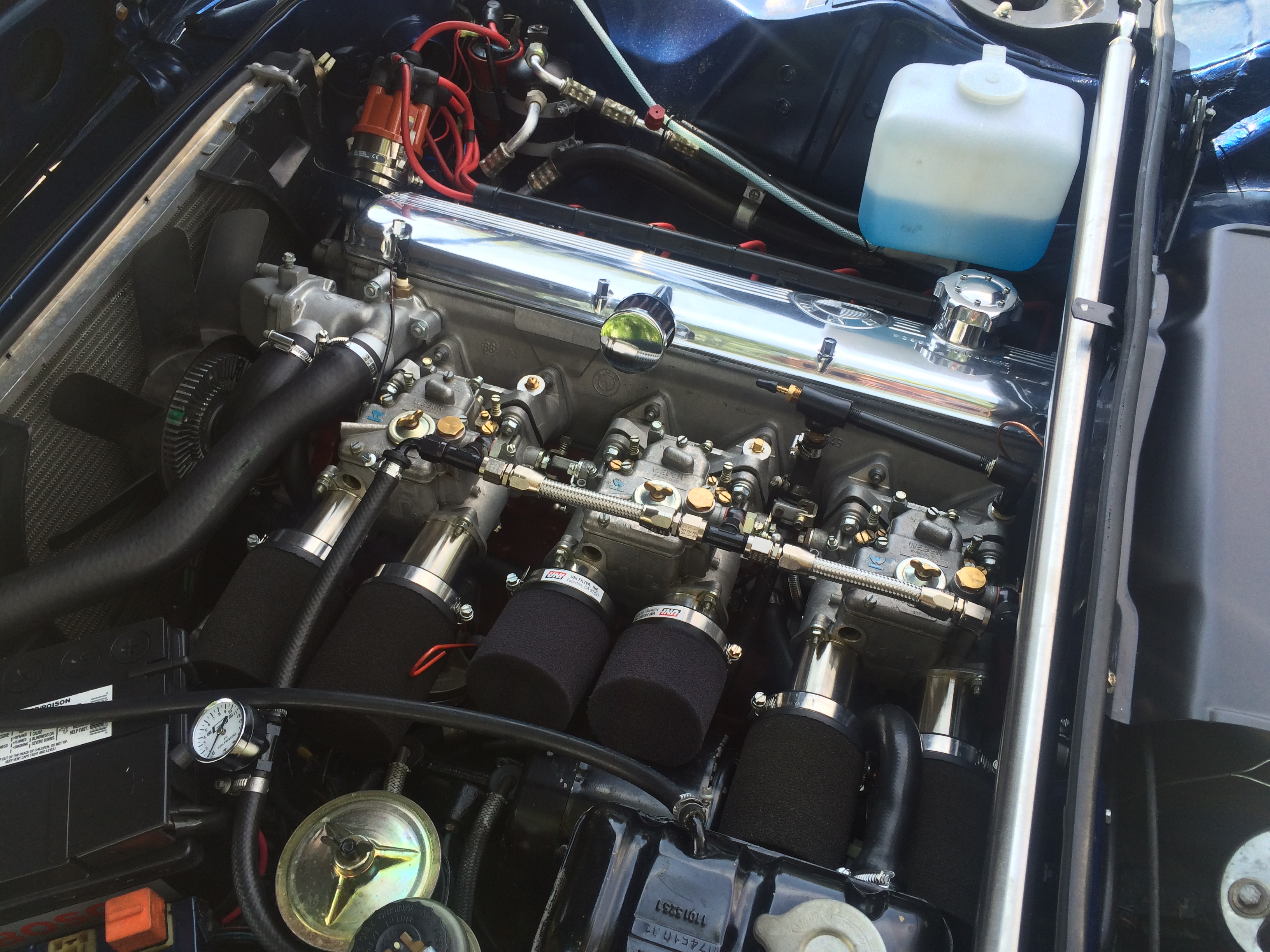

I have the set-up with two short trumpets in the middle to clear the brake booster.



[zinz]

Don't see how that will ever balance completely...

Check this old thread.

http://www.e9coupe.com/forum/threads/wtb-weber-40-dcoe-angled-stacks.13964/


I have a set of 45DCOEs with horns that are cut at an angle. I'll try to get some good pics of the design... Gotta be someone out there that makes them.

Ed Z



[Stevehose]

I think there are some Alfa horns that curve up



[autowerks]

I think it is the only way if some one wants to keep their original brake booster?



[Stevehose]

VGS made a manifold back in the day for the M30 which offsets the first carb to clear the thermostat and raises and tilts the carbs to clear the stock brake booster. I posted an auction for one with carbs a couple weeks ago. Very rare to find. I got lucky acquiring mine. I still use angled filters so I can run a longer trumpet and filter.

I think it is the only way if some one wants to keep their original brake booster?



[DWMBMW]

I cut the bottom of my center air horns at an angle to clear the brake booster originally but eventually replaced it with a tii booster.



[autowerks]

Steve you are right, it depends on the intake manifold as well, my side draft kit came from Pierce manifold with not enough room for two inch trumpet



[m5bb]

Even with the Tii booster I had to go to the two shorter horns in the middle to clear.
Now that engine and car are apart for rebuild I am going to change to a GM style hydroboost so I won't have this problem anymore.
I will also have better power brakes.



[Stevehose]

Or you could do an Alpina airbox setup

They have 90 degree elbows up from the carbs to the airbox.



[autowerks]

Now that is a great idea



[mulberryworks]

Even with the Tii booster I had to go to the two shorter horns in the middle to clear.
Now that engine and car are apart for rebuild I am going to change to a GM style hydroboost so I won't have this problem anymore.
I will also have better power brakes.

Is that only an option for the 3.0 with disks all around, or would a setup like that work on the 2800cs with drums in the rear?

Ian



[daddywad]

I can help with that, what size carbs are you using? attached pic showing typical Alpina setup (not my pic) and pic without airbox (my pic)
Mark
