What is this and where does it go?

Discussion in 'E9 Projects and Restorations' started by Bmachine, May 7, 2019.

  1. Bmachine

    Bmachine Well-Known Member Site Donor $$

    Messages:
    1,826
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Northern California coast
    Trying to put my car back together and I am stumbling on two items under the dash, driver side.

    First, what is this thing and where does it go?


    And second, what is the proper assembly for the rig that keeps the door under the fuses from falling off? Is there another black plastic ring that goes on there?

    Thank you.

  2. Markos

    Markos Parts Mule Staff Member Site Donor $$

    View My Showcase
    Messages:
    8,159
    Likes Received:
    2,169
    Trophy Points:
    113
    Location:
    Seattle, WA

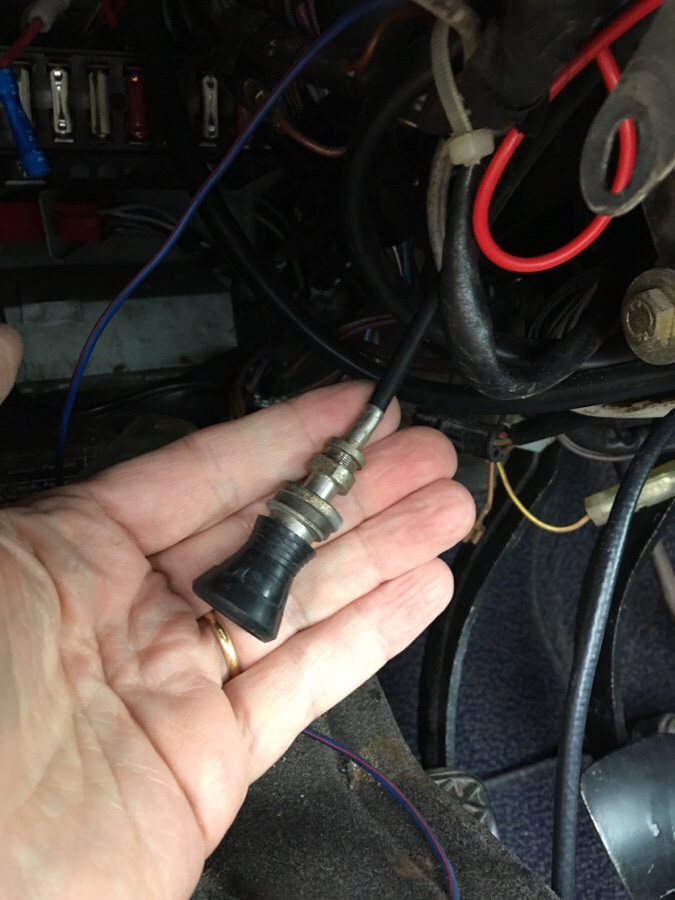

    The first is the odometer reset knob. It is secured by a drop bracket that extends from the under dash tray. You need to remove the set screw that holds the knob in place, then unscrew the 8mm or so jam nut and screw the cable on to the drop bracket.

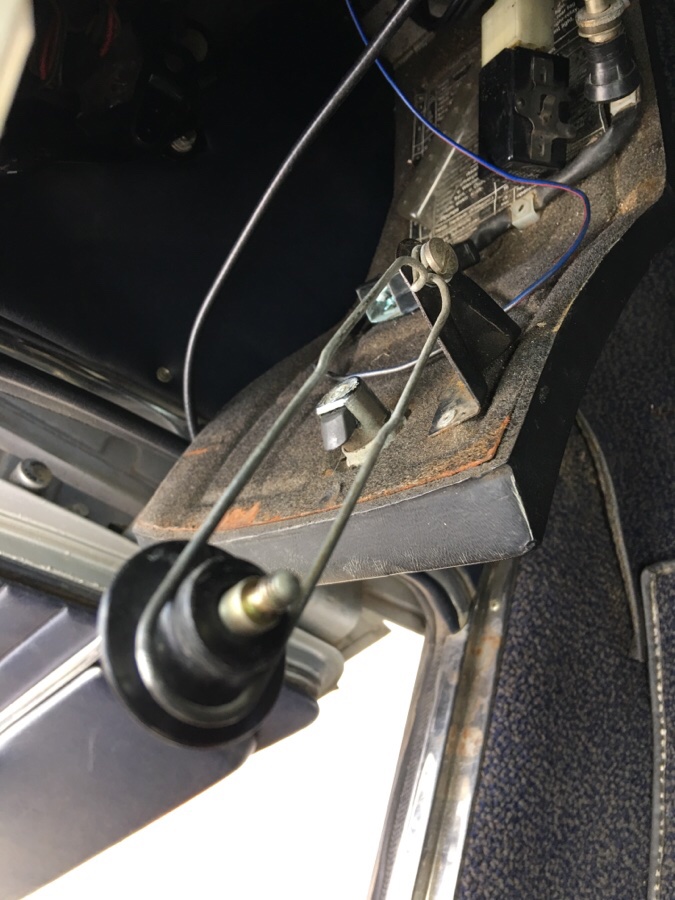

    The second is the fuse door stop. Again, there is a bracket that extends from the under dash panel. Similar insrallation. The screw on the black roller has a thick shoulder that lets the black wheel spin, and fine splines that screw into the bracket. I think the bracket has a captured nut on the backside.

    I believe that both brackets are riveted to the under dash panel. You may need a new panel. However, I actually have a spare mounting bracket for the reset knob. Let me know if yours is missing.


    Keshav likes this.
  3. Keshav

    Keshav Well-Known Member Site Donor

    Messages:
    1,341
    Likes Received:
    733
    Trophy Points:
    113
    Location:
    Weiterstadt, Germany
    In the first pic, the knob in your hand is to rest the trip counter....

    The 2nd pic is best shown via pics.... I can click some tomorrow if you haven’t got them by then

  4. DWMBMW

    DWMBMW Well-Known Member Site Donor

    Messages:
    489
    Likes Received:
    276
    Trophy Points:
    63
    Location:
    Miami, Florida
    2310FD9C-7006-4A8F-ABA8-A190DFB9FFDC.jpeg BE39CFB4-1D29-4AD0-8E87-428F48A1657C.jpeg

    Markos and Keshav like this.
  5. Bmachine

    Bmachine Well-Known Member Site Donor $$

    Messages:
    1,826
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Northern California coast
    Brilliant answers, Mark, Keshav and Doug. Thank you!

    Markos likes this.
  6. dang

    dang Administrator Staff Member Site Donor

    View My Showcase
    Messages:
    2,073
    Likes Received:
    729
    Trophy Points:
    113
    Location:
    Rocklin, CA
    Yeah, but it took a whole hour to get personalized photos of the answers. :D

    Markos likes this.
  7. stphers

    stphers Active Member

    Messages:
    372
    Likes Received:
    59
    Trophy Points:
    28
    Location:
    Port Moody, BC ( near Vancouver, BC )
    This is one of my most PIA job to do, trying to hold everything in place and get the knob s crewed on right with all the while making sure the retaining spring stays where it should fun and games My fingers just aren't as nimble as years ago. Good pictures to show everything

  8. Bmachine

    Bmachine Well-Known Member Site Donor $$

    Messages:
    1,826
    Likes Received:
    346
    Trophy Points:
    83
    Location:
    Northern California coast
    That’s why they’re brilliant.
