Window lift
- Thread starter wolfram
- Start date
cry, take paper and pencil, and go to a machinist shop:
i will try to show you my solution (if i find my thread)
Just this week I ordered replacement for this pin and installed it on my window lift
Gerade bei #eBayKleinanzeigen gefunden. Wie findest du das?
www.ebay-kleinanzeigen.de
Thomas
Gerade bei #eBayKleinanzeigen gefunden. Wie findest du das?
Gebrauchte Autoteile günstig | kleinanzeigen.de
Kleinanzeigen: Gebrauchte Autoteile günstig kaufen - Jetzt in Stemwede finden oder inserieren! - kleinanzeigen.de
Thomas
Lan-rear windows, motors, and trim panels - regrease and renewal
renew all this rear area you can see the critical elements to be removed marked with arrows anotar las conexiones del motor y soltarlas before undoing these last bolts use the electric power to completely open the window to manipulate it and to remove it folded...
e9coupe.com
Wait on deQ to find the thread. I used his repair and have had no issues.
Hi. I have a regulator that you may be able to use some of the parts you need. Please show me exactly what parts you need and I will see if I have them.
Thanks
Thanks
God damn hahaJust this week I ordered replacement for this pin and installed it on my window lift
Gerade bei #eBayKleinanzeigen gefunden. Wie findest du das?
Gebrauchte Autoteile günstig | kleinanzeigen.de
Kleinanzeigen: Gebrauchte Autoteile günstig kaufen - Jetzt in Stemwede finden oder inserieren! - kleinanzeigen.de
Thomas
I wish I knew bout those! I would have much preferred to buy some already made but I also started to make a batch of these since mine is missing. Not sure if too zinc plate or leave as is and grease..
I’m making 10 so will have some extra.
Last edited:
Well,

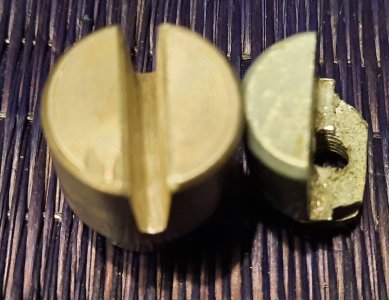

here is the pin I found on Ebay-Kleinanzeigen and my broken one.
The broken original one comes with a screw thread. Inserting a screw will enable you to turn this pin in position when mounting it.
In fact this pin is just pushed into the gap, it is not fixed but only hold in position by the spring tension.

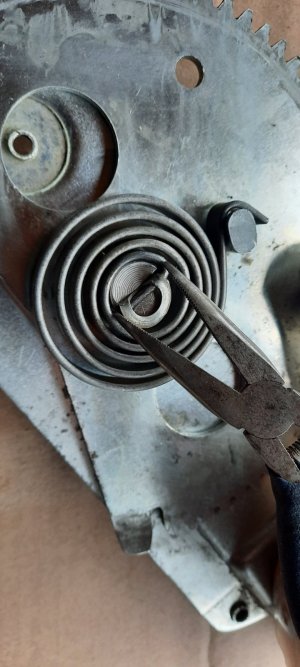

The picture below shows how you may turn this pin with a needle-nose plier into position. Mounting of the spring is done in the position of no tension.
I drove in a thin washer to fix the end of the spring in the groove

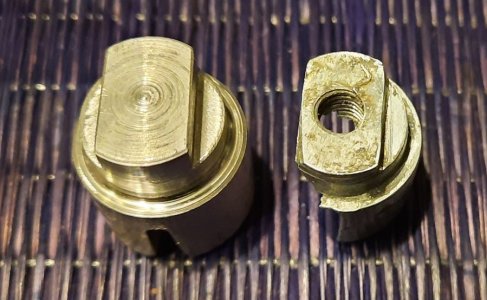

here is the pin I found on Ebay-Kleinanzeigen and my broken one.
The broken original one comes with a screw thread. Inserting a screw will enable you to turn this pin in position when mounting it.
In fact this pin is just pushed into the gap, it is not fixed but only hold in position by the spring tension.
The picture below shows how you may turn this pin with a needle-nose plier into position. Mounting of the spring is done in the position of no tension.
I drove in a thin washer to fix the end of the spring in the groove
Attachments
If this pin still stays in position the window lift may still work. But I recommend to replace it by a new pin.

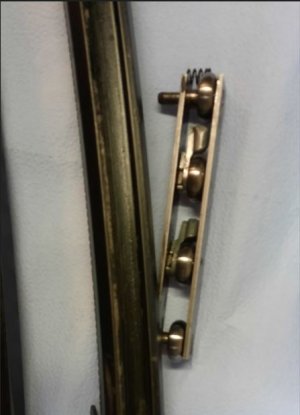

One reason why these pins get bent is high force being applied due to dirty rails and rail rollers. Very often you find huge amounts of hardened grease on these parts.
So get your rails and rollers clean!
Thomas
Last edited:
Lan-renewal of door trim, rubbers, clean and regrease of mechanisms,...
yeah, another big and long one, enjoy...(or suffer ?) ;-) a spring is missing here... yeah, the car was originally white... my god ! what a dirty lock mechanism ! in fact it was blocked and i can not use the key to close it ! a broken door stop...
e9coupe.com
find post #37
Lan-renewal of door trim, rubbers, clean and regrease of mechanisms,...
for the people interested, there is a solution planned for the mechanism spring support, a drawing: it is in production right now... panel is prepared and finished with all the holes done: tip: to make a better fit i opened the holes for the clips to 12mm instead of 11mm, if there is a...
e9coupe.com
Well JamesE30, if you are selling, I am interested. Matter of time before I need one for my E9 or E3.
