Wiring Harness - Insulated Sleeves
- Thread starter NWDBayArea
- Start date
Don has them, just talked to him. I save them from every harness I scrounge too.
I found these, but they are cosmetically much different: https://www.co-star.co.uk/752/male-6-3mm-insulated-quick-connect-disconnect-terminal-block-tbm-24/
Great place for spade sleeves.
www.autoelectricsupplies.co.uk
Terminals & Connectors > Non-insulated & Insulators - Auto Electric Supplies Website
These terminals are normally tin-plated brass,but are sometimes plain brass. They can be either crim...
www.autoelectricsupplies.co.uk
stphers
Well-Known Member
Chris
Funny this comes up, I just sent a message to Goodspeed Auto this AM asking when they would get some more. They have been out of stock for quite some time and I am slowly running out of the ones that I bought about a year and a half ago
Thanks, Rick
Funny this comes up, I just sent a message to Goodspeed Auto this AM asking when they would get some more. They have been out of stock for quite some time and I am slowly running out of the ones that I bought about a year and a half ago
Thanks, Rick
@NWDBayArea : I've located the original manufacturer, and send them an Email a week ago; but no reply yet.
If i book any progress, I'll update.
See other info here on another close match:
e9coupe.com
and the specific connector:
www.rdae.nl
If i book any progress, I'll update.
See other info here on another close match:
Quest for originality; Cable wiring harness tape & PVC connectors?
@sfdon ... i think its time to open a bottle of BROSE ...
e9coupe.com
and the specific connector:
2452 schuifstekkerstrip breed 12-V
schuifstekkerstrip Webshop met auto elektro bedradingsmaterialen voor auto's, motoren, tractoren, boot en camper.
NWDBayArea
Member
I got a hit!
HSU Electronic Components in Omond Beach FL.
Website:http: //www.hsu-components.com
Contact info: [email protected]

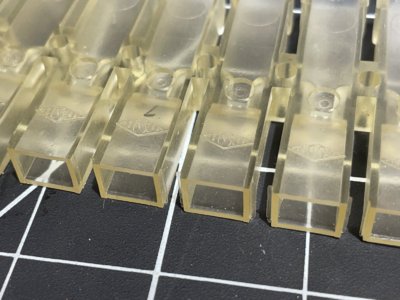

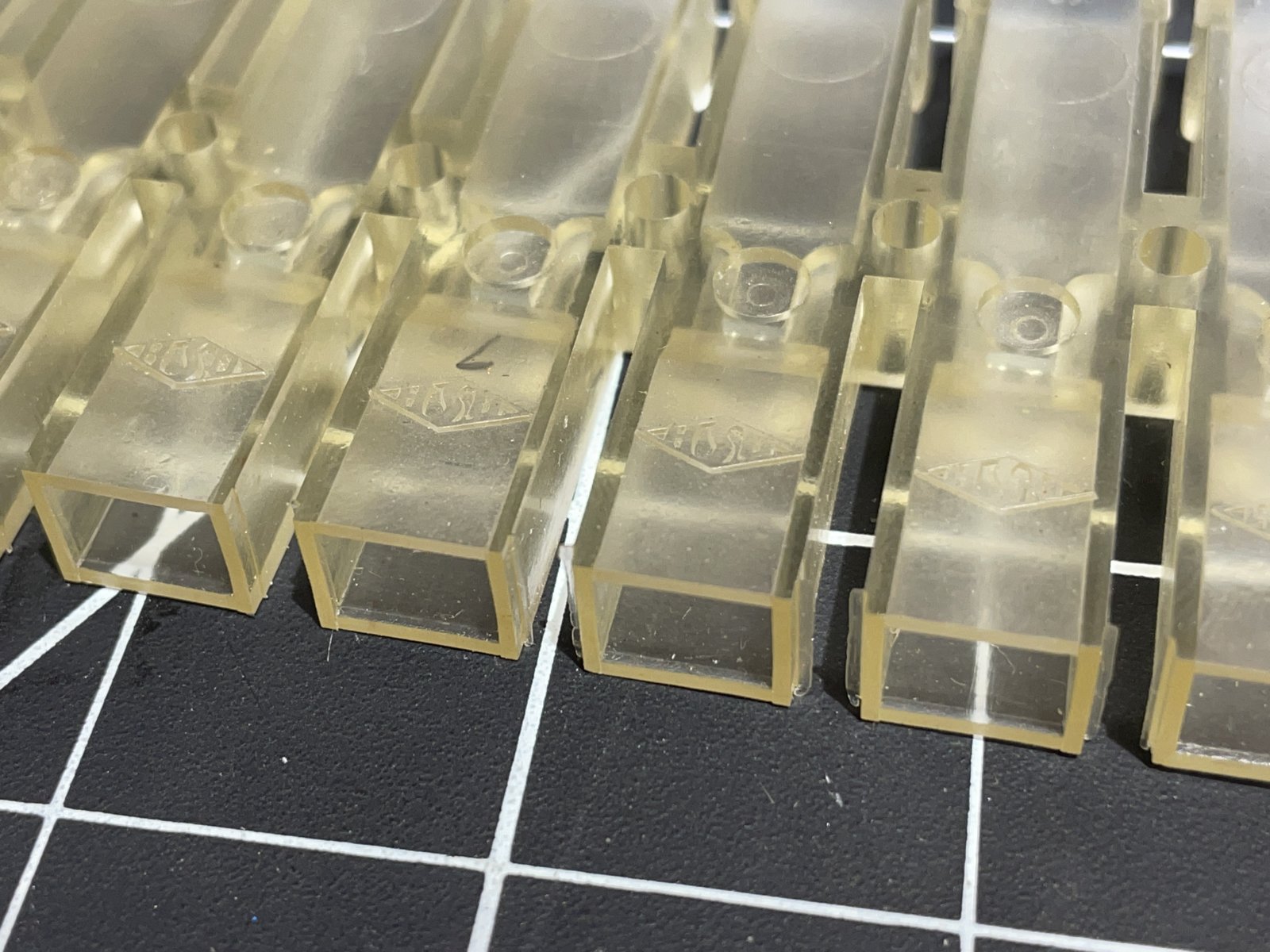

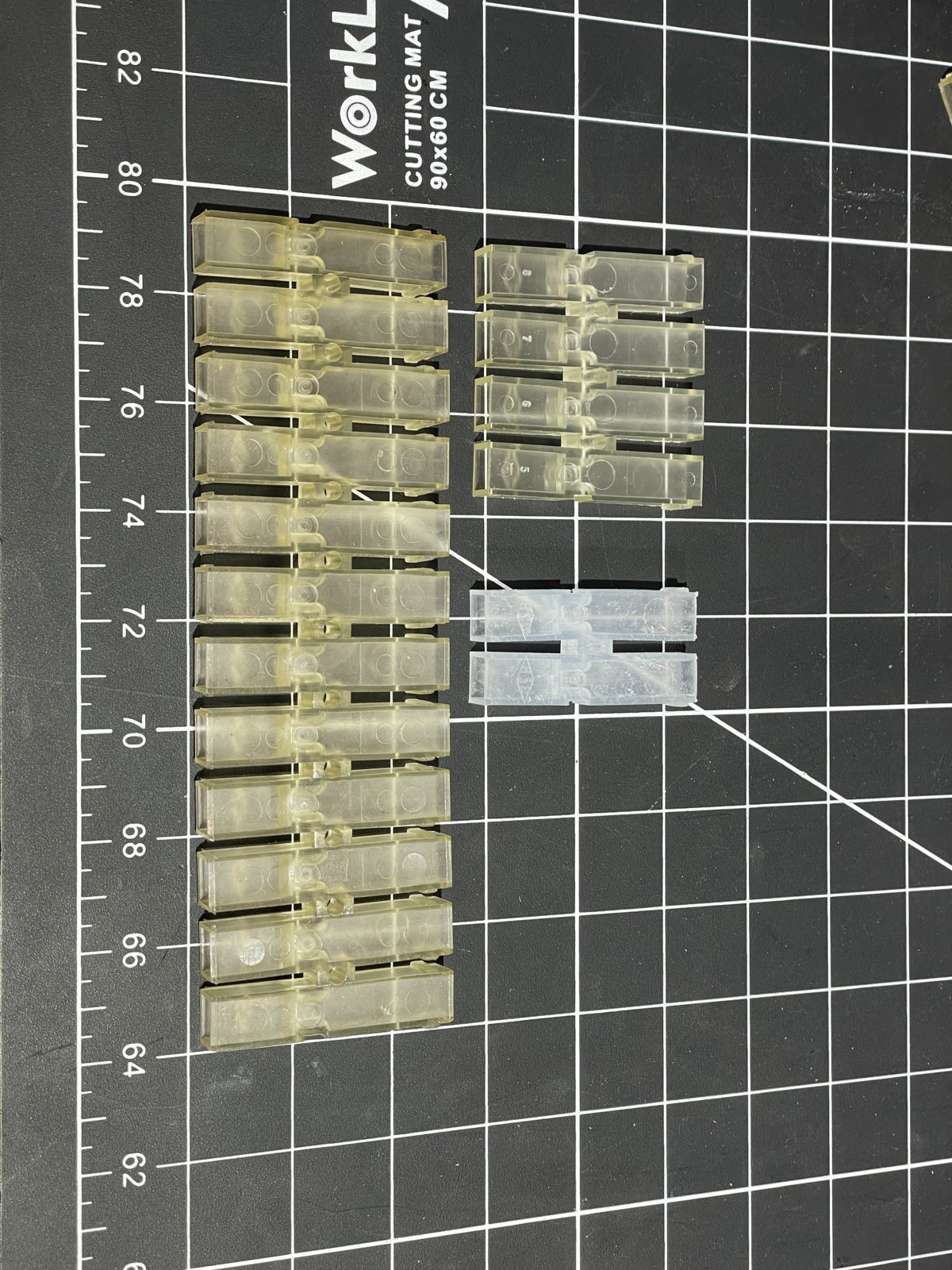

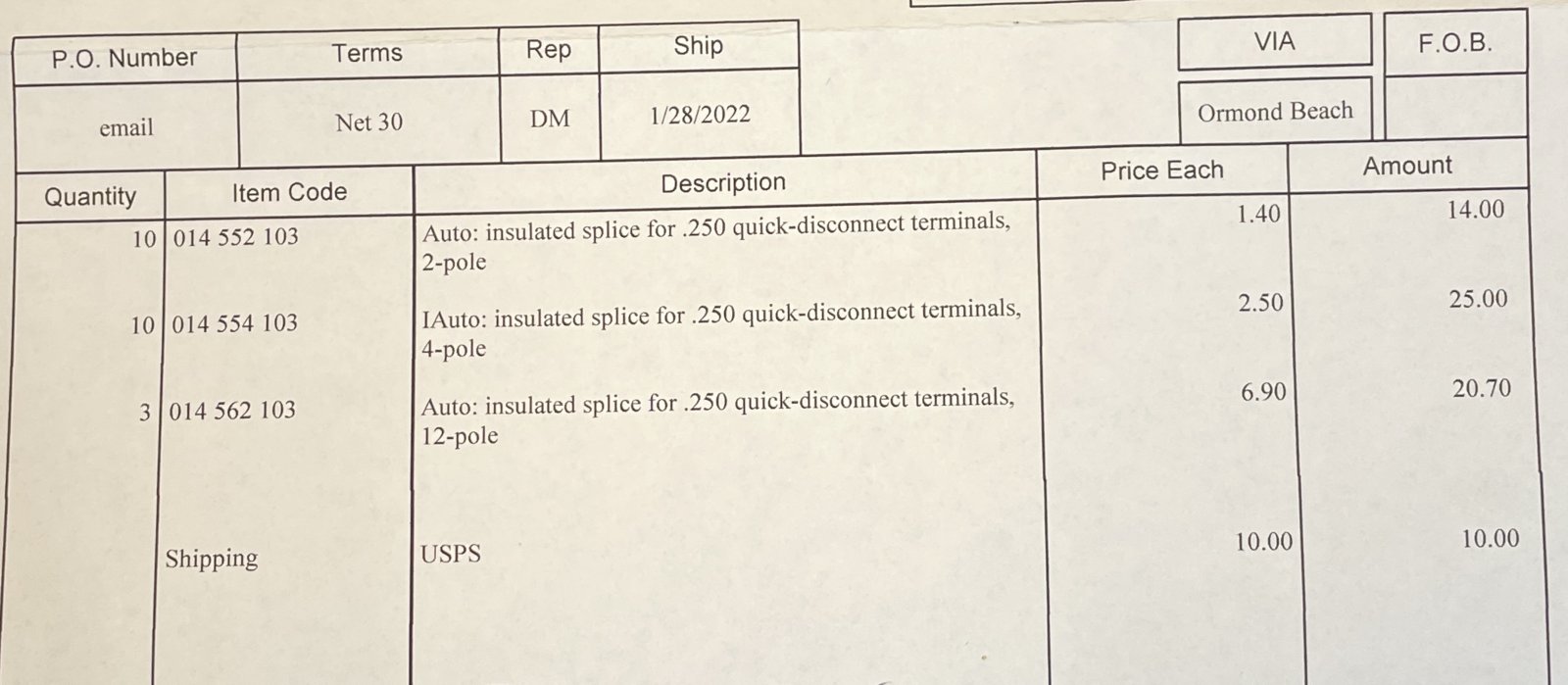

I attached some photos of the sleeves we received. They unfortunately came in two different colors, but the original "HSU" markings make up for this loss. Should make for a clean wiring harness.
Reasonably priced as well.
HSU Electronic Components in Omond Beach FL.
Website:http: //www.hsu-components.com
Contact info: [email protected]
I attached some photos of the sleeves we received. They unfortunately came in two different colors, but the original "HSU" markings make up for this loss. Should make for a clean wiring harness.
Reasonably priced as well.
Attachments
That website says they are in Pleasanton, CA... Not FL. Even better!
I just got a reply yesterday as well from the german HSU office, we can purchase there also directly. Prices relatively cheap, at 10 euro or so for 100 pcs.
Minimum order quantity is 50 euro, so I guess I will be the " European warehouse".
I will order some, including some of the isolation sleeves for the 6.3 female spade connectors.
Minimum order quantity is 50 euro, so I guess I will be the " European warehouse".
I will order some, including some of the isolation sleeves for the 6.3 female spade connectors.
Well, I can count them in my car exactly but it wil be different i think in other cars due to options:
From my mind (I.will update later on with an exact count):
My car is a carbed, May 73 Automatic 3.0, swiss delivered so with internal fog light:
- 2 single ones are taped to the harness as they are empty.
- I have a 5 and 3 version at the fuse box.
- I have have 2 singles at each bottom of A- pillar for front Windows, even through i have manual.
- A double one on the brake booster structure, I think for Automatic connections.
- 1 single on the tiny harness to the steering column.
No clue how this will look for e.g. a injected car or one with fixed rear windows.
From my mind (I.will update later on with an exact count):
My car is a carbed, May 73 Automatic 3.0, swiss delivered so with internal fog light:
- 2 single ones are taped to the harness as they are empty.
- I have a 5 and 3 version at the fuse box.
- I have have 2 singles at each bottom of A- pillar for front Windows, even through i have manual.
- A double one on the brake booster structure, I think for Automatic connections.
- 1 single on the tiny harness to the steering column.
No clue how this will look for e.g. a injected car or one with fixed rear windows.
Our wiring harness has insulation sleeves (connectors) from the HSU company in Germany. I have contacted them recently, and they can supply some parts.
I will order some connectors as i need 3 new ones myself. I need to fill up to reach a minimum order amount to 50 euro anyway, so best to do that with stuff that helps other members. Any Forum members that care to reserve some?
@stphers ; you asked about them?
@Krzysztof : please tell me what amounts & types you'd require.
Cost: the Small sleeve connectors are about 10 cents, the rectangular block ones are 25 cents per wire (+spreading minimal order cost & shipment which will add about+25%). I will ship out @ cost.
If so, please indicate which ones:

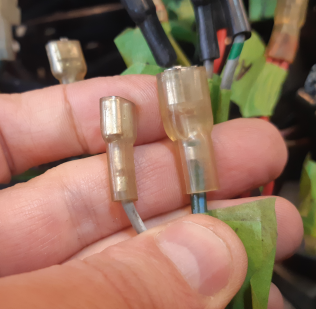

Female connector 6.3 mm Clear PVC sleeve. Not sure if still available, but i'll ask. I did not count them on my car but estimate ~40 of them. 2 different sizes, 20 mm long for wires up to 1,5mm2 and 25 mm long version for bigger diameter wire up to 3 mm2
Thin=20mm long:
Thick=25 mm long:

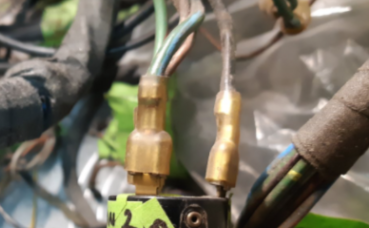

Same; but black sleeve. *THESE ARE STILL AVAILABLE; confirmed by HSU Feb 2022* . See picture with 3 black ones in view: 2 are for thick wire, >3mm2 & 25 mm long, the one at the mouse pointer is for a thin wire up to 1,5 mm2 & 20 mm long.
About 15 thin ones are used, and about 8 thick ones used in engine compartment & at fuse box, at least for my carbed car):
4 versions side by side: left 2*black, right2* clear. top ones thick, bottom ones thin:
See how also the thick version has a rectangular cross section, vs oval for the smaller sleeve?

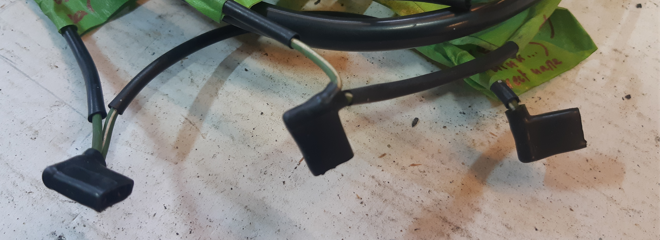

Angled black sleeve: Engine compartment uses 4 for horn connectors, + 5 for a carb harness, possibly also 2 for indicator lights, and 2 for unidentified ones:
Not sure if still available, but i'll ask.

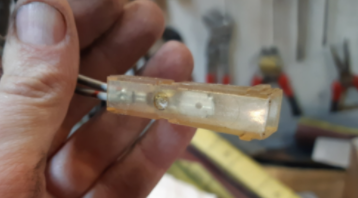

block connector; single: 11 in total in my car: 5 on electrical window harness (also for my car which has just electric rears, the wires to the front windows run tot the lower A-pillar and end up in such a connector each). 3 on engine harness (carbed engine that is). 2 on the large interior+trunk harness. 1 on the short harness that sits above the steering column. *THESE ARE STILL AVAILABLE; confirmed by HSU Feb 2022*

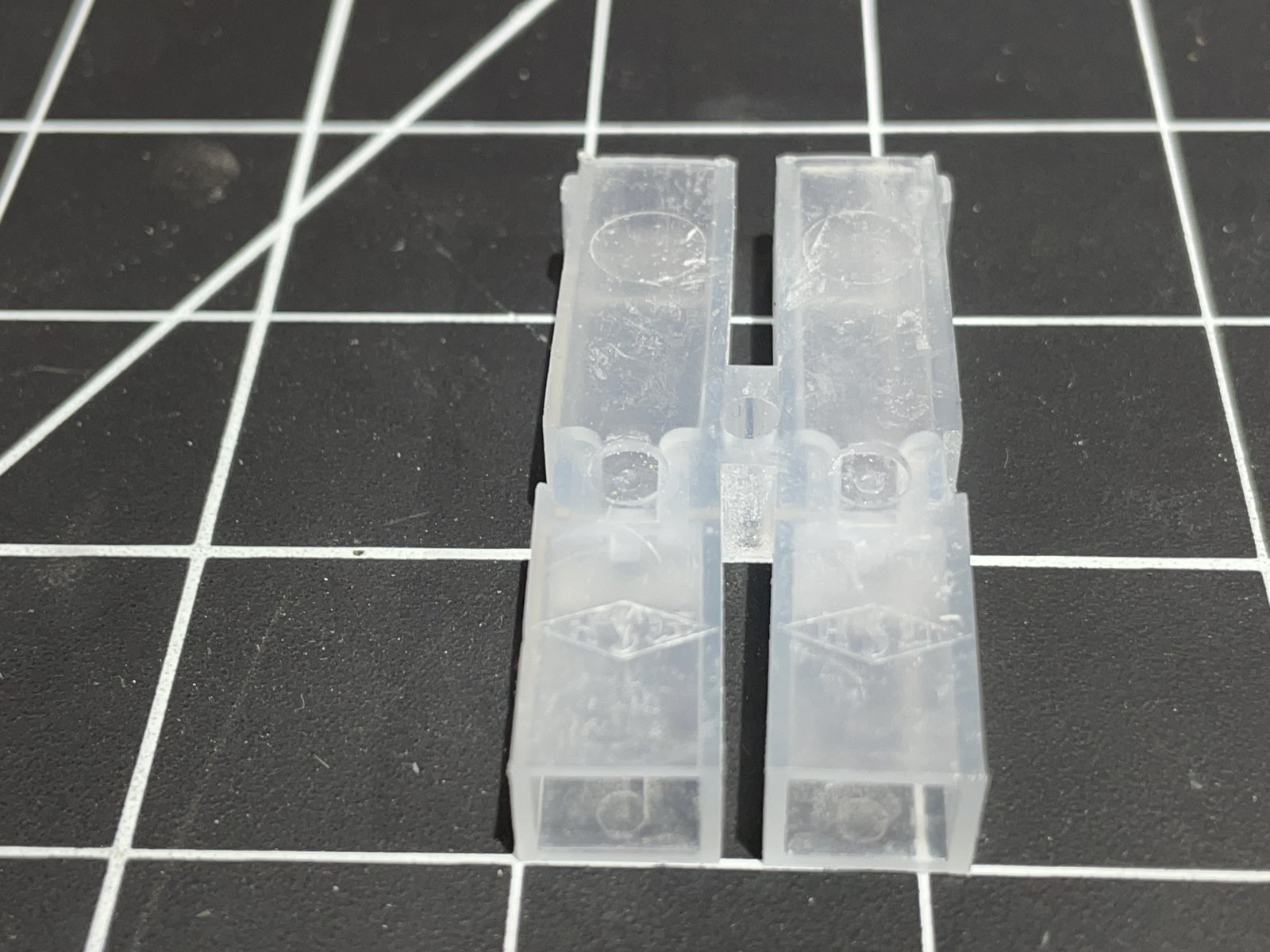

Double connectors are also available from HSU, but I'm not sure if/where used on our cars. None were in my car, but @NWDBayArea has one in his pics, so they must have been used in some versions. (Edit Feb10th, 2022: correction; I do have one in my car; It's on top of the brake booster, containing only a single wire connection to my automatic gearbox). If you need any, let me know. *THESE ARE STILL AVAILABLE; confirmed by HSU Feb 2022*

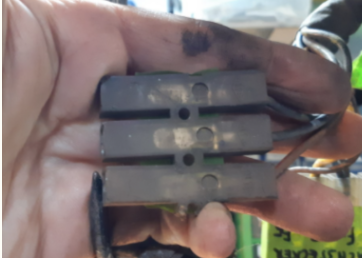

Triple and 5-lead version are not being produced anymore acc HSU-KG. My car has one 3 and one 5-lead version:

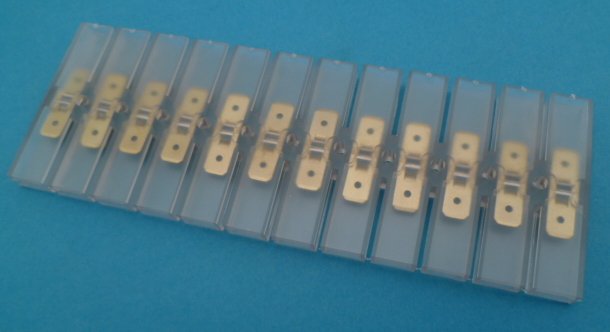

Is there any interest in blocks of more then 2 connectors? if so, then I could ask if HSU has *any* block with more then 3, so we can cut it down to either 3 or 5 as needed.
positive aspect is that you can use the cut-offs as single or double connectors.
(I personally do not have a need for them, but happy to order them for forum members.
Mind you, minimum order quantity is 100 pcs and will cost ~20 euro for 100pcs of 4-lead and ~60 euro for 100 pcs of 12-lead rectangular connectors ! )
I will order some connectors as i need 3 new ones myself. I need to fill up to reach a minimum order amount to 50 euro anyway, so best to do that with stuff that helps other members. Any Forum members that care to reserve some?
@stphers ; you asked about them?
@Krzysztof : please tell me what amounts & types you'd require.
Cost: the Small sleeve connectors are about 10 cents, the rectangular block ones are 25 cents per wire (+spreading minimal order cost & shipment which will add about+25%). I will ship out @ cost.
If so, please indicate which ones:
Female connector 6.3 mm Clear PVC sleeve. Not sure if still available, but i'll ask. I did not count them on my car but estimate ~40 of them. 2 different sizes, 20 mm long for wires up to 1,5mm2 and 25 mm long version for bigger diameter wire up to 3 mm2
Same; but black sleeve. *THESE ARE STILL AVAILABLE; confirmed by HSU Feb 2022* . See picture with 3 black ones in view: 2 are for thick wire, >3mm2 & 25 mm long, the one at the mouse pointer is for a thin wire up to 1,5 mm2 & 20 mm long.
About 15 thin ones are used, and about 8 thick ones used in engine compartment & at fuse box, at least for my carbed car):
See how also the thick version has a rectangular cross section, vs oval for the smaller sleeve?
Angled black sleeve: Engine compartment uses 4 for horn connectors, + 5 for a carb harness, possibly also 2 for indicator lights, and 2 for unidentified ones:
Not sure if still available, but i'll ask.
block connector; single: 11 in total in my car: 5 on electrical window harness (also for my car which has just electric rears, the wires to the front windows run tot the lower A-pillar and end up in such a connector each). 3 on engine harness (carbed engine that is). 2 on the large interior+trunk harness. 1 on the short harness that sits above the steering column. *THESE ARE STILL AVAILABLE; confirmed by HSU Feb 2022*
Double connectors are also available from HSU, but I'm not sure if/where used on our cars. None were in my car, but @NWDBayArea has one in his pics, so they must have been used in some versions. (Edit Feb10th, 2022: correction; I do have one in my car; It's on top of the brake booster, containing only a single wire connection to my automatic gearbox). If you need any, let me know. *THESE ARE STILL AVAILABLE; confirmed by HSU Feb 2022*
Triple and 5-lead version are not being produced anymore acc HSU-KG. My car has one 3 and one 5-lead version:
Is there any interest in blocks of more then 2 connectors? if so, then I could ask if HSU has *any* block with more then 3, so we can cut it down to either 3 or 5 as needed.
positive aspect is that you can use the cut-offs as single or double connectors.
(I personally do not have a need for them, but happy to order them for forum members.
Mind you, minimum order quantity is 100 pcs and will cost ~20 euro for 100pcs of 4-lead and ~60 euro for 100 pcs of 12-lead rectangular connectors ! )
Attachments
Last edited:
Another type of connector from HSU is on my carb harness; 2 of them. This one is however not stocked by HSU anymore, so i won't be ordering this one.
If your looking for one, my only suggestion would be to cannibalize another e3/e9.

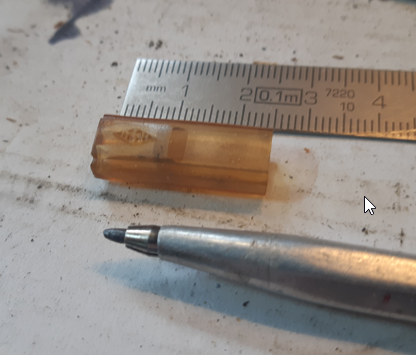

25 mm long, rectangular cross section, for 6.3 female spade connector.
If your looking for one, my only suggestion would be to cannibalize another e3/e9.
25 mm long, rectangular cross section, for 6.3 female spade connector.
Thanks Erik for summary and your willingness for bulk order.

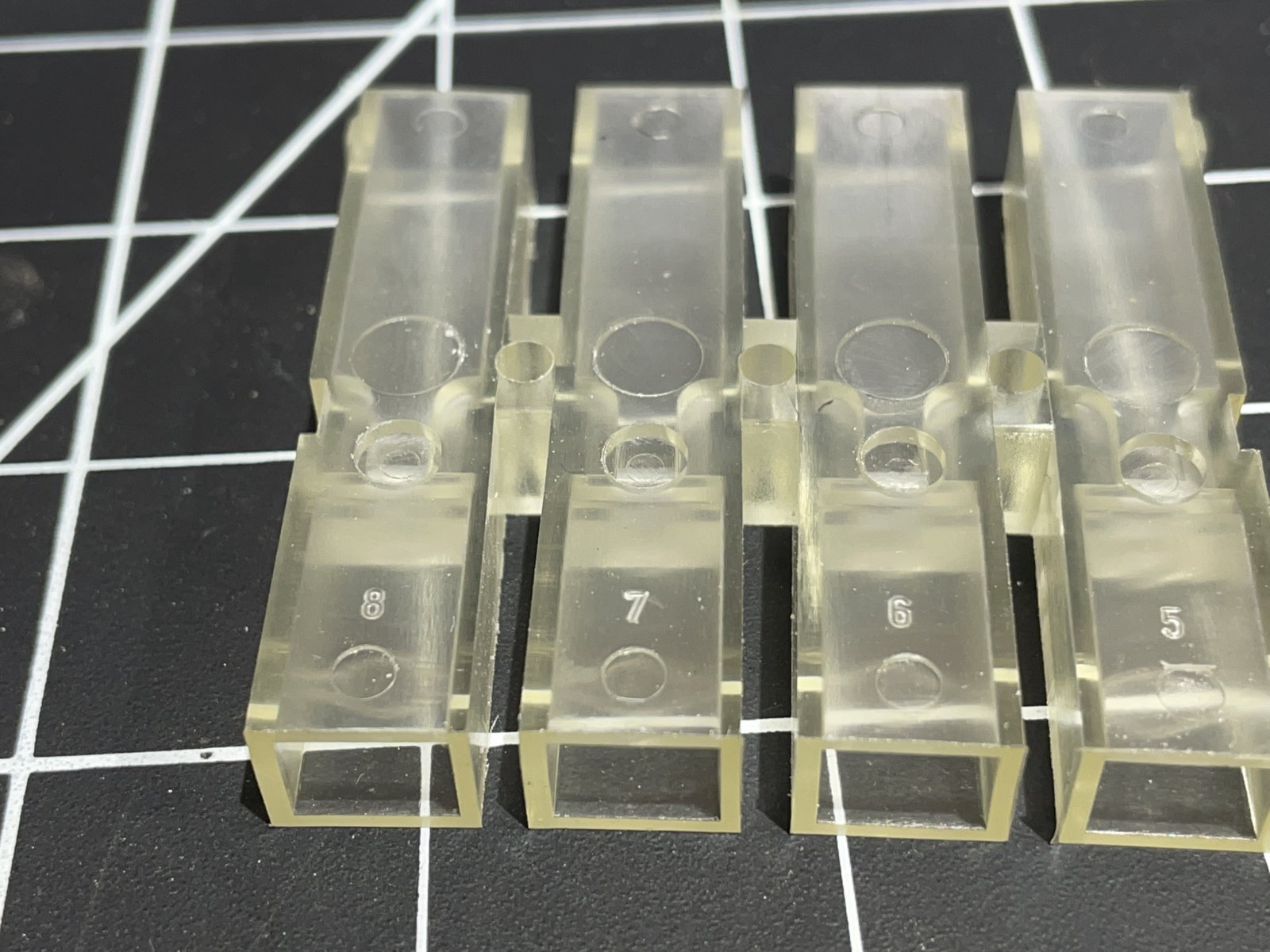

I think HSU is not producing 3 or 4-way but the row of some higher number which can be cut into pieces. Does it mean they only have single type?
It is visible they've been cut/broken from the row
This is important for me to understand before summary from my side.
I think HSU is not producing 3 or 4-way but the row of some higher number which can be cut into pieces. Does it mean they only have single type?
It is visible they've been cut/broken from the row
This is important for me to understand before summary from my side.
NWDBayArea
Member
Attachments
NWDBayArea
Member
In addition, I believe there are two singles in the trunk (one by the light switch and another under the floor near the spare tire) and an additional single attaching the hood light harness. However, you might heave been referring to those as the empty singles and in that case this is repetitive.

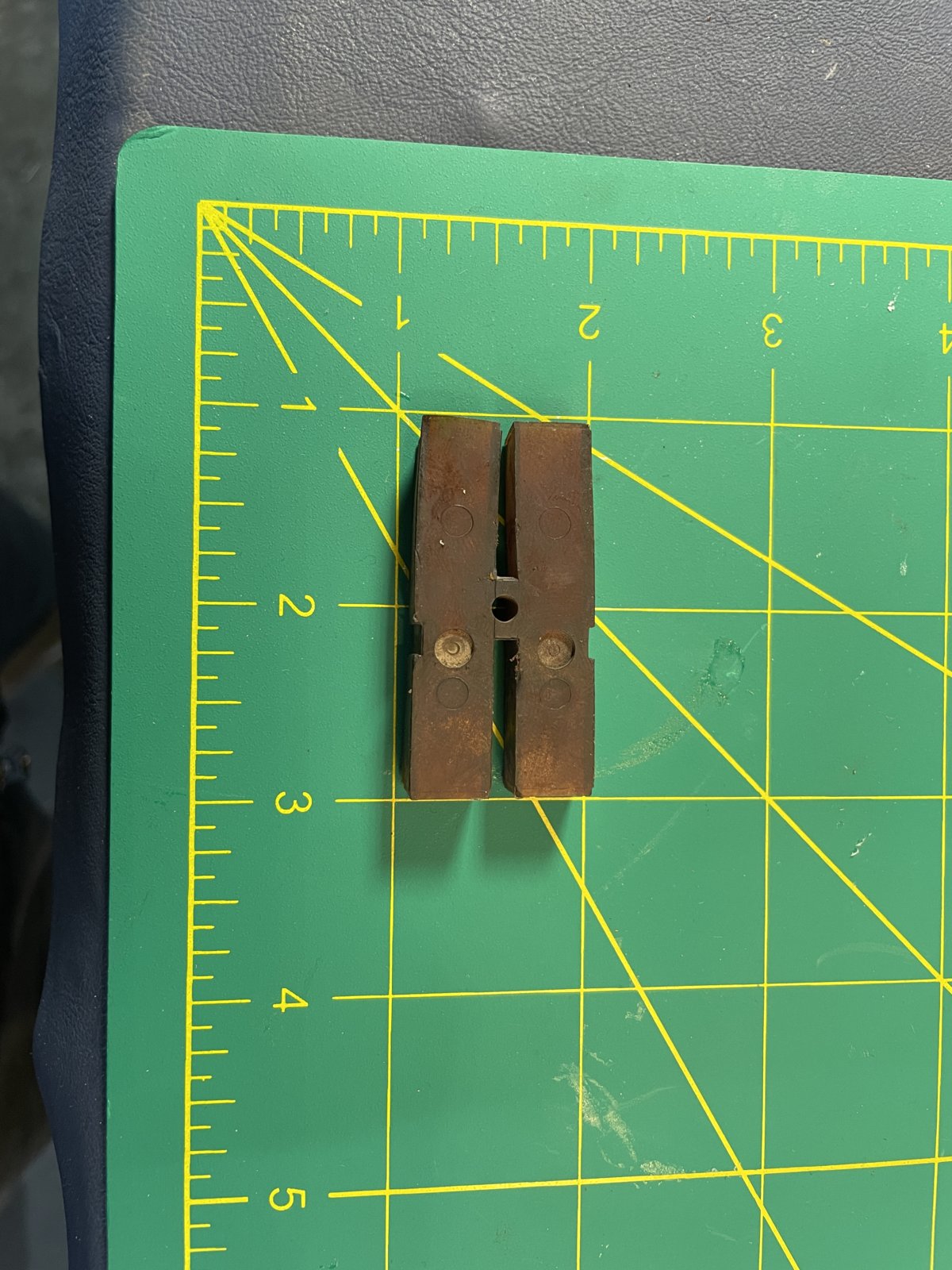

I also have a set of doubles (not singles) near the A-pillar by the kick panels (the connection point for the window motor harness in the driver and passenger doors).
There will be an additional set of doubles if you have a seatbelt indicator on your dash
I guess i should have doubles then as well in the lower A-pillars fro the front windows, but they must have been split by a PO into 2 seperate ones.
I only know that today they at least sell singe and double. They do not have 3 and 5. I did not ask about sets with 4, 6 or higher, so they may still have those. I will ask them.

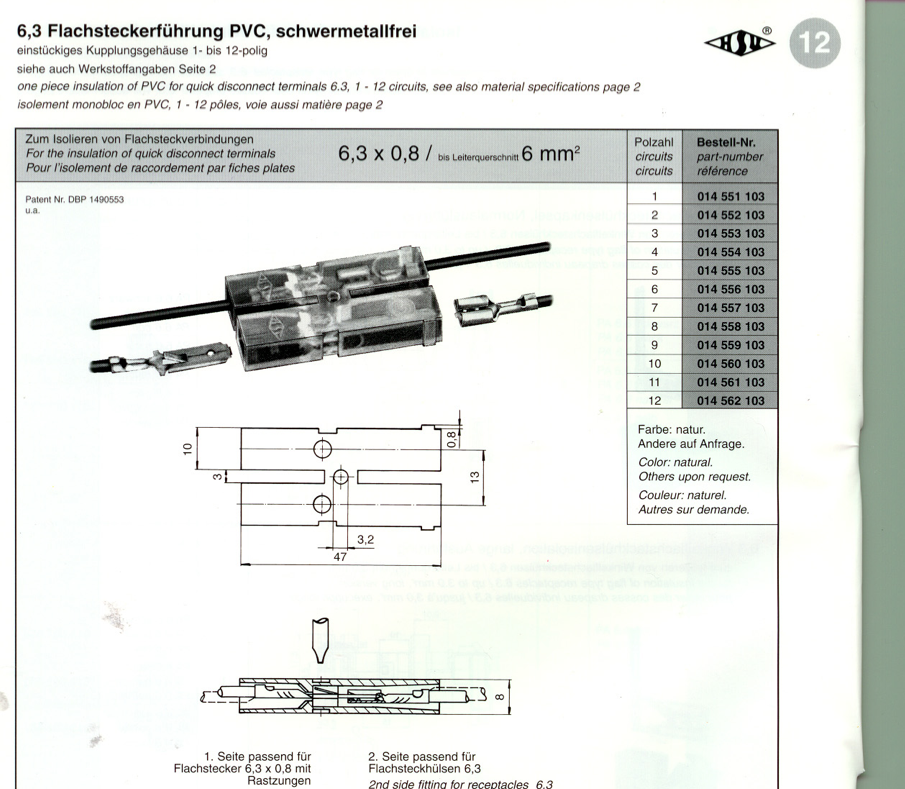

If they do have >6 -wire version, we of course could buy a 12-wire version, and cut into a 5, 3 and 2 doubles (for instance). But for purists, they have numbers on them.... a 3-wire one has 1-2-3 on them....if you have it reading 10-11-12 then well... I couldn't sleep
